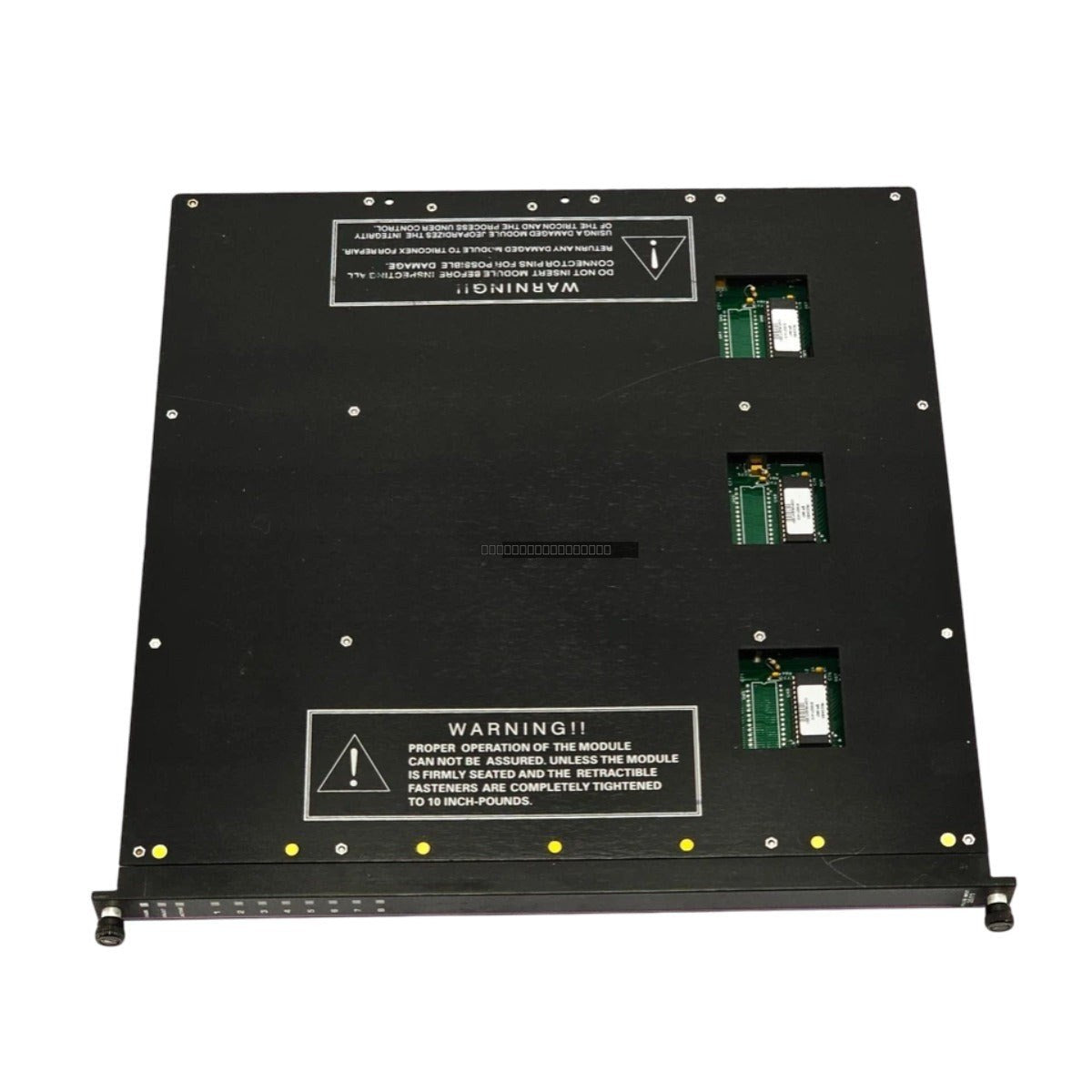

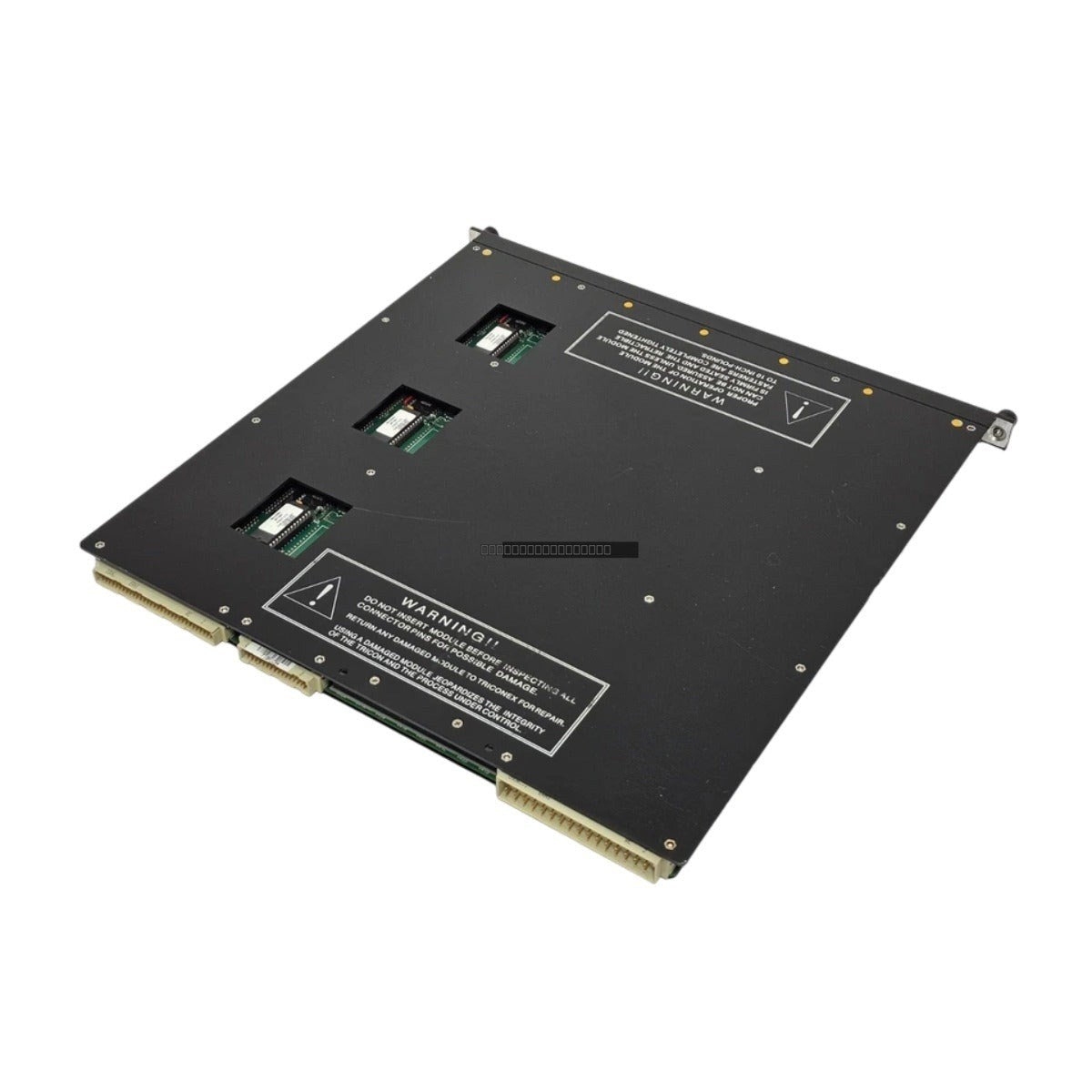

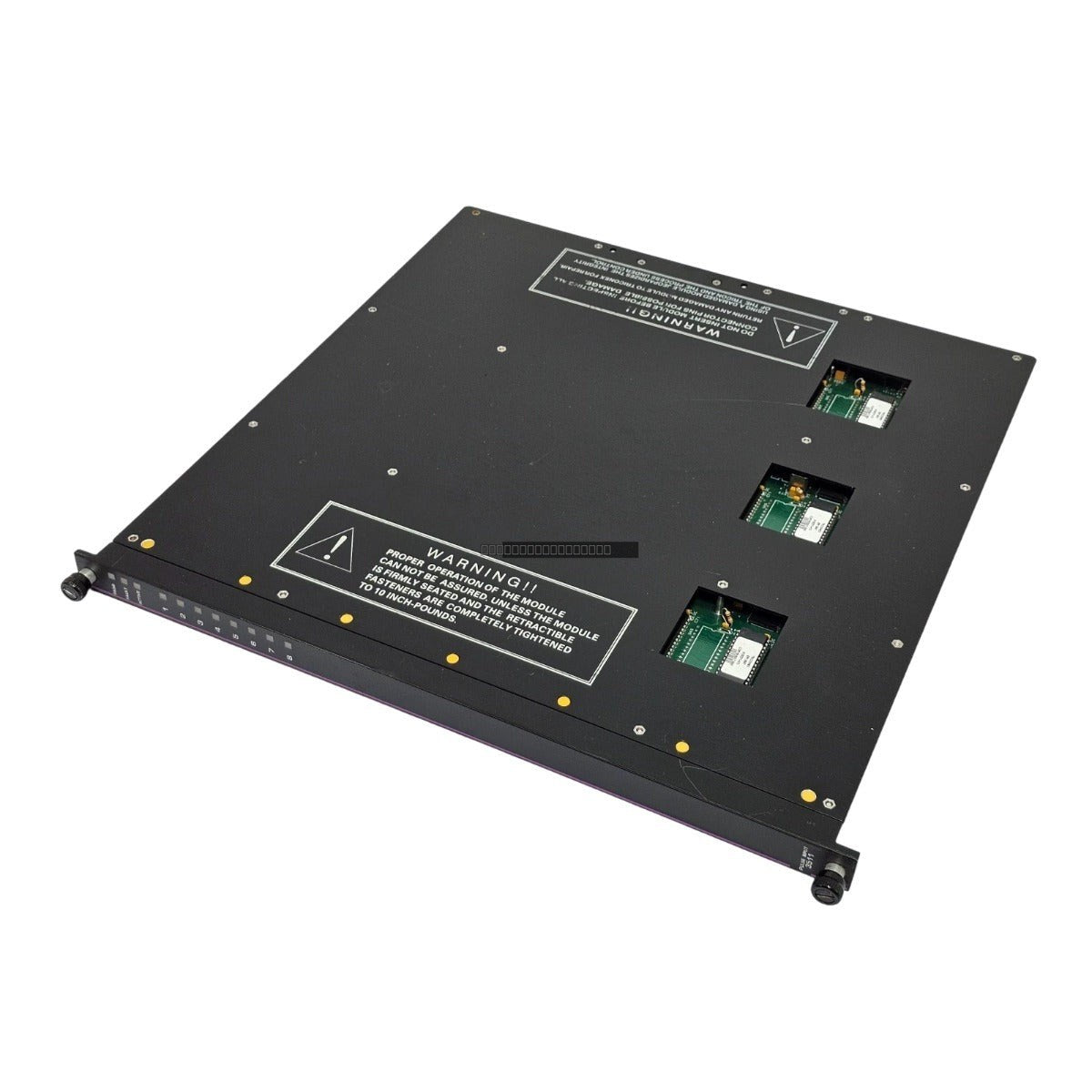

The Triconex 4107 Enhanced Intelligent Communication Module (EICM) serves as a high-performance interface for the Triconex Triple Modular Redundancy (TMR) safety system. Engineered for critical safety applications in environments such as petrochemical plants, offshore platforms, and power generation facilities, this module enables robust serial communication between the Tricon controller and external devices, including Distributed Control Systems (DCS) and operator workstations. By managing complex data protocols independently of the main processors, the 4107 ensures that safety functions remain uninterrupted even during high network traffic, providing real-time diagnostics and rapid data throughput to minimize system latency.
Features
- Supports RS-232, RS-422, and RS-485 physical communication standards.
- Offloads communication tasks from the main TMR processors to maintain deterministic system performance.
- Handles low-level processing of Modbus (Master/Slave) and proprietary Triconex protocols.
- Features sophisticated CRC validation and parity checking for enhanced data integrity.
- Supports peer-to-peer networking for safety-critical interlocking data exchange between multiple Tricon chassis.
- Provides strict electrical isolation for reliable operation in industrial environments.
Applications
The EICM 4107 is designed for critical safety-instrumented systems (SIS) where reliable communication with external supervisory control systems is required. Typical applications include emergency shutdown systems (ESD), fire and gas detection, and critical process control loops in hazardous industrial environments.
Technical Specifications
| Model |
EICM 4107 |
| Brand |
Triconex (Schneider Electric) |
| Module Type |
Enhanced Intelligent Communication Module |
| Operating Temperature |
0 to 60 deg C |
| Weight |
1.5 kg |
Installation Guidelines
- Ensure the Tricon chassis is powered down before inserting or removing the EICM module to prevent electrical damage.
- Verify that the module is fully seated in the designated slot and that the locking mechanisms are engaged.
- Use shielded communication cables to minimize electromagnetic interference (EMI) in industrial environments.
- Ensure proper grounding of the communication cable shields at the designated termination points.
- Maintain adequate ventilation around the chassis to ensure operating temperatures remain within the 0 to 60 deg C range.
- Follow standard ESD (Electrostatic Discharge) handling procedures when touching the module circuitry.
FAQ
What is the primary function of the EICM 4107?
The EICM 4107 acts as a communication gateway for the Triconex TMR system, allowing the controller to communicate with external devices like DCS or HMIs without impacting the performance of the safety-critical main processors.
Does this module support Modbus communication?
Yes, the 4107 supports both Modbus Master and Slave configurations, handling the protocol processing locally on the module.
Can this module be used for peer-to-peer communication?
Yes, the module supports peer-to-peer networking, enabling the exchange of safety-critical data between different Tricon chassis over serial links.
