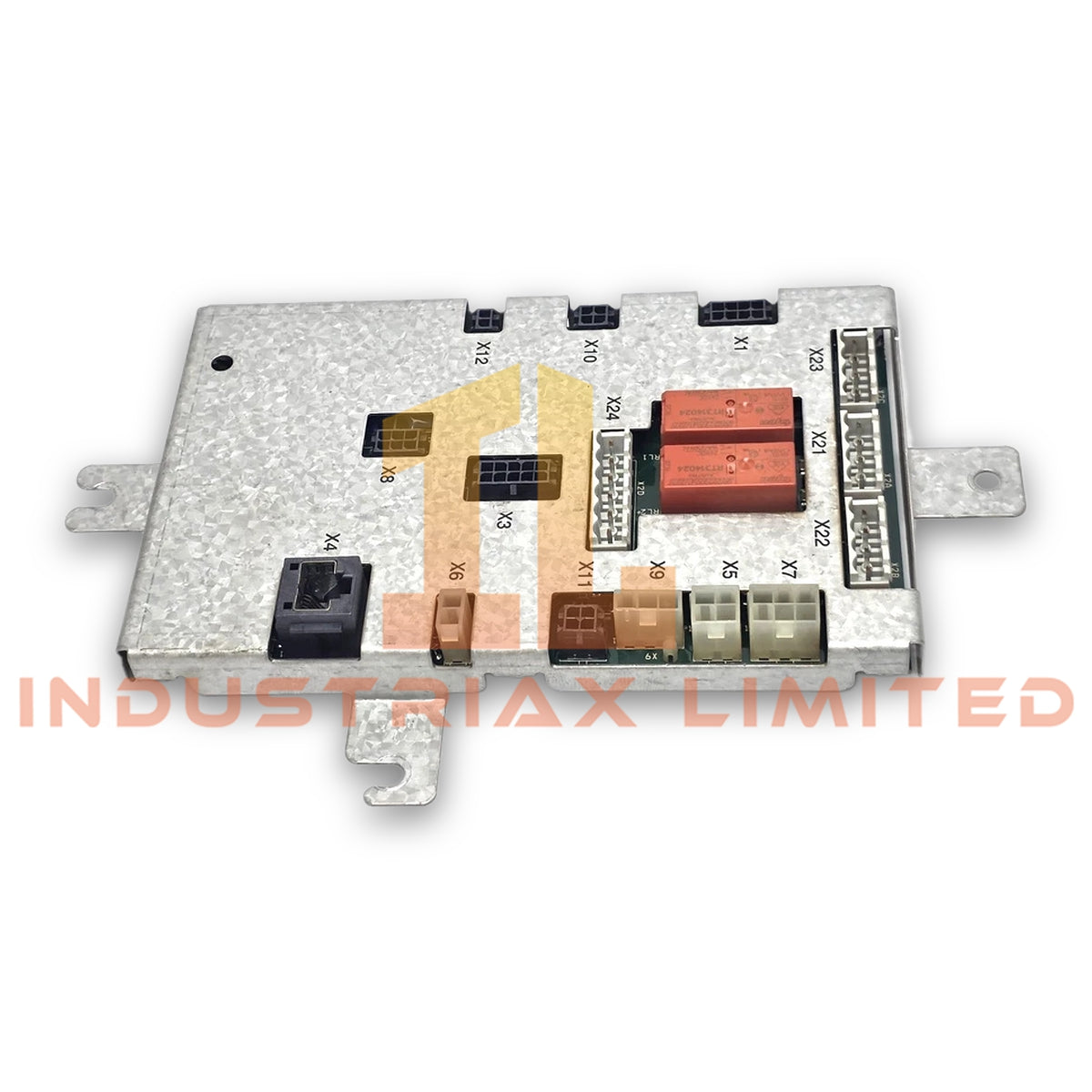

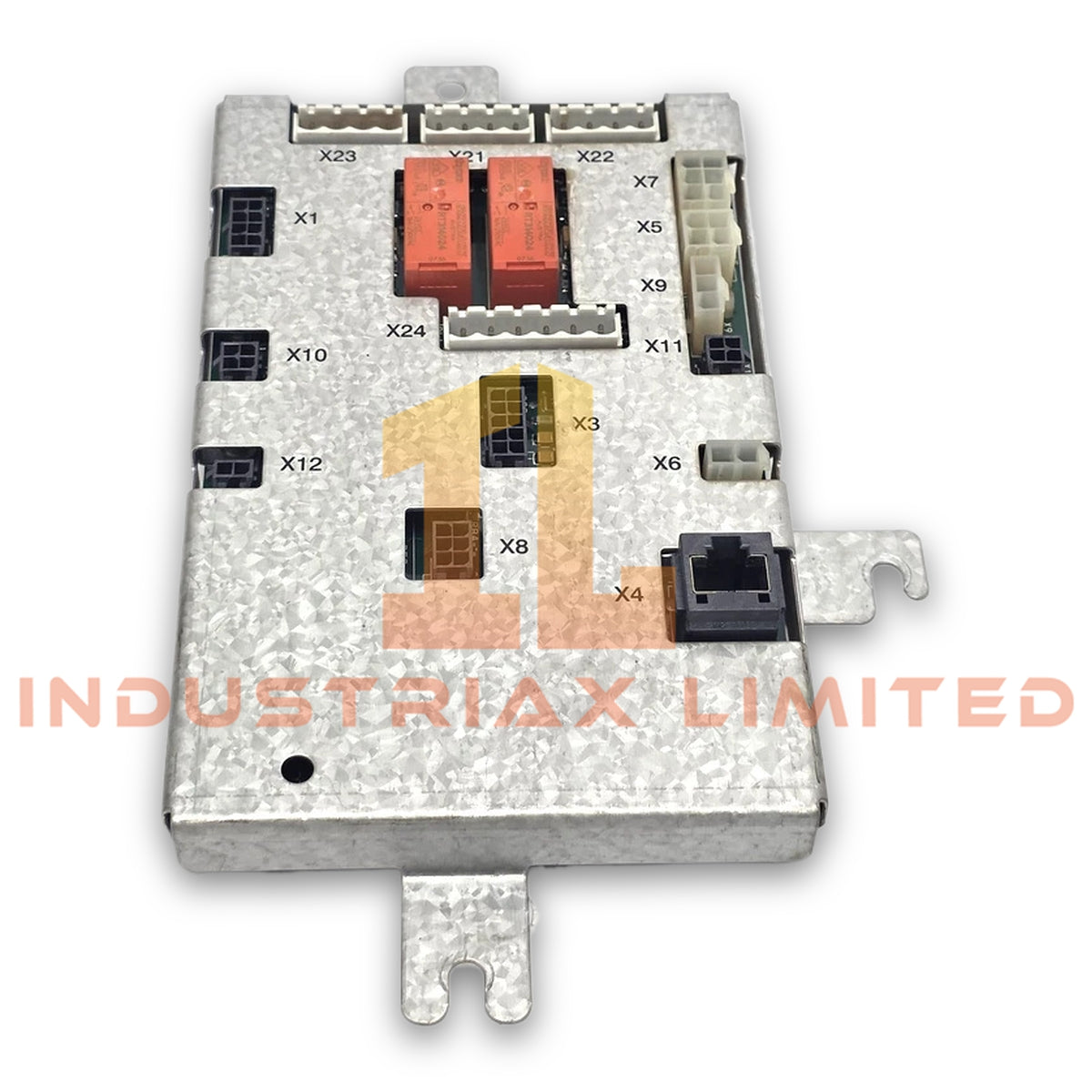

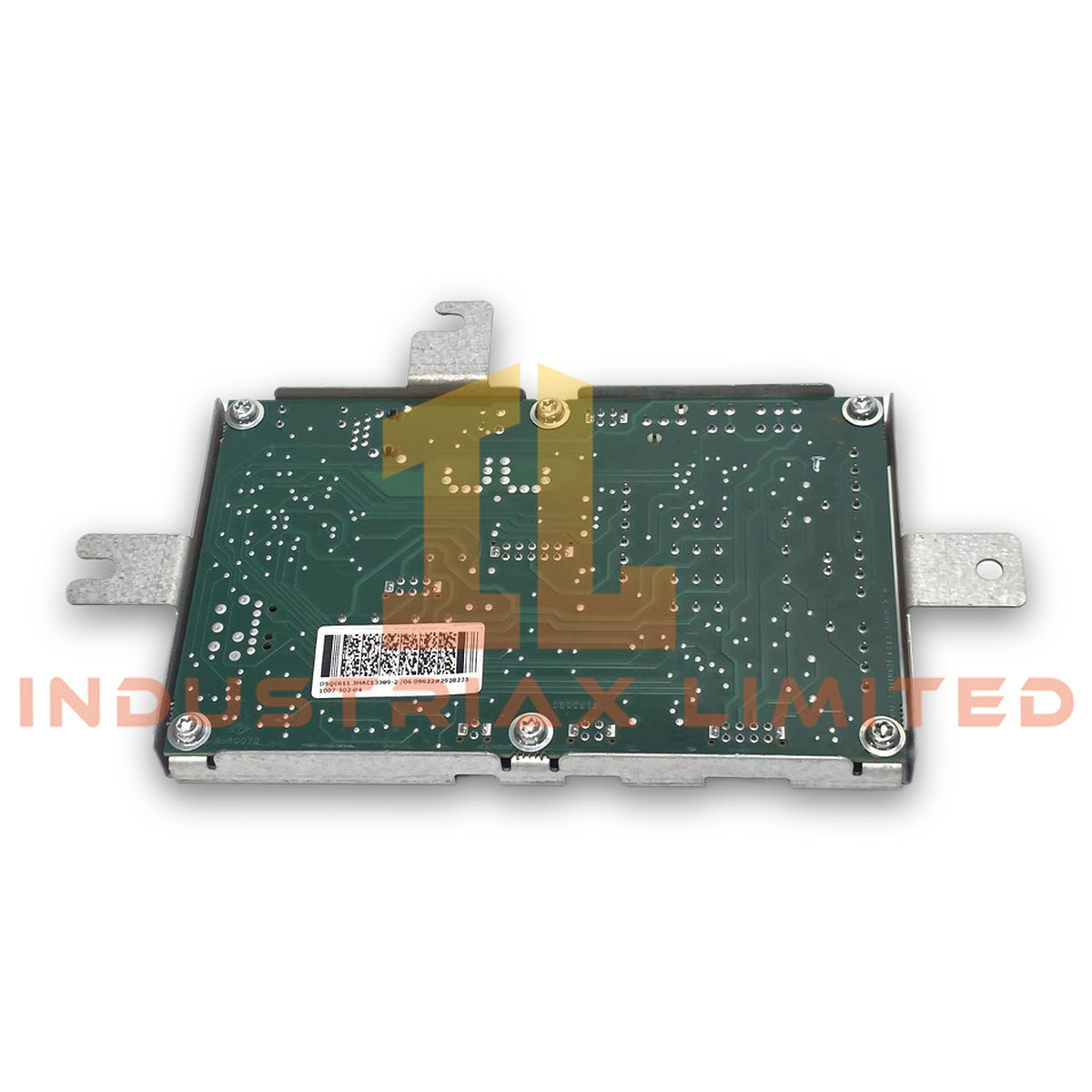

ABB DSQC611 Contactor Unit

Configured for main power switching and contactor control in ABB robot controller power circuits, the ABB DSQC611 3HAC13389-2 (DSQC611 Contactor Unit) provides direct electrical switching within the controller architecture. The unit uses terminal and connector interfaces for integration with the associated power and safety circuits.

Hardware Specifications

Parameter	Specification
Model	DSQC611
Part Number	3HAC13389-2
Brand	ABB
Product Type	Contactor Unit
Application	ABB Robot Control Systems
Function	Main power switching and power distribution control
Interface	Screw terminal blocks and keyed connectors
Enclosure Material	Galvanized steel / industrial-grade housing
Origin	Sweden
Net Weight	Approx. 0.14 kg
Gross Weight	Approx. 0.34 kg
Operating Temp	0 deg C to +55 deg C
Storage Temp	-25 deg C to +70 deg C
Power Consumption	Not specified in supplied data

ABB Industrial Control and Power Switching

The DSQC611 performs an electrical switching function rather than processing fieldbus data or application logic. Therefore, installation focuses on correct contactor-circuit wiring, terminal identification, and controller power isolation.

ABB controller architectures can also incorporate backplane communication and deterministic industrial networks at the system level. However, the supplied data does not identify a specific backplane protocol or network interface for the DSQC611.

The galvanized steel housing provides mechanical protection for the installed contactor circuitry. Consequently, wiring should maintain adequate separation from unrelated high-energy conductors and follow the controller manufacturer's wiring arrangement.

Frequently Asked Questions (FAQ)

Q: Is the DSQC611 a programmable controller or I/O card?
A: No. The DSQC611 is identified as a Contactor Unit for power switching and distribution functions within ABB robot control equipment.

Q: Does the supplied specification confirm hot-swap operation?
A: No. The supplied data provides no hot-swap specification. The controller should therefore be fully de-energized before replacement.

Q: Does the DSQC611 have a specified power consumption value?
A: No. The supplied technical information does not provide a power consumption or coil-current specification.

Field Installation Guidelines

1. Isolate the robot controller from all applicable power sources before installation or replacement.
2. Verify that stored electrical energy has discharged before accessing the contactor unit.
3. Identify each terminal and connector against the applicable ABB controller wiring documentation.
4. Route power conductors separately from low-level signal wiring where the controller installation requires separation.
5. Secure all screw terminals according to the applicable ABB tightening specification.
6. Inspect connectors for bent contacts, contamination, or mechanical damage before reconnection.
7. Maintain the original conductor routing and protective-earth arrangement after replacement.
8. Perform continuity and wiring checks before restoring controller power.
9. Confirm correct contactor operation through the controller's approved commissioning procedure.
