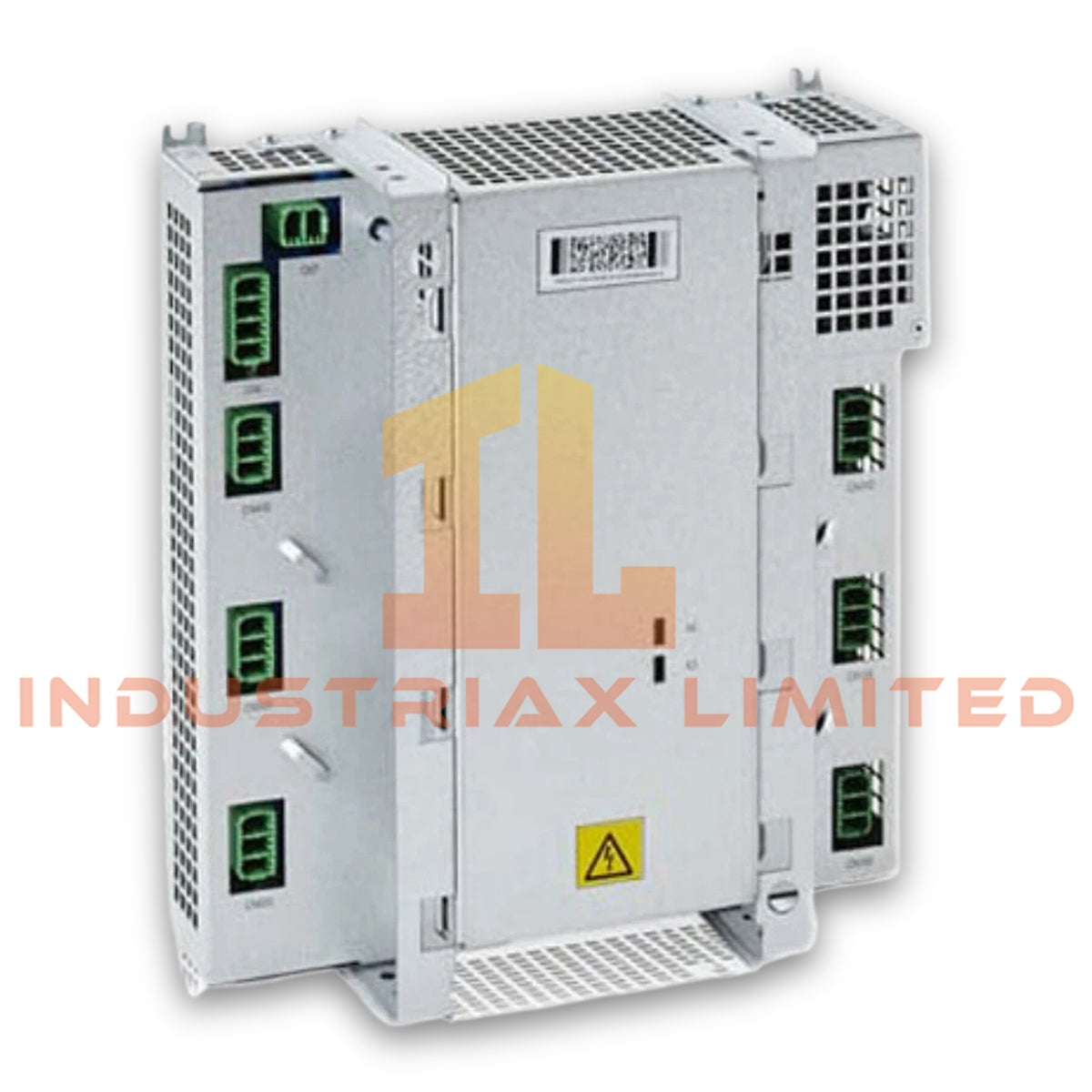

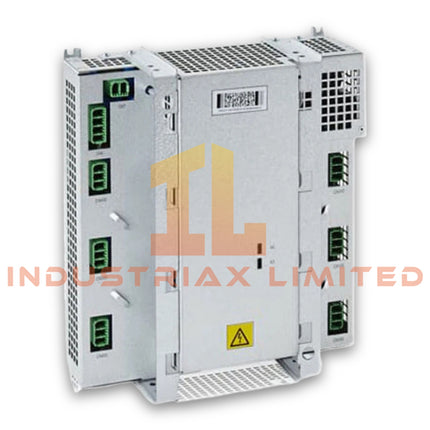

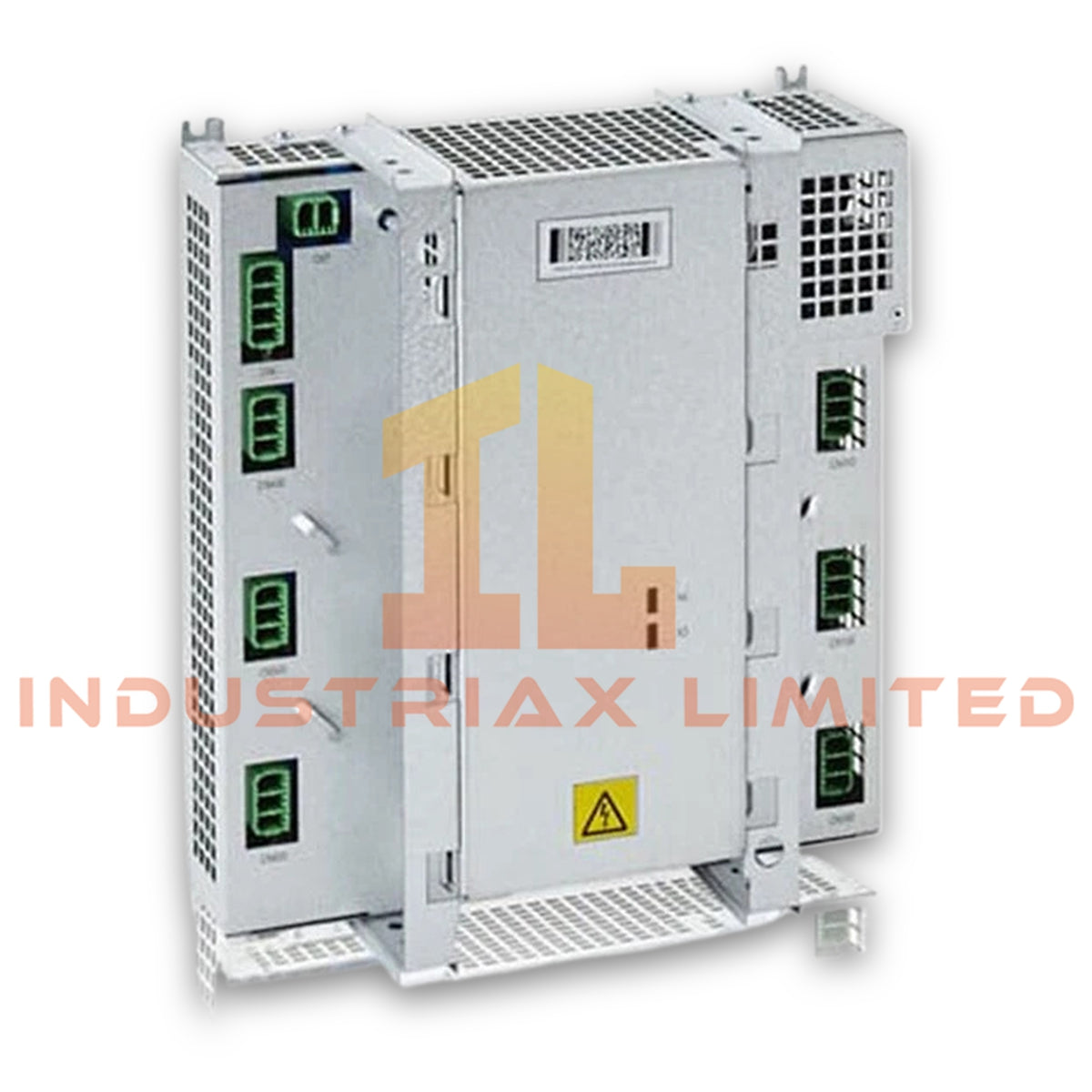

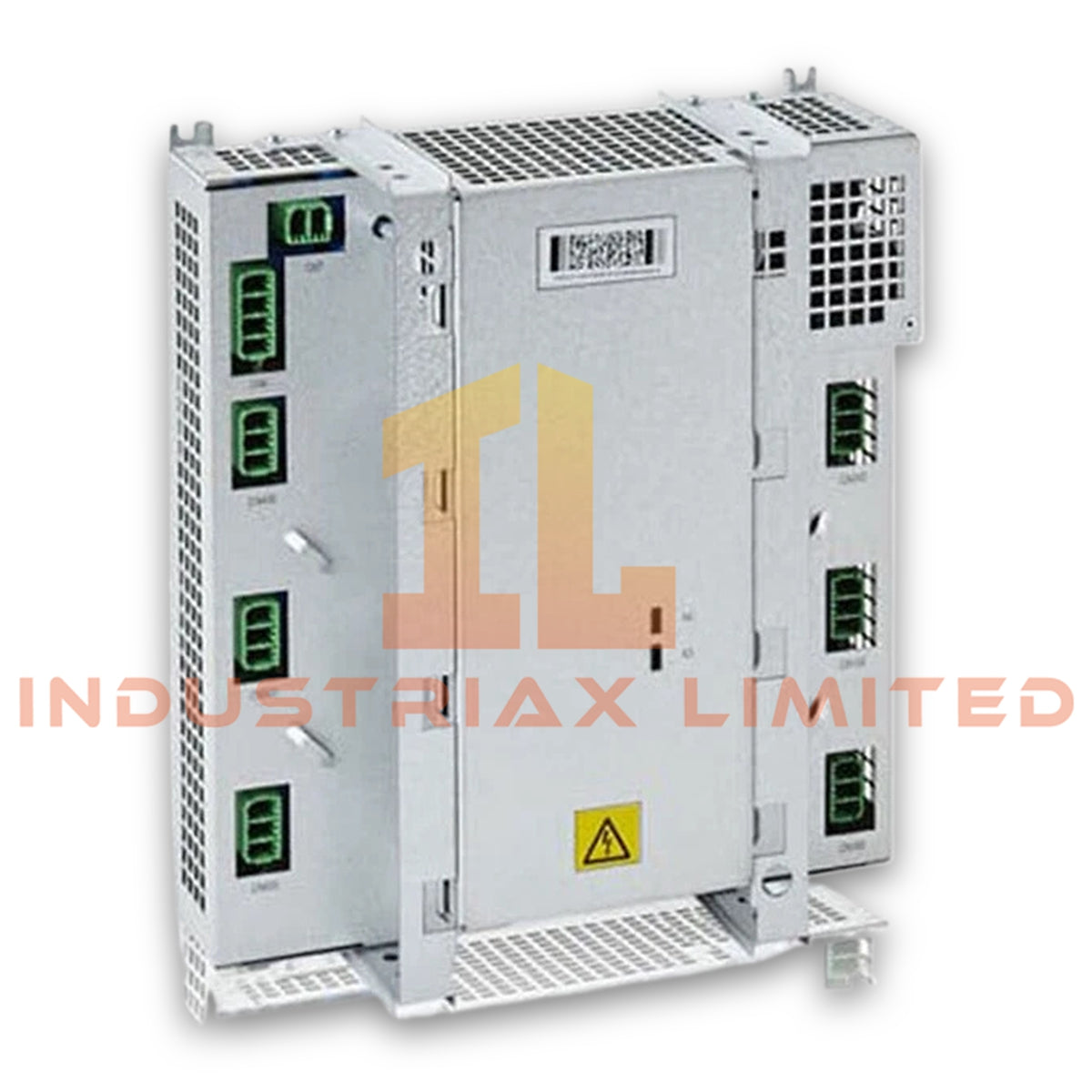

ABB DSQC431 LVMC MDU
The ABB DSQC431 3HAC036260-001, also cataloged as the DSQC431 LVMC MDU, operates as a dedicated hardware component for motor drive execution and power control within ABB IRC5 robot controller platforms.
Hardware Specifications
Parameter
Specification
Model
DSQC431
Brand
ABB
Product Type
LVMC MDU / Motor Drive Unit Module
Part Number
3HAC036260-001
System Compatibility
ABB IRC5 Robot Controller
Origin
Sweden
Weight
Approx. 0.65 kg
Power Consumption
System dependent, based on robot controller drive configuration
Primary Function
Servo motor power control, drive signal processing, and axis motion execution
Application Interface
ABB robot motion control architecture
Industrial Drive Communication and Control Characteristics
The ABB DSQC431 LVMC MDU operates within the ABB IRC5 drive architecture to manage motor control signals and power conversion paths. It processes drive commands from the robot controller and transfers controlled electrical power to servo motors for axis movement.
Furthermore, the module integrates with ABB industrial control hardware through the controller backplane communication structure. The unit supports deterministic motion execution requirements by maintaining coordinated communication between controller processors, drive electronics, and robot axis motors.
The DSQC431 follows ABB industrial drive module design principles, including firmware flash compatibility considerations and hardware revision matching during replacement procedures. Proper module identification ensures compatibility with the installed IRC5 controller configuration.
Frequently Asked Questions
Q: Is the ABB DSQC431 3HAC036260-001 compatible with all ABB IRC5 controllers? A: The DSQC431 is designed for ABB IRC5 controller systems. Compatibility depends on the installed controller hardware configuration, firmware revision, and drive system arrangement.
Q: Does the DSQC431 support direct motor connection without controller configuration? A: No. The module requires integration with the ABB IRC5 controller drive architecture. Motor parameters, controller settings, and hardware configuration must match the installed robot system.
Q: What should be checked before replacing a DSQC431 module? A: Verify the part number, hardware revision, connector arrangement, and controller configuration before installation. The replacement procedure should follow ABB service documentation and electrical safety requirements.
Field Installation Guidelines
Confirm that the robot controller power supply is fully isolated before removing or installing the DSQC431 module.
Verify all electrical connectors, locking mechanisms, and mounting points before energizing the system.
Maintain correct cable routing to prevent interference between motor power wiring and control signal wiring.
Check grounding connections according to ABB controller installation requirements to maintain electrical noise control.
Confirm firmware and hardware compatibility after replacement before restoring normal robot operation.
