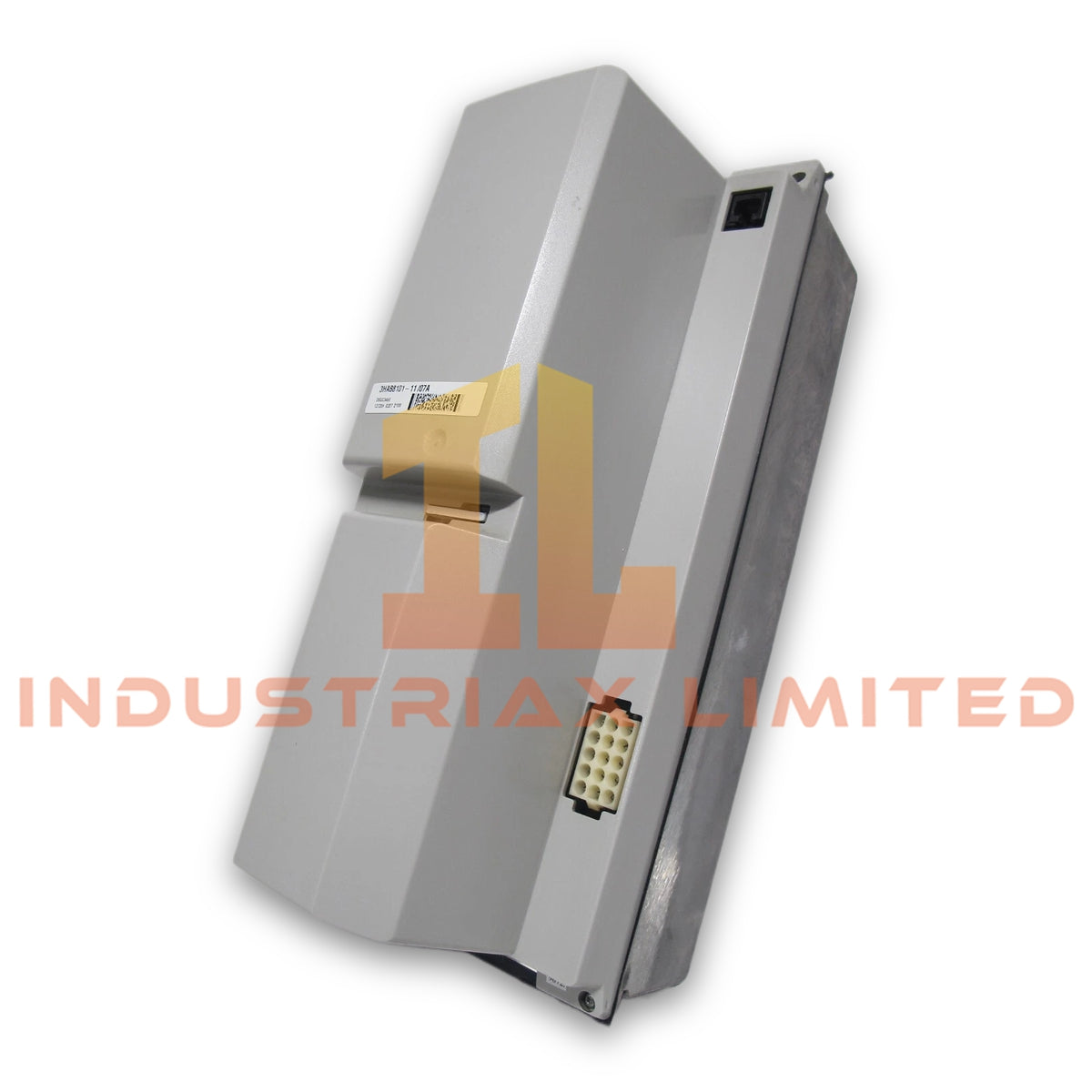

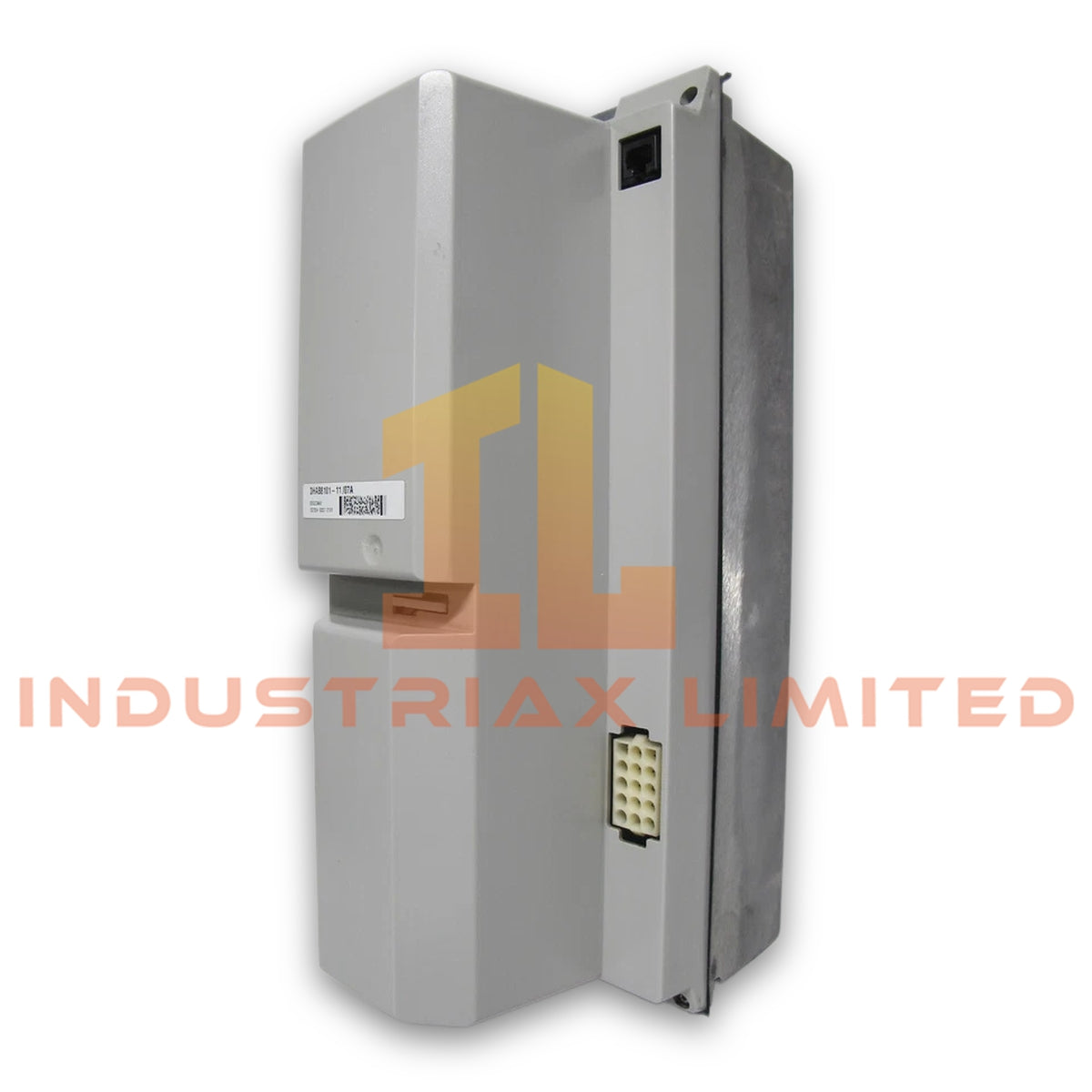

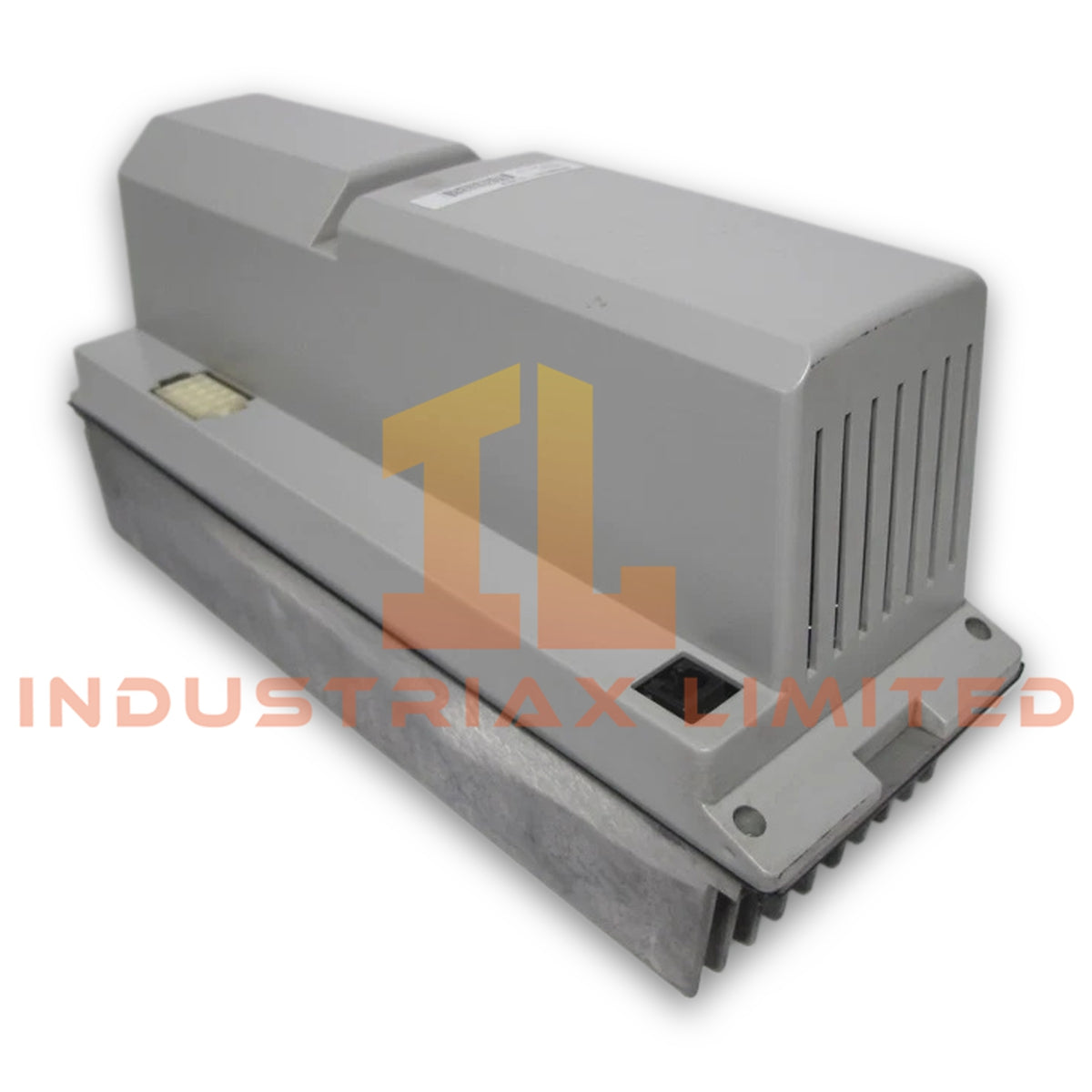

ABB DSQC346E Servo Drive
The ABB DSQC346E, also cataloged as the DSQC346E Servo Drive, provides direct physical and electrical execution for axis motion control within ABB industrial robot controller platforms. It regulates motor power conversion and feedback processing for servo axis operation.
Hardware Specifications
Parameter
Specification
Model
DSQC346E
Brand
ABB
Product Type
Servo Drive
Origin
Sweden
Weight
0.4 kg
Dimensions
18.6 x 6.1 x 6 cm
Operating Temp
0 deg C to +55 deg C
Storage Temp
-40 deg C to +85 deg C
Humidity
5-95% RH, non-condensing
Power Consumption
Supports 2.3 kW to 7.5 kW motor power range
Input Voltage
3-phase 200-480 VAC, +/-10%
Input Frequency
50/60 Hz, +/-5%
Output Current
6 A to 18 A RMS
Control Method
Field-Oriented Control
Control Bandwidth
1.5 kHz
Speed Range
0-6000 RPM
Positioning Accuracy
+/-1 encoder count
ABB Industrial Drive Control Architecture
The ABB DSQC346E uses field-oriented control technology to regulate servo motor torque, speed, and position feedback. Therefore, it maintains controlled axis movement through coordinated current regulation and encoder feedback processing.
The module operates as part of ABB robot drive systems, where backplane communication exchanges motion commands, diagnostic information, and drive status data. In addition, ABB industrial drive architectures use deterministic communication paths to maintain synchronized axis control.
The servo drive supports I/O density scaling within ABB controller configurations by allowing multiple axis drive units to operate under coordinated motion management. Furthermore, firmware compatibility must match the target robot controller generation to maintain correct drive communication behavior.
Frequently Asked Questions
Q: What motor control method does the ABB DSQC346E support? A: The DSQC346E supports Field-Oriented Control for servo motor current regulation and motion control.
Q: What input power range does the ABB DSQC346E accept? A: The unit accepts 3-phase 200-480 VAC input with a frequency range of 50/60 Hz.
Q: What installation conditions are specified for the DSQC346E? A: The module operates within 0 deg C to +55 deg C and supports 5-95% RH non-condensing humidity conditions.
Field Installation Guidelines
Install the ABB DSQC346E inside the designated ABB robot controller cabinet using the specified mounting position and mechanical locking method.
Verify that power connections match the required three-phase AC input specification before energizing the drive module. Use appropriate cable routing practices to separate motor power wiring from sensitive encoder and communication lines.
Connect protective grounding according to industrial electrical installation standards. Ensure encoder feedback cables maintain proper shielding and grounding to reduce electrical interference during servo operation.
Before commissioning, confirm controller compatibility, axis configuration parameters, motor data settings, and feedback signal operation through the ABB robot control system diagnostics.
