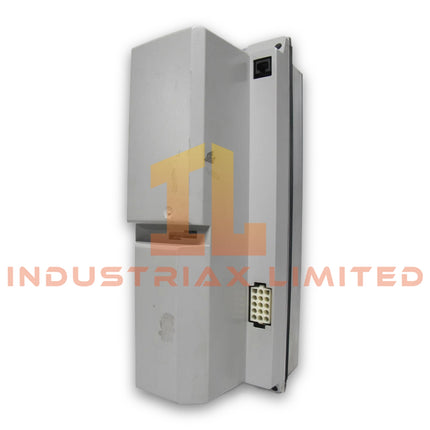

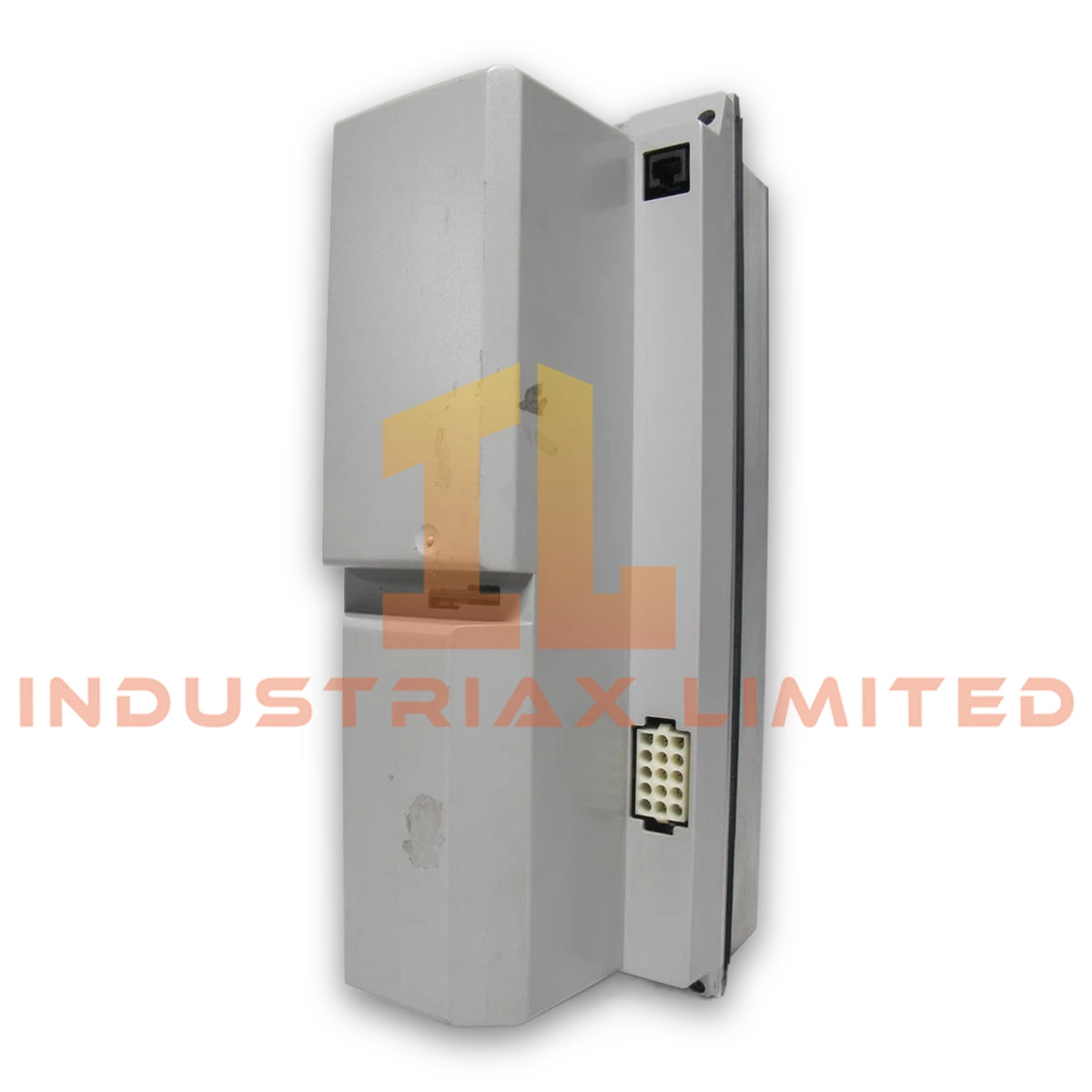

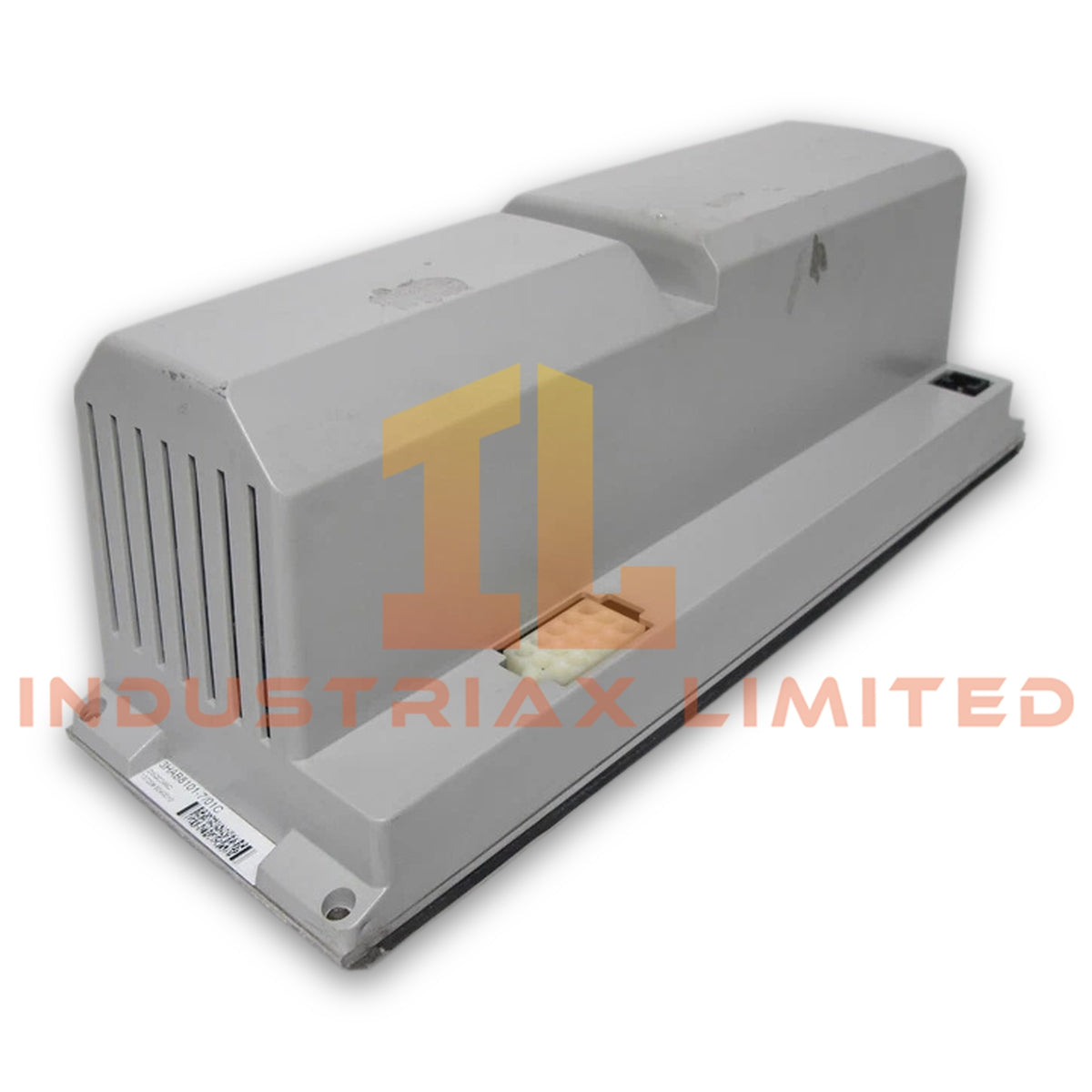

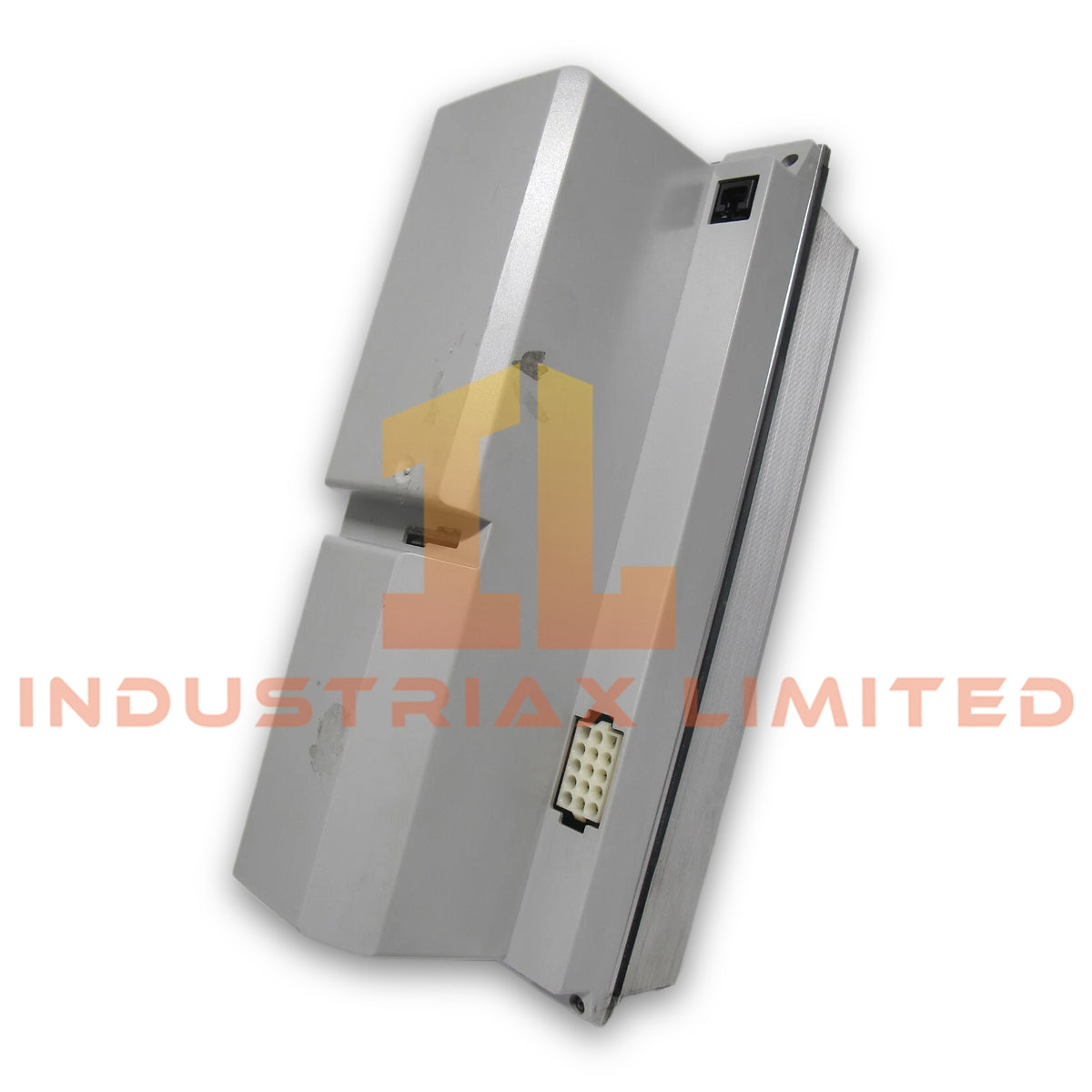

ABB DSQC346C Servo Drive Unit
Configured for servo motor power regulation and axis motion control in ABB S4 robot controller systems, the ABB DSQC346C (DSQC346C Servo Drive Unit) provides direct physical and electrical execution. It manages motor current output, velocity regulation, and position feedback processing for robotic axis operation.
Hardware Specifications
Parameter
Specification
Model
DSQC346C
Brand
ABB
Origin
Sweden
Product Type
Servo Drive Unit / Drive Module
Part Number
3HAB8101-7 / 3HAB8101-11 series
Application
ABB S4 Industrial Robot Controller Systems
Function
Servo motor control, torque regulation, velocity control, position feedback handling
Weight
Approx. 3.33 kg
Power Consumption
Dependent on robot system configuration and servo load
Industrial Drive Control and Firmware Compatibility
The ABB DSQC346C operates as an axis drive interface within ABB robotic motion systems. Therefore, it processes command signals from the robot controller and controls electrical output to connected servo motors.
The module follows ABB industrial drive architecture, where firmware compatibility and hardware revision matching are required during replacement. Additionally, the drive unit supports closed-loop motion control through motor feedback signals, allowing the controller to maintain axis position, speed, and torque parameters.
The DSQC346C belongs to the ABB industrial control and drive category, where system integration depends on controller backplane communication, drive configuration parameters, and compatible firmware flash versions.
Frequently Asked Questions
Q: Can the ABB DSQC346C be installed as a direct replacement for all DSQC346 series modules? A: No. Replacement requires verification of the complete catalog number, hardware revision, and controller compatibility because suffix variations may contain different internal configurations.
Q: What signals does the DSQC346C process during robot operation? A: The unit processes servo motor control commands and feedback signals associated with axis velocity, torque, and position regulation.
Q: Does the DSQC346C support hot-swapping during robot operation? A: The module is not specified as a hot-swap device. Power isolation and controller shutdown procedures should be followed before removal or installation.
Field Installation Guidelines
Verify the DSQC346C nameplate information before installation, including the complete part number and revision code.
Disconnect system power before removing the drive unit from the robot controller cabinet.
Inspect connector pins and cable terminals for contamination, oxidation, or mechanical damage.
Maintain proper cable routing between the drive unit, servo motors, and feedback devices to reduce electrical interference.
Confirm grounding connections according to ABB controller cabinet installation requirements.
After installation, check controller diagnostics and axis configuration parameters before returning the robot system to operation.
