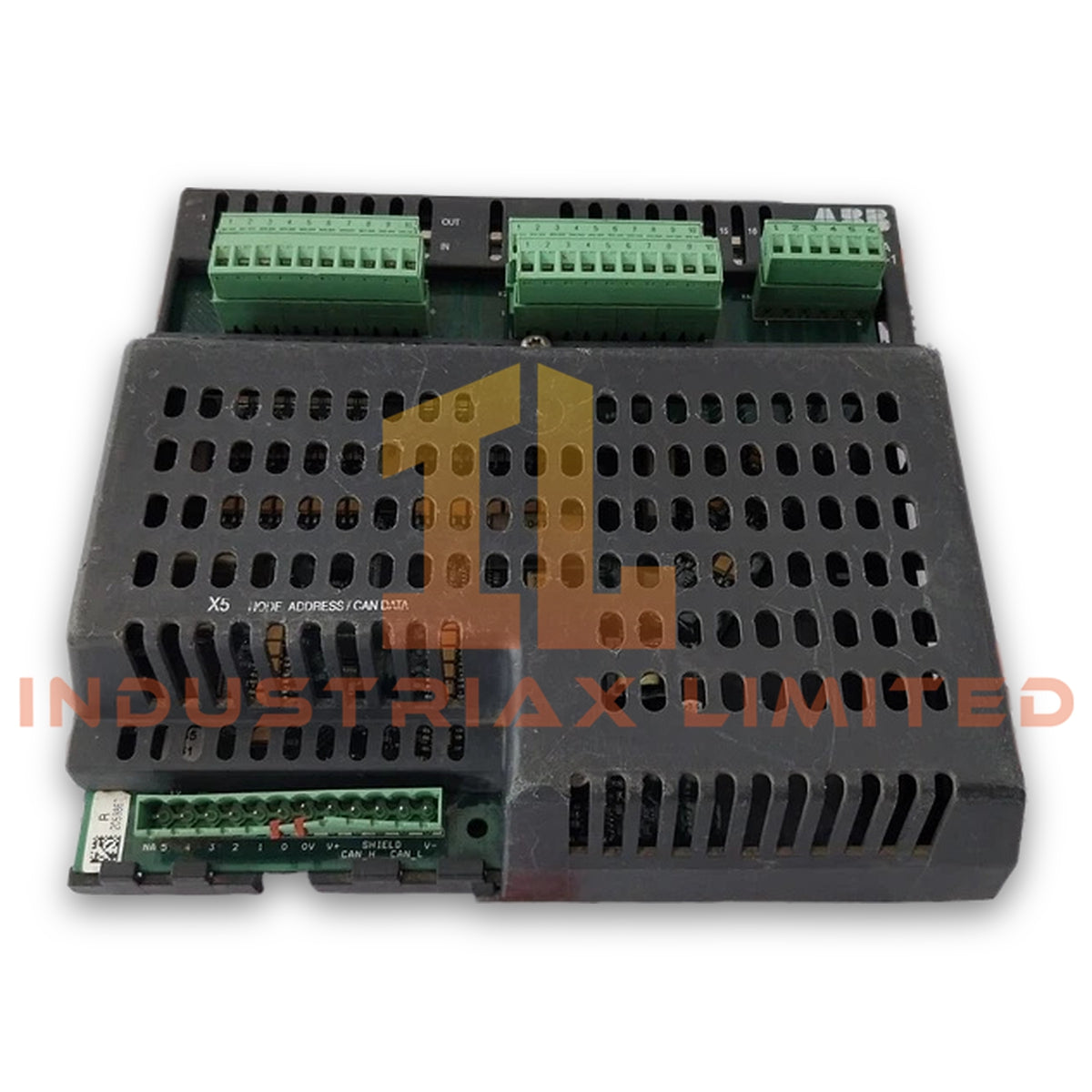

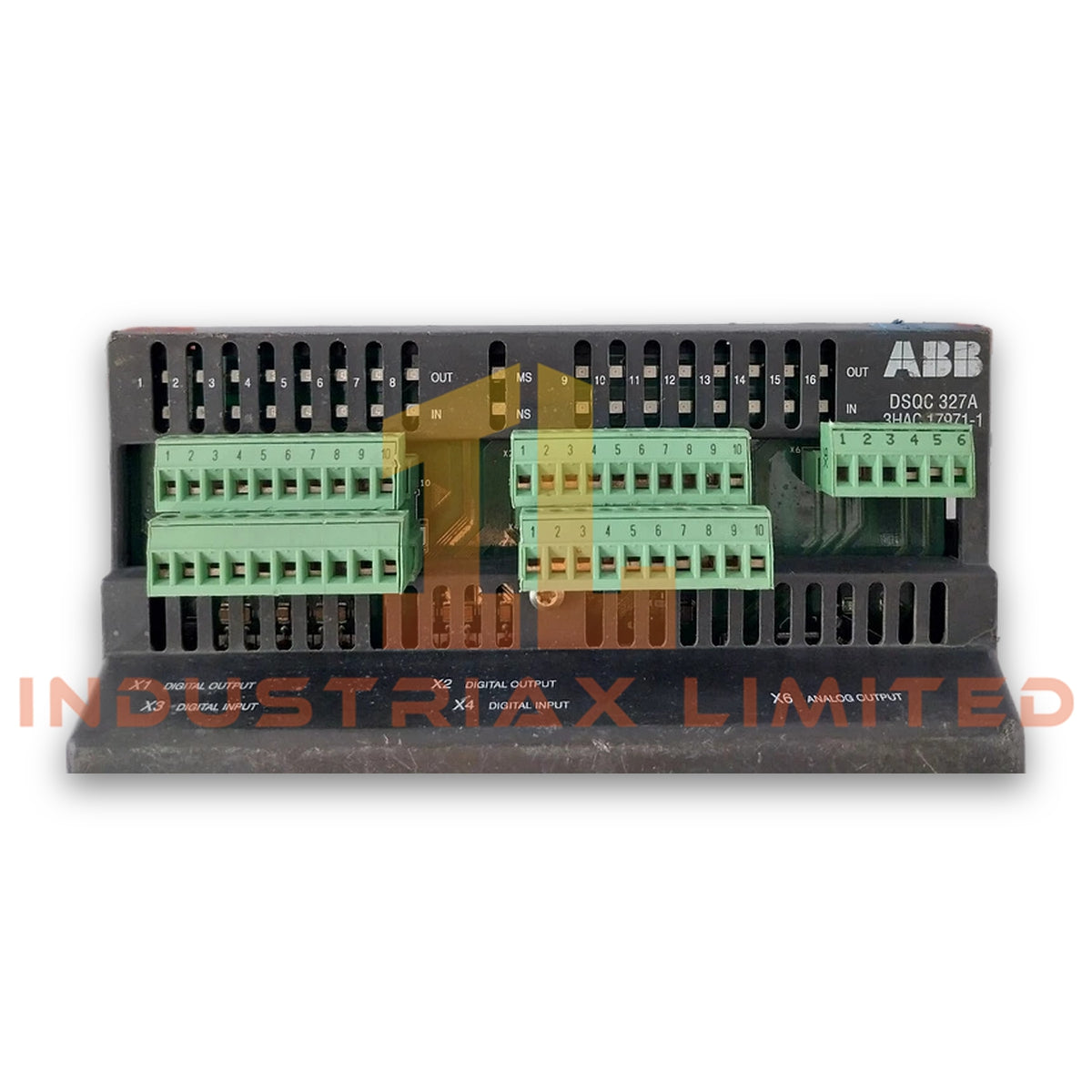

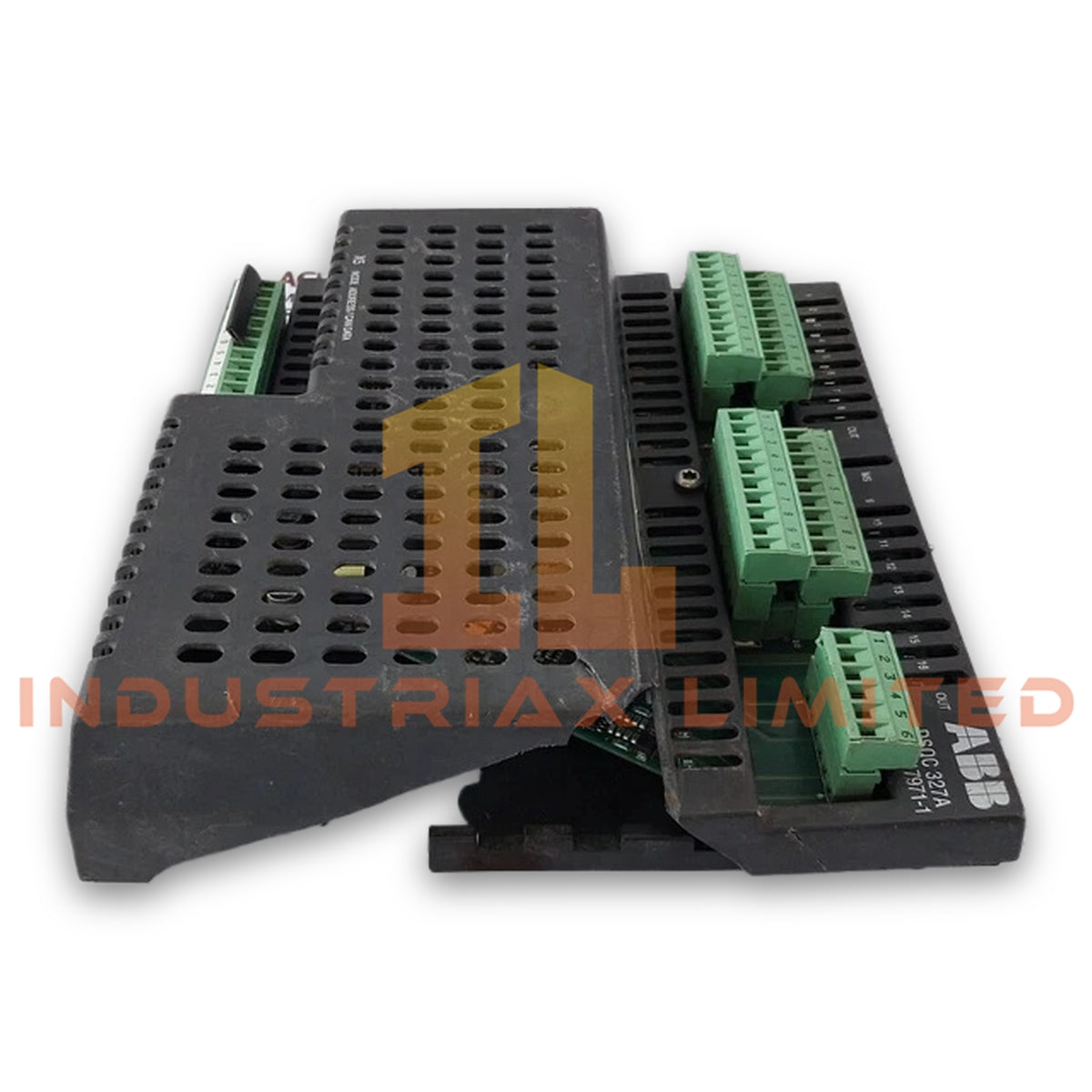

ABB DSQC327A Combi I/O Module

Configured for analog and digital signal processing in ABB robot controller I/O systems, the ABB DSQC327A (DSQC327 Combi I/O Module) provides direct physical and electrical execution for external device interfacing and actuator control within ABB S4/S4C and compatible robot controller platforms.

Hardware Specifications

Parameter	Specification
Model	DSQC327A / DSQC327
Brand	ABB
Module Type	Combi Analog and Digital I/O Module
Origin	Sweden
Weight	Approx. 0.3 kg - 0.35 kg
Dimensions	Approx. 10.2 cm x 5.3 cm x 6.5 cm
Power Consumption	24 VDC supply input, exact consumption depends on I/O load
Digital Inputs	16 channels
Digital Outputs	16 channels
Analog Inputs	4 channels, typically 12-bit resolution
Analog Outputs	4 channels, current or voltage output variants
Controller Compatibility	ABB industrial robot controllers including selected S4, S4C, and IRC5 configurations

ABB Industrial Control Bus and I/O Interface Characteristics

The DSQC327A operates as an ABB robot controller I/O expansion component that handles mixed analog and digital field signals. The module supports I/O density scaling by combining discrete and analog channels within a single hardware unit, reducing the number of separate interface boards required in the controller configuration.

Furthermore, the module communicates through the ABB controller backplane architecture, allowing the robot CPU system to exchange signal states, analog values, and diagnostic information with connected peripheral devices. Firmware flash compatibility depends on the installed controller generation and software revision.

The module is designed for industrial signal wiring where proper shielding, grounding, and cable separation practices help maintain signal integrity. Analog channels require appropriate consideration of noise sources, while digital channels provide interface points for sensors, switches, and actuator control circuits.

Frequently Asked Questions

Q: Can the DSQC327A be installed in any ABB robot controller without configuration changes?
A: No. The controller software version, hardware configuration file, and robot system generation must support the DSQC327A module before installation.

Q: Does the DSQC327A provide isolated analog and digital channels?
A: The available documentation does not specify complete channel isolation characteristics. Field wiring should follow ABB installation requirements for signal separation and grounding.

Q: What factors affect DSQC327A firmware compatibility?
A: Firmware compatibility depends on the controller generation, robot software version, and installed system configuration. The module revision should match the target ABB controller documentation.

Field Installation Guidelines

Install the DSQC327A inside the designated ABB controller rack position according to the applicable robot system manual.

Verify that the controller power supply is disconnected before module insertion or removal. Connect analog signal cables using suitable shielded wiring, and terminate cable shields according to ABB grounding recommendations.

Separate analog signal wiring from high-current actuator cables to reduce electrical interference. Confirm that all digital input and output terminals match the configured field device voltage levels before applying power.

After installation, verify module recognition through the robot controller diagnostic interface and check I/O signal status before placing the robot system into operational mode.

Specifications

• Brand: ABB

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
