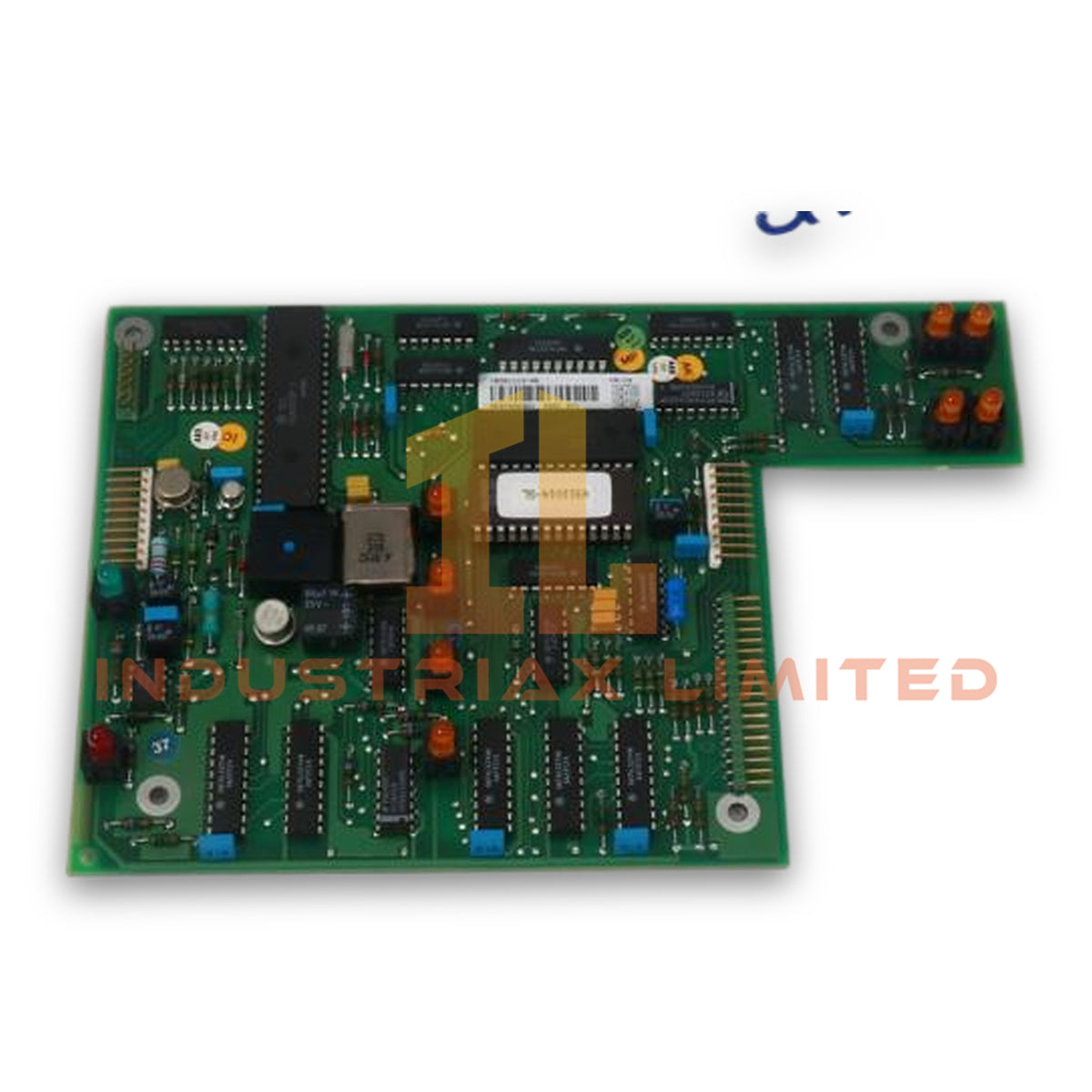

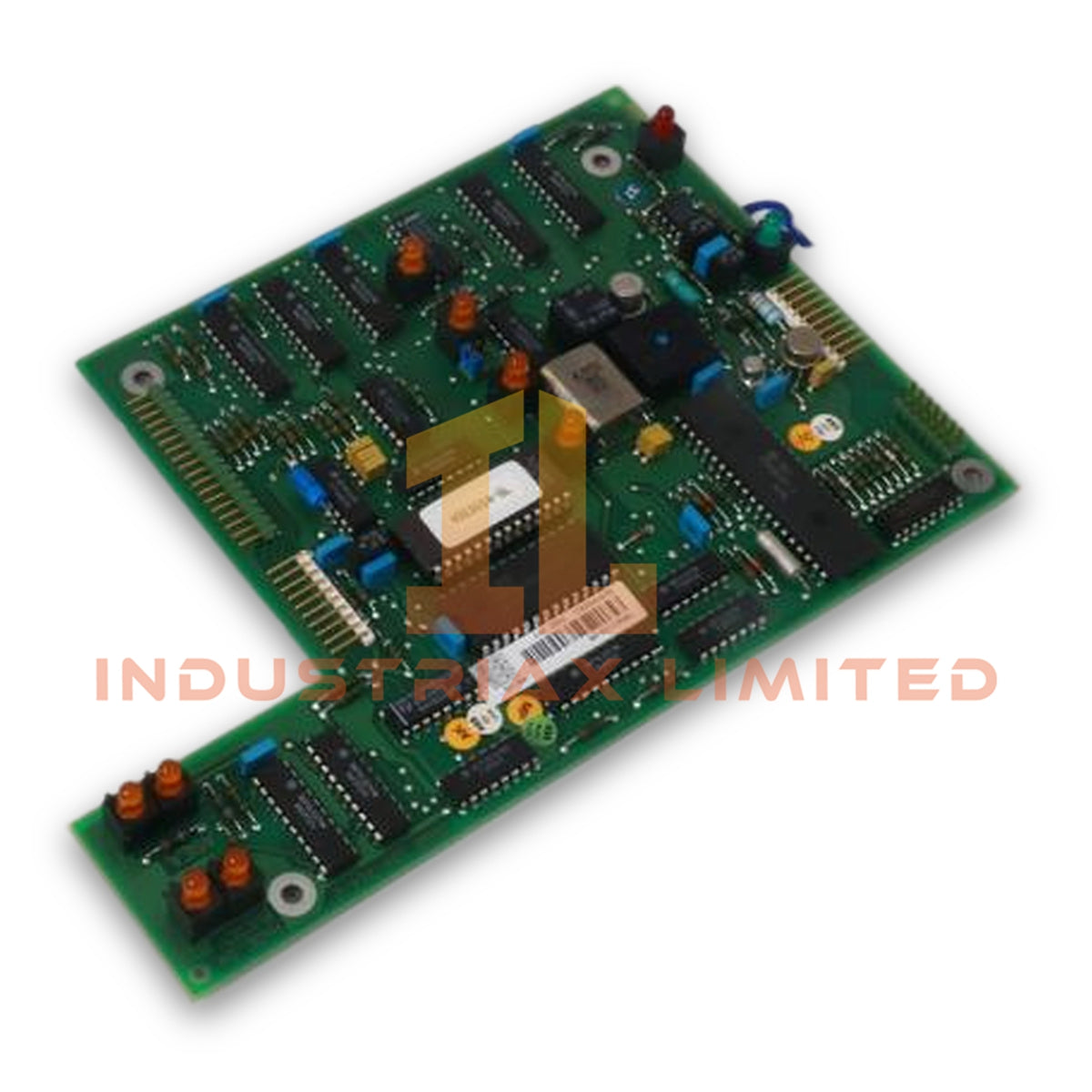

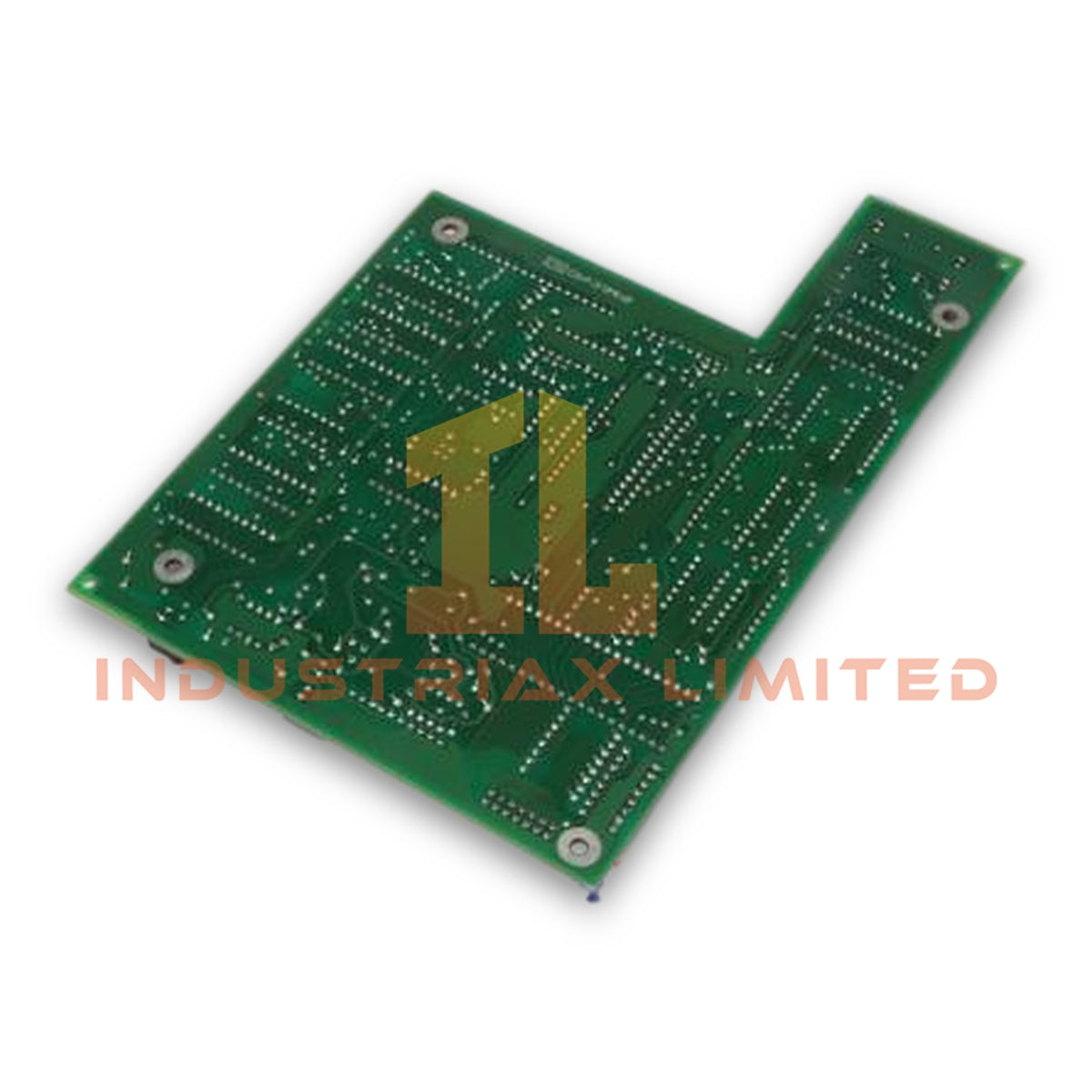

ABB DSQC201 Robot Module
The ABB DSQC201 YB560103-AB, also cataloged as the DSQC201 Robot Module, operates as a dedicated hardware component for signal interface and control execution within ABB industrial robot controller platforms.
Hardware Specifications
Parameter
Specification
Model
DSQC201
Brand
ABB
Product Type
Robot Module / I/O Interface Module
Weight
0.18 kg
Dimensions
21.1 x 14 x 2.1 cm estimated shipping size
Spare Model
YB560103-AB
System Compatibility
ABB Industrial Robotics Systems
Hardware Function
Robot control signal interface and I/O processing
Backplane Bus Communication and I/O Interface Characteristics
The ABB DSQC201 operates as an interface module within ABB robot control architectures. It manages electrical signal exchange between controller hardware and connected robot system components.
The module supports structured communication through the ABB controller hardware environment. Therefore, installation requires verification of controller rack compatibility, module addressing, and firmware support within the target robot system.
The DSQC201 belongs to ABB industrial control hardware designed for modular expansion. Its compact PCB construction supports integration where limited installation space and direct signal routing are required.
Frequently Asked Questions
Q: What is the primary function of the ABB DSQC201 module? A: The DSQC201 functions as a robot module used for signal interface and hardware communication within ABB industrial robot controller systems.
Q: Does the DSQC201 support installation in any ABB robot controller? A: No. The module requires compatibility verification with the specific ABB controller hardware configuration, rack structure, and firmware environment.
Q: What installation conditions should be checked before replacing a DSQC201? A: Technicians should verify connector condition, module identification, controller compatibility, grounding arrangement, and communication settings before installation.
Field Installation Guidelines
Confirm the DSQC201 model identification and YB560103-AB part marking before installation.
Disconnect controller power according to site electrical safety procedures before removing or inserting the module.
Inspect backplane connectors for contamination, mechanical damage, or oxidation.
Install the module with correct alignment to avoid connector pin damage.
Maintain proper cabinet grounding and separate signal wiring from high-current power cables.
Verify controller recognition and communication status after module replacement.
Confirm firmware compatibility before commissioning the robot system.
