Description

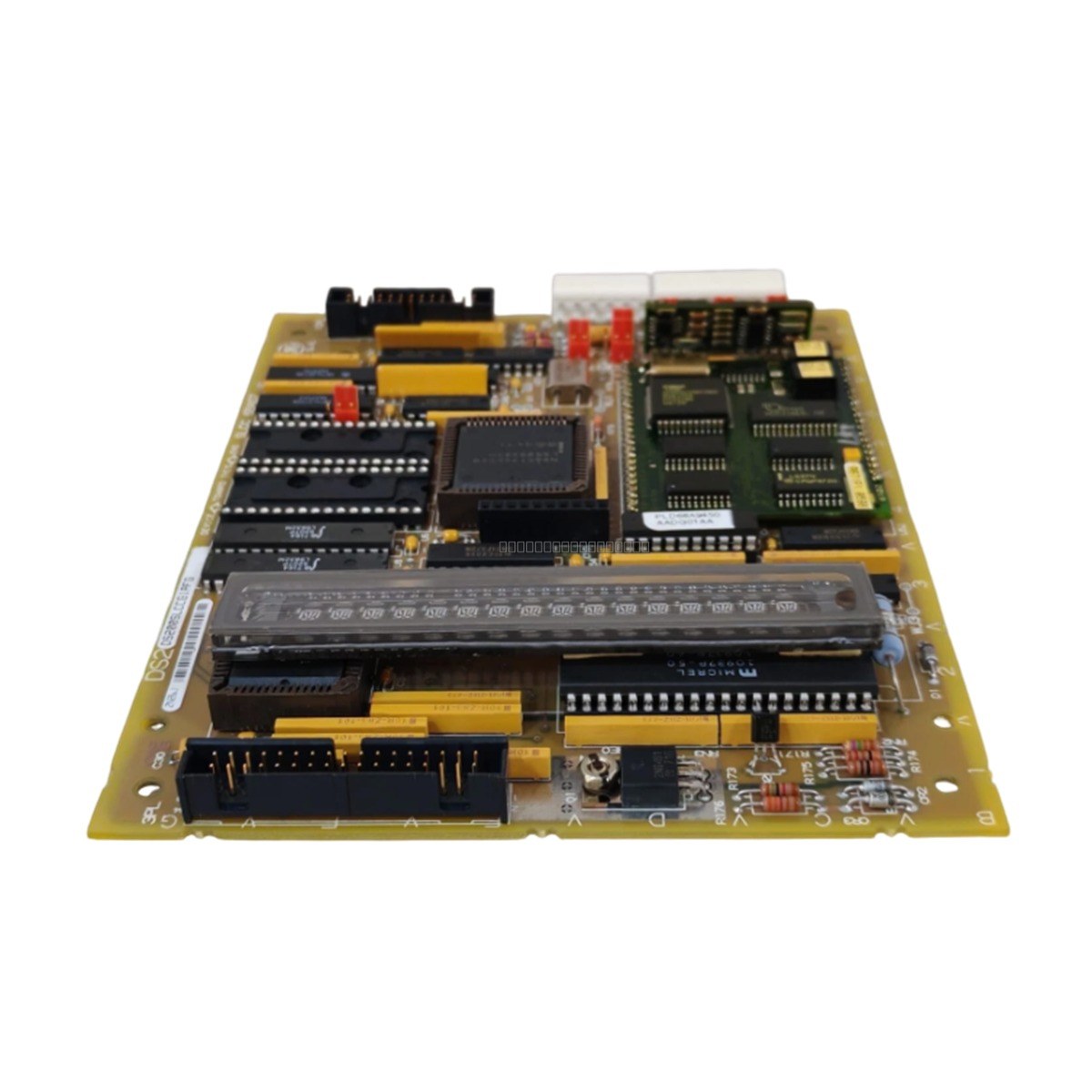

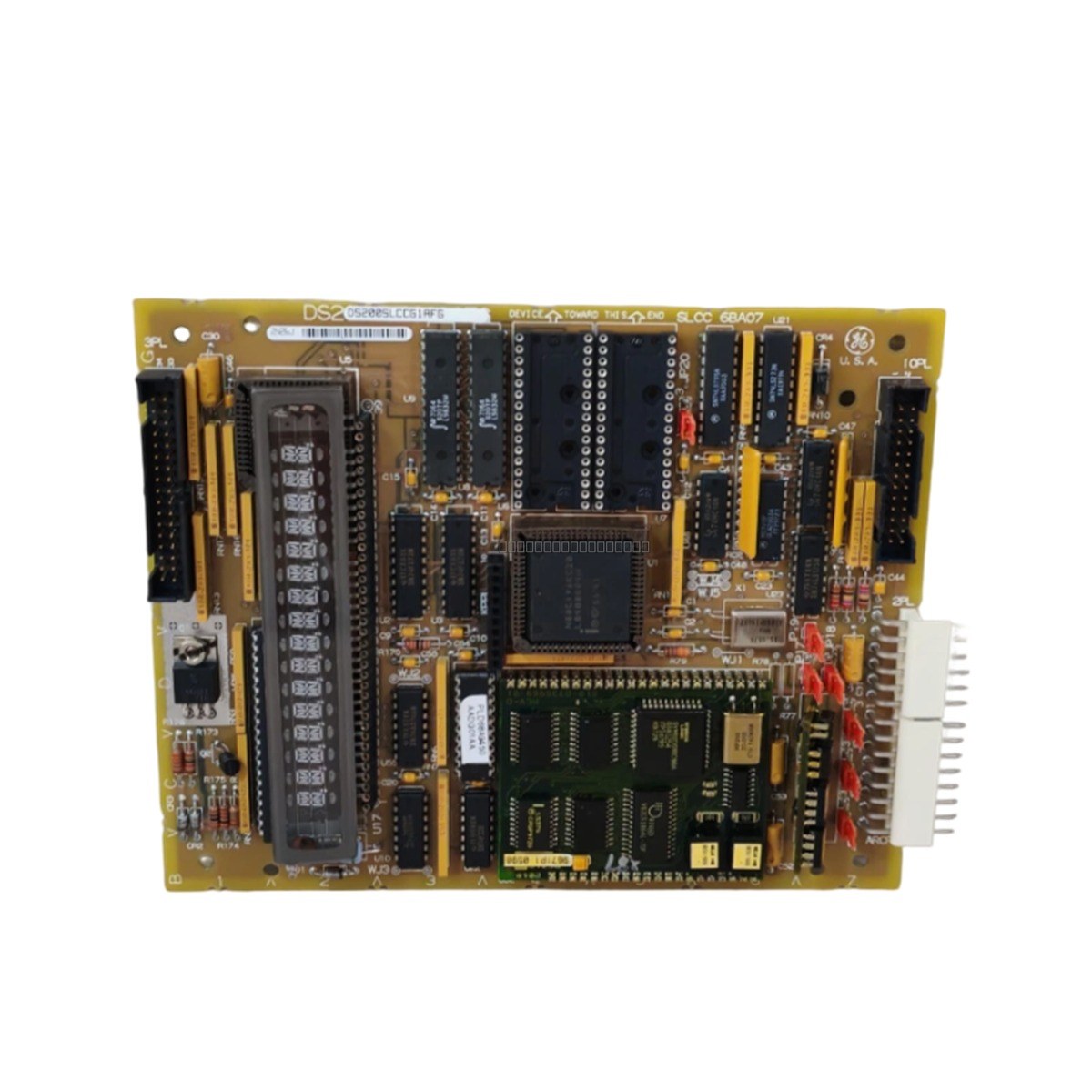

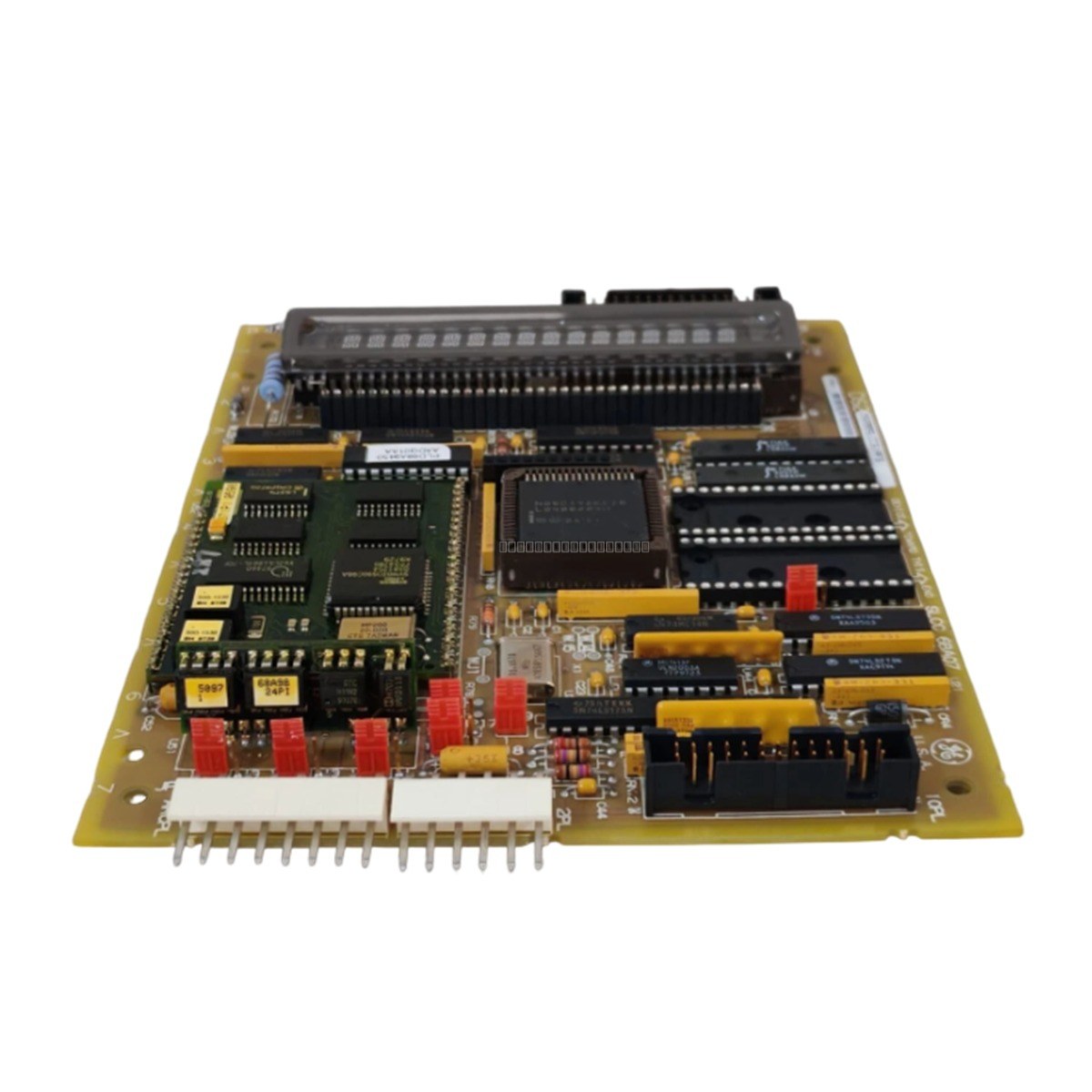

The DS200SLCCG1AFG is a critical LAN Communication Board engineered for the GE Mark V Speedtronic turbine control system. This module facilitates high-level data exchange and communication protocols within both Simplex and Triple Modular Redundant (TMR) architectures, managing industrial gas and steam turbine operations. Acting as a bridge for system diagnostics and control signals, this board ensures network integrity and supports reliable operation in power generation and heavy industrial environments. This specific AFG version incorporates three functional revisions to provide enhanced artwork configuration and logic processing capabilities compared to original hardware iterations.
Features
- Integrated 16-position alphanumeric display for real-time status updates and error reporting.
- Dedicated mounting interface for installation directly onto the SDCC drive control board via standoffs.
- Includes sockets for U6 and U7 EPROMs (typically shipped empty; requires software transfer or specific configuration).
- Features KPPL connector for localized operator keyboard interfacing.
- Configurable jumper settings for RS-422 DLAN driver modification and DLAN circuit isolation.
- Equipped with a protective PCB coating to enhance resistance to environmental wear.
Applications
The DS200SLCCG1AFG is designed for use within the GE Mark V Speedtronic control system, primarily serving gas and steam turbine control applications in power plants, industrial energy facilities, and utility-scale generation systems.
Technical Specifications
| Model |
DS200SLCCG1AFG |
| Brand |
GE Fanuc |
| Series |
Mark V Speedtronic |
| Module Type |
LAN Communication Card |
| Display Type |
16-character Alphanumeric |
| Mounting |
Standoff mount to SDCC board |
| Operating Temperature |
0 to 60 deg Celsius |
| Storage Temperature |
-40 to 85 deg Celsius |
Installation Guidelines
- Ensure the system is fully powered down before attempting to install or remove the module.
- Use proper ESD (Electrostatic Discharge) protection when handling the board to prevent damage to sensitive internal components.
- Mount the board securely to the SDCC control board using the provided standoff points.
- Ensure the four protective posts (ST1-ST4) are correctly positioned to shield the alphanumeric display glass.
- Verify jumper configurations (such as J19 for crystal logic) match the specific requirements of the control cabinet architecture before commissioning.
FAQ
Does this board come with pre-installed firmware?
No, the U6 and U7 EPROM sockets are typically shipped empty. Users must transfer existing software from their previous module or obtain the appropriate firmware configuration for their specific turbine application.
Is this module compatible with all Mark V systems?
This module is designed for Group 1 Mark V systems and is backwards compatible with earlier revisions of the SLCC board. Always verify your specific system revision requirements before installation.
