Description

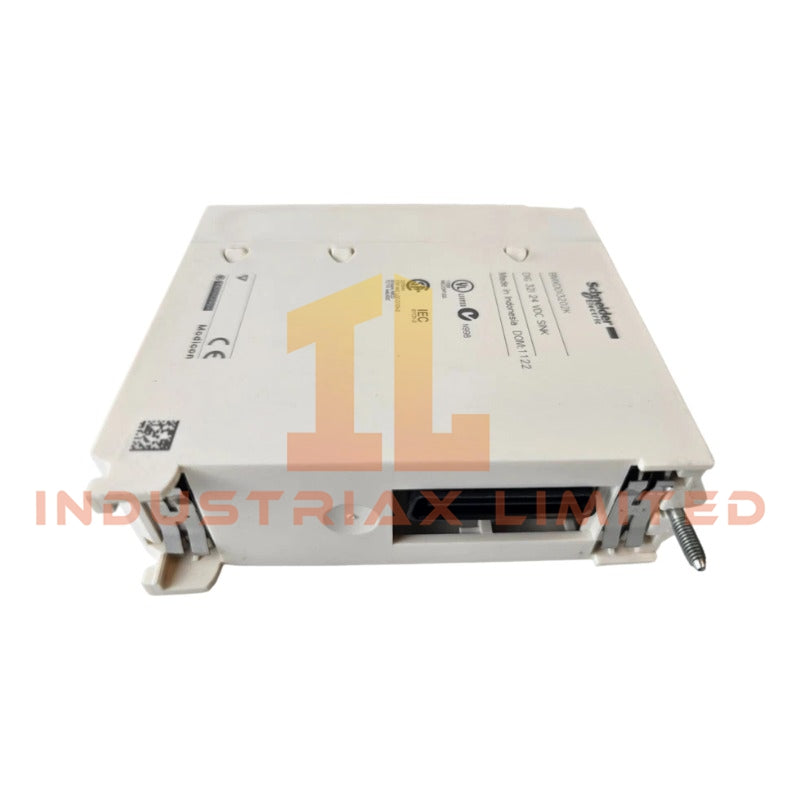

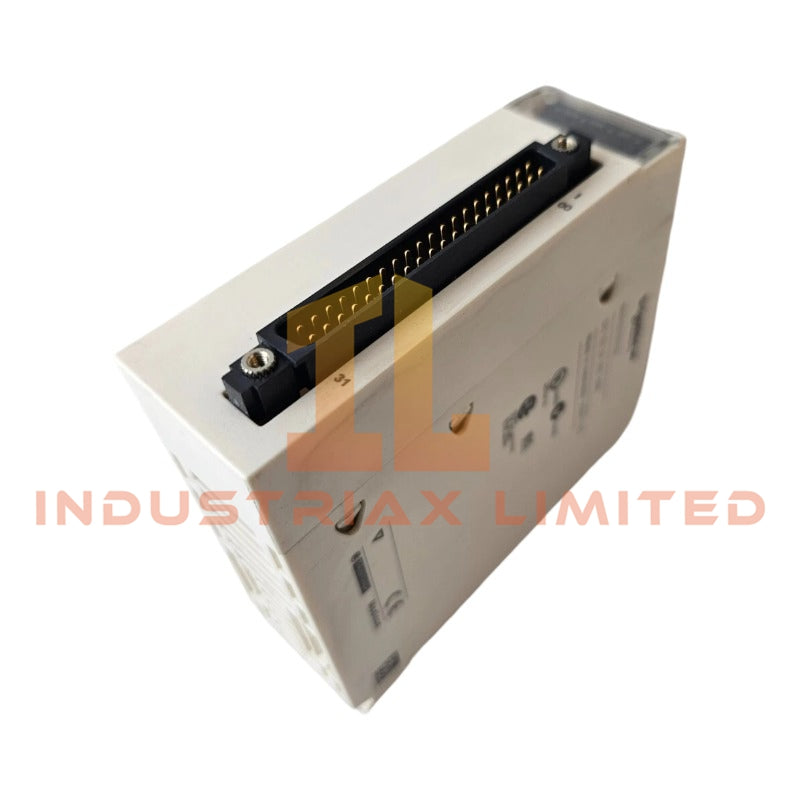

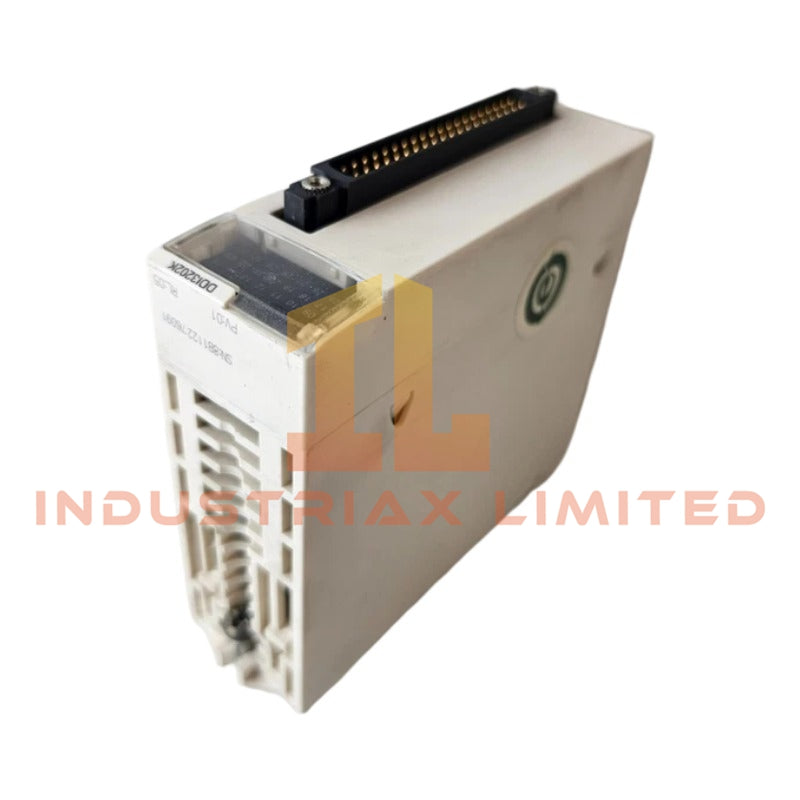

Schneider Electric BMXDDI3202K Discrete Input Module
Configured for acquisition of 24 V DC discrete field signals in Modicon X80 I/O architecture, the Schneider Electric BMXDDI3202K (BMXDDI3202K Discrete Input Module) provides direct physical/electrical execution within Modicon M340 and X80 backplane systems. The module processes 32 isolated positive logic inputs with sink-type current detection and channel-level diagnostics.
Hardware Specifications
| Parameter |
Specification |
| ModelBrand |
Schneider Electric BMXDDI3202K |
| Weight |
0.112 kg |
| PowerConsumption |
<= 3.9 W |
| Input Channels |
32 discrete inputs |
| Input Type |
Isolated, current sink (positive logic) |
| Input Voltage |
24 V DC positive |
| Input Current |
2.5 mA |
| Sensor Supply Range |
19 to 30 V DC |
| Filtering Time |
4 ms typical, 7 ms max |
| Insulation Resistance |
> 10 MOhm at 500 V DC |
| Backplane Compatibility |
Modicon X80 platform |
PLC Backplane Communication and Signal Conditioning Behavior
The Modicon X80 architecture associated with BMXDDI3202K implements deterministic backplane communication for cyclic I/O refresh across distributed input modules. Signal conditioning is performed via internal filtering stages with fixed 4 ms digital debounce logic, ensuring suppression of transient switching noise on 24 V DC field wiring. The module supports channel-level isolation to reduce cross-channel electrical coupling under high-density cabling layouts.
Frequently Asked Questions
Q: Can the BMXDDI3202K inputs be paralleled for higher current sensing?
A: No. Input paralleling is not supported. Each channel operates with independent isolation and fixed impedance input circuitry.
Q: What is the internal response delay of input signal detection?
A: The module uses a 4 ms typical filtering time, with a maximum of 7 ms depending on signal stability.
Q: Does the module support hot-swap insertion on the backplane?
A: Hot-swap capability depends on the Modicon X80 rack configuration. Electrical isolation exists at channel level, but system-level insertion rules apply.
Field Installation Guidelines
Field wiring shall maintain separation between input signal cables and power conductors to minimize inductive coupling. Use shielded twisted pair conductors for long cable runs and terminate shields at a single-point earth reference. Ensure 24 V DC sensor supply remains within 19 to 30 V DC range under full load conditions. Verify correct polarity for positive logic sink configuration prior to energization. Maintain secure DIN rail seating and backplane connector alignment to avoid intermittent channel faults.
