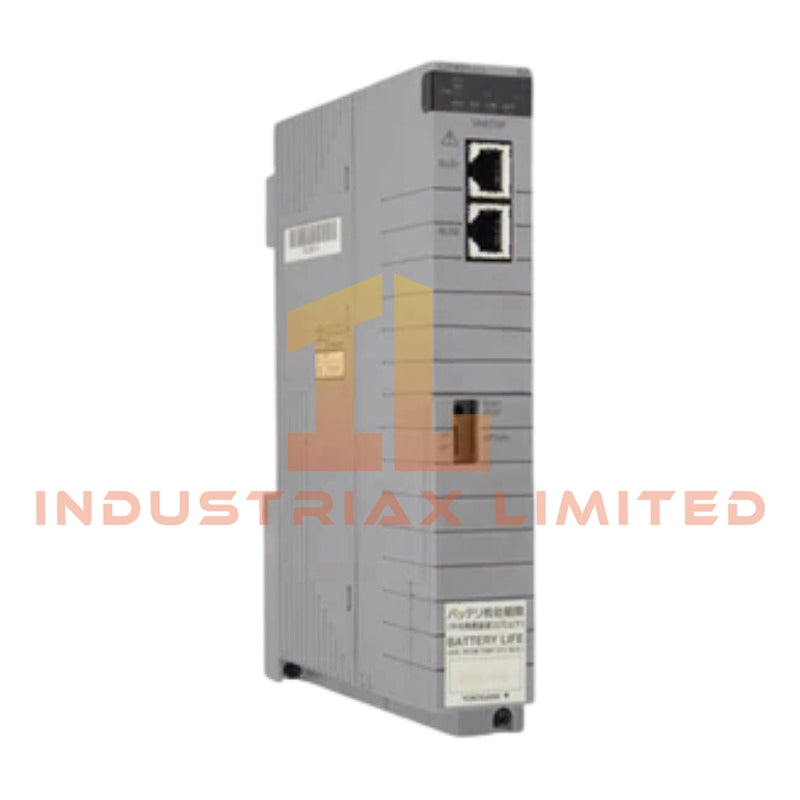

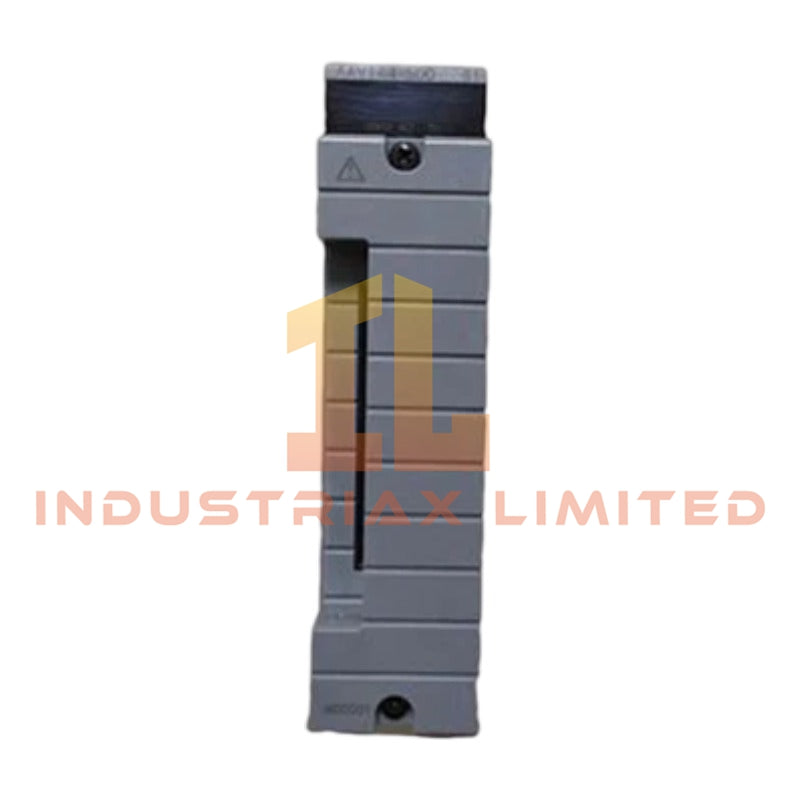

Yokogawa ASD533 Digital Output Module with Built-in Barrier

Configured for isolated digital output signal execution in the Yokogawa FIO subsystem, the Yokogawa ASD533-S00 (ASD533 Digital Output Module with Built-in Barrier) provides direct physical/electrical execution. The module integrates intrinsic safety barrier functions within the hardware and supports 8 isolated output channels for field device actuation through CENTUM VP and CENTUM CS 3000 platforms.

Suffix Breakdown & Model Matrix

Model	Description
ASD533-S00	Standard specification Digital Output Module with Built-in Barrier
/G3 (optional)	ISA Standard G3 conformal coating for corrosive environments

Hardware Specifications

Parameter	Specification
Model	ASD533-S00
Brand	Yokogawa
Origin	Japan
Module Type	Digital Output Module with Built-in Barrier
System Family	CENTUM VP / CENTUM CS 3000 FIO System
Number of Channels	8 isolated channels
Output Type	Digital voltage/current output
Output Voltage	Greater than 12 V at 40 mA
Output Current	Up to 40 mA per channel
Isolation	Field-to-system and channel-to-channel galvanic isolation
Redundancy Support	Dual-redundant configuration supported
Compatible Terminal Blocks	ATSD3S, ATSD3D
Hot Swap Capability	Supported during online maintenance
Weight	Approx. 0.5 kg
Operating Temp	-20 degC to 70 degC
Storage Temp	-40 degC to 85 degC
Ambient Humidity	5 % to 95 % RH, non-condensing
Power Consumption	Not specified in available data

Channel-to-Channel Isolation Characteristics

As a Yokogawa process control module, the ASD533 incorporates galvanic isolation between field circuits and internal system electronics. The integrated barrier architecture reduces the requirement for separate external intrinsic safety barrier assemblies while maintaining electrical separation between output channels and the DCS backplane interface.

The isolation structure is intended to limit ground loop propagation and reduce the transfer of surge energy from hazardous-area field wiring into the control system infrastructure.

Frequently Asked Questions

Q: Does the ASD533 support online replacement during operation?
A: Yes. The module supports hot-swappable replacement procedures within compatible FIO node configurations, allowing maintenance without complete system shutdown.

Q: Which terminal assemblies are supported by the ASD533?
A: The module is compatible with ATSD3S terminal blocks for single configurations and ATSD3D terminal blocks for dual-redundant configurations.

Q: Is an external intrinsic safety barrier required for each output channel?
A: The ASD533 incorporates a built-in barrier function. Application compliance remains dependent on the overall system design, field wiring method, and hazardous-area engineering requirements.

Field Installation Guidelines

• Verify module and terminal block compatibility before installation.
• De-energize field circuits when connecting or disconnecting field wiring unless approved maintenance procedures permit online work.
• Separate intrinsically safe wiring from non-intrinsically safe circuits according to site electrical standards.
• Connect cable shields according to plant grounding philosophy to minimize induced noise and ground loop effects.
• Confirm terminal identification and channel assignment before energizing output circuits.
• Maintain adequate cabinet ventilation to keep ambient operating temperature within specified limits.
• For corrosive environments, use modules specified with the optional G3 conformal coating when required by site conditions.
• Follow CENTUM VP or CENTUM CS 3000 engineering documentation for redundant module configuration and commissioning procedures.

Specifications

• Brand: Yokogawa

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
