Description
Product Overview

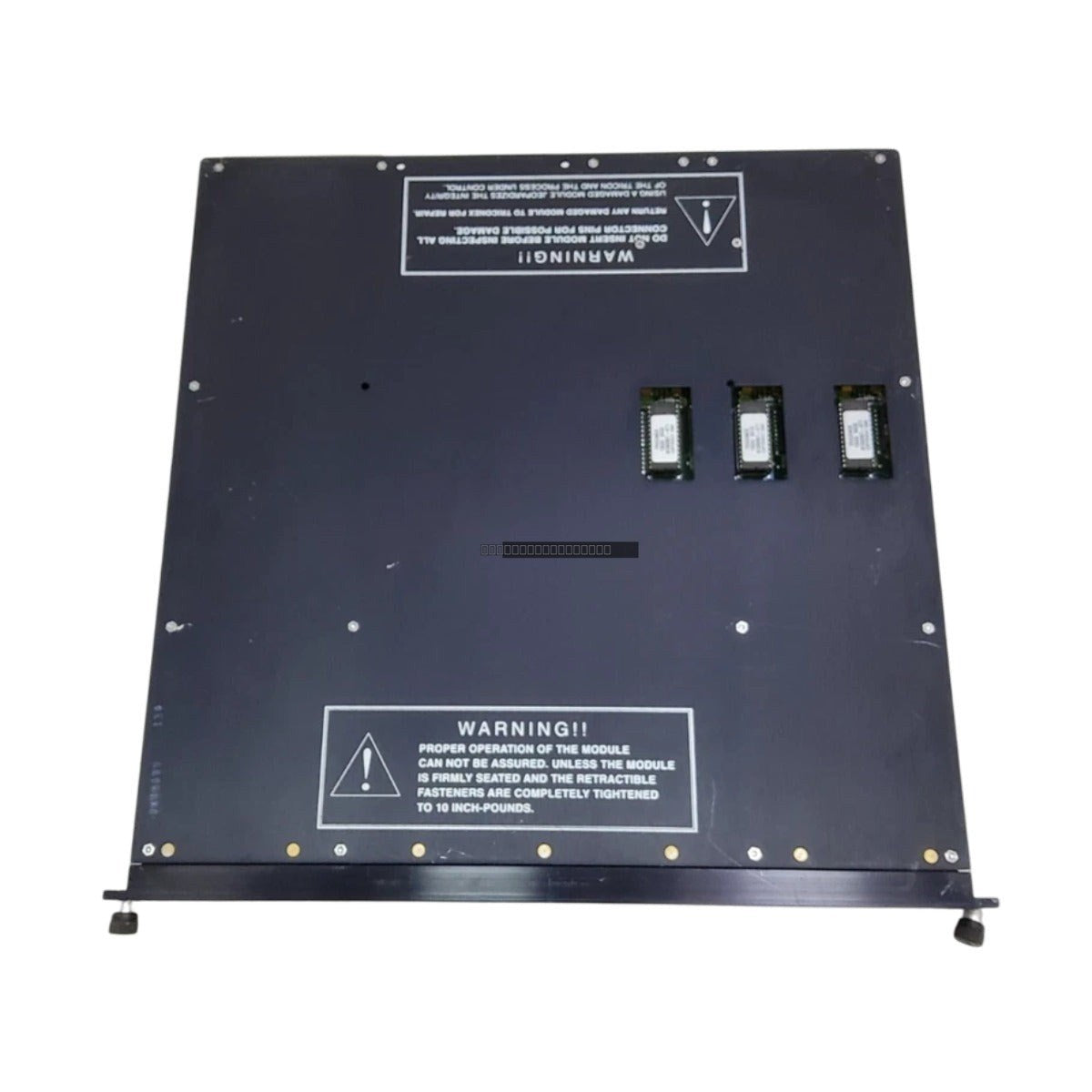

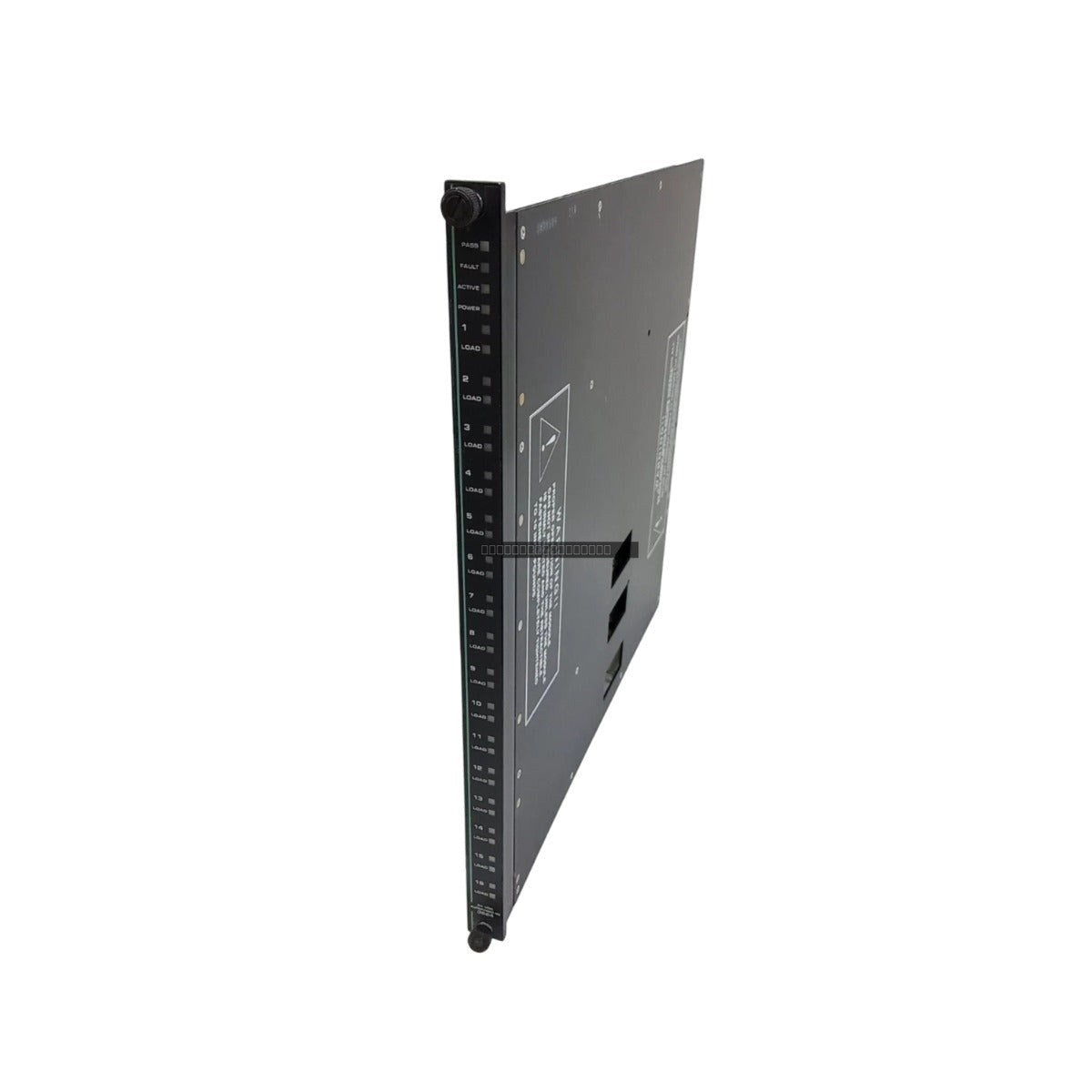

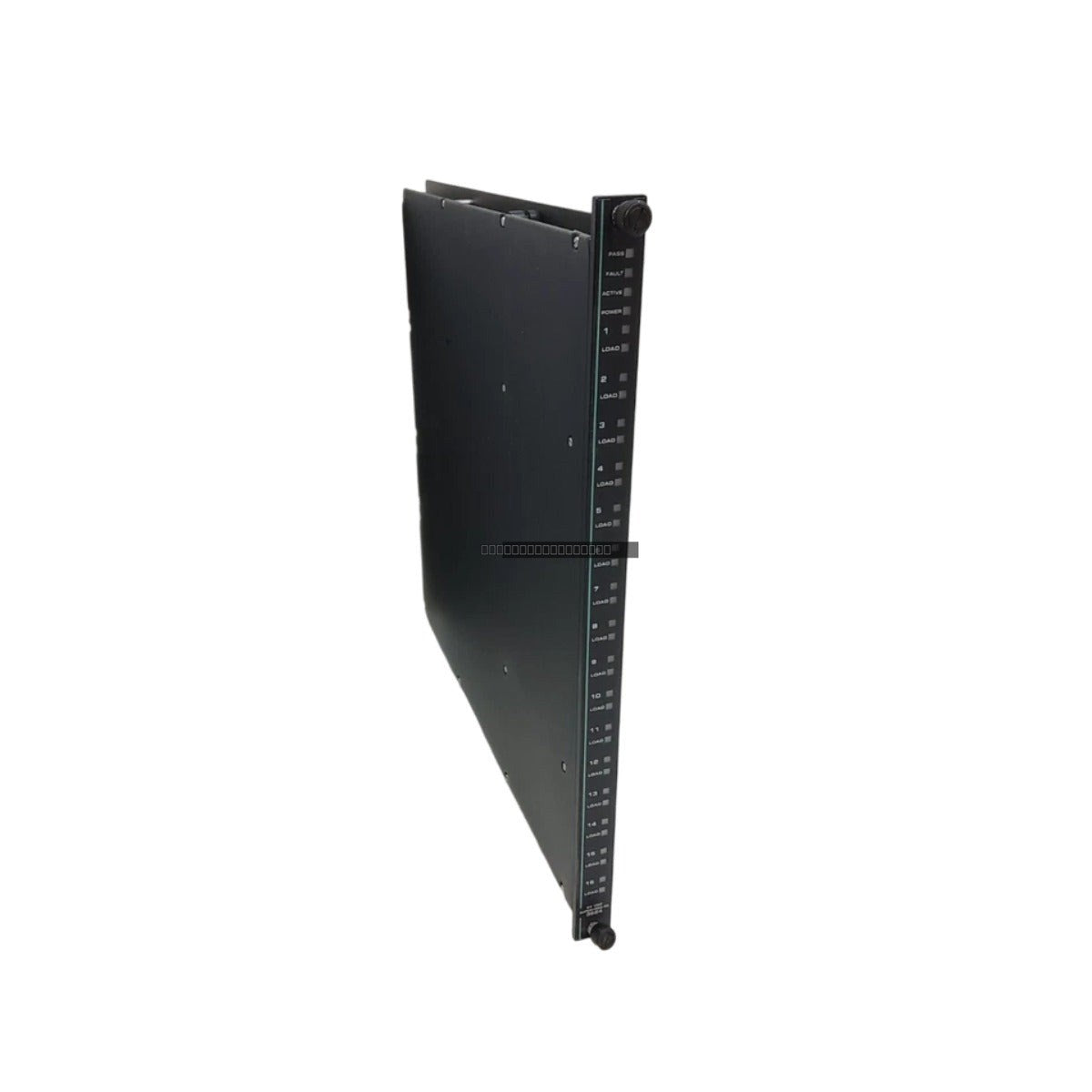

The Triconex 3624 is a high-integrity supervised digital output module designed for critical safety-instrumented systems. It provides reliable control interfacing for safety-critical applications, including emergency shutdown (ESD) systems. By integrating advanced field-line monitoring, the module continuously detects open-circuit and short-circuit conditions, whether the field load is currently energized or de-energized. This capability ensures that command execution is verified and helps prevent spurious trips in demanding environments such as chemical processing, power generation, and oil refining.
Features
- Triple Modular Redundant (TMR) architecture utilizing 2-out-of-3 (2oo3) voting logic for fault-tolerant operation.
- Integrated field-line supervision that monitors integrity without triggering connected loads.
- Galvanic isolation via high-performance optocouplers to protect internal logic from field-side voltage transients.
- Supports online hot-swapping, allowing for module replacement without interrupting the operation of other I/O loops.
- 16 independent, supervised output channels.
Applications
This module is engineered for safety-critical industrial environments where high availability and fault tolerance are mandatory. Typical installations include emergency shutdown systems (ESD), burner management systems, and critical process control loops where continuous diagnostic feedback is required to maintain operational safety.
Technical Specifications
| Model |
3624 |
| Output Channels |
16 Supervised |
| Nominal Voltage |
24 VDC |
| Voltage Operating Range |
20 to 30 VDC |
| Max Current per Channel |
2 A |
| Isolation Rating |
1500 VDC |
| Power Consumption |
10 W (max) |
| Operating Temperature |
0 to +60 deg C |
Installation Guidelines
- Ensure the Triconex chassis is properly grounded before installing the module.
- Handle the module using standard ESD-safe practices to prevent damage to sensitive internal components.
- The module is designed for hot-swapping; however, ensure all field wiring is properly secured and verified before inserting the module into the rack.
- Route field wiring away from high-voltage AC lines or high-EMI sources to maintain signal integrity.
- Verify that the voltage levels and load requirements are within the specified 20-30 VDC range before activation.
FAQ
Does the 3624 support hot-swapping? Yes, the module is designed for hot-swapping, allowing maintenance personnel to replace the unit while the chassis remains powered and other I/O modules continue to operate.
What is the primary function of the line supervision? The supervision circuitry continuously monitors the field wiring for faults like open circuits or shorts, providing diagnostic data to the safety system without actuating the connected field devices.
