Description

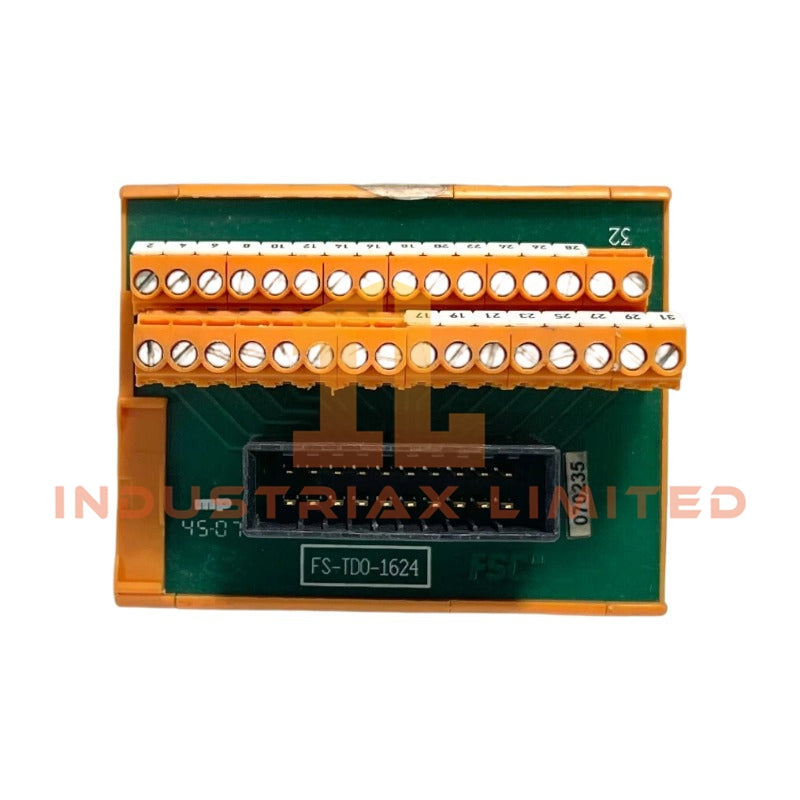

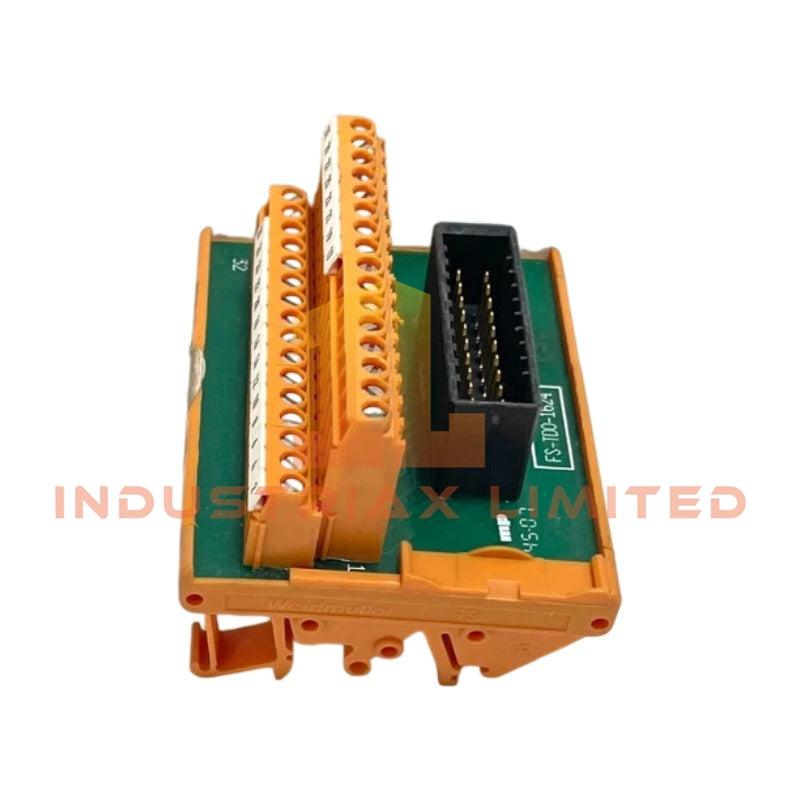

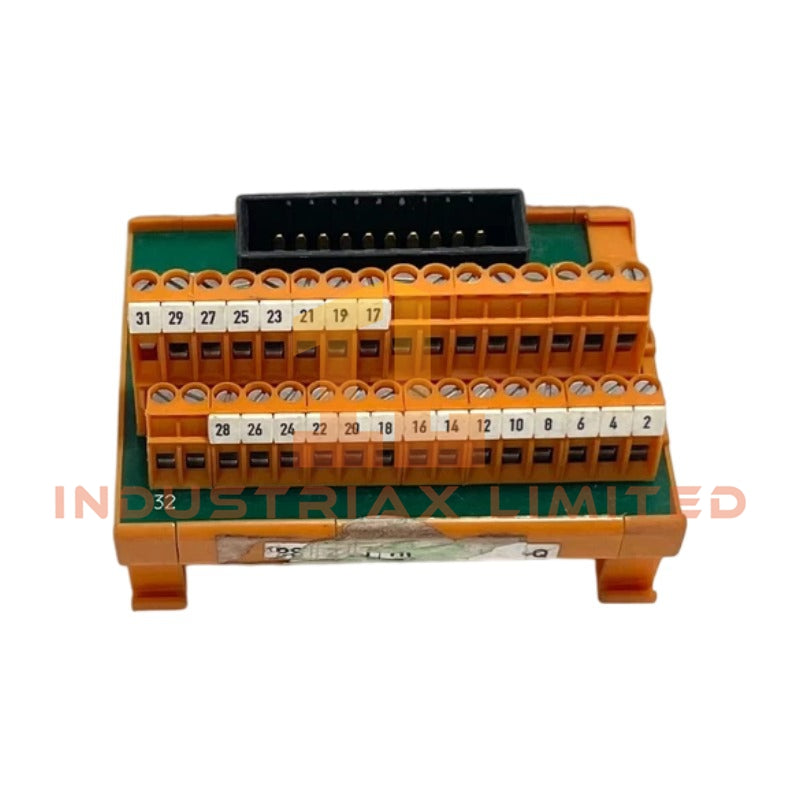

Honeywell FS-TDO-1624 Digital Output Module

Configured for 24 VDC digital signal execution in Honeywell Safety Manager systems, the Honeywell FS-TDO-1624 (FS-TDO-1624 Digital Output Module) provides direct electrical switching control through 16 non-safe output channels.

Hardware Specifications

Parameter	Specification
Model	FS-TDO-1624
Brand	Honeywell
Product Type	Non-safe Digital Output Module
Origin	USA
Weight	0.3 kg
Dimensions	5.5 x 6.5 x 11.8 cm estimated shipping size
Power Consumption	5 VDC, 35 mA
Number of Output Channels	16
Output Specification	24 VDC
Maximum Output Current	100 mA per channel
Maximum Lamp Load	50 mA (1.2 W)
Maximum Load Capacitance	1 uF
Voltage Drop	< 1.2 VDC at 100 mA
Tariff Code	8537101190

Channel-to-Channel Isolation and Process Output Interface

The Honeywell FS-TDO-1624 provides 16 non-safe digital output channels for 24 VDC field device control. Therefore, the module directly drives connected actuators, indicators, and other discrete electrical loads within the Safety Manager I/O architecture.

In addition, the output stage supports defined current and capacitance limits to maintain stable switching performance. The module operates with a maximum output current of 100 mA and limits voltage drop to less than 1.2 VDC at the rated current condition.

Furthermore, Honeywell I/O modules within this platform require correct field wiring practices to maintain signal separation and minimize electrical interference. The FS-TDO-1624 focuses on discrete output execution rather than analog measurement, HART communication, or fieldbus signal processing.

Frequently Asked Questions

Q: Is the FS-TDO-1624 a safe digital output module?
A: No. The FS-TDO-1624 is specified as a non-safe digital output module with 24 VDC, 16-channel switching capability.

Q: What is the maximum load current supported by each output channel?
A: Each output channel supports a maximum current of 100 mA according to the provided specifications.

Q: What load types can the FS-TDO-1624 drive?
A: The module supports 24 VDC discrete loads within the specified current, lamp load, and capacitance limits.

Field Installation Guidelines

• Install the FS-TDO-1624 in the designated Honeywell Safety Manager I/O hardware location according to system configuration requirements.
• Verify that field wiring matches the 24 VDC output rating before connecting external devices.
• Separate digital output wiring from high-voltage power cables and high-noise signal sources to reduce electrical interference.
• Use appropriate grounding and shielding practices when field conditions introduce electromagnetic noise.
• Confirm connected loads remain within the specified 100 mA output current and 1 uF capacitance limits.
• Inspect terminal connections and cable routing before system power application.

Specifications

• Brand: Honeywell

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
