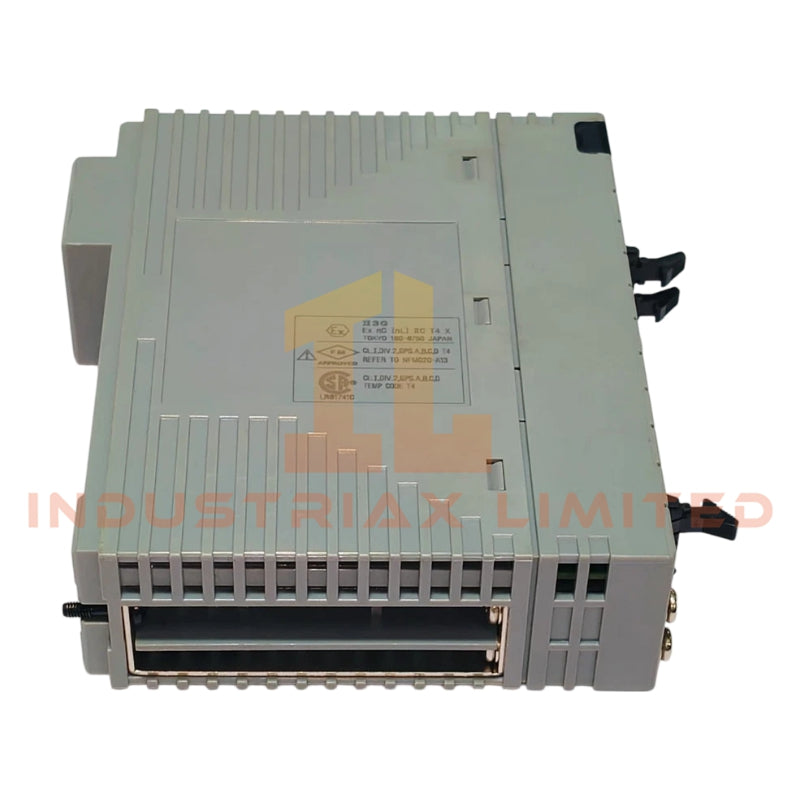

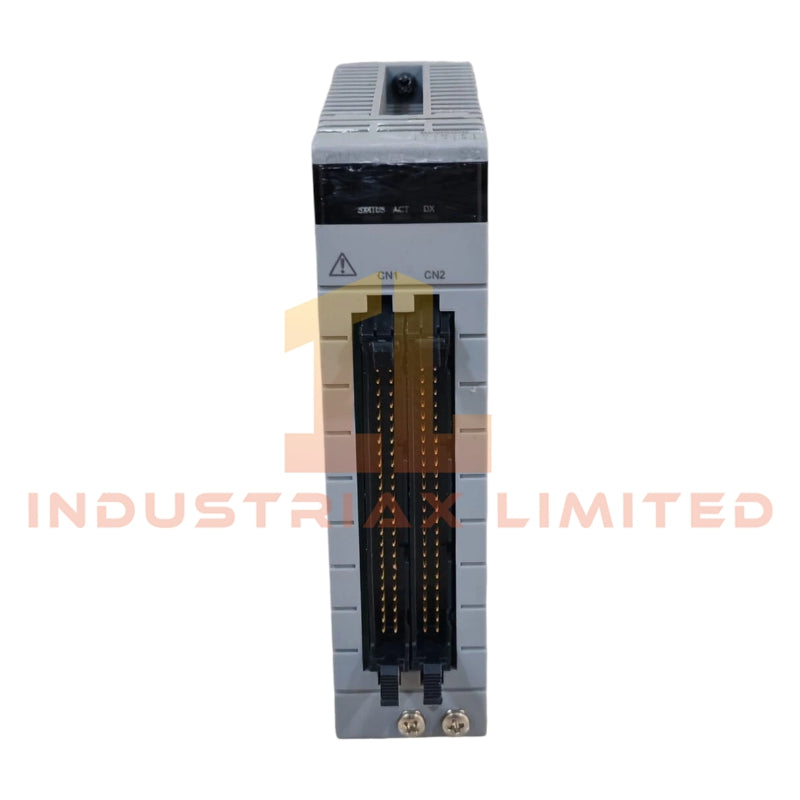

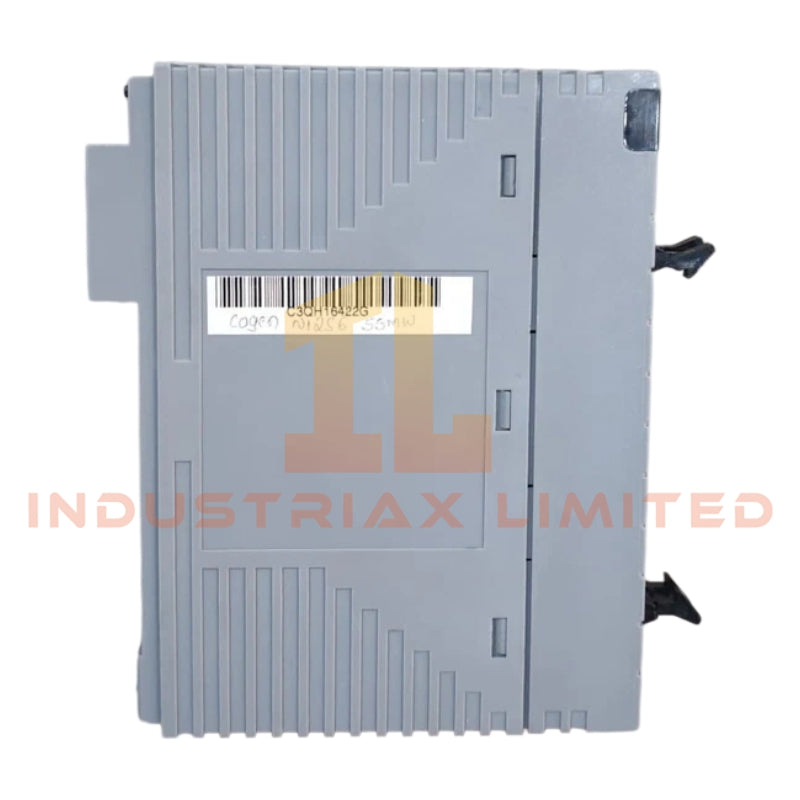

Yokogawa ADV561-P51 Digital Output Module
Configured for discrete signal actuation in distributed I/O backplane networks, the Yokogawa ADV561-P51 (ADV561 Digital Output Module) provides direct physical/electrical execution of 24 V DC switching commands across Yokogawa field I/O architectures.
HardwareSpecifications
| Parameter |
Specification |
| ModelBrand |
Yokogawa ADV561-P51 |
| Origin |
Japan |
| Weight |
0.3 kg |
| Output Channels |
64 channels |
| Output Type |
Digital Output |
| Rated Voltage |
24 V DC |
| Isolation |
Channel-to-channel isolation (design dependent on module architecture) |
| Mounting |
Backplane-mounted I/O module |
Field Control Station Signal Execution Architecture
The ADV561 series is integrated into Yokogawa distributed control environments where backplane-based I/O determinism governs output state transitions. Within CENTUM-based I/O subsystems, digital output refresh cycles are synchronized via internal bus communication, ensuring stable state propagation across densely populated 64-channel configurations. Channel grouping architecture supports electrical isolation boundaries to reduce cross-channel coupling under mixed load conditions. Integration with FOUNDATION Fieldbus and Profibus PA gateway layers is handled at system interface level rather than module-level signaling.
SuffixBreakdown&ModelMatrix
-
ADV561: Base model digital output module
-
P: Pushbutton input option enabled
-
5: No status display, no explosion protection
-
1: ISA Standard G3 environmental compliance option
-
P51: Combined suffix configuration defining mechanical and environmental variant set
FrequentlyAskedQuestions
Q: Can the ADV561-P51 support hot-swap replacement under powered backplane conditions?
A: Module replacement behavior depends on system backplane implementation. In typical Yokogawa I/O racks, hot-swap capability is governed at rack/controller level rather than module electronics.
Q: What is the channel isolation behavior for dense 64-point output operation?
A: Isolation is implemented to limit electrical interference between adjacent output channels, with separation defined by internal opto-isolation and backplane segregation architecture.
Q: Does firmware update affect output state retention?
A: Output retention during firmware or configuration updates is system-dependent and typically managed by controller-level fail-safe logic rather than module-level storage.
FieldInstallationGuidelines
Ensure the module is inserted into a compatible Yokogawa I/O base unit with correct backplane alignment. Verify that 24 V DC field power distribution is within rated tolerance before energization. Maintain separation of output wiring from high-voltage or high-noise conductors to preserve signal integrity. Shield grounding should be terminated at a single-point earth reference to minimize ground loop formation. Do not exceed terminal block current ratings per channel group. Mechanical seating must be fully engaged to ensure stable backplane contact resistance.
