Description
Product Overview

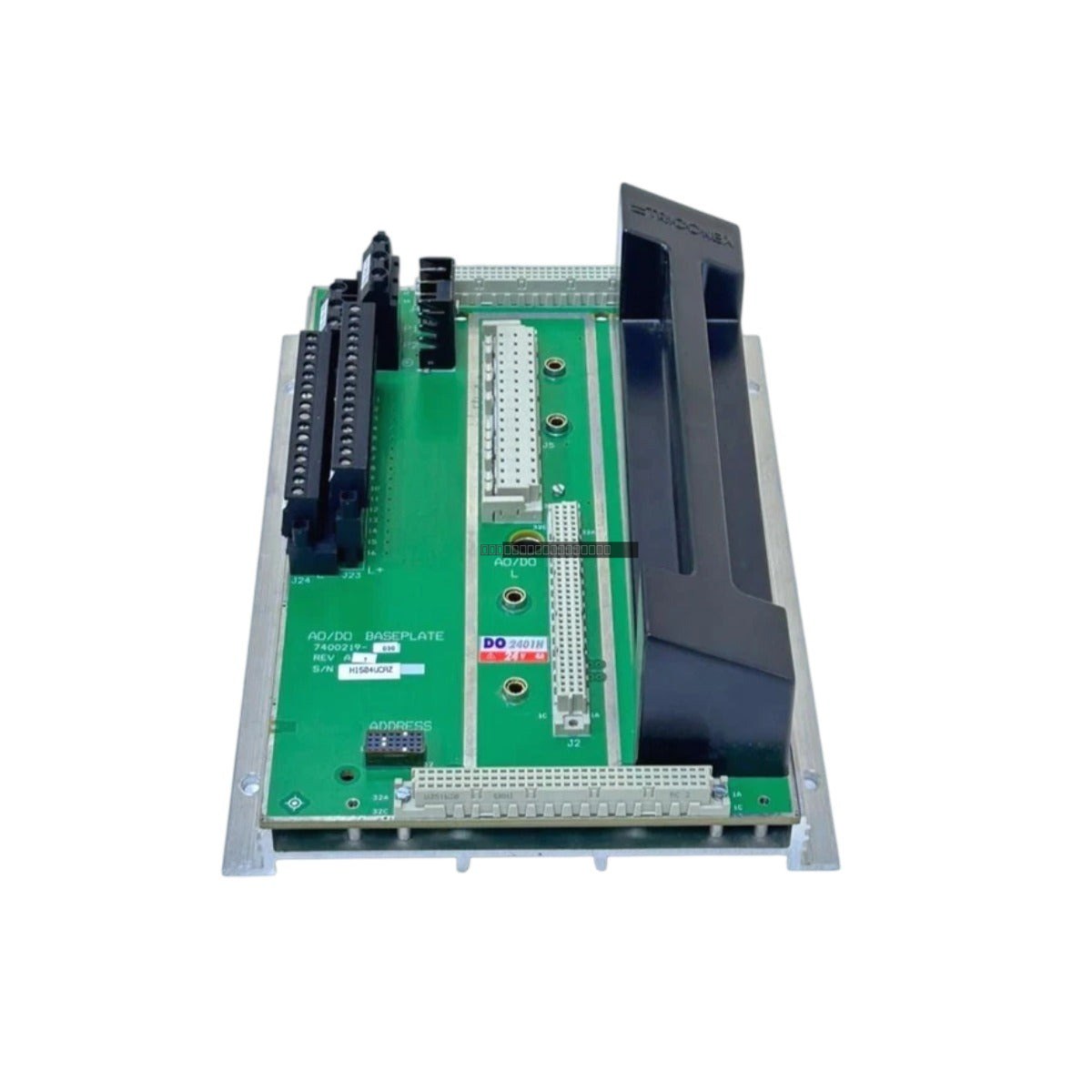

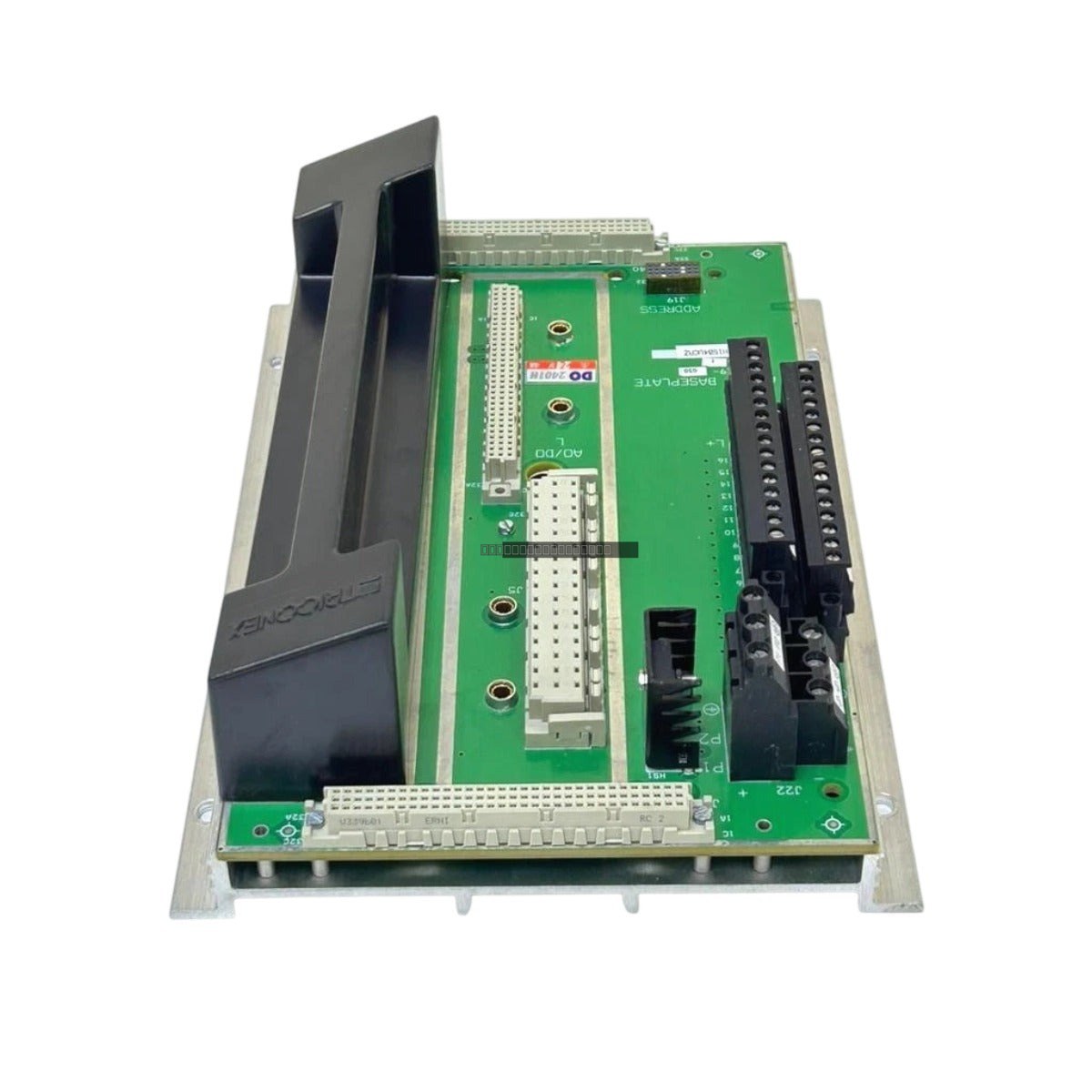

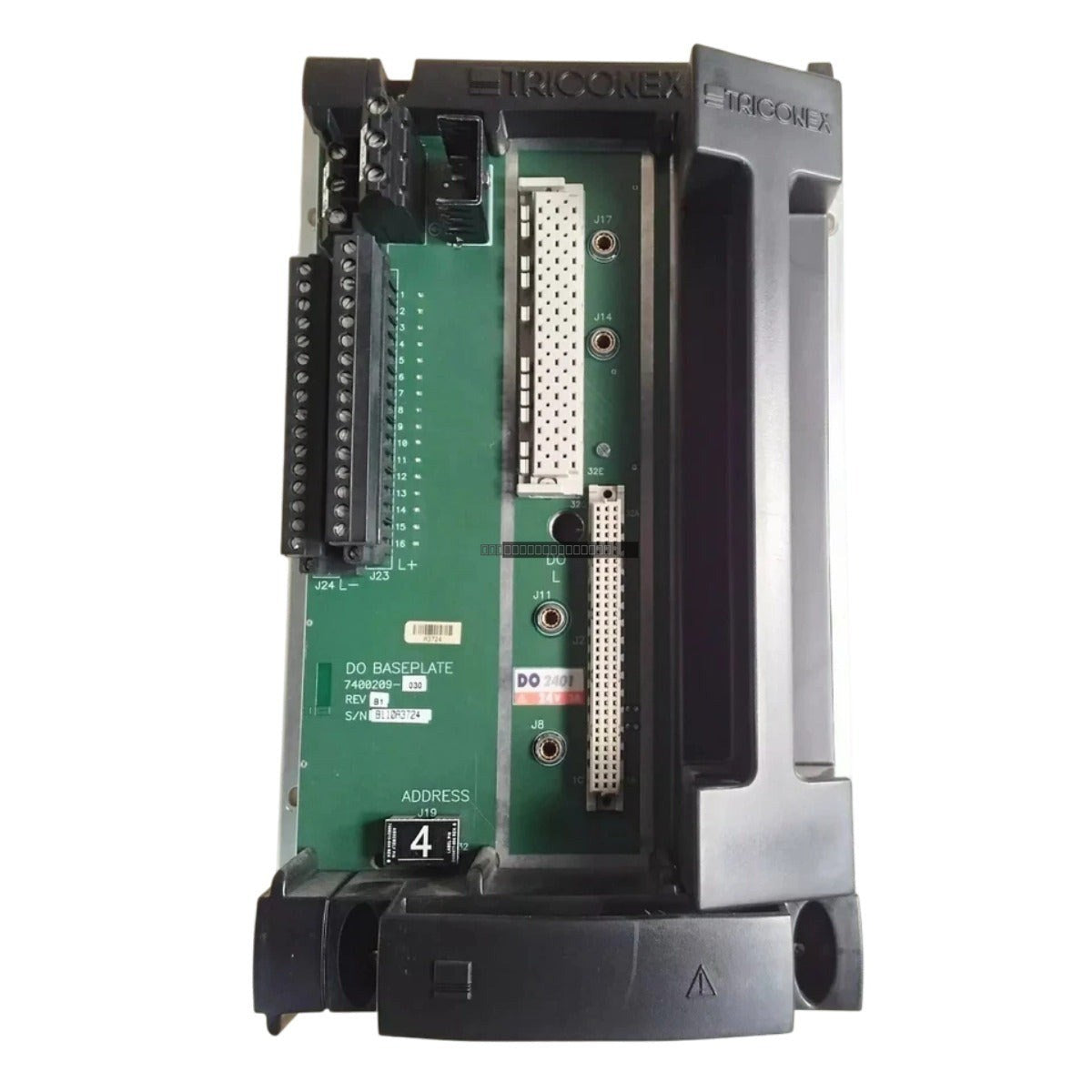

The Triconex 2401 is a specialized digital output baseplate engineered to serve as the foundational infrastructure for safety-critical control systems. It is specifically designed to support fault-tolerant digital output modules within a Triple Modular Redundancy (TMR) framework. By providing robust signal routing and power distribution, the 2401 ensures high availability for field actuators, solenoids, and indicators in demanding industrial settings, including power generation, oil and gas, and chemical manufacturing. This baseplate is essential for maintaining the integrity of emergency shutdown (ESD) systems and safety-critical interlocking logic.
Features
- Designed for seamless integration with TMR architectures to eliminate single points of failure.
- Supports high-availability field device connectivity for critical interlocking and shutdown operations.
- Advanced multi-layer circuit design for reliable signal path integrity.
- Dual-redundant 24 VDC power distribution paths for enhanced system resilience.
- Integrated mechanical keying to prevent improper module installation.
- Optimized layout with robust grounding planes for superior EMI protection.
Applications
The 2401 baseplate is optimized for use in high-stakes industrial environments where system uptime and safety are paramount. Typical applications include emergency shutdown systems (ESD), fire and gas detection, boiler management, and critical process control loops where continuous operation is required during maintenance or module replacement.
Technical Specifications
| Model |
2401 |
| Brand |
Triconex |
| Product Type |
Digital Output Baseplate |
| Compatibility |
16-channel or 32-channel digital output modules |
| Bus Topology |
Triplicated TMR communication |
| Rated Voltage |
24 VDC |
| Max Bus Current |
20 A |
| Power Dissipation |
5 W (max) |
| Operating Temperature |
0 to 60 deg C |
Installation Guidelines
- Ensure the system power is disconnected before installing or removing any modules from the baseplate.
- Mount the baseplate securely within a standard industrial enclosure, ensuring adequate clearance for airflow and thermal management.
- Maintain proper grounding connections to the chassis to mitigate the impact of electrical noise and field transients.
- Avoid routing signal cables in close proximity to high-voltage power lines to prevent electromagnetic interference.
- Verify that the module keying matches the slot configuration before insertion to prevent hardware damage.
FAQ
Is the Triconex 2401 suitable for online module replacement?
Yes, the 2401 baseplate is designed to support the live, online replacement of digital output modules, which helps to minimize unscheduled downtime in critical safety systems.
What is the primary function of the TMR architecture support?
The TMR (Triple Modular Redundancy) support ensures that control signals are triplicated across the baseplate, allowing the system to continue operation even if one path or module experiences a fault.
