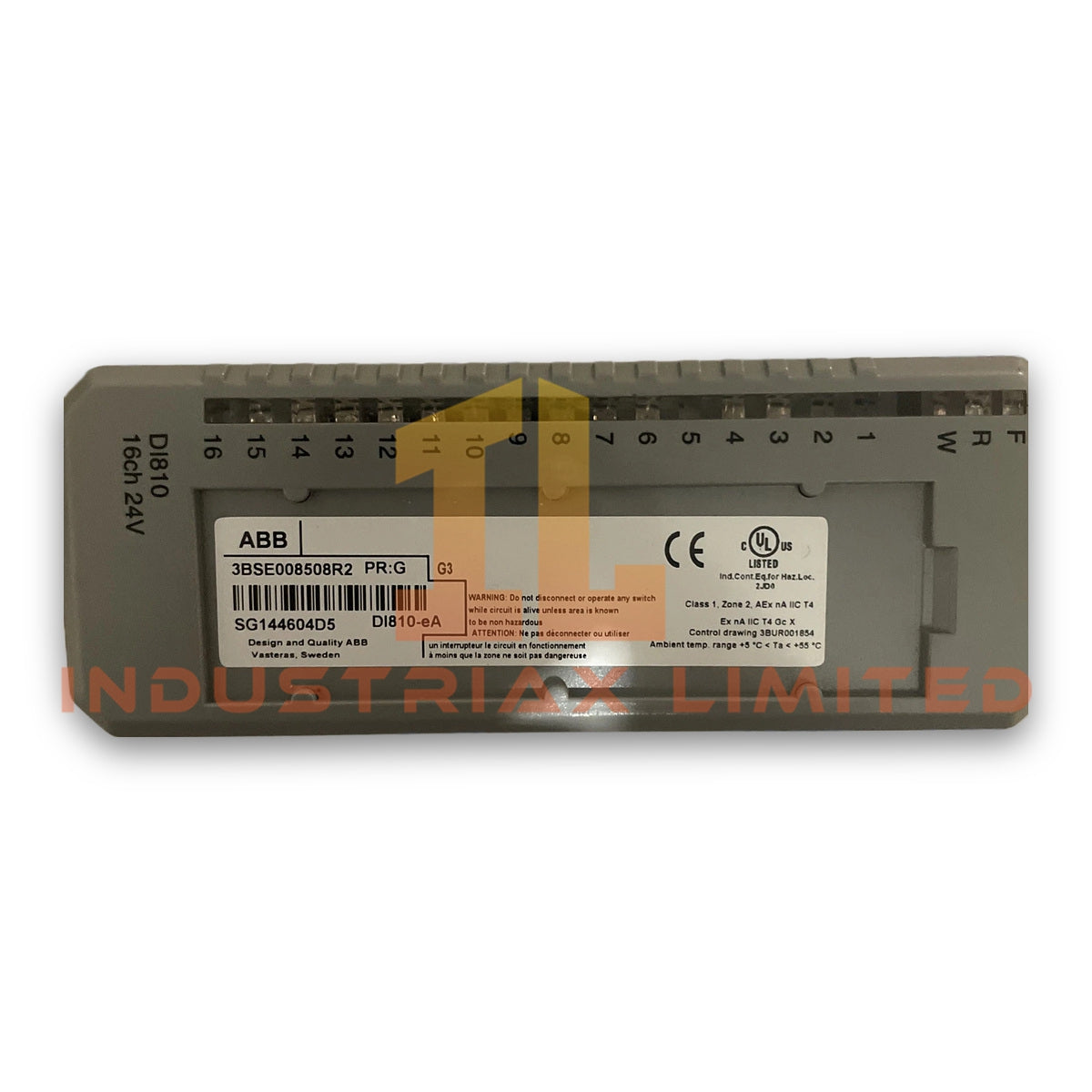

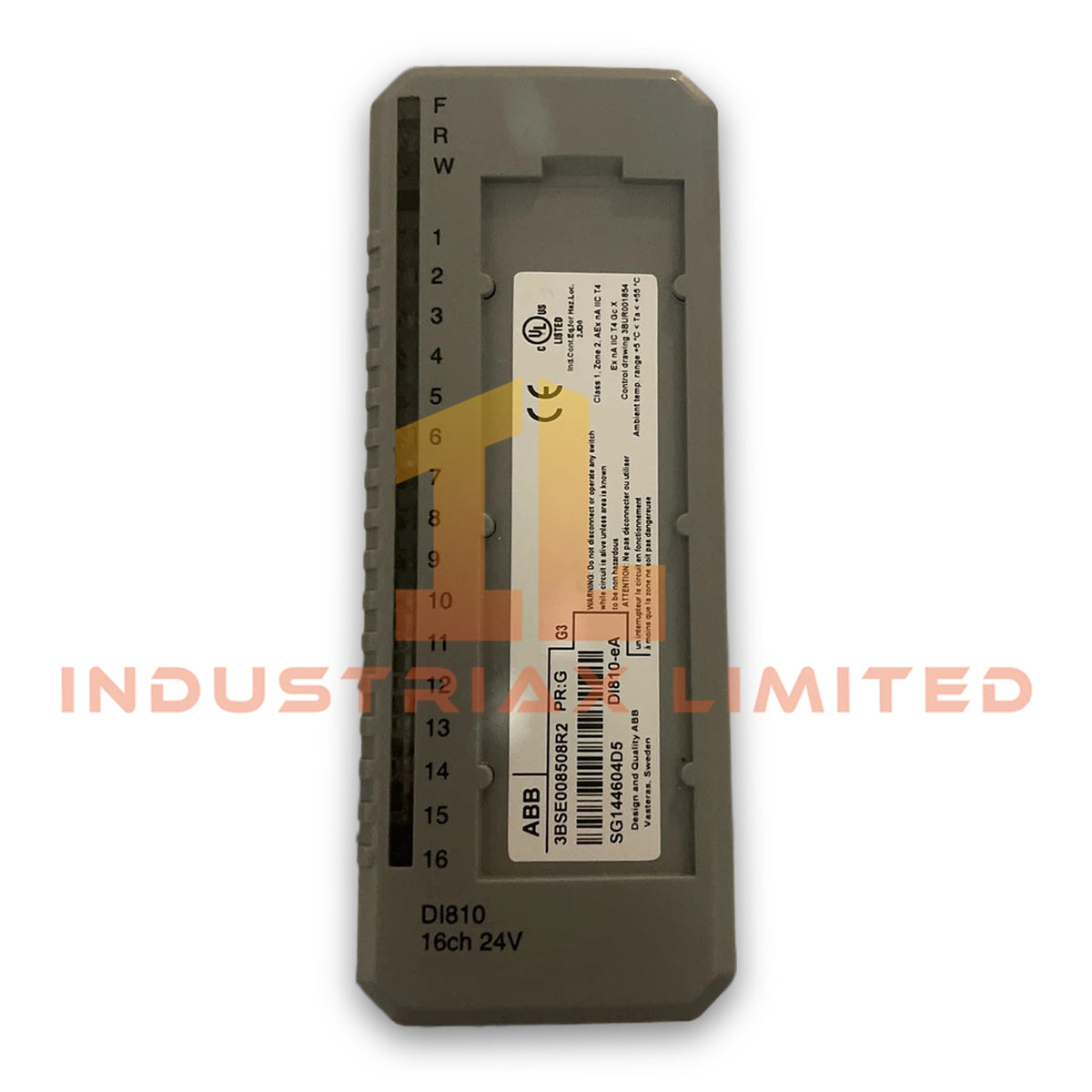

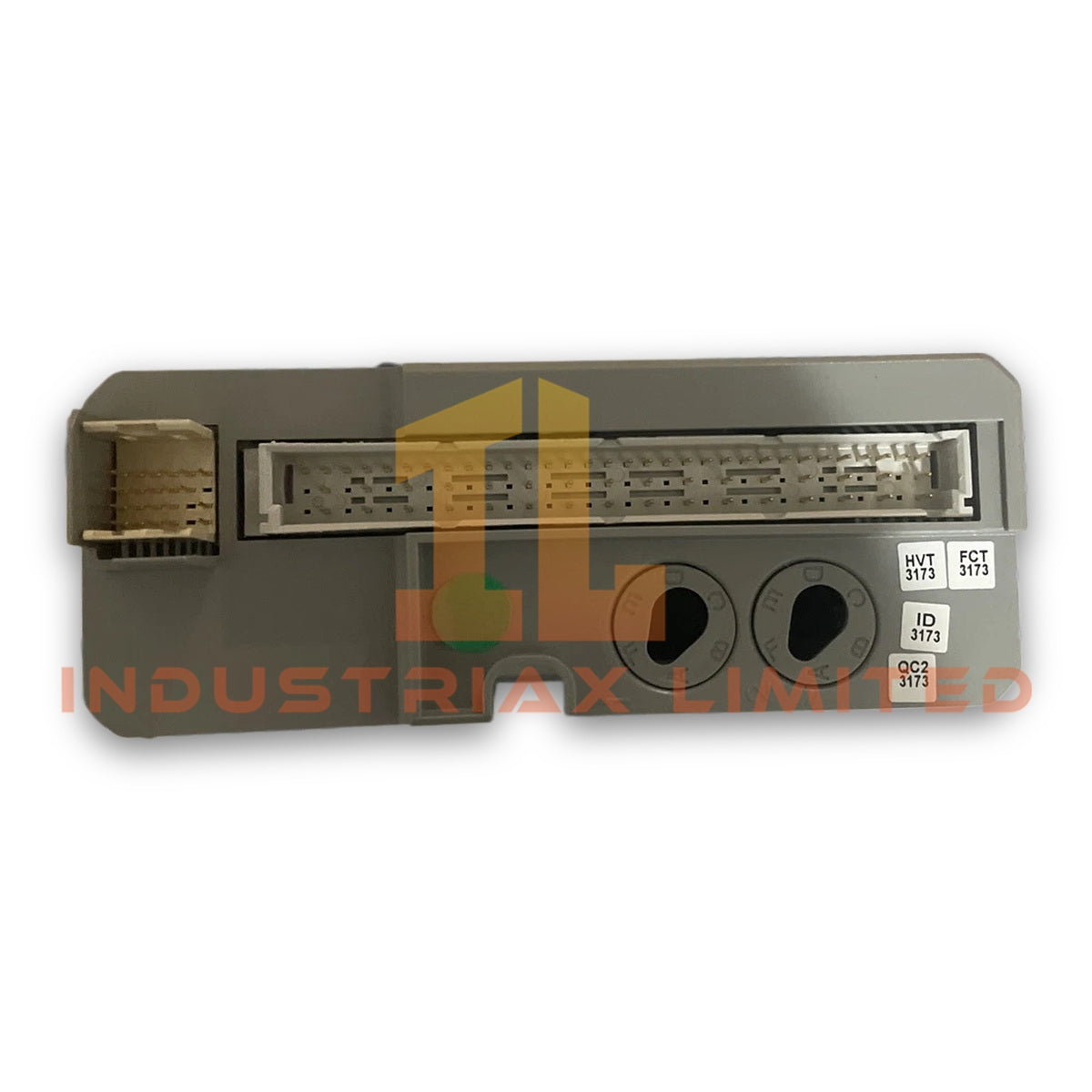

ABB DI810 Digital Input Module
The ABB DI810 3BSE008508R2, also cataloged as the DI810 Digital Input Module, provides direct electrical signal acquisition for digital field devices within ABB S800 I/O system platforms. The module receives 24 VDC process signals and transfers channel status data to the controller through the I/O communication interface.
Hardware Specifications
Parameter
Specification
Model
DI810 3BSE008508R2
Brand
ABB
Product Type
Digital Input Module
Origin
Sweden
Operating Temp
0 deg C to +55 deg C
Power Consumption
Not specified
Number of Channels
16 digital input channels
Input Voltage
24 VDC
Input Current
Typ. 6 mA per channel
Channel Isolation
Isolated input design
Signal Indication
Individual channel LED status indication
Mounting Type
DIN rail mounting with S800 I/O infrastructure
Diagnostics
Module and channel status monitoring
ABB Industrial I/O Backplane and Communication Integration
The DI810 operates as an ABB S800 I/O digital acquisition module and exchanges channel information through the system backplane communication interface. The module supports I/O density scaling by providing multiple discrete input channels within a compact hardware format.
Furthermore, the module architecture includes electrical isolation between field input circuits and internal logic circuits. This design separates process wiring from controller electronics and supports stable digital signal handling in industrial control installations.
Frequently Asked Questions
Q: How many digital input channels does the ABB DI810 provide? A: The DI810 provides 16 digital input channels for 24 VDC field signal acquisition.
Q: Does the DI810 provide electrical isolation between field signals and internal electronics? A: Yes. The module uses an isolated input design to separate field signal circuits from internal module logic.
Q: What type of field signals can connect to the DI810? A: The module accepts standard 24 VDC digital signals from industrial field devices such as switches, sensors, and status contacts.
Field Installation Guidelines
Install the DI810 module on the designated ABB S800 I/O mounting structure according to system hardware documentation.
Verify that field wiring polarity matches the digital input terminal configuration before applying operating voltage.
Route digital signal cables separately from high-voltage power cables and high-frequency switching conductors to reduce electrical interference.
Connect cable shields according to the site grounding standard and avoid multiple grounding points that may introduce signal noise.
Confirm LED channel indications after installation to verify correct field device switching status.
Check controller configuration parameters before placing the module into active process operation.
