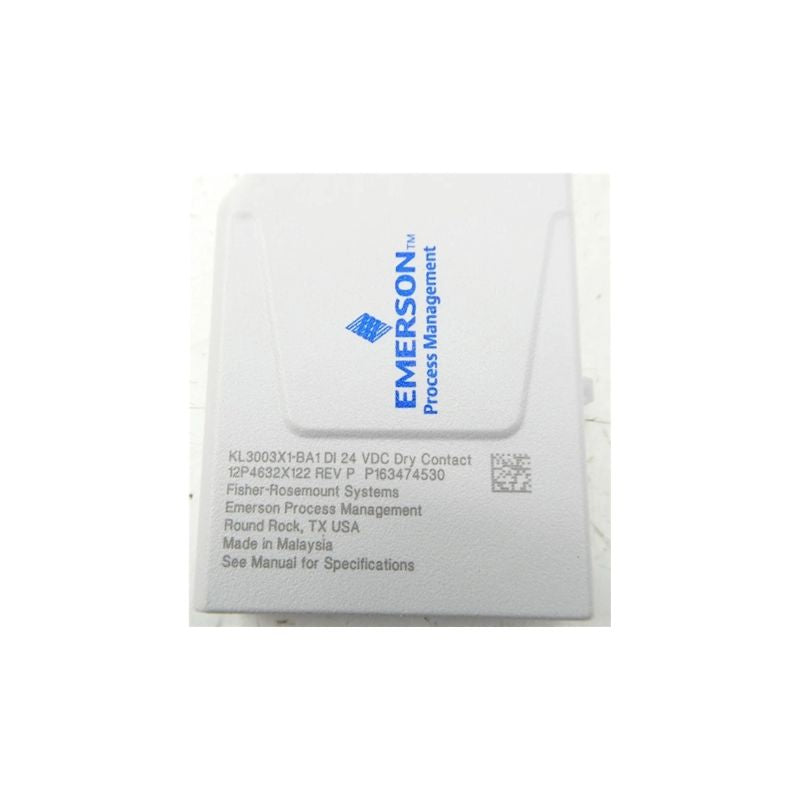

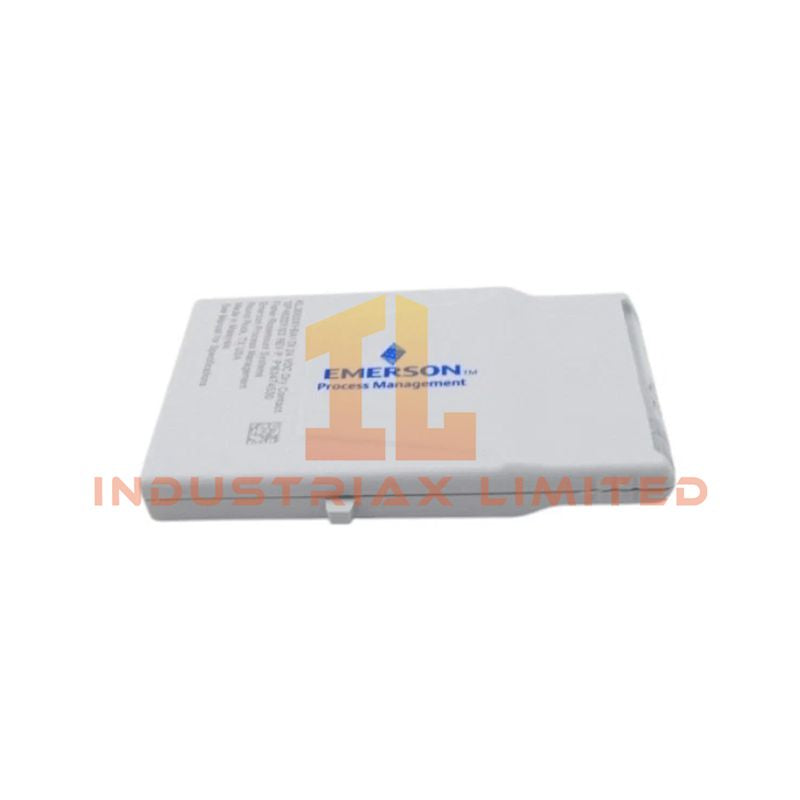

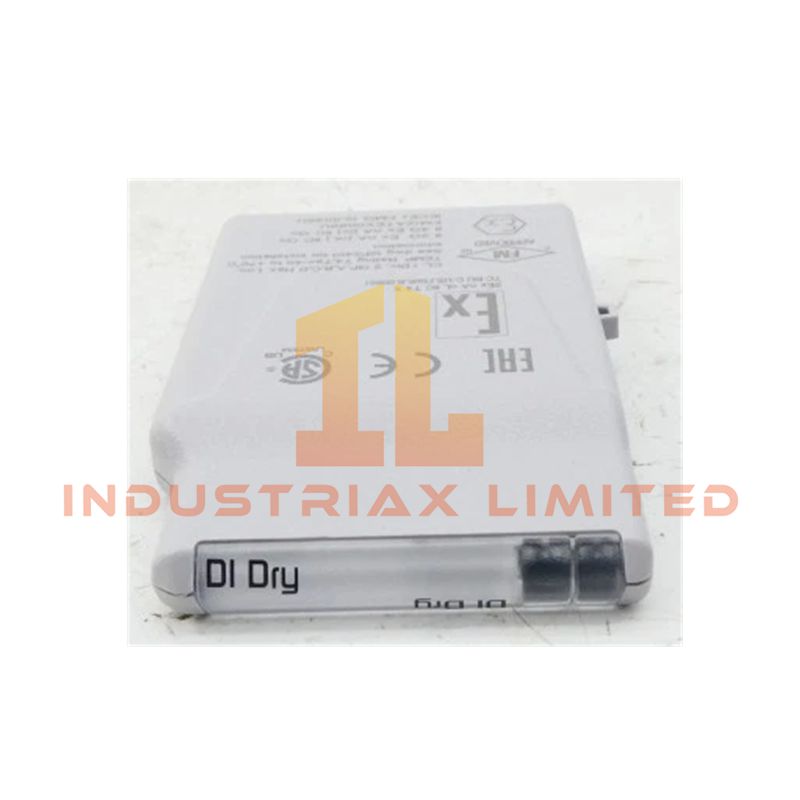

The DeltaV CHARM I/O Module (FM19ATEX0173U) is a high-reliability digital automation unit engineered for hazardous environments. It is designed to operate safely in Zone 2 and Division 2 areas, making it ideal for process automation systems that require robust digital signal acquisition and control. The module seamlessly integrates with DeltaV series systems for efficient process management.
Installation and Maintenance
-
Installation Warning: Module must not be inserted or removed while the system is powered in hazardous areas. Ensure I/O loops are energy-limited.
-
Keying System: Ensures CHARM module compatibility with the terminal block; automatically sets during first installation. Removing the terminal block allows key reset for different module types.
-
Maintenance: No user-serviceable parts; calibration is not required.
Applications
Designed for chemical, oil, gas, and other flammable environments where reliable digital input/output performance is critical. Ensures safe operation in high-risk areas.
FAQ
Q: Can the module be removed while energized?
A: No, unless the area is confirmed non-hazardous.
Q: Is periodic calibration required?
A: No, the module is factory-calibrated and contains no user-serviceable parts.
Q: What explosion protection standards are supported?
A: Supports Zone 2 / Division 2, ATEX, IECEx, and FM certifications.
Technical Specifications Table
| Parameter |
Specification |
| Power |
CHARM Bus +6.3 VDC, 32 mA; Field +24 VDC, 10 mA |
| Operating Temperature |
-40 °C to +70 °C |
| Shock |
10g, 11ms half-sine pulse |
| Vibration |
2–13.2Hz 1mm; 13.2–150Hz 0.7g |
| Relative Humidity |
5–95%, non-condensing |
| Airborne Contaminants |
ISA-S71.04 Class G3 |
| Explosion Protection |
ATEX II 3G Ex nA/nC IIC Gc, IECEx, FM, Zone 2 |
