Description

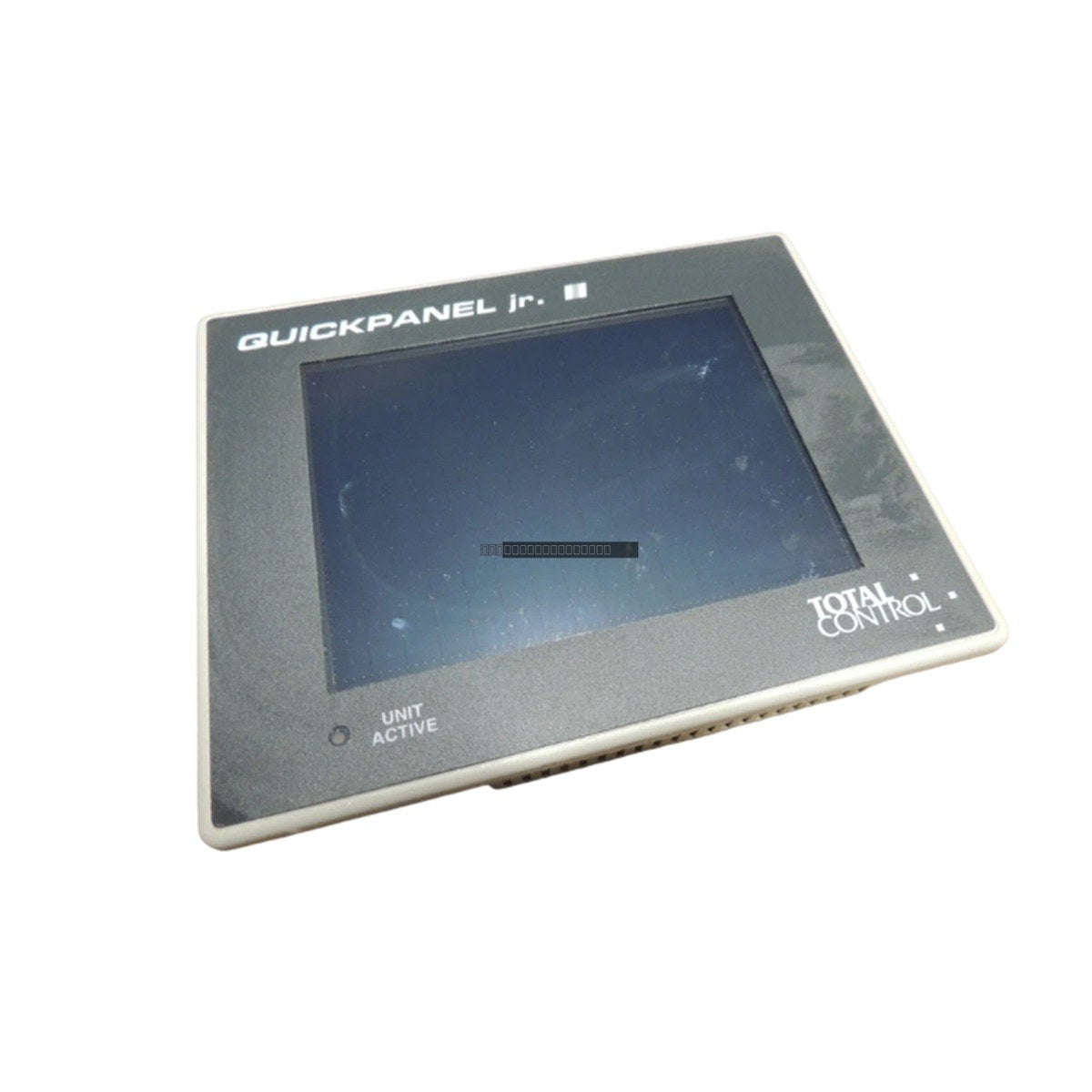

The CQPK3D200L2P is a compact human-machine interface (HMI) unit from the QuickPanel Jr. series, engineered for reliable process monitoring and machine control. Featuring a 5.7-inch monochrome LCD display with a 240 x 320 pixel resolution, this unit provides clear visual feedback in space-constrained industrial environments, including food processing, small-scale manufacturing, and packaging lines. The hardware is encased in a robust enclosure rated for IP65/NEMA Type 4X/12, ensuring high protection against dust, water, and ambient contaminants. By facilitating real-time data visualization and operator interaction, the CQPK3D200L2P enables immediate process adjustments and faster diagnostics, which are essential for maintaining continuous production and minimizing operational downtime.
Features
- 5.7-inch high-contrast monochrome LCD display for clear visibility.
- Compact panel-mount design with shallow mounting depth for space-constrained enclosures.
- IP65 and NEMA Type 4X/12 rated front panel protection.
- Integrated power immunity circuit providing 20 ms hold-up during power dips.
- Compatible with QuickDesigner 3.7 software for intuitive screen configuration and PLC communication.
Applications
This HMI unit is designed for use in various industrial automation applications, including:
- Food and beverage processing machinery.
- Small-scale manufacturing and assembly lines.
- Packaging and labeling equipment.
- General machine control and process monitoring systems.
Technical Specifications
| Model |
CQPK3D200L2P |
| Brand |
GE Fanuc |
| Product Line |
QuickPanel Jr. |
| Display Type |
Monochrome LCD |
| Resolution |
240 x 320 pixels |
| Input Voltage |
24 VDC (20-27 VDC range) |
| Power Consumption |
15 W (max) |
| Operating Temperature |
0 to 40 deg C |
| Storage Temperature |
-20 to 60 deg C |
| Protection Rating |
IP65, NEMA Type 4X/12 |
Installation Guidelines
- Ensure the panel cutout is prepared to the manufacturer's specifications to maintain the IP65/NEMA seal.
- Verify that the power supply is within the 20-27 VDC range before connection.
- Use shielded communication cables for PLC integration to minimize EMI interference.
- Ensure adequate ventilation around the unit to maintain operating temperatures within the 0 to 40 deg C range.
- Always disconnect power before performing any wiring or maintenance on the unit.
FAQ
What software is required to program this HMI?
The CQPK3D200L2P is designed to be configured using QuickDesigner software, version 3.7.
Does this unit support color graphics?
No, this specific model features a monochrome LCD display.
