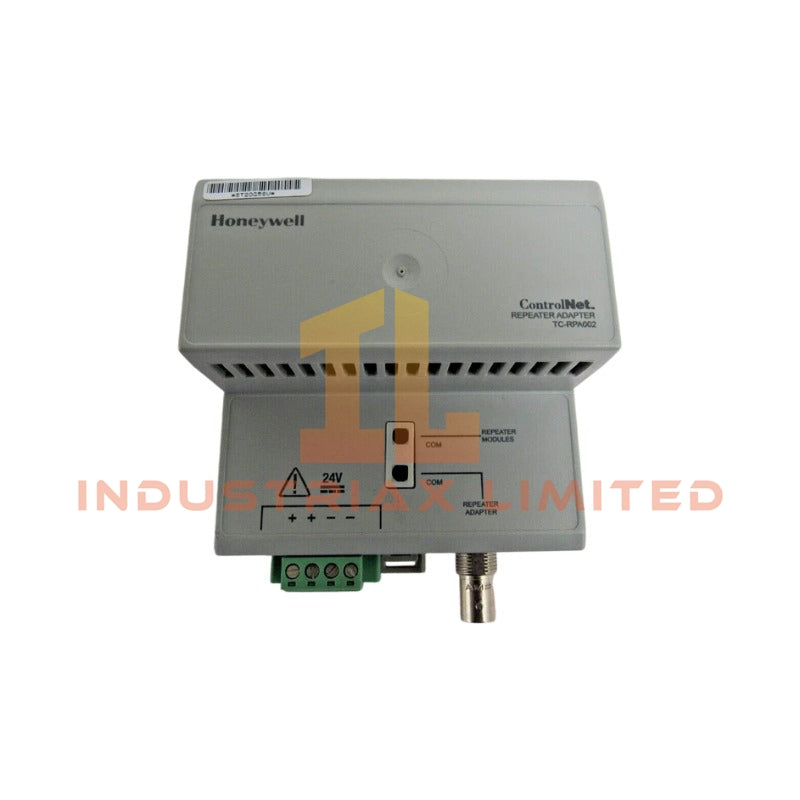

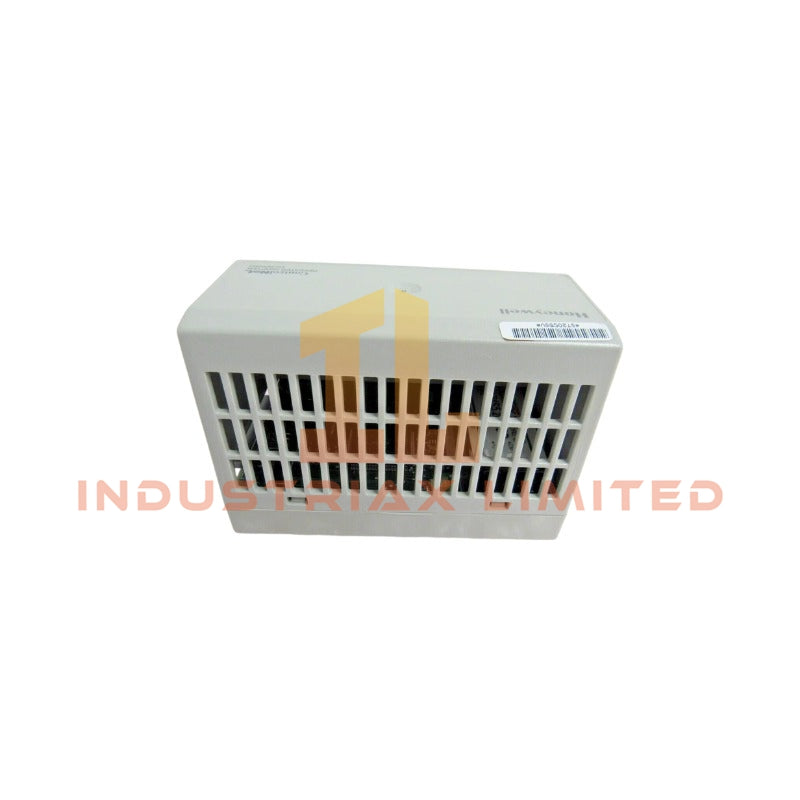

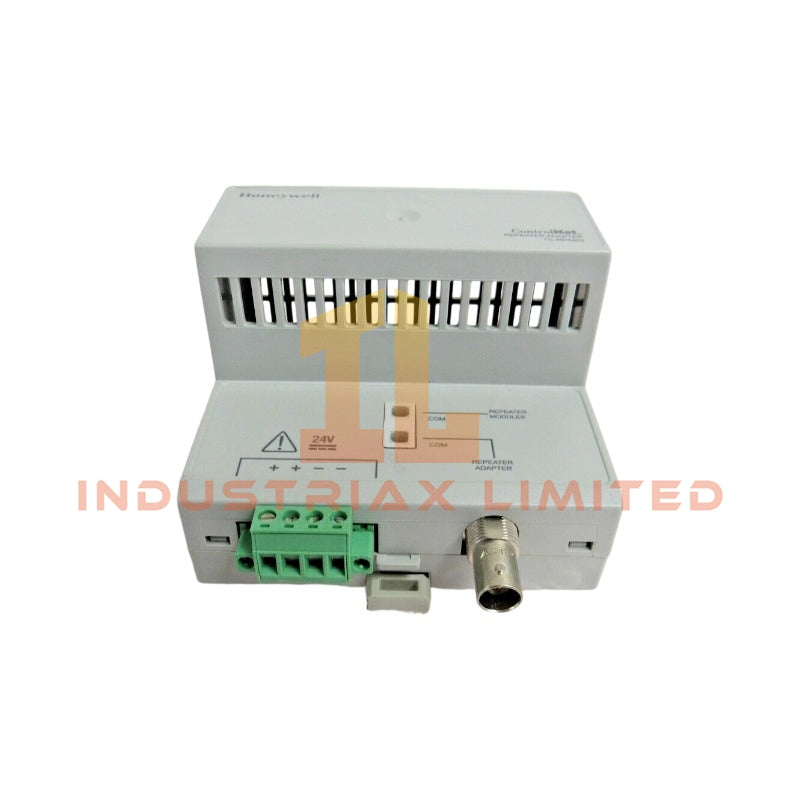

Honeywell TC-RPA002 ControlNet Repeater Adapter

Configured for ControlNet signal repetition and segment extension in ControlNet industrial networks, the Honeywell TC-RPA002 (TC-RPA002 ControlNet Repeater Adapter) provides direct physical/electrical execution of redundant media regeneration and I/O network coupling within Honeywell Experion PKS and PlantScape environments, as well as compatible ControlNet infrastructures.

Suffix Breakdown & Model Matrix

The TC-RPA002 designation is treated as a single fixed ordering identifier. No decoded suffix segmentation or functional variant matrix is defined by manufacturer documentation for this module.

Hardware Specifications

Parameter	Specification
Model	TC-RPA002
Brand	Honeywell
Origin	United States
Weight	0.1 kg
Dimensions	10.9 cm x 10.9 cm x 7.1 cm
Operating Temp	0 deg C to 60 deg C
Power Consumption	5 V DC backplane supply, approx. 400 to 500 mA
Network Protocol	ControlNet
Data Rate	5 Mbps
Redundancy	Dual channel media ports (Port A / Port B)
Function	Repeater / segment regeneration for ControlNet I/O topology

Honeywell ControlNet Communication Interface Characteristics

Within Honeywell process control architectures, ControlNet communication layers may coexist with other plant-wide deterministic and non-deterministic field protocols. Channel-to-channel electrical separation and deterministic scheduling behavior are implemented at the network interface layer, while higher-level process integration may include 4-20 mA HART loop interfaces, FOUNDATION Fieldbus segments, or PROFIBUS PA subsystems depending on controller configuration and plant migration topology.

Frequently Asked Questions (FAQ)

Q: Does the TC-RPA002 support hot-swap insertion under energized backplane conditions?
A: The module is designed for removal and insertion under power (RIUP) depending on chassis implementation. Backplane current interruption tolerance is governed by the host rack architecture.

Q: What is the effect of dual-port redundancy on ControlNet timing behavior?
A: Dual media ports operate in parallel for redundancy. Active path selection and failover occur at the network layer without altering the 5 Mbps deterministic communication rate.

Q: What is the typical backplane load impact per module?
A: Power draw is specified at approximately 400 to 500 mA at 5 V DC from the system backplane, depending on network traffic and port activity state.

Field Installation Guidelines

• Install module into compatible Honeywell or ControlNet-enabled chassis backplane slot with correct alignment to prevent connector damage.
• Maintain separation between ControlNet coaxial cabling and high-voltage conductors to minimize induced noise coupling.
• Use 75 ohm impedance-matched cabling for ControlNet trunk and drop segments.
• Ensure shield termination is applied at single-point grounding reference to avoid ground loop formation.
• Observe maximum segment length and node count limitations defined by ControlNet physical layer specification.
• Verify LED status indicators during initial power-up for module health and network synchronization state.
