Description

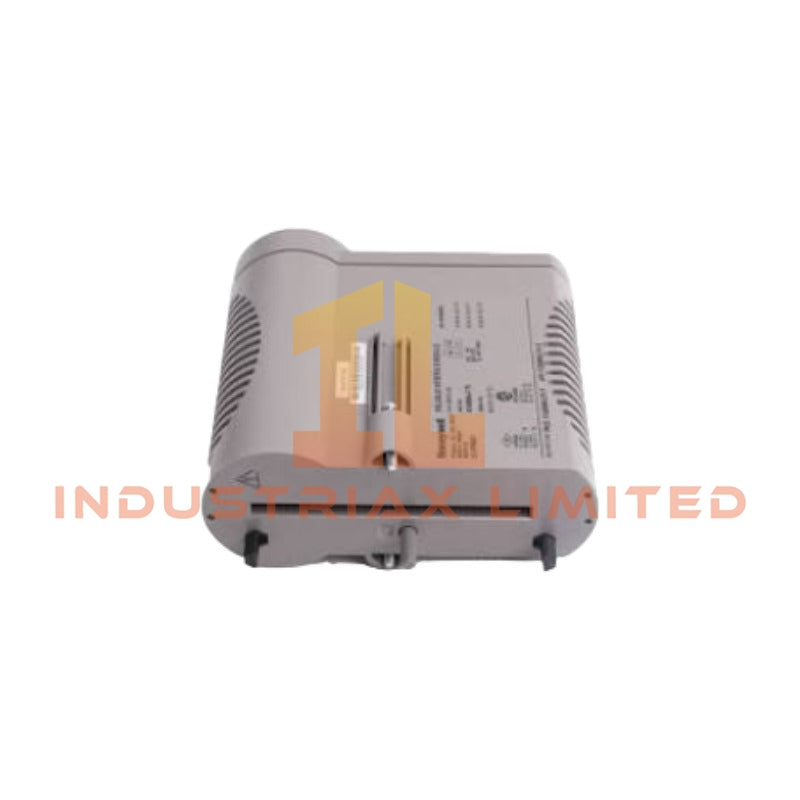

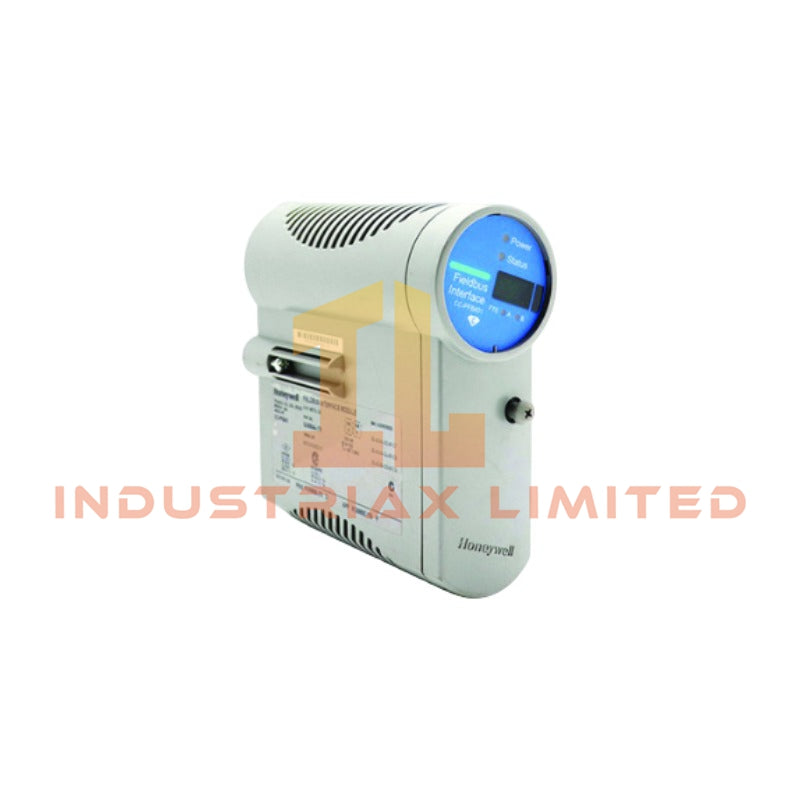

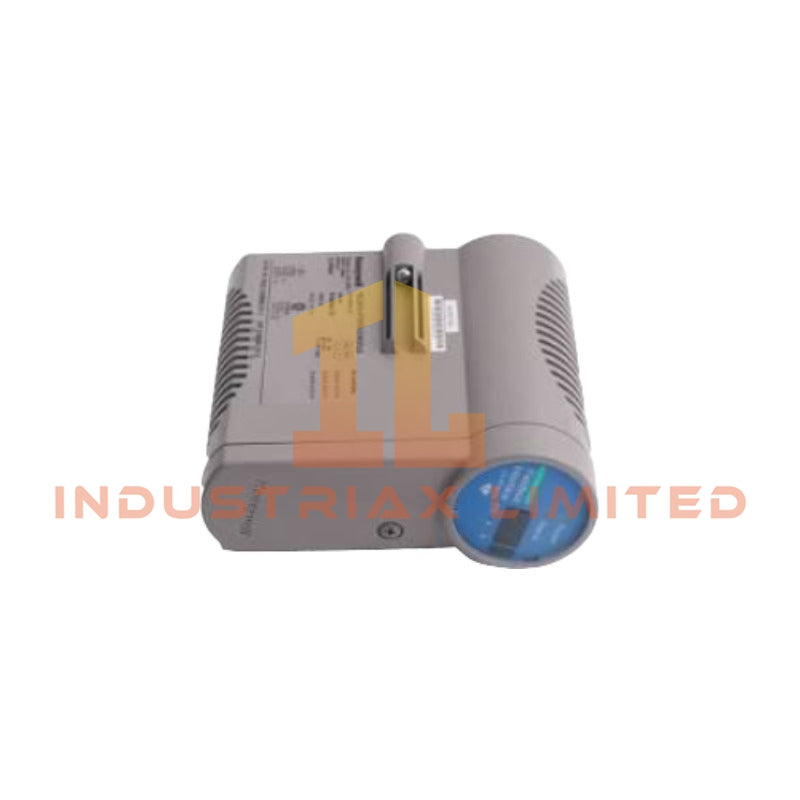

Honeywell CC-TSV211 Servo Valve Positioner Module

Configured for servo valve position control in Honeywell Experion PKS Series C I/O systems, the Honeywell CC-TSV211 (51306665-175) (CC-TSV211 Servo Valve Positioner Module) provides direct physical/electrical execution for hydraulic actuator positioning through servo coil drive and position feedback processing.

Hardware Specifications

Parameter	Specification
Model	CC-TSV211 (51306665-175)
Brand	Honeywell
Product Type	Servo Valve Positioner Module
Series	Experion PKS Series C I/O
Origin	USA
Weight	0.7 kg
Dimensions	44.3 x 12 x 7.5 cm
Operating Temp	Not specified
Power Consumption	Not specified
Output Channels	2
DAC Resolution	16-bit
Maximum Open Circuit Voltage	+/-14 V
Galvanic Isolation	+/-500 VDC
Input/Output Range	8 V RMS max., 2.5-3.2 kHz
Input Impedance	> 25 kOhm
Input Scan Rate	2.5 ms
Common Mode Voltage	-6 to +5 V peak, DC to 60 Hz
Feedback Interface	LVDT/RVDT/4-20 mA position feedback support
Control Function	Onboard PID servo positioning loop
Output Function	Direct servo valve coil current drive

DCS Signal Conditioning and Channel Isolation Features

The CC-TSV211 operates as a Series C I/O servo control interface with onboard signal processing for valve position regulation. The module accepts position feedback signals from LVDT, RVDT, or 4-20 mA devices and executes an internal PID positioning algorithm before generating servo coil output commands.

The Honeywell Experion PKS architecture uses channel-level signal conditioning methods similar to other process control I/O modules, including channel-to-channel isolation concepts for minimizing electrical interference between independent signal paths. The CC-TSV211 provides +/-500 VDC galvanic isolation for field-side signal protection and supports controlled analog feedback acquisition with a 2.5 ms input scan rate.

The module receives remote valve demand signals from a C300 controller and converts digital control commands into analog servo output behavior. The design supports dual-channel operation, LVDT feedback monitoring, diagnostic processing, and redundant control configurations within compatible Series C I/O installations.

Frequently Asked Questions (FAQ)

Q: What type of feedback signals can the CC-TSV211 process?
A: The module supports LVDT, RVDT, and 4-20 mA valve position feedback inputs for servo valve positioning applications.

Q: Does the CC-TSV211 contain an onboard positioning control loop?
A: Yes. The module includes an onboard PID positioning loop that processes valve demand commands and feedback signals to control servo valve coil output.

Q: What electrical isolation capability is provided by the module?
A: The CC-TSV211 provides galvanic isolation rated at +/-500 VDC between applicable electrical sections.

Field Installation Guidelines

• Install the CC-TSV211 in a compatible Honeywell Experion PKS Series C I/O rack according to the system hardware configuration requirements.
• Verify field wiring polarity and signal termination before connecting servo coil outputs and position feedback inputs.
• Use shielded instrumentation wiring for LVDT/RVDT and analog feedback connections where required by the site electrical installation standard.
• Terminate cable shields according to the plant grounding practice to reduce electromagnetic interference.
• Separate low-level feedback wiring from high-current actuator wiring to reduce induced electrical noise.
• Confirm controller communication configuration and I/O channel assignment before commissioning the servo positioning loop.
• Inspect terminal connections and mechanical mounting before applying operating power.

Specifications

• Brand: Honeywell

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
