Description

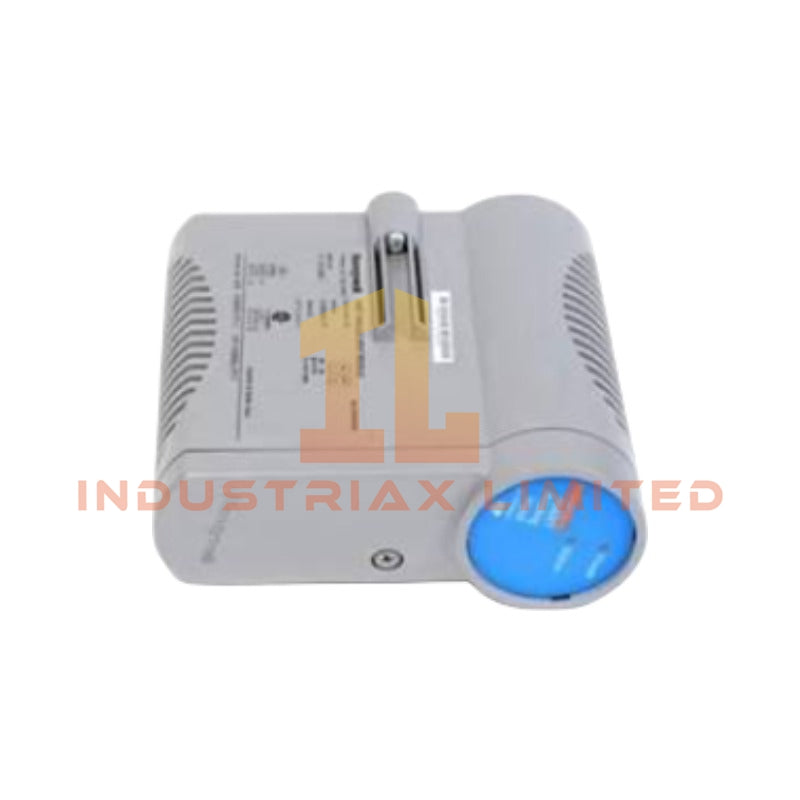

Honeywell CC-TUIO01 Experion PKS C300 Series C Universal Input/Output Module

The Honeywell CC-TUIO01, also cataloged as the Honeywell CC-PUIO01 Universal Process IO Module, operates as a dedicated hardware component for software-configurable signal interface tasks within Experion PKS C300 controller platforms.

Hardware Specifications

Parameter	Specification
Model	CC-TUIO01 (Base Model: CC-PUIO01)
Brand	Honeywell
Origin	United States
Weight	Standard slot-factor weight
Dimensions	Series C I/O form factor compliant
Operating Temp	0 to +60 deg C
Storage Temp	-40 to +85 deg C
Power Consumption	24 VDC nominal, form factor dependent
Number of Channels	32 Channels (CC-TUIO01) / 24 Channels (CC-PUIO01)
Supported Signal Types	Analog Input (4-20 mA), Analog Output (4-20 mA), Digital Input (Dry contact, 24 VDC), Digital Output (24 VDC current sourcing)
Resolution	16-bit A/D and D/A converters
Isolation	Channel-to-field and channel-to-logic galvanic isolation
Protection	Electronic short circuit protection
Coating	Conformal coating

Process Control and DCS Instrumentation Features

The module integrates a dedicated 4-20 mA HART loop protocol layer across all channels, enabling direct bidirectional digital communication with smart field instruments. The architecture utilizes per-channel software configuration parameters to assign signal characteristics dynamically. Advanced channel-to-channel isolation networks prevent common-mode electrical interference from propagating between interconnected loops. Field-side transients are suppressed via onboard electronic short circuit limiting components, isolating individual loop faults to prevent module-wide drops.

Frequently Asked Questions

Q: Can channels be reconfigured while the module is actively processing live field signals on other loops?

A: Yes. Individual channel configuration changes via the Experion control software do not interrupt the continuous electrical execution or processing state of adjacent operational channels on the same module.

Q: What are the limits regarding the hot-swap capability of the CC-TUIO01 module under field conditions?

A: The module supports online removal and replacement (hot-swap) under active 24 VDC backplane power. Mechanical alignment tracking structures ensure that the physical insertion does not cause system voltage dips or compromise active controller-to-I/O network communications.

Field Installation Guidelines

• Shield Grounding: Terminate all instrument cable shields at the designated cabinet grounding busbar. Do not loops or ground both ends of the shield to prevent the formation of ground loops.
• Wiring Separation: Route low-voltage 4-20 mA signaling lines away from high-voltage AC power distribution conduits to eliminate inductive noise coupling.
• Terminal Torque: Secure all field wiring terminal block screws to the manufacturer-specified torque rating to prevent intermittent open circuits caused by mechanical vibration.
• Conformal Coating Integrity: Ensure that the pre-applied conformal coating is not scratched or compromised during terminal block insertion within harsh or corrosive atmospheric environments.

Specifications

• Brand: Honeywell

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
