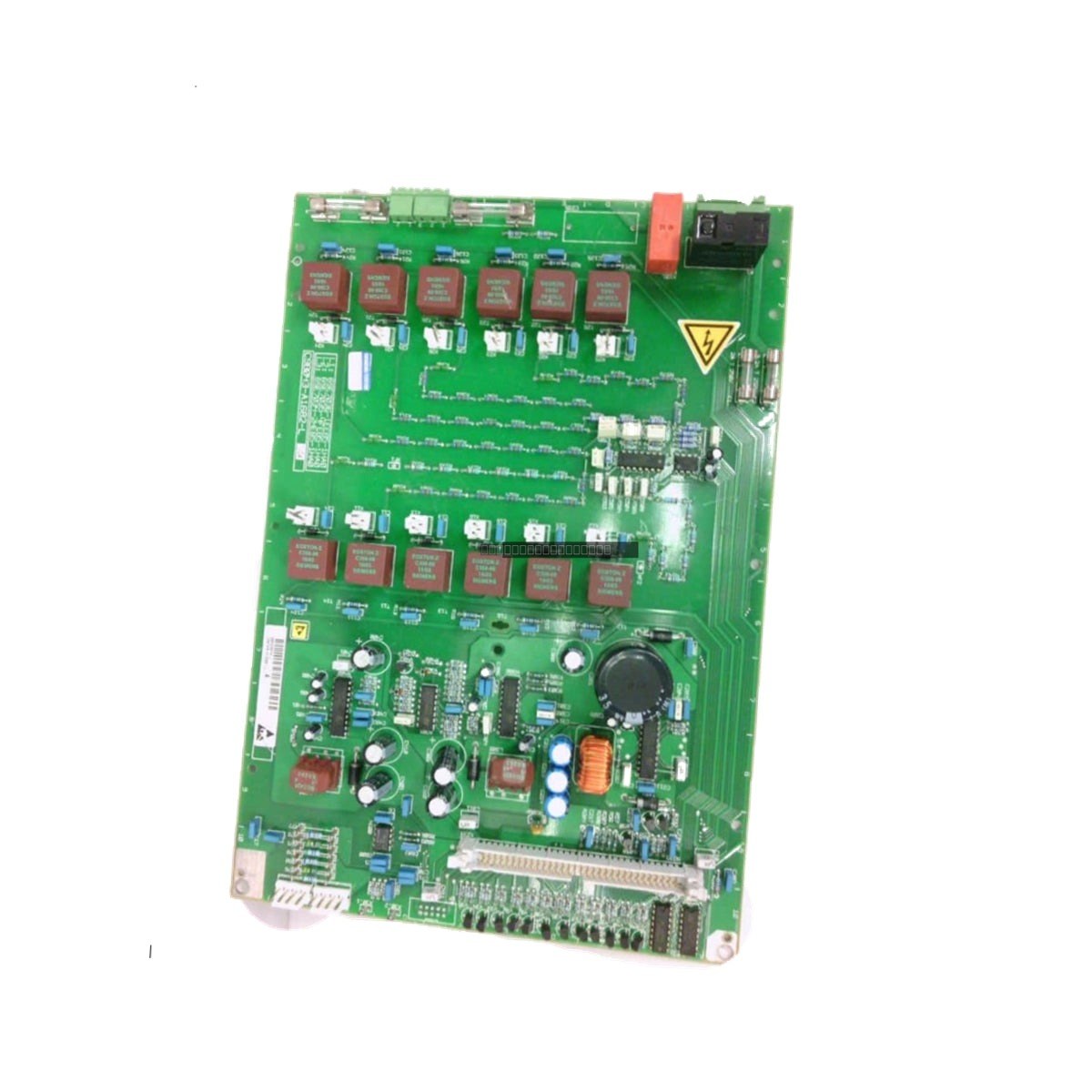

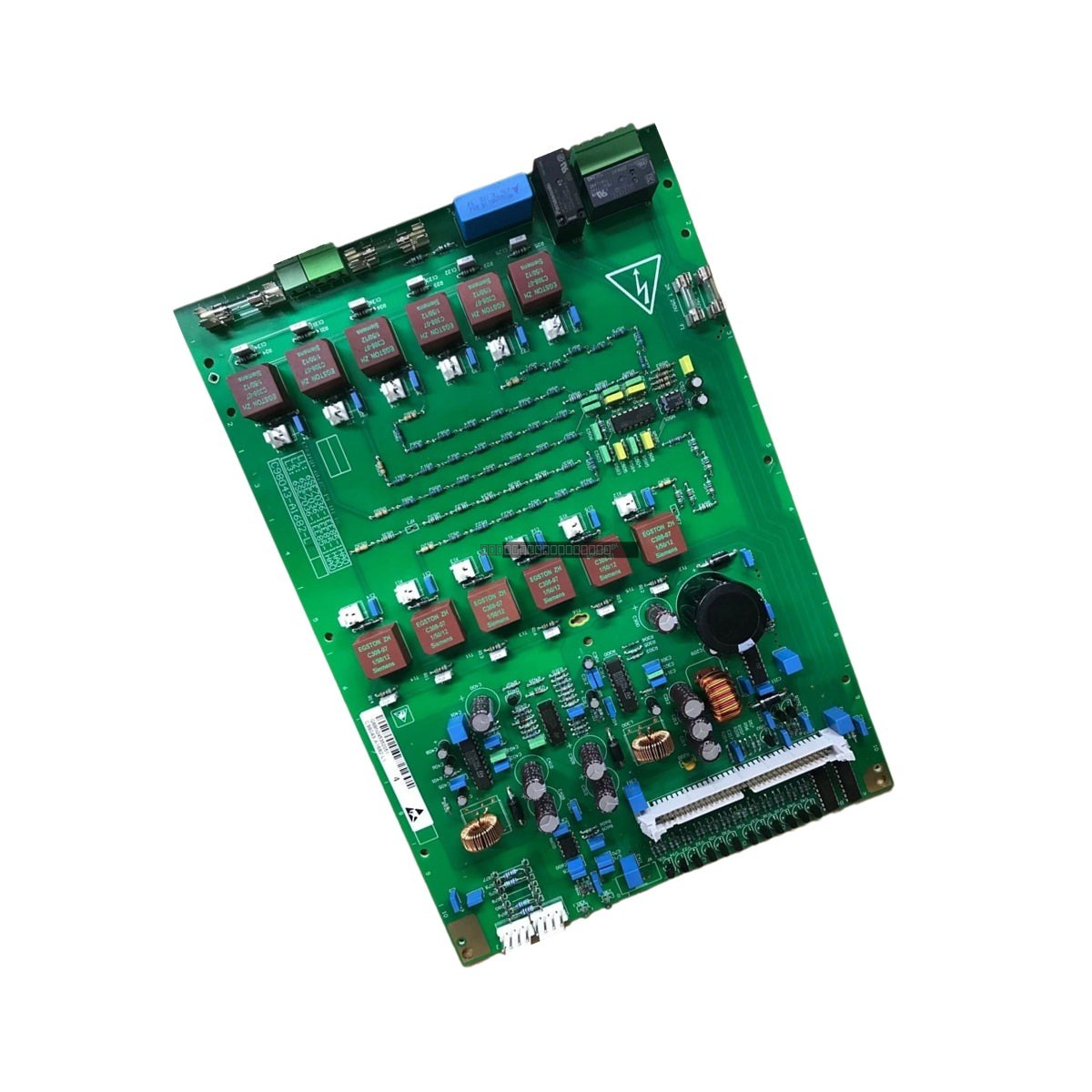

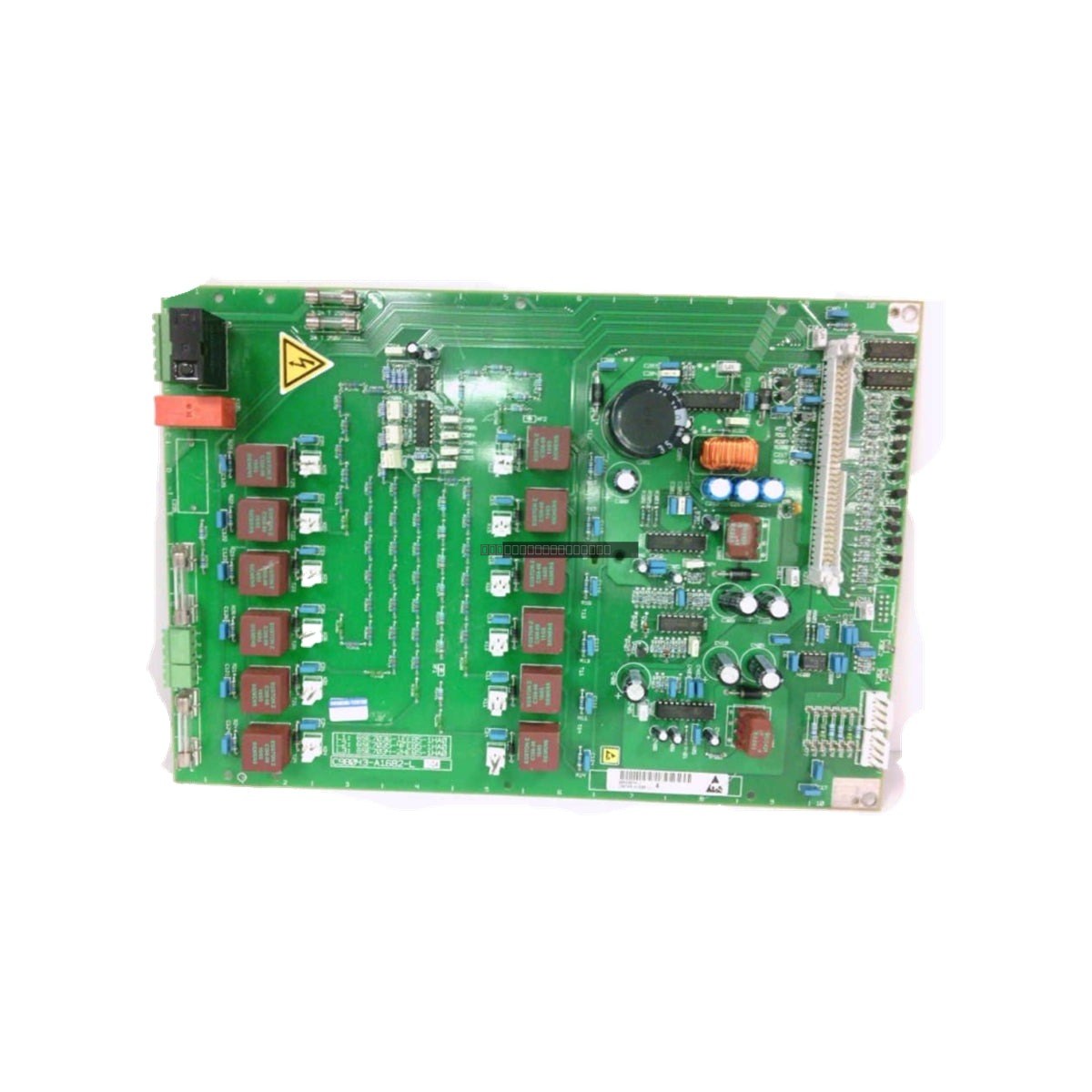

The Siemens C98043-A1682-L1 is a specialized control circuit board designed for integration within the SIMODRIVE DC converter series. This component, also referenced by the spare model 6SE7036-1EE85-1HA0, serves as a critical control interface for managing power conversion operations in industrial drive systems. It is engineered to provide precise regulation and signal processing to maintain drive stability and performance.
Features
- Designed for SIMODRIVE DC converter applications.
- Integrated galvanic signal isolation for enhanced noise immunity and protection.
- Low power consumption profile suitable for standard control rack configurations.
- Robust construction designed for reliable operation in industrial environments.
Technical Specifications
| Manufacturer |
Siemens |
| Model / Order Code |
C98043-A1682-L1 |
| Spare Part Reference |
6SE7036-1EE85-1HA0 |
| Supply Voltage |
24 V DC |
| Current Consumption |
100 to 200 mA |
| Operating Temperature |
0 degC to +60 degC |
| Signal Isolation |
Galvanic isolation |
| Tariff Code |
8537101190 |
Installation Guidelines
- Ensure all power is disconnected from the drive system before attempting to remove or install the circuit board.
- Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to sensitive electronic components.
- Verify that the board is correctly seated in the designated slot and that all retaining mechanisms are secured.
- Ensure the environment meets the specified operating temperature range of 0 degC to +60 degC.
- Keep the module away from high-EMI sources and ensure proper grounding of the cabinet to maintain signal integrity.
FAQ
What is the primary function of this board?
This is a control circuit board for Siemens SIMODRIVE DC converters, responsible for signal processing and control logic within the drive system.
Is this part compatible with the 6SE7036-1EE85-1HA0?
Yes, the C98043-A1682-L1 is associated with the 6SE7036-1EE85-1HA0 spare part reference.
What are the power requirements for this board?
The board operates on a 24 V DC supply with a typical current consumption ranging from 100 to 200 mA.
