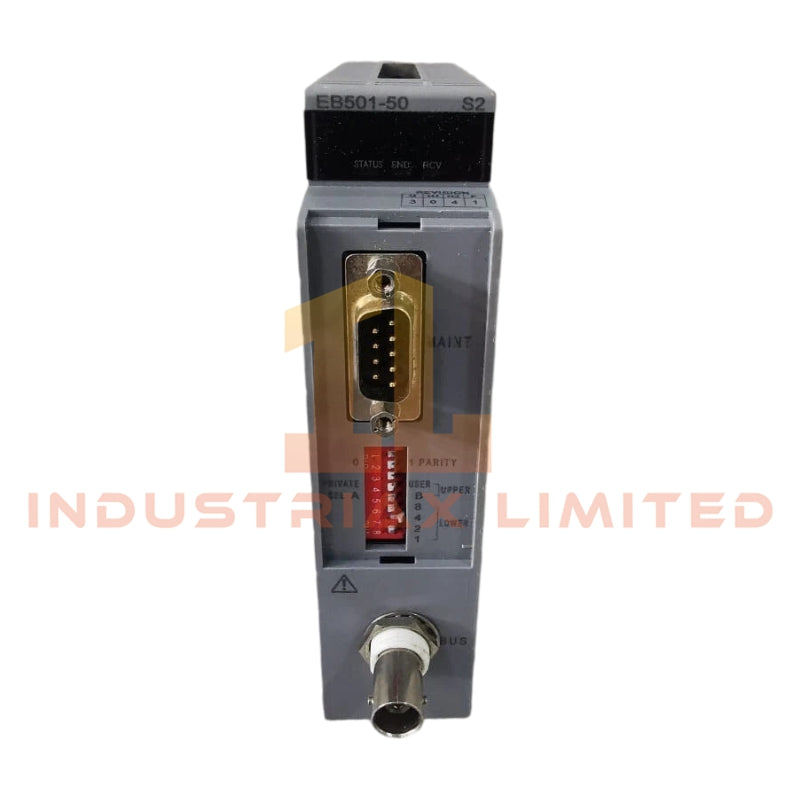

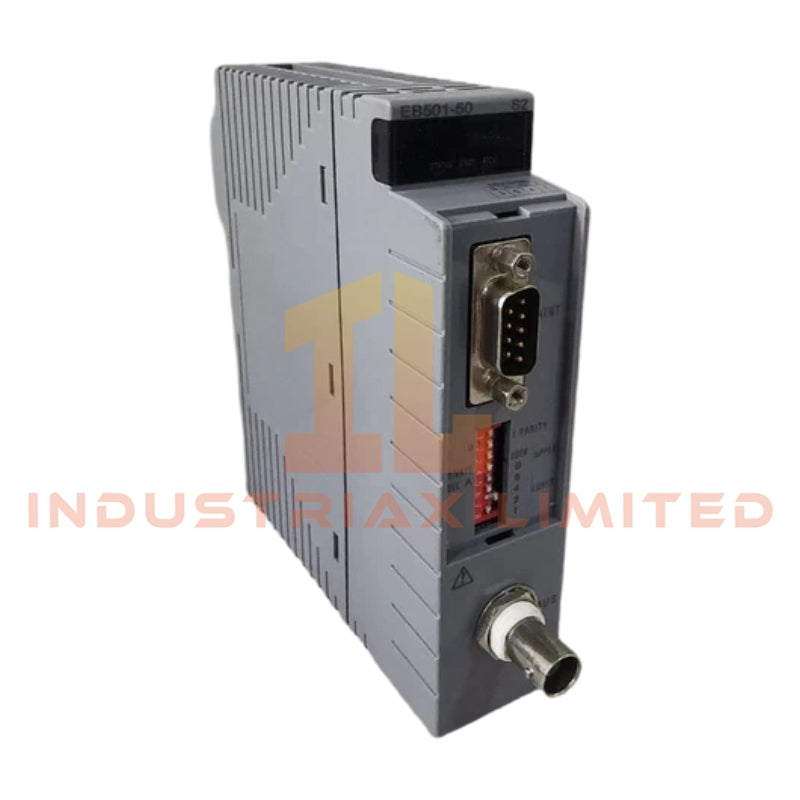

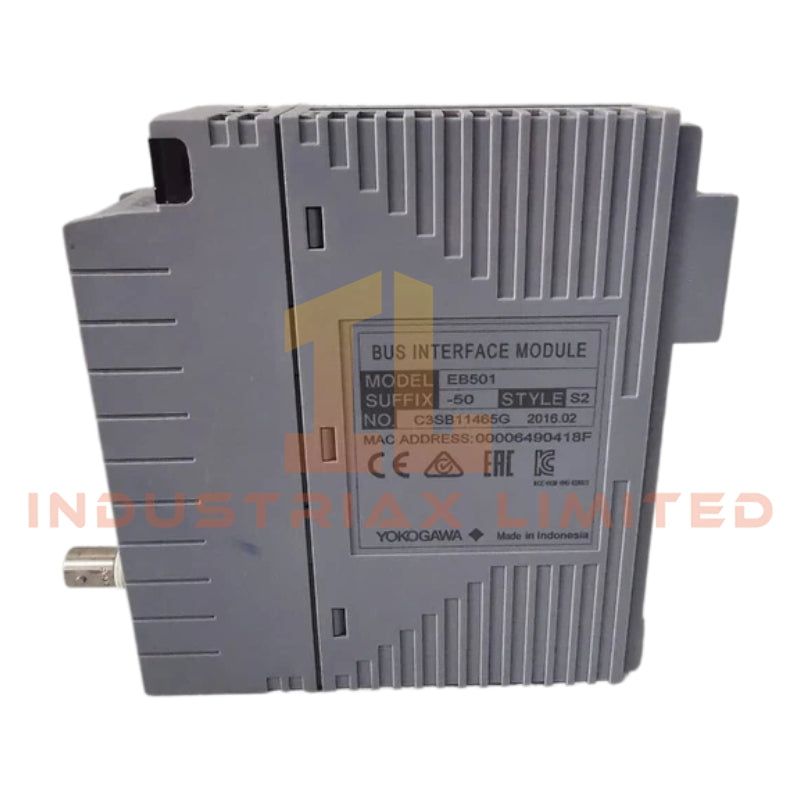

Yokogawa EB501-50 ER Bus Interface Slave Module
Configured for ER Bus slave communication and node-level data exchange in CENTUM CS 3000 and CENTUM VP systems, the Yokogawa EB501-50 (EB501 ER Bus Interface Slave Module) provides direct physical and electrical execution of communication between FIO I/O modules and the ER Bus master architecture. The module is installed within compatible Remote I/O Node Units and operates exclusively as a slave interface on the Yokogawa ER Bus network.
Suffix Breakdown & Model Matrix
The supplied documentation identifies a single standard revision:
Model
Description
EB501-50
Standard revision ER Bus Interface Slave Module
No additional suffix definitions are specified in the provided technical data.
Hardware Specifications
Parameter
Specification
Model
EB501-50
Brand
Yokogawa
Module Type
ER Bus Interface Slave Module
Bus Architecture Compatibility
Field Integrated Operation (FIO) Backplane
Supported Node Units
ANR10S Single Node Unit, ANR10D Dual-Redundant Node Unit
Network Protocol
Yokogawa ER Bus Protocol
Communication Role
Slave Module
Physical Transmission Medium
Coaxial Cable via Node Unit T-junction Interface
Redundancy Support
Dual-redundant operation supported
Power Supply
Internal backplane supply, 24 VDC
Operating Temp
0 degC to 50 degC
Cold Start Condition
Up to 10 minutes warm-up when powered from -20 degC to 0 degC storage condition
Storage Temp
-20 degC to 70 degC
Operating Humidity
10 % to 90 % RH, non-condensing
Corrosive Gas Option
G3 environment support when used with applicable node variants
Weight
Approx. 0.3 kg
Dimensions
Standard FIO insertion card format
Diagnostics
Continuous hardware self-diagnostics and communication status monitoring
Channel Isolation and DCS Communication Characteristics
Within the CENTUM FIO architecture, the EB501-50 functions as the communication interface between node-resident I/O modules and the controller-side ER Bus master. Data transfer occurs through the dedicated ER Bus protocol while maintaining separation between field-side signal processing modules and controller communications handled by the node interface layer.
When installed in an ANR10D dual-redundant node, two EB501 modules may operate in a redundant arrangement. Communication continuity is maintained through the active interface path while diagnostic status is reported to the operator environment for maintenance and fault analysis.
Frequently Asked Questions
Q: Can the EB501-50 be replaced while the system remains operational? A: The supplied documentation states that online replacement is supported when the module is installed within a dual-redundant ANR10D node configuration and the companion interface module remains operational.
Q: Does the EB501-50 operate as an ER Bus master module? A: No. The EB501-50 operates strictly as an ER Bus slave module. Communication control is performed by the corresponding ER Bus master module located at the controller side.
Q: What occurs when the module is powered after storage below 0 degC? A: When startup occurs from a storage condition between -20 degC and 0 degC, the module may require a warm-up period of up to 10 minutes before stable communication becomes available.
Field Installation Guidelines
Install the module only in the designated interface slot of a compatible ANR10S or ANR10D node unit.
Verify that the node backplane power source is isolated before insertion or removal unless the applicable redundant maintenance procedure explicitly permits online replacement.
Ensure that coaxial communication cabling is routed separately from high-energy power conductors to minimize induced electrical noise.
Maintain cabinet environmental conditions within the specified temperature and humidity limits.
Confirm correct grounding and shielding practices for the node enclosure and communication infrastructure according to site electrical standards.
After installation, verify module status and diagnostic indications through the system engineering and operator interfaces before returning the node to service.
