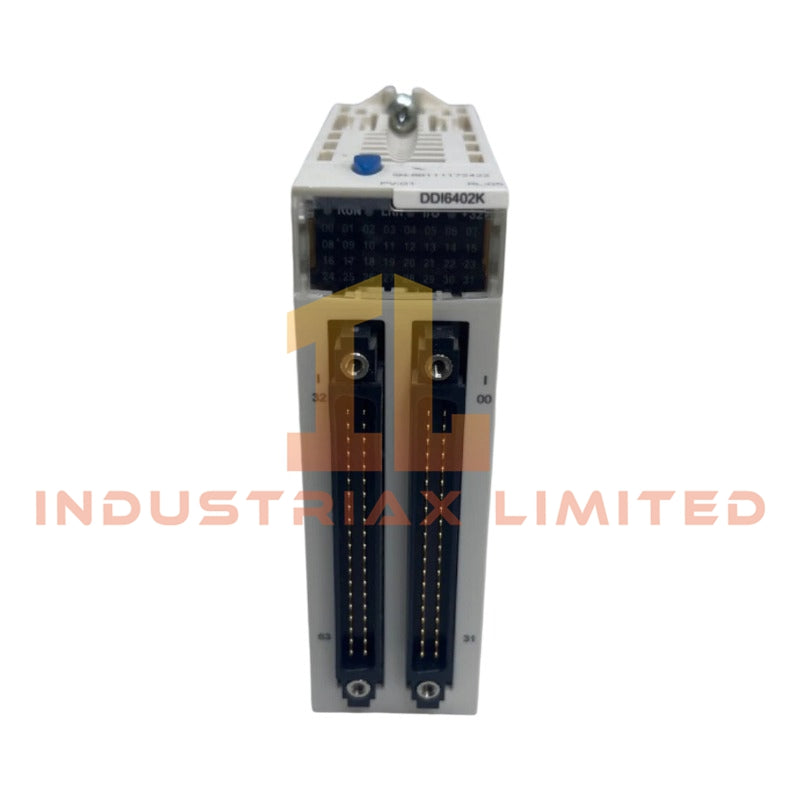

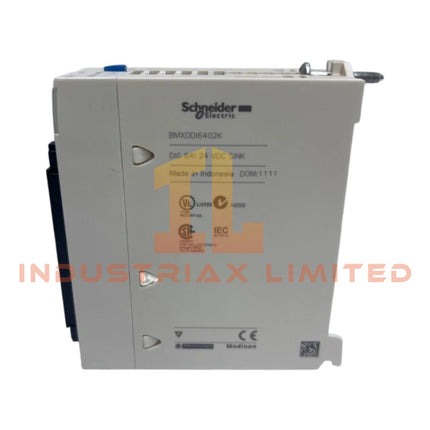

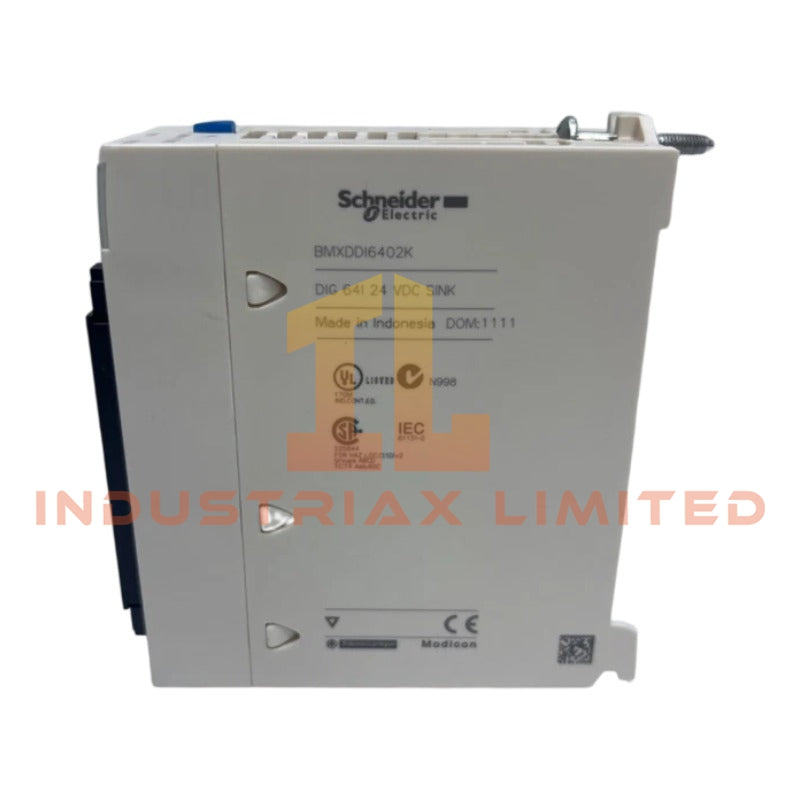

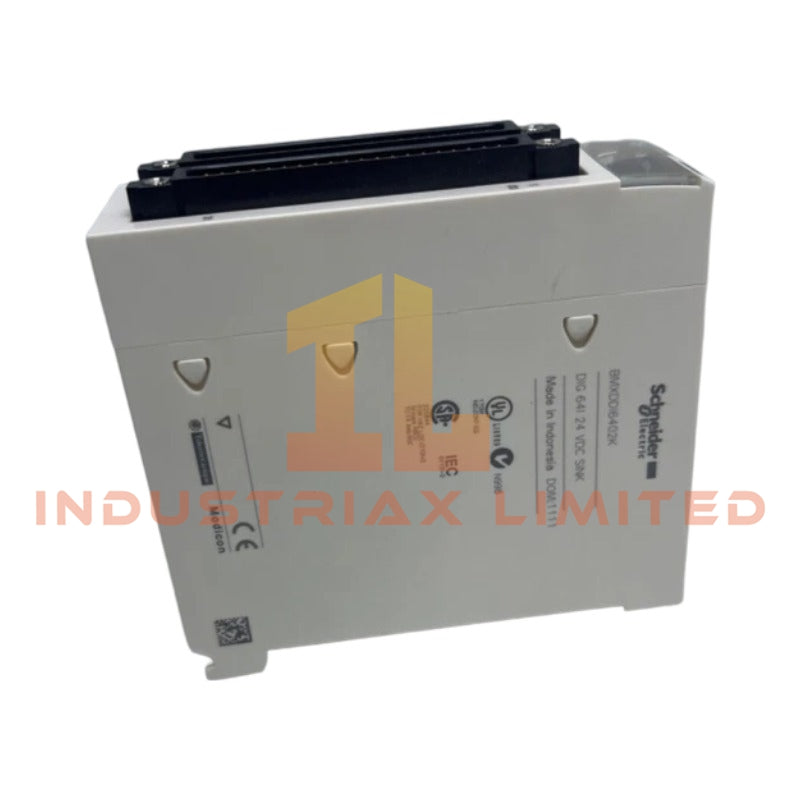

Schneider Electric BMXDDI6402K Discrete Input Module
Configured for acquisition of 24 VDC discrete field signals in Modicon X80 backplane systems, the Schneider Electric BMXDDI6402K (BMXDDI6402K Discrete Input Module) provides direct physical/electrical execution for 64-channel digital input scanning across X80 distributed I/O architectures.
The module operates as a 64-channel isolated input interface with positive logic current sink configuration, designed for 24 V DC sensor environments. Signal detection thresholds support standard industrial switching levels with diagnostic feedback per channel. Internal processing is synchronized via the X80 backplane with defined response time behavior for deterministic input acquisition.
Suffix Breakdown & Model Matrix
No explicit suffix segmentation or variant encoding is defined in the provided manufacturer dataset for BMXDDI6402K. The identifier is treated as a single fixed-order catalog number.
Hardware Specifications
| Parameter |
Specification |
| ModelBrand |
Schneider Electric BMXDDI6402K |
| Weight |
0.145 kg |
| OperatingTemp |
0 degC to 60 degC |
| PowerConsumption |
4.3 W |
| Input Channels |
64 discrete inputs |
| Input Type |
Isolated, current sink (positive logic) |
| Input Voltage |
24 V DC positive |
| Input Current |
0.6 mA |
| Backplane Consumption |
160 mA at 3.3 V DC |
| Response Time |
4 ms typical, 7 ms max |
| Sensor Supply Range |
19 V to 30 V DC |
| Insulation Resistance |
> 10 MOhm at 500 V DC |
Schneider Electric X80 Backplane Input Architecture
The module integrates into Modicon X80 rack systems using a high-speed backplane communication structure supporting synchronized I/O refresh cycles. Each channel is electrically isolated to reduce cross-channel interference under dense wiring conditions. Input filtering is implemented to stabilize signal acquisition under industrial noise conditions typical of distributed cabinet wiring. Channel diagnostics are individually indicated via per-point LEDs, enabling direct field-level fault localization without external test instrumentation. Backplane power draw at 3.3 V DC remains within low-load I/O module class consumption envelope (160 mA typical), supporting multi-module rack density planning.
Frequently Asked Questions
Q: Can the module be hot-swapped under energized rack conditions?
A: The BMXDDI6402K supports Modicon X80 rack insertion/removal behavior when system configuration permits, however field power sequencing must follow backplane and rack manufacturer constraints to avoid transient I/O state instability.
Q: Does channel isolation prevent cross-talk between adjacent inputs?
A: Each input channel is isolated with internal impedance of approximately 40 kOhm and designed to limit electrical coupling between channels under 24 V DC switching conditions.
Q: What is the impact of backplane load on multi-module configurations?
A: Each module contributes approximately 160 mA at 3.3 V DC to the backplane load budget; total rack consumption must be aggregated across all installed X80 modules.
Field Installation Guidelines
DIN rail rack insertion shall be performed with backplane power removed unless system architecture explicitly supports live insertion procedures. Field wiring must maintain segregation between input signal bundles and power conductors to minimize inductive coupling. Shield termination should be implemented at cabinet ground reference points only, avoiding dual-ended grounding loops on 24 V DC discrete circuits. Channel grouping should respect fuse-protected input groups (0.5 A fast-blow external protection per group). Ambient installation must remain within 0 to 60 degC operating envelope with humidity control below condensation threshold conditions.
