Description

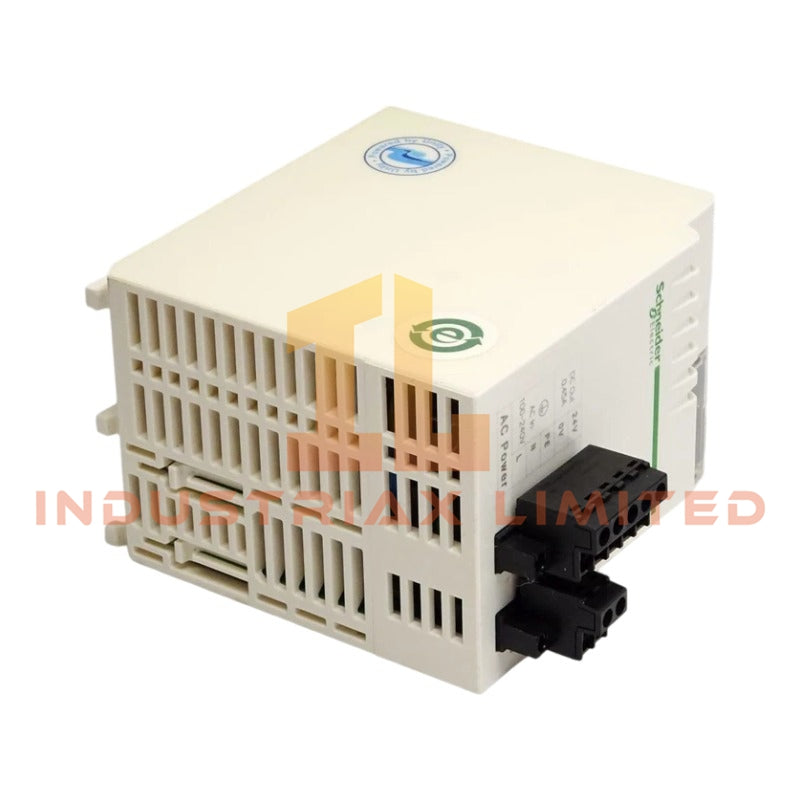

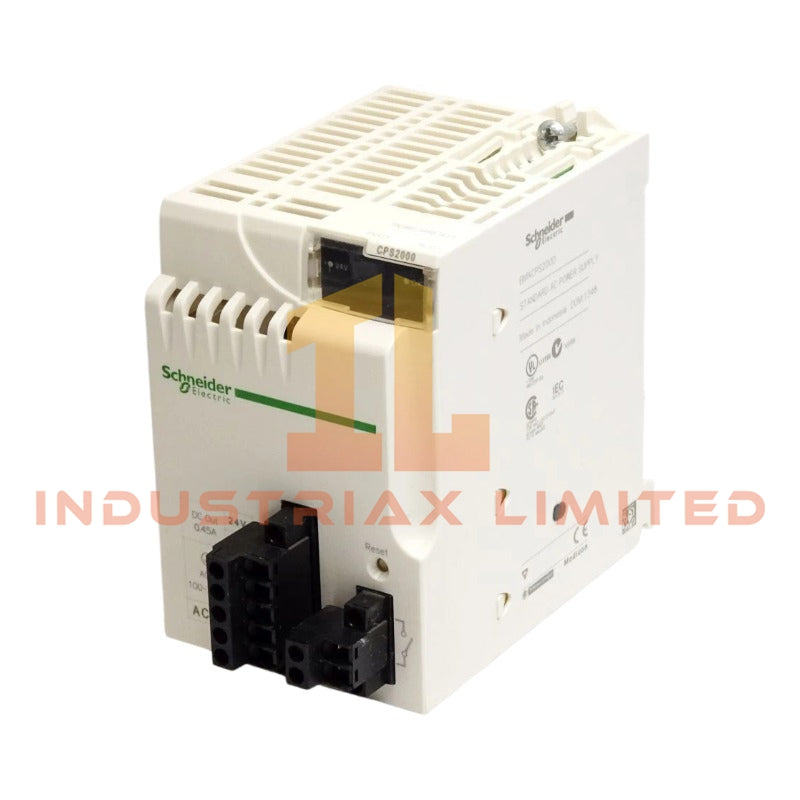

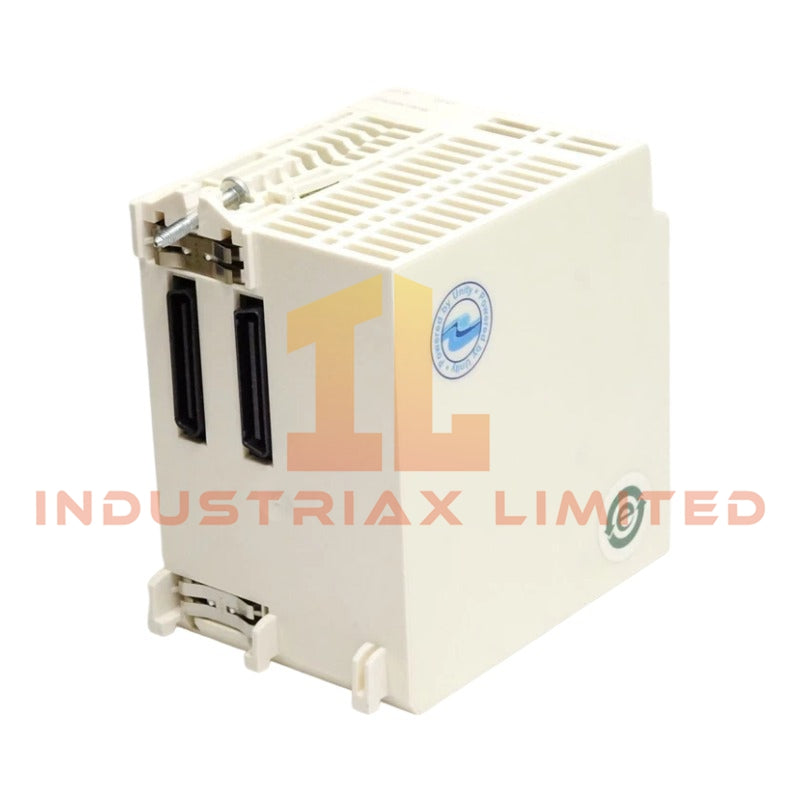

Schneider Electric BMXCPS2000 Power Supply Module X80
TheSchneider Electric BMXCPS2000，also cataloged as theBMXCPS2000 power supply module, operates as a dedicated hardware component for AC-to-DC power conversion and backplane energy distribution within Modicon X80 I/O system architectures.
Configured for regulated DC rail generation in Modicon X80 backplane environments,theSchneider Electric BMXCPS2000(BMXCPS2000power supply module)provides direct electrical execution of 24 VDC sensor supply, I/O module power feed, and 3.3 VDC logic rail conversion from a 100...240 VAC input source.
Suffix Breakdown & Model Matrix
No explicit manufacturer-provided suffix segmentation or functional variant encoding is defined for BMXCPS2000. The model is treated as a single fixed configuration unit within the BMXCPS series.
Hardware Specifications
| Parameter |
Specification |
| ModelBrand |
Schneider Electric BMXCPS2000 |
| Weight |
0.3 kg |
| PowerConsumption |
Max 8.5 W power dissipation |
| Primary Voltage |
100...240 VAC (85...264 VAC limit) |
| Network Frequency |
47...63 Hz |
| Output Rails |
24 VDC sensor, 24 VDC I/O, 3.3 VDC logic |
| Sensor Supply Current |
0.45 A |
| I/O Supply Current |
0.7 A |
| Logic Supply Current |
2.5 A |
| Inrush Current |
30 A (120 VAC), 60 A (240 VAC) |
| Apparent Power |
0.07 kVA |
Schneider Electric Backplane Power Architecture Behavior
The BMXCPS2000 implements regulated backplane power segmentation across Modicon X80 modules. Internal conversion stages derive three isolated DC rails: sensor supply, I/O module supply, and logic rail supply. The primary AC stage incorporates inrush limiting and internal fuse protection for uncontrolled surge events during energization. Secondary outputs are individually protected against overload, short-circuit, and overvoltage conditions.
Backplane distribution follows deterministic loading of the 24 VDC rails, where I/O modules and processor units share a regulated current budget. Voltage stability is maintained through internal regulation loops designed for transient suppression during module insertion or removal events.
Frequently Asked Questions (FAQ)
Q: Can the BMXCPS2000 be hot-swapped during backplane operation?
A: The module is not intended for live removal under load. Backplane power interruption may occur, affecting I/O and processor supply rails.
Q: What protections are implemented on the secondary DC outputs?
A: The unit integrates overload, short-circuit, and overvoltage protection on all secondary power rails with automatic shutdown behavior under fault conditions.
Q: Does the power supply support redundant configuration in X80 racks?
A: Redundancy behavior depends on rack backplane design; BMXCPS2000 itself does not internally implement redundancy control logic.
Field Installation Guidelines
Mount the module on the designated Modicon X80 rack slot with secure backplane engagement. Ensure AC supply wiring conforms to rated 100...240 VAC isolation requirements and includes protective earth termination at the designated terminal point. Maintain separation between AC input wiring and low-voltage DC signal conductors to minimize coupling noise into sensor and I/O lines.
Verify that total backplane load does not exceed aggregated current limits of 24 VDC and 3.3 VDC rails. Ensure all connectors are fully seated to avoid intermittent voltage drops during module energization. Perform initial power-up with no-load or minimal load configuration to validate stable rail regulation before full system integration.
