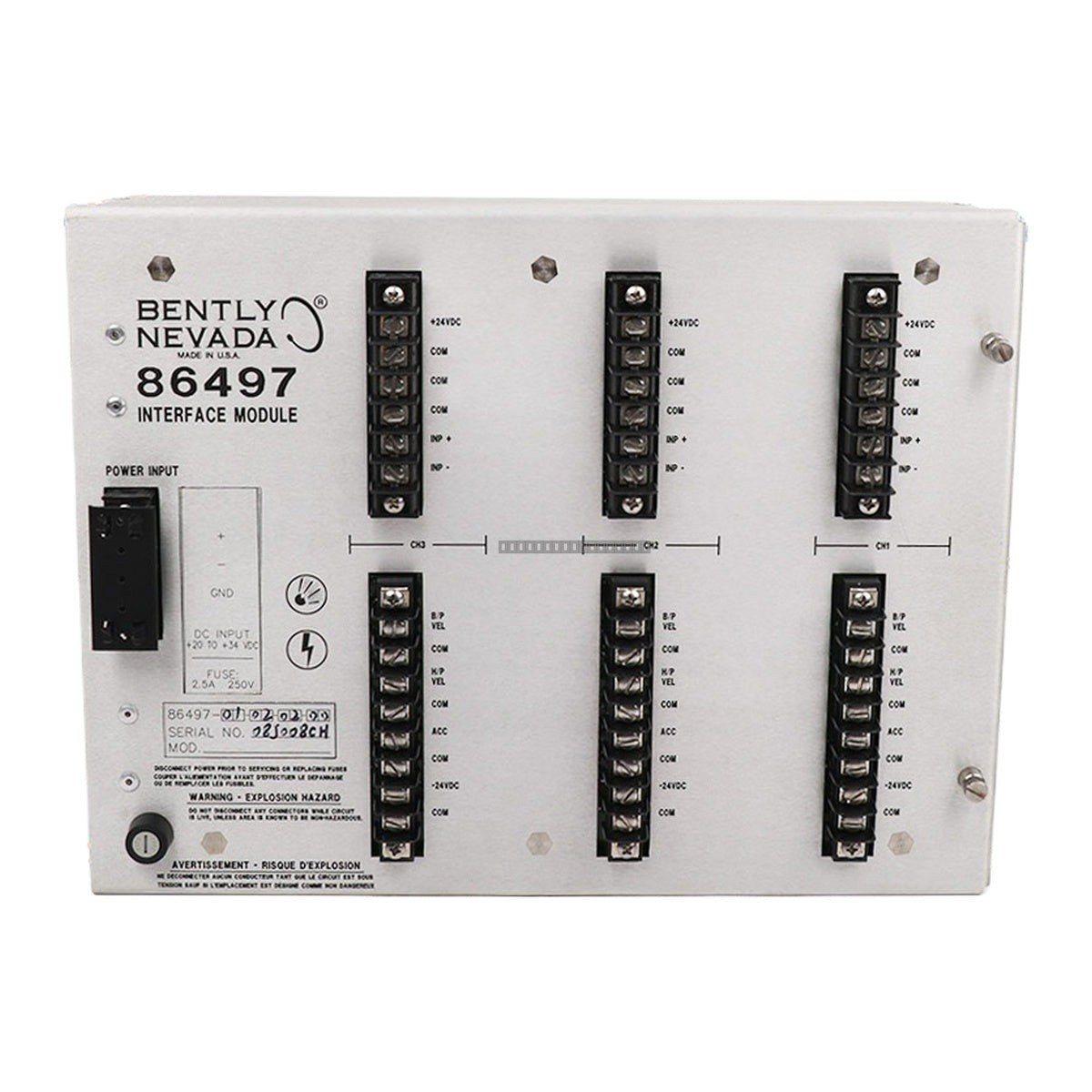

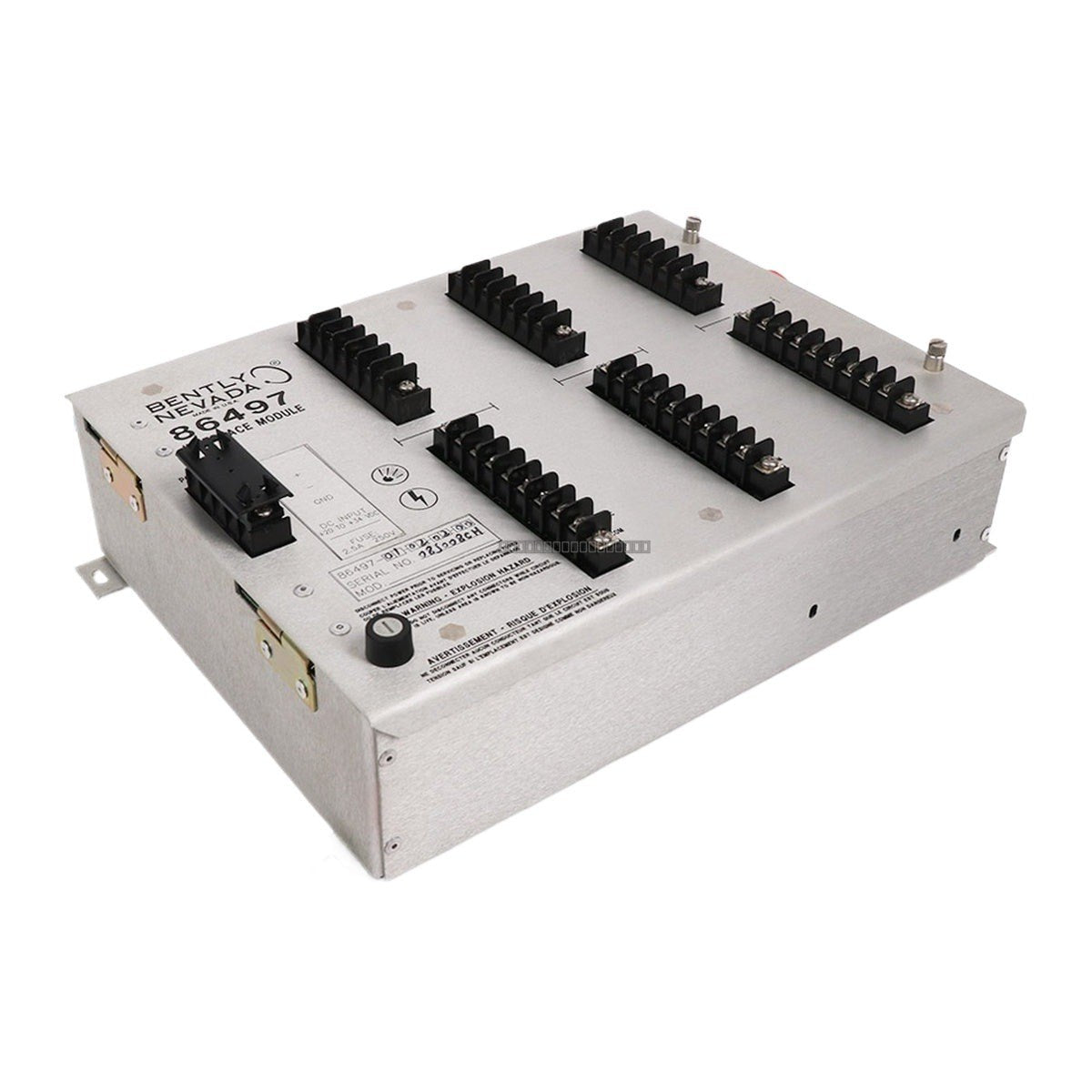

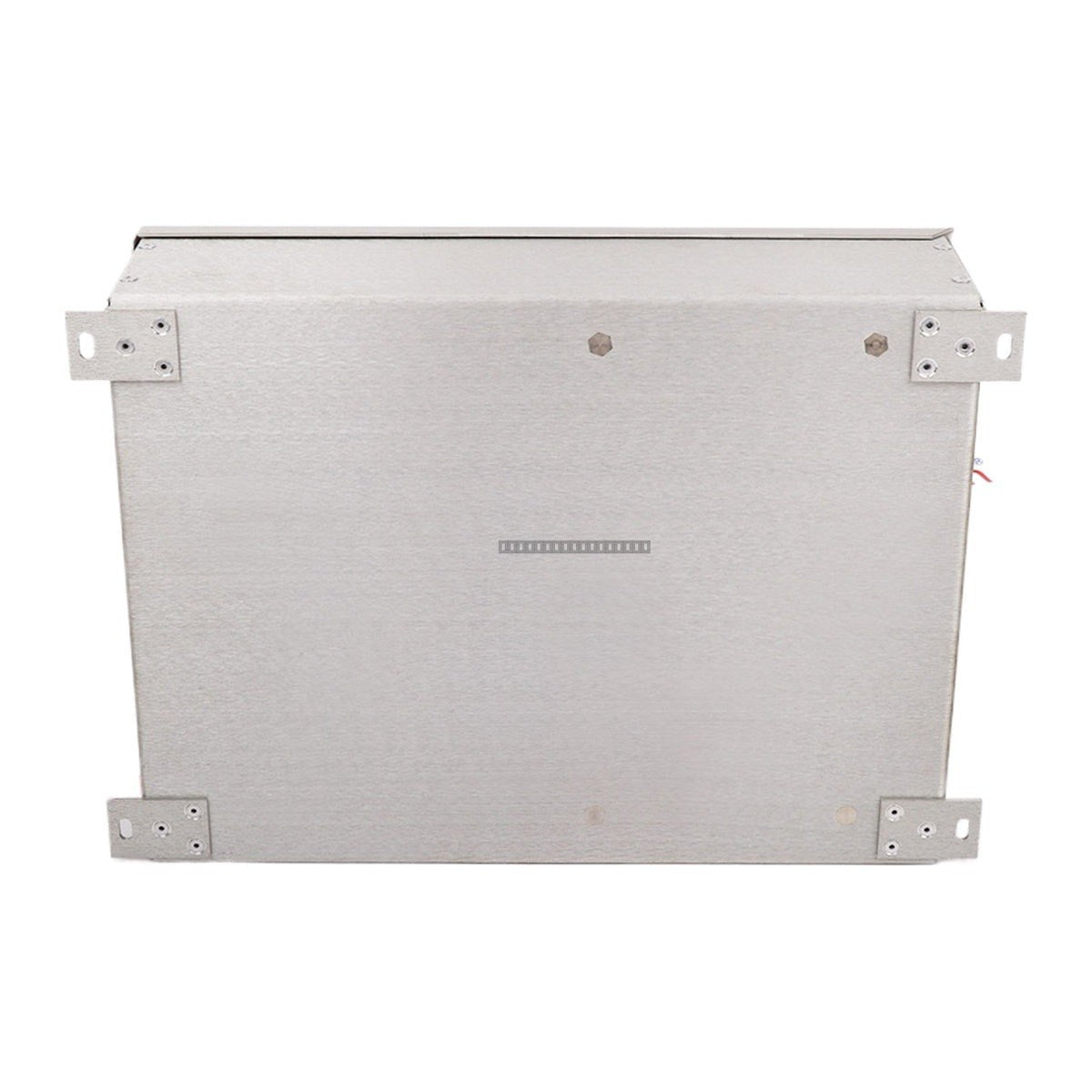

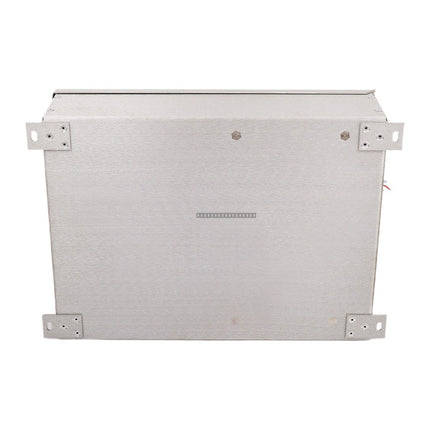

The Bently Nevada 86497-01-02-02-00 is an interface module designed for industrial monitoring and control systems. This module facilitates reliable signal processing and interconnection within the Bently Nevada architecture, ensuring robust performance in demanding environments.
Features
- Input voltage range: 20-34 VDC
- Integrated 2.5 Amp @ 250 V fuse for circuit protection
- Configured with 6 groups of 8 points for high-density signal management
- Designed for high reliability in harsh industrial conditions
Technical Specifications
| Model |
86497-01-02-02-00 |
| Input Voltage |
20-34 VDC |
| Fuse Rating |
2.5 Amp @ 250 V |
| I/O Configuration |
6 groups of 8 points |
| Operating Temperature |
-40 degC to +70 degC |
| Storage Temperature |
-50 degC to +85 degC |
| Humidity |
0-95% RH (non-condensing) |
| Vibration Resistance |
5g (10-500Hz) |
Installation Guidelines
- Ensure the system power is completely disconnected before installing or removing the module to prevent electrical damage.
- Mount the module in a clean, dry, and vibration-controlled environment, adhering to standard industrial rack or panel mounting practices.
- Verify that all wiring connections are secure and that the input voltage is within the specified 20-34 VDC range.
- Maintain proper clearance around the module to allow for adequate airflow and heat dissipation.
- Use shielded cabling for signal lines to minimize electromagnetic interference (EMI) in high-noise industrial environments.
FAQ
What is the primary function of the 86497-01-02-02-00?
This unit serves as an interface module, providing signal distribution and protection for monitoring systems, featuring 6 groups of 8 points for organized connectivity.
What are the power requirements for this module?
The module operates on a DC input voltage range of 20-34 VDC and includes an integrated 2.5 Amp fuse rated for 250 V.
Is this module suitable for extreme temperatures?
Yes, the module is rated for operation in temperatures ranging from -40 degC to +70 degC, making it suitable for a wide variety of industrial field applications.
