Description

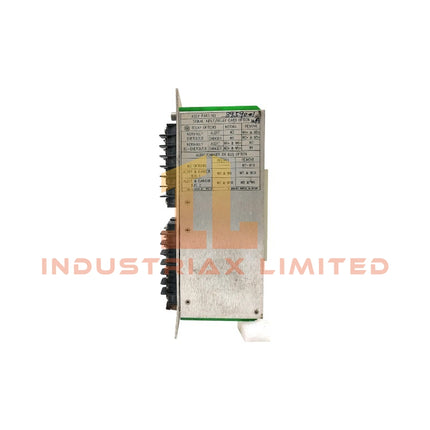

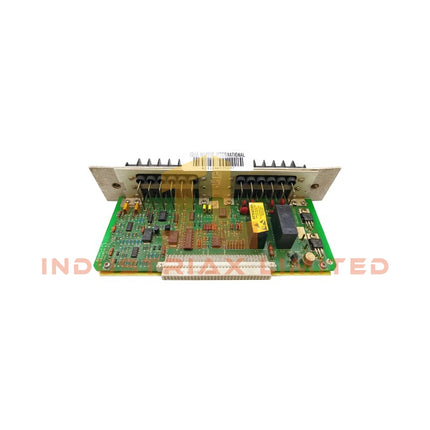

Bently Nevada 80074-02 Internal Termination Panel

Configured for external transducer signal termination in the 3500 Series Machinery Protection System, the Bently Nevada 80074-02 (80074-02 Internal Termination Panel) provides direct physical/electrical execution of field wiring interface functions for Proximitor and seismic monitor input channels. The module establishes fixed termination points between external sensor cabling and 3500 monitor backplane I/O routing without requiring external termination assemblies.

Suffix Breakdown & Model Matrix

The 80074-02 designation does not publish a formal breakdown of functional suffix segmentation. The “-02” identifier is used as a configuration variant code within the 80074 internal termination panel family, typically indicating terminal block arrangement and mechanical interface revision level as defined by system rack integration requirements.

Hardware Specifications

Parameter	Specification
Model	80074-02
Brand	Bently Nevada
Origin	USA
Operating Temp	-30 deg C to +65 deg C
Power Consumption	Passive component (no electrical load)
System Compatibility	Bently Nevada 3500 Series Machinery Protection System
Supported Monitor Modules	3500/40M, 3500/42M
Termination Type	Internal rack-mounted terminal interface
Wiring Method	Screw-clamp terminals
Wire Range	24 to 16 AWG (0.2 to 1.5 mm^2) typical
Channel Capacity	Up to 4 channels per associated monitor slot

Eddy-Current Signal Termination & Cross-Talk Suppression Characteristics (Bently Nevada Specific Behavior)

The 80074-02 termination structure is designed to preserve integrity of eddy-current transducer scaling paths used in proximity probe systems. Signal routing maintains defined impedance continuity between probe driver outputs and monitor input conditioning stages, supporting stable gap voltage representation typically centered around -10 VDC operating region in calibrated proximity measurement loops.

Cross-channel coupling is minimized through physical separation of terminal paths and controlled return routing geometry. This reduces measurement interference in multi-channel rotor dynamic monitoring where phase-referenced vibration and axial displacement signals coexist on adjacent termination points. The termination interface does not perform signal conditioning; it preserves raw transducer output fidelity for downstream processing in 3500 series monitor modules.

Rotor dynamic measurement integrity depends on consistent termination impedance behavior across all connected channels, particularly in applications involving shaft vibration vector reconstruction and slow-roll validation sequences.

Frequently Asked Questions (FAQ)

Q: Does the 80074-02 perform signal conditioning for proximity probes?
A: No. It functions as a passive termination interface only. Signal conditioning is executed within 3500 monitor modules such as 3500/40M or 3500/42M.

Q: Can the panel support hot-swap replacement under energized system conditions?
A: The termination panel itself is passive; however, insertion or removal affects field wiring continuity. System-level hot-swap behavior depends on rack configuration and associated monitor module design.

Q: Is channel isolation implemented within the termination panel?
A: Channel isolation is not actively implemented. Electrical separation is achieved through physical terminal spacing and backplane routing architecture, while isolation functions are handled at the monitor module level.

Field Installation Guidelines

• Install only within compatible 3500 series rack assemblies using designated backplane mounting positions
• Maintain segregation between proximity probe signal wiring and high-noise power conductors
• Use shielded cabling with single-point grounding at system designated ground reference
• Ensure terminal torque is consistent across all screw-clamp connections to avoid micro-intermittent contact resistance
• Verify continuity from field sensor lead to monitor input channel prior to system energization
• Avoid routing sharp bends in proximity probe extension cables near termination interface to prevent impedance discontinuities

Specifications

• Brand: Bently Nevada

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
