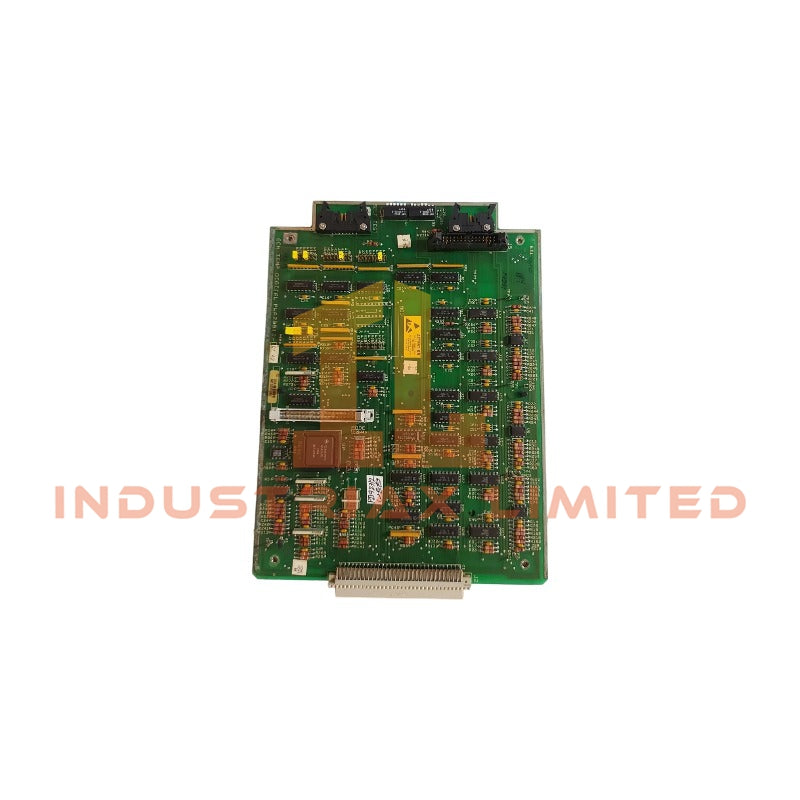

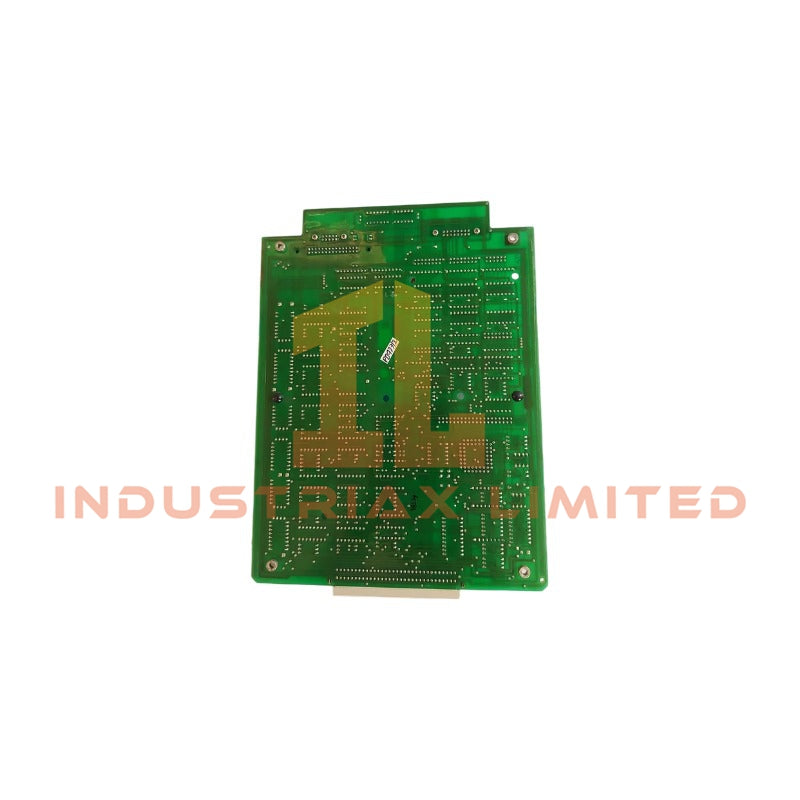

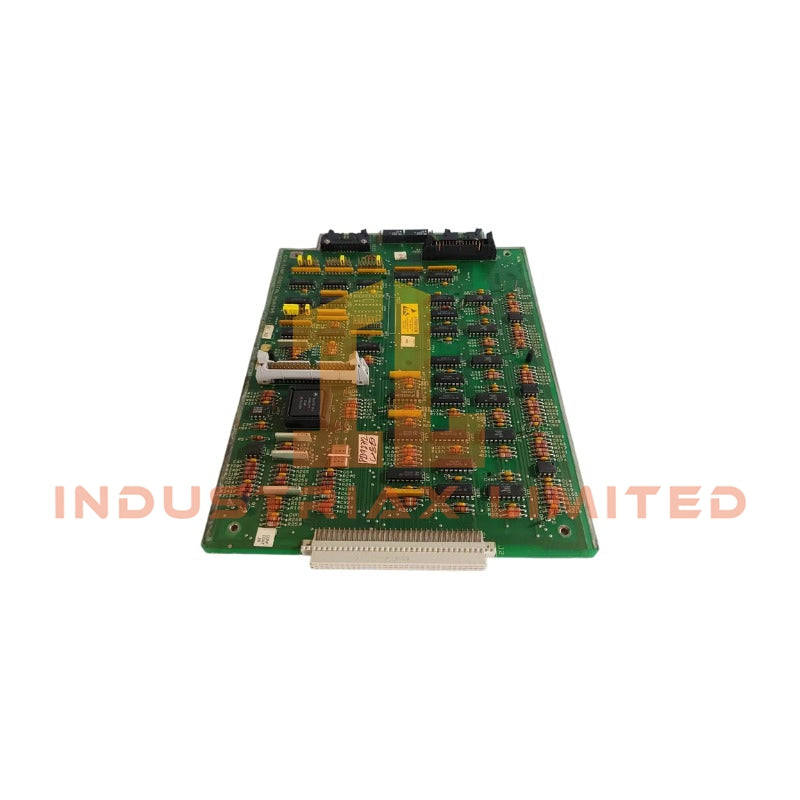

Bently Nevada 79512-01 3300 Series Temperature Monitor Input Module

Configured for multi-channel temperature signal acquisition in the Bently Nevada 3300 Series rack system, the Bently Nevada 79512-01 (79512-01 6-Channel Temperature Monitor Input Module) provides direct electrical processing of thermocouple and RTD measurement signals.

Hardware Specifications

Parameter	Specification
Model	79512-01 / PWA 79512-01
Brand	Bently Nevada (Baker Hughes)
Origin	USA
Product Type	6-Channel Temperature Monitor Input Module
System Compatibility	Bently Nevada 3300 Series Rack System
Application	Temperature signal acquisition and monitoring for 3300/30 and 3300/35 temperature monitoring systems
Channel Quantity	6 independent isolated input channels
Sensor Input Type	Thermocouple (TC) and RTD, configuration dependent
Supported Thermocouples	J, K, T, E, N, R, S, B, configuration dependent
Signal Conditioning	Integrated cold junction compensation (CJC) for thermocouple measurement
Input Impedance	High impedance input design for EMI/RFI noise reduction
Measurement Range	Sensor dependent, typical range from -200 deg C to +1800 deg C
Measurement Accuracy	+/-0.5% of full scale or +/-1 deg C typical
Resolution	0.1 deg C
Output Interface	3300 rack backplane data communication
External Output	4-20 mA or 1-5 VDC output, configuration dependent
Power Supply	Supplied through 3300 rack backplane
Operating Temp	-30 deg C to +65 deg C
Storage Temp	-40 deg C to +85 deg C
Humidity	Up to 95% RH, non-condensing
Mounting	Standard 3300 rack slot installation
Power Consumption	Supplied by rack backplane, value dependent on system configuration

Rotor Temperature Signal Processing and TSI Monitoring Characteristics

The Bently Nevada 79512-01 processes temperature measurement signals within the 3300 Series machinery protection architecture. It converts thermocouple or RTD inputs into monitored temperature values for alarm handling, recorder outputs, and system data processing.

In addition, the module supports machinery condition monitoring applications where thermal behavior affects rotor dynamics. Temperature variations from bearings, housings, and rotating assemblies can be evaluated together with vibration and position measurements to support TSI-related analysis.

The input design incorporates signal conditioning methods to reduce measurement interference. Therefore, the isolated channels maintain separation between multiple temperature sensors installed on the same machine train.

Frequently Asked Questions

Q: Does the Bently Nevada 79512-01 support both thermocouple and RTD inputs?
A: Yes. The module supports thermocouple and RTD measurement inputs depending on the configured module option and system setup.

Q: Is the 79512-01 powered through an external power supply?
A: No. The module receives operating power from the Bently Nevada 3300 Series rack backplane.

Q: Can the module provide direct communication with external control systems?
A: The module transfers processed temperature data through the 3300 rack system. External outputs depend on the installed monitoring configuration.

Field Installation Guidelines

Install the 79512-01 module in the designated slot of the Bently Nevada 3300 rack chassis. Verify rack power isolation before inserting or removing the module.

Use shielded instrumentation cables for thermocouple and RTD wiring. Connect cable shields according to site grounding practices to reduce electrical interference.

Separate temperature signal wiring from high-current motor cables, power conductors, and switching circuits. Maintain correct sensor polarity during thermocouple installation because reversed connections can produce incorrect temperature readings.

Confirm the sensor type configuration before commissioning. Verify cold junction compensation operation for thermocouple applications and check channel status through the connected 3300 monitoring system.
