Description

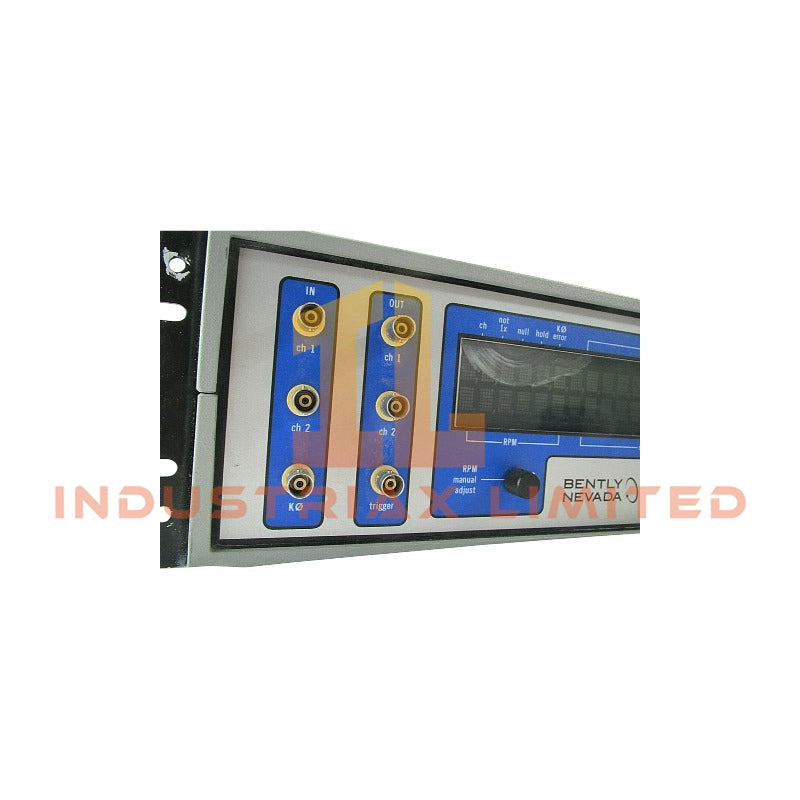

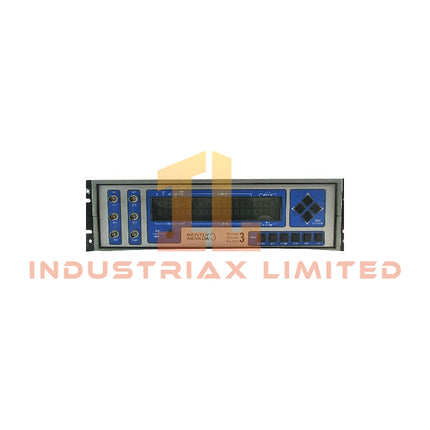

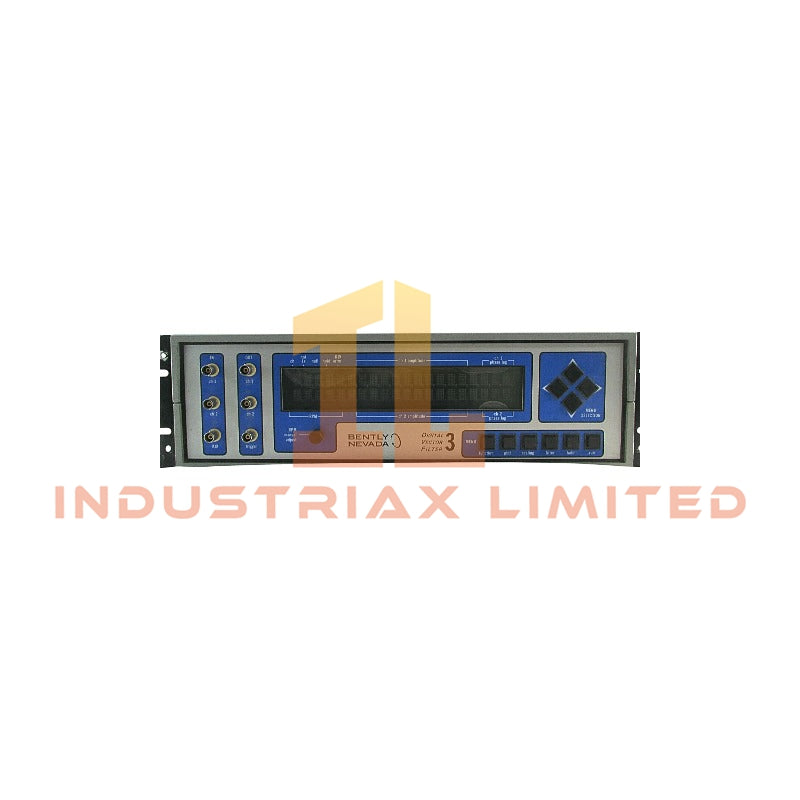

Bently Nevada 77581-02 Digital Vector Filter 3 Data Acquisition Instrument

The Bently Nevada 77581-02, also cataloged as the 77581-02 Digital Vector Filter 3 Data Acquisition Instrument, operates as a dedicated hardware component for vibration vector measurement and transient rotor analysis within Bently Nevada machinery monitoring platforms.

Hardware Specifications

Parameter	Specification
Model	77581-02
Brand	Bently Nevada
Origin	USA
Product Type	Digital Vector Filter 3 Data Acquisition Instrument
Series	Digital Vector Filter 3 (DVF 3)
Weight	Approx. 18.1 kg (40 lbs)
Proximitor Power Supply	18 VDC and 24 VDC
Vibration Input Channels	2 channels
Keyphasor Input	1 channel
Supported Transducers	Displacement, proximity, velocity, or acceleration transducers
Operating Speed Range	50 to 100,000 rpm
Tracking Filter Bandwidth	Adjustable from 12 to 120 cpm
Plotter Output	Supports two digital plotters simultaneously
Display Function	Two-channel alphanumeric display with menu-driven configuration
Measurement Units	Metric and English selectable
Supported Analysis	Bodé plots, Polar plots, Sweep Frequency plots
Signal Processing Function	Automatic signal sweeping and vector hold function

Rotor Dynamics Signal Processing and TSI Measurement Features

The Bently Nevada 77581-02 Digital Vector Filter 3 processes vibration amplitude and phase signals from rotating machinery measurement channels. Moreover, the instrument integrates Keyphasor reference input processing to establish shaft rotational position and phase relationship during dynamic analysis.

The module supports rotor response evaluation through vector measurement methods. Therefore, technicians can analyze runup, coastdown, balancing conditions, and shaft behavior across variable operating speeds.

The DVF 3 architecture supports Bently Nevada TSI measurement principles by maintaining accurate phase reference tracking between proximity probe signals and shaft rotational markers. In addition, the system applies signal conditioning techniques to minimize measurement errors caused by unwanted signal interaction during vibration acquisition.

The instrument interface supports proximity-based measurement systems using eddy-current probe scaling methods. Furthermore, gap voltage validation procedures can reference standard Bently Nevada proximity probe operating conditions, including typical -10 VDC gap voltage targets for correct probe positioning.

Frequently Asked Questions

Q: How many vibration measurement channels does the Bently Nevada 77581-02 support?
A: The instrument provides two vibration input channels for displacement, proximity, velocity, or acceleration transducer signals.

Q: What is the function of the Keyphasor input on the 77581-02?
A: The Keyphasor input receives once-per-revolution shaft reference pulses from proximity probes, optical pickups, or strobe-based sources to calculate phase information.

Q: Can the 77581-02 drive external plotting equipment?
A: Yes. The unit includes output capability for two digital plotters operating simultaneously.

Field Installation Guidelines

Install the 77581-02 in a protected industrial instrumentation environment with suitable mechanical support and electrical grounding.

Connect vibration transducer wiring using shielded cables to reduce electromagnetic interference during signal acquisition. Ground cable shields according to the machinery monitoring system installation standard and avoid parallel routing with high-current power conductors.

Verify proximity probe connections before operation. Check probe polarity, signal continuity, and gap voltage conditions to maintain correct shaft displacement measurement.

Route the Keyphasor signal separately from high-noise switching circuits when possible. Confirm the rotational reference pulse quality before performing vector analysis, balancing operations, or transient measurements.

Maintain adequate ventilation around the instrument enclosure and follow the original Bently Nevada installation documentation for mounting, wiring, and commissioning procedures.

Specifications

• Brand: Bently Nevada

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
