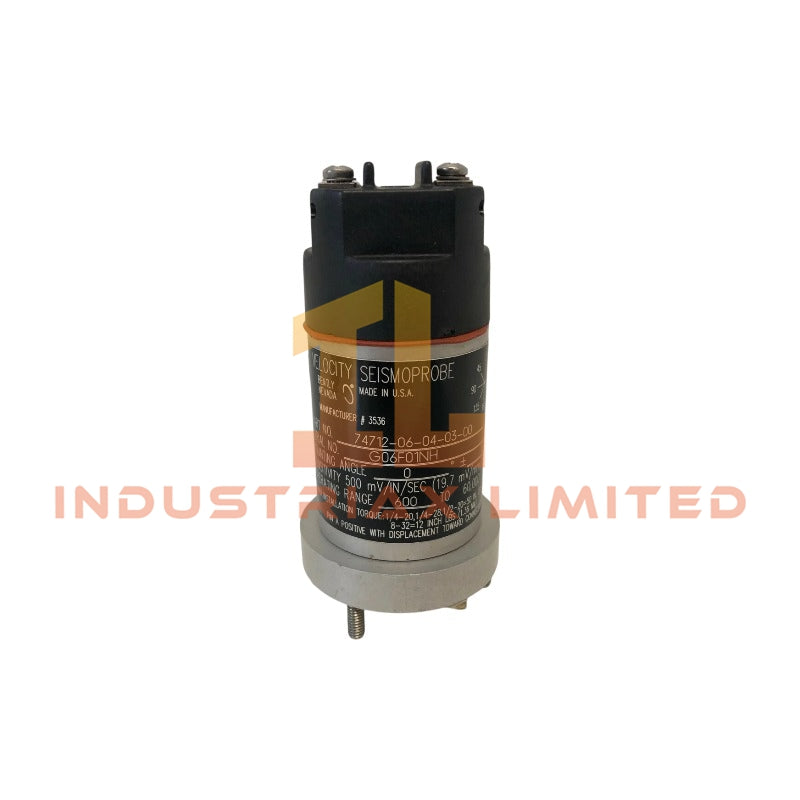

Bently Nevada 74712-06 High-temperature Two-wire Transducer The Bently Nevada 74712-06, also cataloged as the 74712-06 High-temperature Two-wire Transducer, operates as...
Read more
The Bently Nevada 74712-06, also cataloged as the 74712-06 High-temperature Two-wire Transducer, operates as a dedicated hardware component for absolute casing vibration velocity measurement within Bently Nevada machinery monitoring systems.
Hardware Specifications
Parameter
Specification
Model
74712-06
Brand
Bently Nevada
Product Type
High-temperature Two-wire Transducer
Series
74712 Seismoprobe Velocity Transducer
Origin
USA
Measurement Type
Absolute vibration velocity
Sensing Technology
Moving-coil velocity transducer
Output Signal
Voltage proportional to vibration velocity
Sensitivity
20 mV/mm/s (500 mV/in/s), +/-5%
Frequency Range
10 Hz to 1000 Hz typical
Minimum Operating Frequency
10 Hz (600 cpm)
Mounting Angle
0 deg +/-100 deg
Operating Temp
-29 deg C to +204 deg C
Storage Temp
-29 deg C to +204 deg C
Transverse Sensitivity
+/-10% maximum
Shock Resistance
50 g peak maximum
Calibration Load
10 kohm
Dimensions
41 mm diameter typical
Weight
0.48 kg

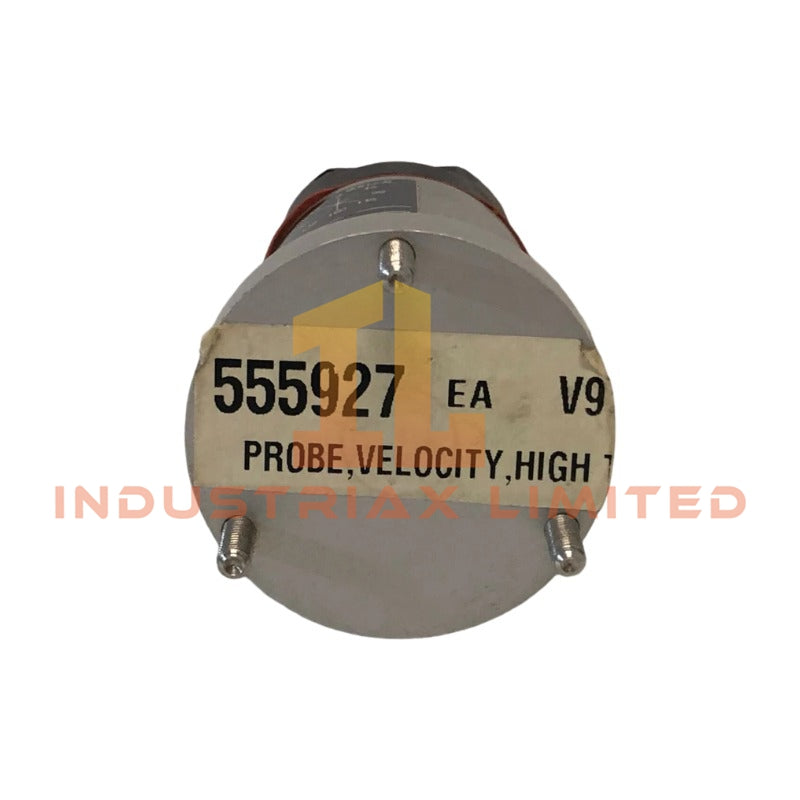

Mounting Method
Stud mounting

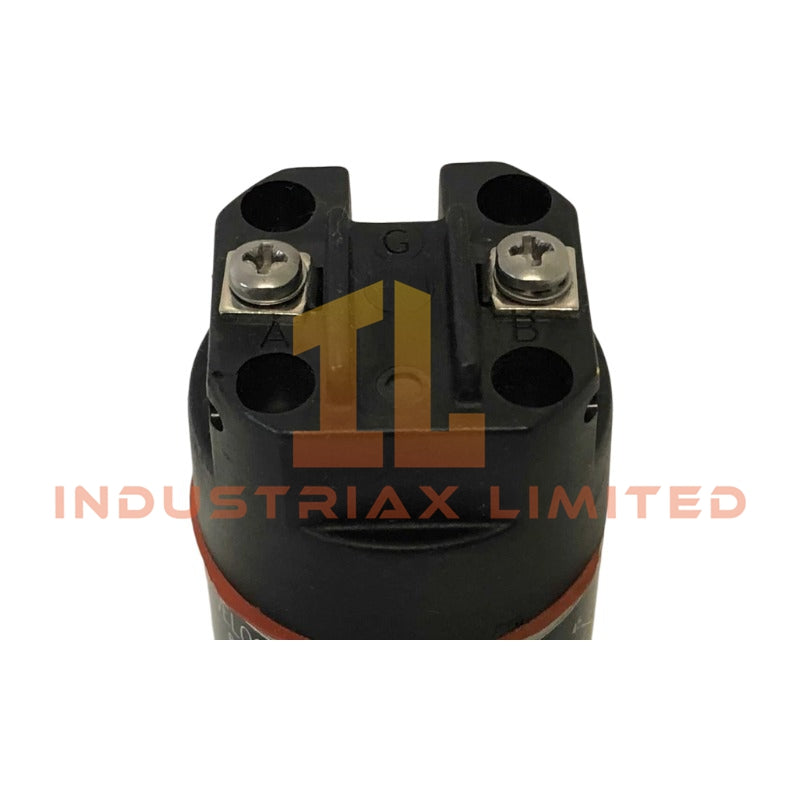

Connector Configuration
Side mount or terminal block options
Power Consumption
Self-generating velocity output, no external excitation required
Rotor Dynamics and Vibration Signal Characteristics
The Bently Nevada 74712-06 applies moving-coil velocity sensing technology for direct casing vibration measurement. The transducer converts mechanical velocity into an electrical voltage output without external excitation power.
The device provides vibration data for rotor dynamics evaluation and machinery condition monitoring applications. In Bently Nevada TSI configurations, velocity signals can be processed with vibration monitoring platforms such as 3300 and 3500 systems for machine protection analysis.
The sensor design focuses on mechanical velocity response and maintains signal characteristics required for casing vibration measurements. Therefore, installation quality, mounting stiffness, and cable routing directly affect measurement accuracy.
Bently Nevada vibration monitoring systems also apply signal conditioning methods such as eddy-current probe scaling, gap voltage validation (-10 VDC targets), and cross-talk suppression for compatible proximity measurement channels. These functions are separate from the 74712-06 moving-coil velocity sensing element.
Frequently Asked Questions
Q: Does the Bently Nevada 74712-06 require an external power supply? A: No. The moving-coil sensing element generates a voltage output proportional to vibration velocity and does not require excitation power.
Q: What vibration parameter does the 74712-06 measure? A: The transducer measures absolute casing vibration velocity relative to free space.
Q: Can the 74712-06 be installed in high-temperature locations? A: Yes. The specified operating temperature range is -29 deg C to +204 deg C, allowing installation on machinery structures with elevated temperatures.
Field Installation Guidelines
Mount the transducer on a rigid machine casing surface to maintain mechanical vibration transfer accuracy.
Verify the mounting surface condition and ensure proper stud engagement before commissioning.
Route the signal cable away from high-current power conductors to reduce electrical interference.
Maintain proper cable support and avoid excessive bending stress near the transducer connection point.
Connect the transducer according to the compatible Bently Nevada monitoring system input requirements.
Confirm vibration polarity, signal direction, and channel configuration during system commissioning.
