Description

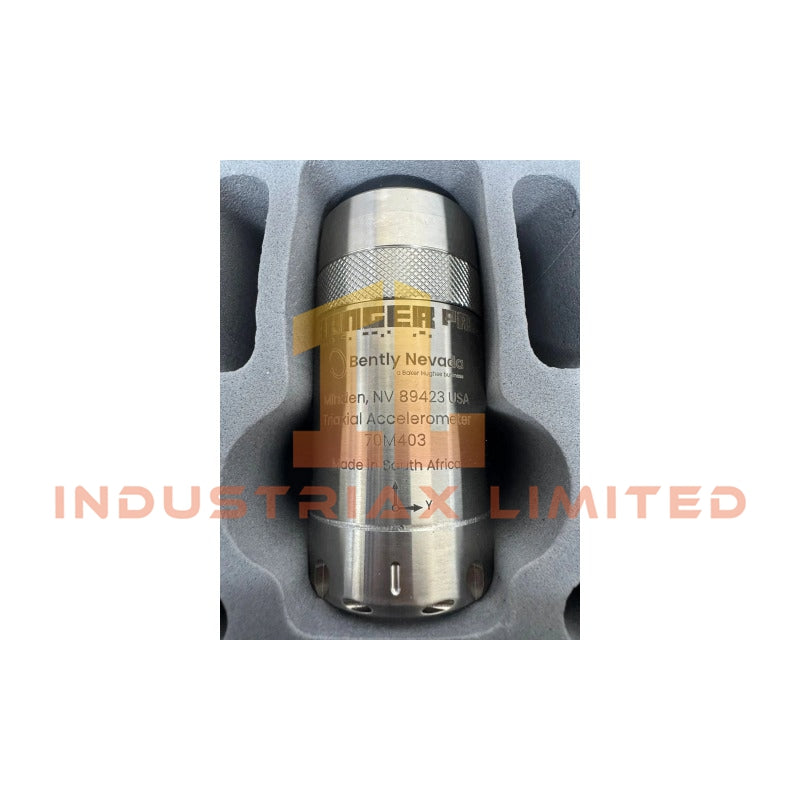

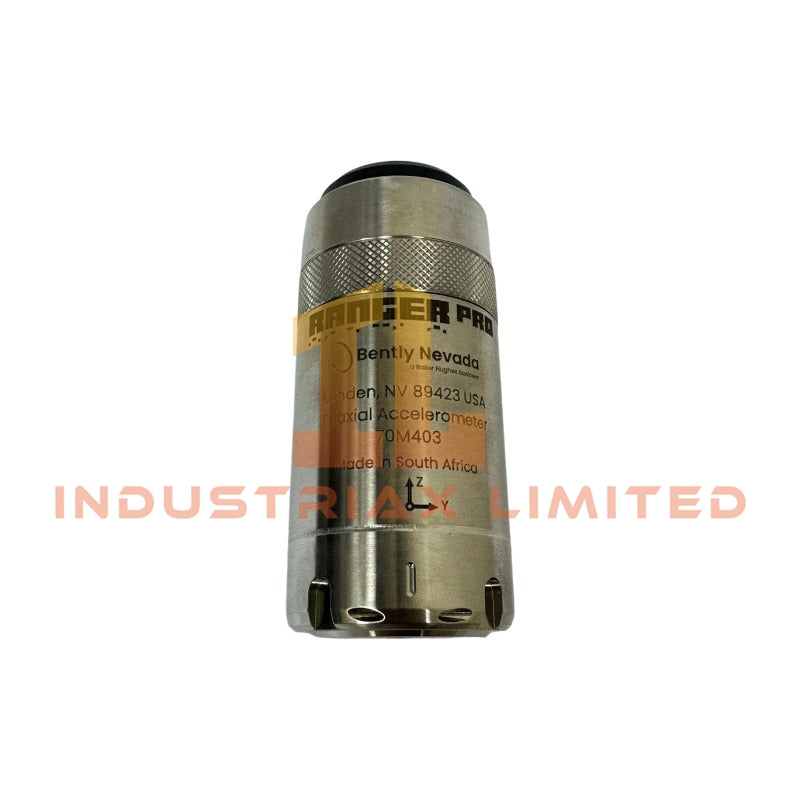

Bently Nevada 70M403 Ranger Pro Wireless Condition Monitoring Sensor

Configured for wireless triaxial vibration measurement and temperature monitoring in the Ranger Pro wireless condition monitoring network, the Bently Nevada 70M403 (70M403 Wireless Condition Monitoring Sensor) provides direct physical data acquisition and wireless transmission functions.

Hardware Specifications

Parameter	Specification
Model	70M403
Brand	Bently Nevada
Product Series	Ranger Pro Wireless Condition Monitoring
Product Type	Wireless Triaxial Accelerometer Sensor
Origin	USA
Weight	Approx. 230 g without battery; approx. 300 g with battery
Dimensions	Height: 88 mm; Diameter: 40 mm
Operating Temp	-40 deg C to +125 deg C
Power Consumption	Battery powered with replaceable D-size 3.6 V lithium-thionyl chloride battery
Measurement Inputs	Triaxial vibration (X, Y, Z axes) and integrated temperature measurement
Acceleration Range	+/- 1 g to +/- 20 g, up to 200 m/s2
Acceleration Frequency Range	0.1 Hz to 20 kHz; Z-axis up to 10 kHz, X/Y axes up to 4 kHz
Velocity Frequency Range	5 Hz to 2000 Hz
Wireless Communication	ISA100.11a or WirelessHART based on IEEE 802.15.4
Wireless Transmission Range	Up to 150 m line of sight
Battery Life	Up to 5 years depending on sampling and transmission settings
Output Data	Velocity, acceleration, temperature, timebase waveform, FFT spectrum, PeakDemod spectrum
Protection Rating	IP66 / IP67
Housing Material	316L stainless steel body with glass-reinforced PPS top section
Mounting Options	M6 threaded stud, magnetic mount, or tethered mounting for high temperature locations
Hazardous Area Rating	ATEX / IECEx / CSA Class I Division 1 certification options depending on configuration

Eddy Current Scaling and Rotor Dynamics Measurement Features

The Bently Nevada 70M403 applies mechanical monitoring principles used in Bently Nevada condition monitoring systems. Moreover, the sensor architecture supports vibration waveform collection and frequency spectrum analysis for rotating equipment fault identification.

The Ranger Pro sensor measures three-axis acceleration data and converts mechanical vibration into wireless digital data streams. Therefore, maintenance systems can analyze bearing condition, imbalance, misalignment, looseness, and other rotating machinery behaviors through FFT and PeakDemod spectrum processing.

In addition, Bently Nevada monitoring technologies use calibrated vibration measurement methods to maintain signal consistency across machinery monitoring points. The system design considers vibration response characteristics, sensor mounting influence, and measurement channel separation to reduce cross-talk effects between vibration axes.

The sensor operates with wireless communication networks while maintaining data acquisition functions required for predictive maintenance platforms such as System 1. It supports vibration trend analysis, waveform review, and spectrum-based diagnostics without requiring permanent field wiring.

Frequently Asked Questions

Q: What vibration measurements does the 70M403 sensor provide?
A: The 70M403 provides triaxial acceleration measurement across X, Y, and Z axes and also measures equipment surface temperature through the integrated temperature sensor.

Q: Does the 70M403 require wired signal connections for data transmission?
A: No. The sensor communicates through ISA100.11a or WirelessHART wireless protocols based on IEEE 802.15.4 communication technology.

Q: What mounting methods are available for the sensor installation?
A: The sensor supports M6 threaded stud mounting, magnetic mounting, and tethered installation methods for locations requiring additional mechanical or temperature considerations.

Field Installation Guidelines

Install the 70M403 directly on the machine measurement point with a rigid mechanical connection to maintain vibration signal accuracy.

Verify that the mounting surface is clean, flat, and free from excessive corrosion before installation. Use the recommended mounting hardware and ensure sufficient mechanical contact between the sensor base and equipment surface.

For wireless communication performance, position the sensor within the network coverage area and avoid installation locations surrounded by large metallic structures that may affect radio transmission paths.

When installing in hazardous areas, confirm that the selected sensor certification matches the site classification requirements. Follow approved grounding, shielding, and wiring practices for associated network equipment.

Avoid installing the sensor near excessive heat sources beyond the specified operating temperature range. For high-temperature applications, use the supported tethered mounting method when required.

Specifications

• Brand: Bently Nevada

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
