Description

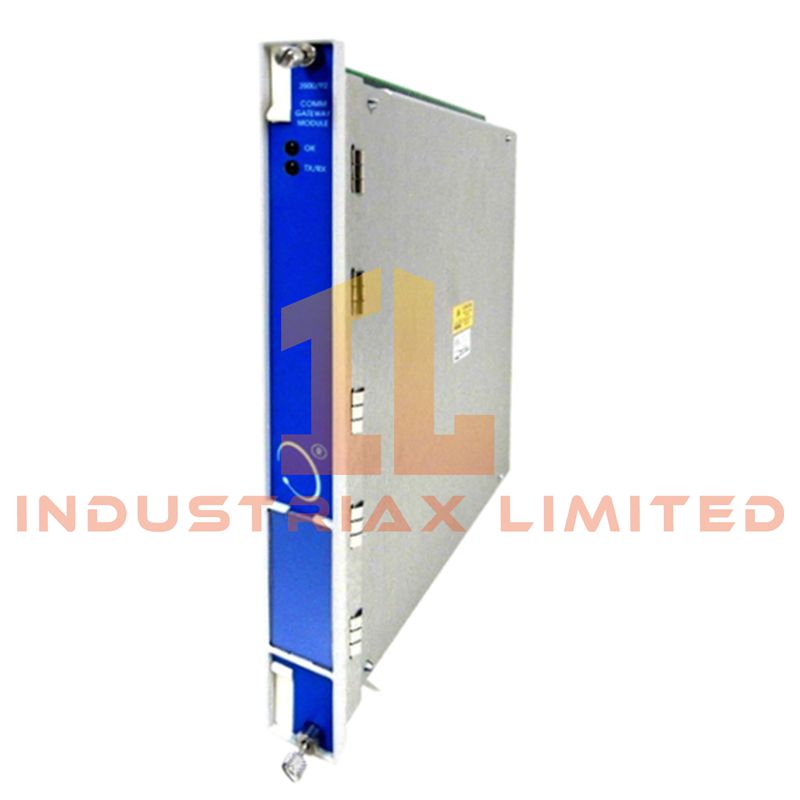

Bently Nevada 3500/92-04-01-05 Communication Gateway Module
Configured for Modbus RTU data exchange between 3500 rack internal monitoring registers and external automation networks, the Bently Nevada 3500/92-04-01-05 (3500/92 Communication Gateway Module) provides direct physical serial communication execution within 3500 Machinery Protection System platforms.
The module operates as a non-protection-path interface, extracting rack static values, alarm states, and status registers while maintaining isolation from trip logic execution. Serial communication over RS-232 or RS-485 is used for deterministic register polling, while Modbus mapping structure governs data exposure to DCS or PLC layers. Signal integrity is dependent on correct termination and grounding of the RS-485 differential pair to prevent bus-level reflection and communication jitter.
Suffix Breakdown & Model Matrix
-
04: Communication configuration set (serial interface variant)
-
01: Modbus mapping / register configuration revision
-
05: Firmware build and protocol implementation revision
Hardware Specifications
| Parameter |
Specification |
| Model |
3500/92-04-01-05 |
| Brand |
Bently Nevada |
| Weight |
0.82 kg |
| Dimensions |
241 mm x 24.4 mm x 242 mm |
| Operating Temp |
-20 deg C to +65 deg C |
| Power Consumption |
6.5 W typical |
| Form Factor |
Half-height module |
| Rack Compatibility |
3500 full-size and mini-rack |
| Communication Protocol |
Modbus RTU |
| Physical Ports |
RS-232, RS-485 |
| Data Rate |
1200 to 115200 bps |
| Data Format |
7 or 8 data bits, parity selectable |
| Stop Bits |
1 or 2 |
| Registers |
Static values, alarms, statuses |
Bently Nevada 3500/92 Communication Bus Isolation and Signal Decoupling
The 3500/92 gateway implements logical separation between machinery protection execution and external communication layers. Rack bus data extraction is performed through internal read-only access paths, preventing influence on protection logic execution timing.
RS-485 differential signaling requires controlled impedance routing and proper shield termination at a single-point earth reference. Improper grounding may introduce common-mode noise, resulting in Modbus frame corruption or retransmission cycles.
The module supports multi-protocol exposure via register mapping layers, allowing deterministic polling of vibration, Keyphasor, and status datasets without modifying internal trip logic behavior.
Frequently Asked Questions (FAQ)
Q: Does the module participate in the protection or trip logic path?
A: No. It operates outside the protection execution chain and only reads rack data through internal communication interfaces.
Q: What happens if RS-485 bus termination is incorrect?
A: Signal reflections may occur, leading to Modbus CRC errors, retransmission, or loss of register synchronization.
Q: Can the module be replaced without stopping the rack?
A: Yes. The module supports hot-swapping, but communication will be interrupted during physical removal.
Field Installation Guidelines
-
Install module only in designated 3500 rack communication slot.
-
Ensure RS-485 cable uses twisted shielded pair with single-point grounding.
-
Verify correct polarity of A/B differential lines before energizing bus.
-
Maintain separation between communication wiring and high-current backplane or power cabling.
-
Confirm Modbus master polling configuration matches register mapping revision before commissioning.
