Description

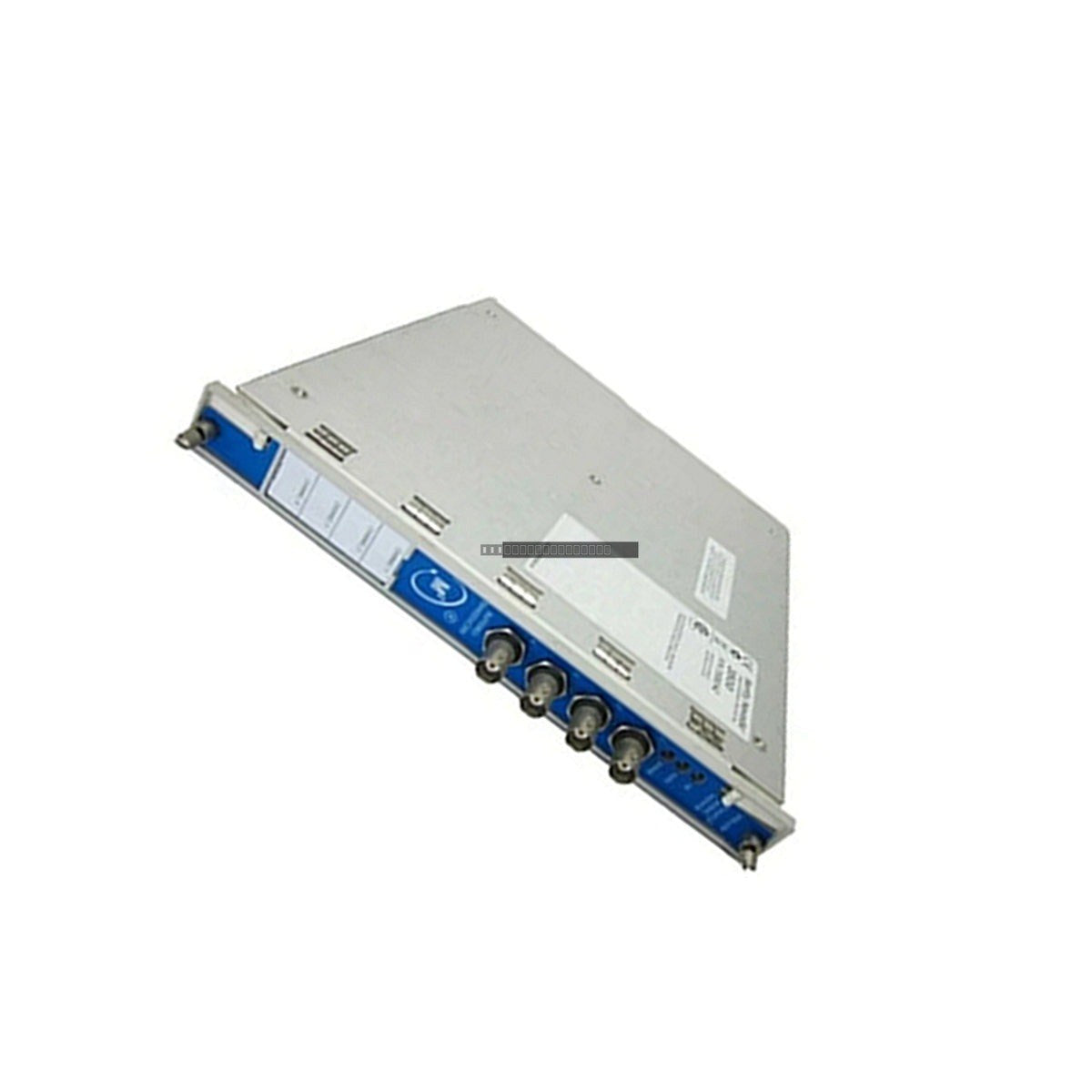

The Bently Nevada 3500/91-01-02-02 EGD Communication Gateway Module is a critical component of the 3500 Series Machinery Protection System. It is engineered to facilitate high-speed, real-time data exchange between the 3500 rack and external plant control systems, such as GE Mark VIe controllers, using the Ethernet Global Data (EGD) protocol. This module ensures robust connectivity for machinery diagnostics, protection data, and integration with System 1 software.
Features
- Provides Ethernet Global Data (EGD) protocol integration for real-time communication.
- Equipped with an Ethernet 100BASE-FX fiber optic interface for superior noise immunity and long-distance data transmission.
- Supports seamless data exchange for predictive maintenance and transient data analysis.
- Front panel LED indicators for quick status monitoring: OK, TX/RX, and Bypass.
- Designed for integration into the standard 3500 rack communication slot.
Applications
This communication gateway is primarily used in critical turbomachinery protection applications, including steam and gas turbines, centrifugal compressors, and large pumps, where high-speed data integration with plant-wide control systems is required.
Technical Specifications
| Manufacturer |
Bently Nevada |
| Product Number |
3500/91-01-02-02 |
| Module Type |
EGD Communication Gateway |
| I/O Module Type |
Ethernet 100BASE-FX Fiber Optic |
| Agency Approval |
CE/PCCC |
| Operating Temperature |
-30 degC to +65 degC |
| Storage Temperature |
-40 degC to +85 degC |
| Humidity |
95% non-condensing |
Installation Guidelines
- Ensure the 3500 rack is powered down before inserting or removing the module to prevent electrical damage.
- The module must be installed in the designated communication slot of the 3500 rack, paired with the corresponding rear I/O module.
- Handle with care using ESD-safe procedures to protect sensitive internal components.
- Ensure fiber optic cables are routed away from high-EMI sources and are not subjected to excessive bending radii.
- Verify that the module is fully seated and the front panel screws are tightened to ensure proper grounding and mechanical stability.
FAQ
What is the primary function of the 3500/91 module?
The module serves as a gateway to allow the 3500 Machinery Protection System to communicate with external control systems using the EGD protocol over a fiber optic network.
Does this module support standard copper Ethernet?
No, this specific order code (3500/91-01-02-02) is configured for 100BASE-FX fiber optic connectivity.
