Description
Description

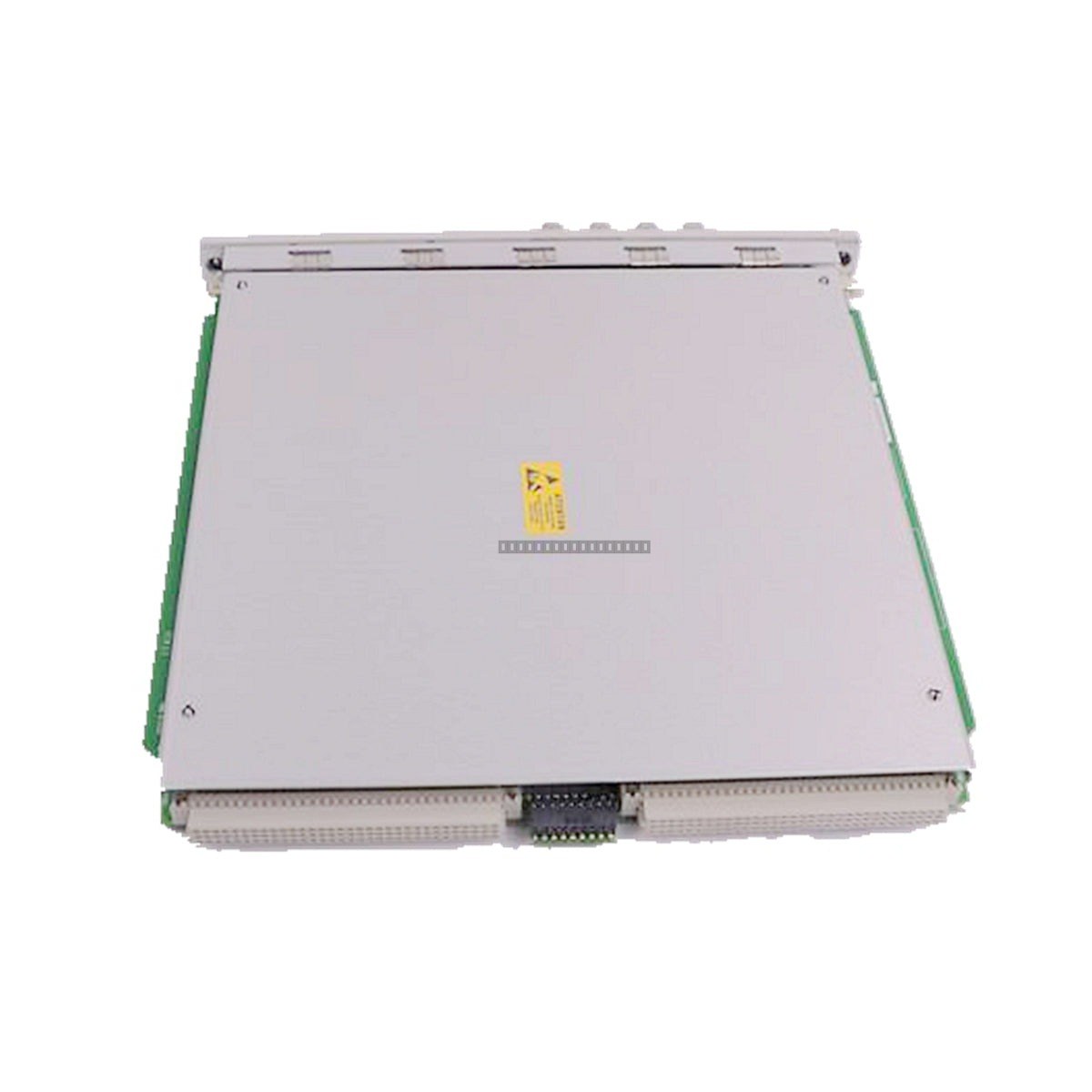

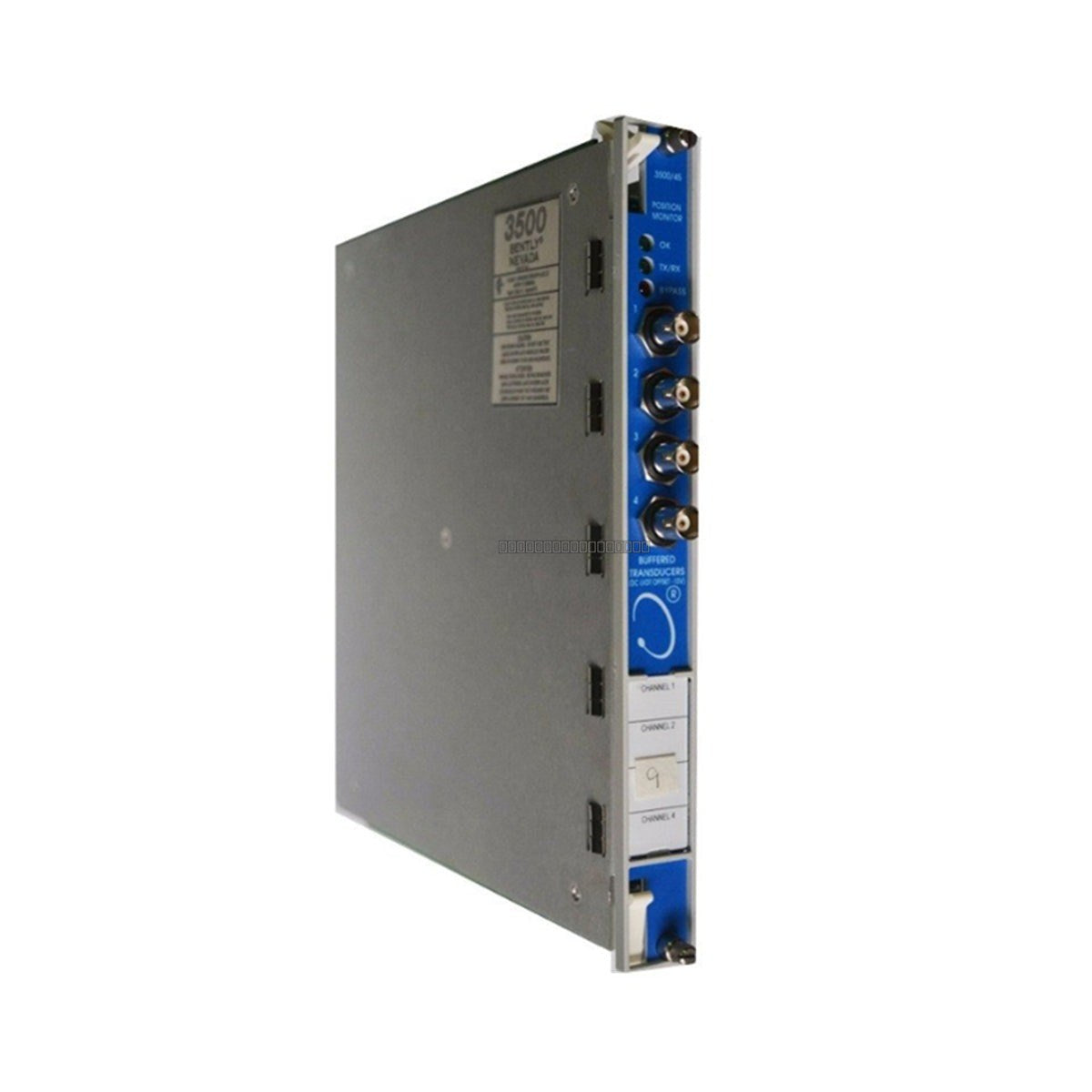

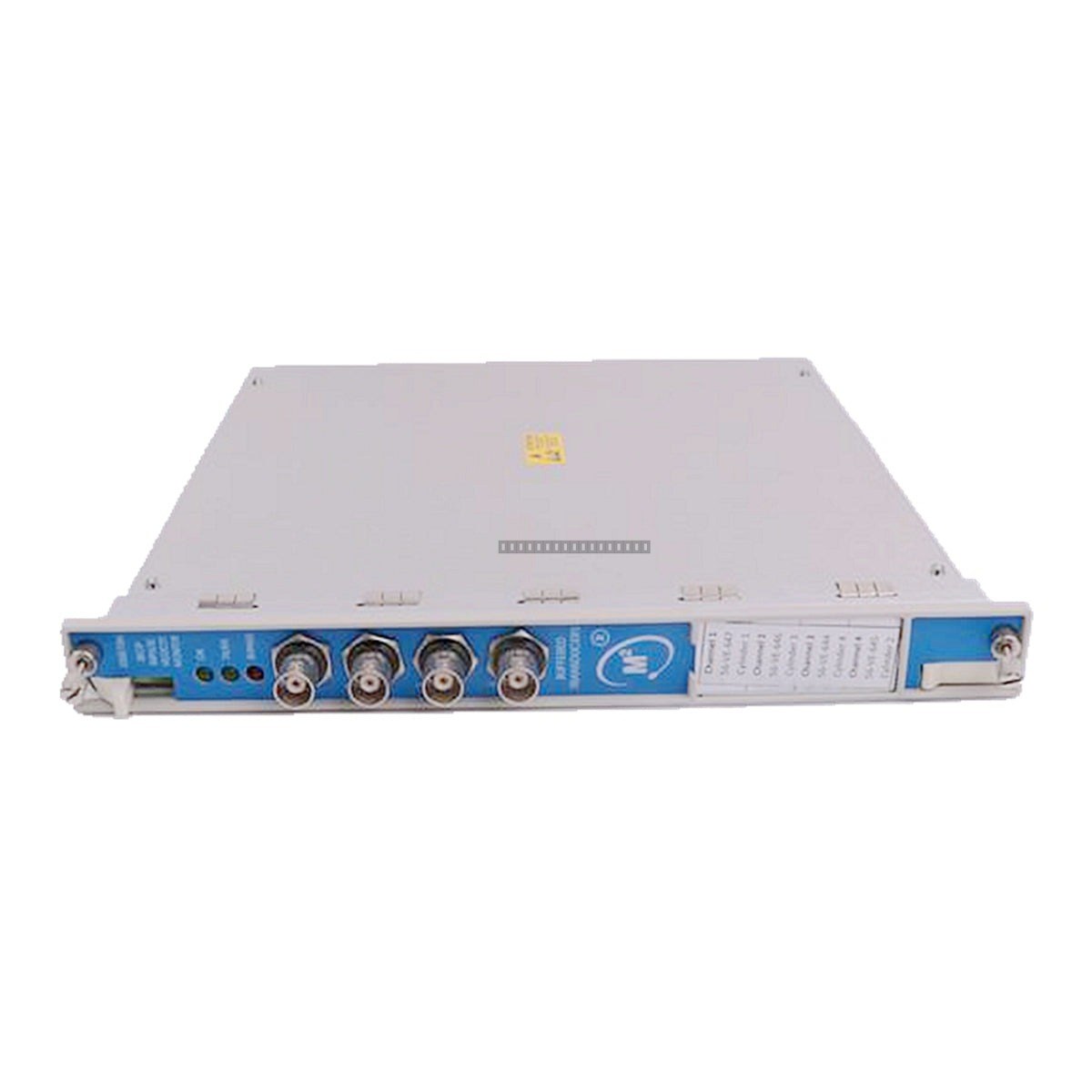

The Bently Nevada 3500/72M Recip Rod Position Monitor is a specialized module within the 3500 Series Machinery Protection System, engineered specifically for reciprocating compressor applications. It provides continuous, high-speed monitoring of rod position to identify critical mechanical conditions such as rider band wear, rod misalignment, and mechanical degradation. By delivering real-time data, the 3500/72M facilitates predictive maintenance strategies and helps prevent catastrophic machinery failures.
Features
- Dedicated channels for precise reciprocating rod position measurement.
- Advanced signal conditioning for accurate probe input linearization and noise filtering.
- Seamless integration with the 3500 rack system for centralized machinery diagnostics.
- Direct communication with the 3500/22M Transient Data Interface (TDI) module for advanced data capture and trip logic.
- Support for redundant configurations to ensure high-availability monitoring.
- Configurable via Bently Nevada 3500 Rack Configuration Software.
- Compliance with API 670 standards for machinery protection systems.
Applications
The 3500/72M is primarily utilized in industrial environments involving reciprocating compressors. It is essential for monitoring crosshead and rod behavior in petrochemical, oil and gas, and power generation facilities where reciprocating equipment is critical to process continuity.
Technical Specifications
| Parameter |
Specification |
| Series |
3500 |
| Operating Temperature |
-30 degC to +65 degC |
| Storage Temperature |
-40 degC to +85 degC |
| Humidity |
95% non-condensing |
| Power Consumption |
< 5 W typical |
| Bandwidth |
30 kHz |
Installation Guidelines
- Ensure the 3500 rack is powered down before inserting or removing the 3500/72M module.
- Handle the module using ESD-safe practices to prevent damage to sensitive electronic components.
- Verify that the I/O module is correctly seated in the rack backplane before securing the front panel screws.
- Use shielded cabling for probe inputs to minimize electromagnetic interference (EMI) in high-noise industrial environments.
- Ensure proper grounding of the 3500 rack system per Bently Nevada installation manuals.
FAQ
What is the primary function of the 3500/72M?
The 3500/72M is designed to monitor the position of the piston rod in reciprocating compressors to detect wear, misalignment, and other mechanical issues before they lead to equipment failure.
Is this module compatible with other 3500 series components?
Yes, the 3500/72M is fully compatible with the 3500 rack system and communicates directly with the 3500/22M Transient Data Interface module for advanced diagnostics and data logging.
