Description
Product Overview

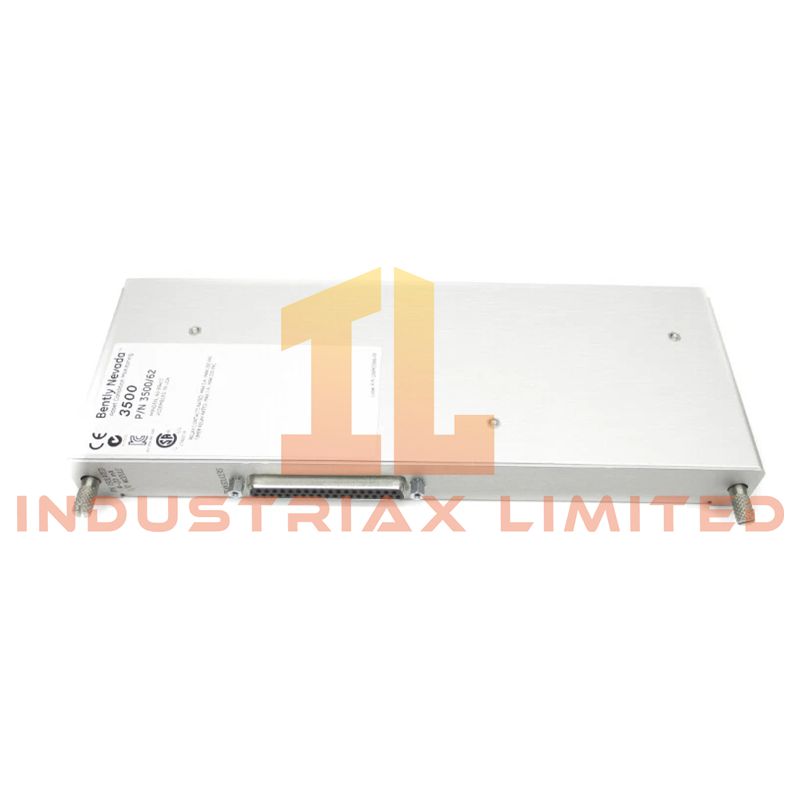

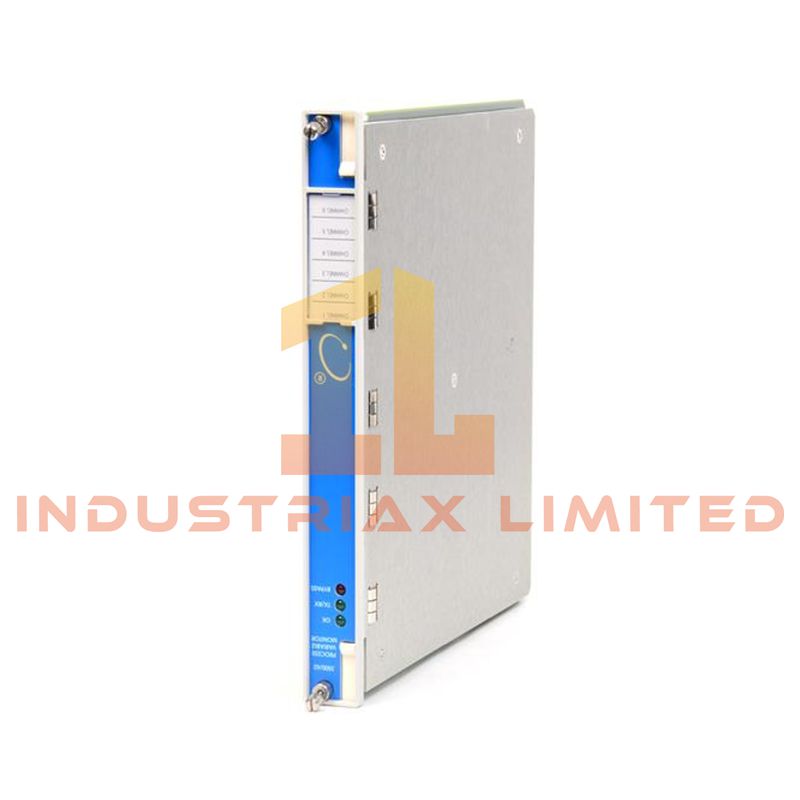

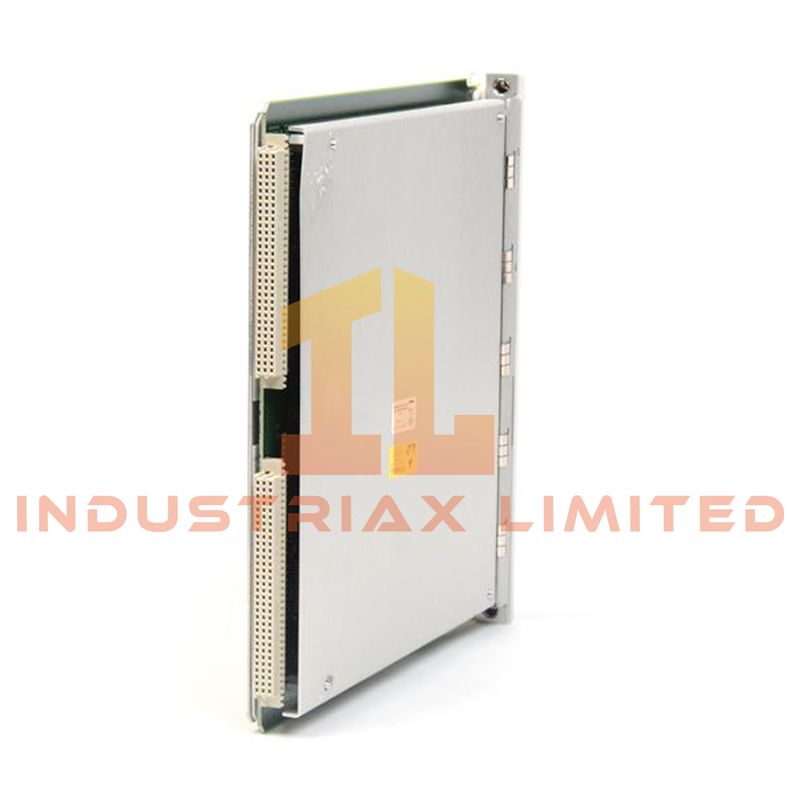

The Bently Nevada 3500/62 Process Variable Monitor is a multi-channel monitoring module engineered for integration within the 3500 Machinery Protection System. The module acquires standard industrial process signals and converts them into real-time digital values for alarming, shutdown logic, and system-wide condition monitoring.
Unlike vibration-focused protection modules, the 3500/62 is designed to supervise process-related operating conditions including pressure, flow, liquid level, valve position, and transmitter-based temperature measurements. Its six independent channels allow multiple process variables to be monitored simultaneously within the same rack infrastructure used for rotating machinery protection.
The module supports API 670-compliant monitoring architectures commonly deployed in turbines, compressors, pumps, and critical process equipment.
Functional Characteristics
The 3500/62 continuously scans analog process inputs and compares measured values against configurable alarm thresholds. Each monitoring channel operates independently and supports customized engineering units, scaling ranges, and alarm logic.
Core monitoring capabilities include:
-
Six configurable process input channels
-
Continuous signal validation and diagnostics
-
Alert and Danger alarm processing
-
Relay activation through compatible 3500 relay modules
-
Integration with plant DCS and PLC systems
-
Real-time rack communication through the 3500 backplane
-
Support for process shutdown voting logic
-
Internal fault monitoring with OK status indication
The monitor is commonly paired with recorder output modules and system event logging functions for complete machinery protection strategies.
Supported Input Configurations
The module accepts several industrial signal formats used in process instrumentation systems.
| Input Configuration |
Signal Range |
| Voltage Input I/O |
-10 Vdc to +10 Vdc |
| 4–20 mA Barrier I/O |
4–20 mA DC |
| 4–20 mA Isolated I/O |
4–20 mA DC |
Additional electrical characteristics:
| Parameter |
Specification |
| Voltage Compliance |
13.66 V |
| Channel Isolation |
500 V Isolation (Isolated I/O only) |
| Input Impedance (Voltage) |
1 MΩ |
| Input Impedance (Current) |
50 Ω |
| External Transducer Supply |
+24 Vdc ±5%, 250 mA max |
| Typical Power Consumption |
7.0 W |
The integrated transducer supply simplifies installation for loop-powered transmitters used in industrial instrumentation systems.
Technical Specifications
| Parameter |
Specification |
| Product Model |
3500/62 |
| Product Type |
Process Variable Monitor |
| Monitoring Channels |
6 Independent Channels |
| Supported Inputs |
4–20 mA, ±10 Vdc |
| Alarm Functions |
Alert & Danger |
| Signal Isolation |
Channel-to-Channel and Channel-to-Ground |
| Rack Compatibility |
3500 Machinery Protection Rack |
| System Communication |
3500 Backplane |
| Diagnostic Functions |
Continuous Self-Test |
| Operating Temperature |
-30°C to +65°C |
| Storage Temperature |
-40°C to +85°C |
| Relative Humidity |
95% Non-Condensing |
| EMI/RFI Protection |
Industrial Grade Immunity |
| Monitor Dimensions |
241.3 × 24.4 × 241.8 mm |
| Weight |
0.82 kg |
For Internal Barrier I/O modules with internal termination, the operating temperature range is limited to 0°C to +65°C.
Termination and I/O Options
The 3500/62 supports multiple wiring and installation methods depending on field requirements and hazardous-area configurations.
Available termination styles include:
-
Internal Termination I/O Modules
-
External Termination I/O Modules
-
Internal Barrier I/O Modules
-
Isolated Current Input I/O Modules
-
Voltage Input I/O Modules
These options allow flexible integration into new installations as well as retrofit machinery protection projects.
Typical Industrial Applications
The module is widely deployed in rotating equipment protection systems where process conditions are critical to operational safety.
Common monitored variables include:
-
Compressor discharge pressure
-
Turbine lubrication oil pressure
-
Cooling water circulation flow
-
Seal gas pressure
-
Pump outlet pressure
-
Process tank level
-
Hydraulic valve positioning
-
Bearing temperature transmitters
When configured with relay modules, the monitor can initiate alarms or automatic shutdown sequences if operating conditions exceed safe process limits.
Comparison with Other 3500 Monitoring Modules
The 3500/62 complements vibration and speed monitoring modules by incorporating process instrumentation into the same centralized protection platform.
FAQ
Q: What types of transmitters can connect to the 3500/62?
The module supports standard industrial transmitters using 4–20 mA current loops or voltage-based analog outputs.
Q: Can each channel monitor different process variables?
Yes. Each of the six channels can be individually configured for separate engineering units, scaling ranges, and alarm settings.
Q: Does the module support hazardous-area installations?
Specific I/O module versions with barrier protection are available for installations requiring additional hazardous-area compliance.
Q: Is the 3500/62 used for vibration monitoring?
No. The module is intended for process variables such as pressure, flow, level, and transmitter-based measurements rather than direct vibration sensing.
