Product Overview

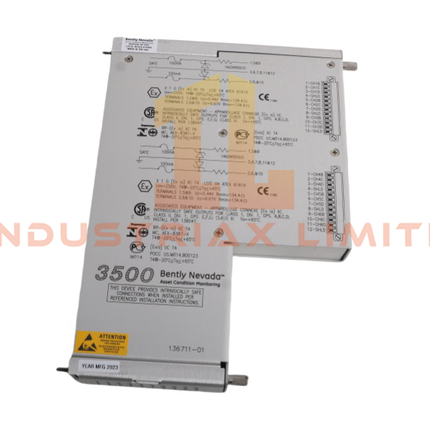

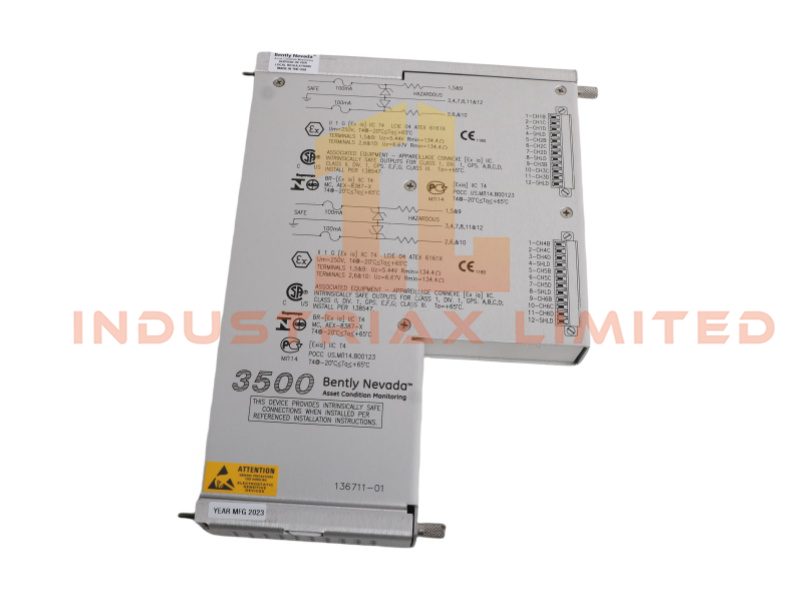

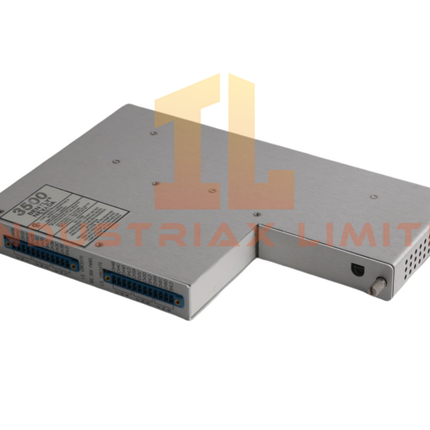

The Bently Nevada 3500/60-01-05 136711-01 RTD/TC I/O Module with Internal Barriers and Internal Terminations belongs to the 3500 system. It delivers ±0.5% velocity measurement accuracy across four channels, ensuring precise monitoring of vibration, speed, and phase parameters. Its rugged design exceeds API 670 standards, making it ideal for mission-critical machinery protection.
Technical Specifications
| Parameter |
Value |
| Model Number |
3500/60-01-05 136711-01 |
| Module Type |
RTD/TC I/O Module with Internal Barriers |
| Manufacturer |
Bently Nevada |
| Product Range |
3500 System |
| Condition |
Brand New |
| Dimensions |
2.5 × 18.5 × 24.2 cm |
| Weight |
0.92 kg |
| HS Code |
8537101190 |
| Minimum Order Quantity |
1 |
| Origin |
USA |
| System |
TSI |
| Communication Service |
Ethernet Router |
| Status |
Active |
| Measurement Accuracy |
±0.5% velocity |
| Channels |
4 independent |
| Response Time |
100 ms |
| Operating Temperature |
–40 °C to +85 °C |
| Technology |
DSP with Adaptive Dynamic Range |
| Diagnostics |
Dual-redundant paths, continuous self-checks |
| Compliance |
API 670 standards |
Functional Description
The 3500/60-01-05 136711-01 module incorporates DSP technology that enables simultaneous monitoring of vibration, speed, and phase. Adaptive Dynamic Range automatically adjusts sensitivity to capture both steady-state and transient events. Intelligent waveform capture records vibration profiles during alarms, while its 100ms response time ensures rapid shutdown under dangerous conditions.
Applications and Compatibility
The Bently Nevada 3500/60-01-05 136711-01 RTD/TC I/O Module suits turbines, compressors, and high-speed machinery in nuclear plants, offshore platforms, and petrochemical facilities. Its compatibility with the 3500 system ensures seamless integration, while its rugged design supports hazardous area installations. Engineers rely on its proven reliability for predictive maintenance and machinery protection.
Key Benefits
-
Compact 2.5x18.5x24.2cm dimensions simplify installation in control panels.
-
Lightweight 0.92kg design improves handling and replacement efficiency.
-
Four independent channels provide comprehensive monitoring coverage.
-
Adaptive Dynamic Range enhances sensitivity for transient event detection.
-
API 670 compliance guarantees industry-standard machinery protection.
