Description

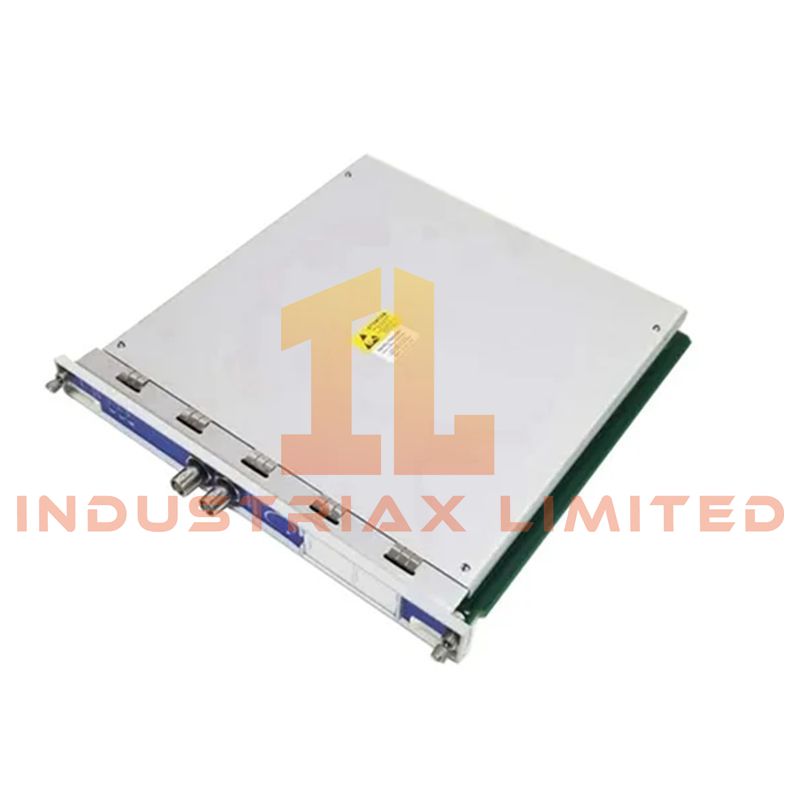

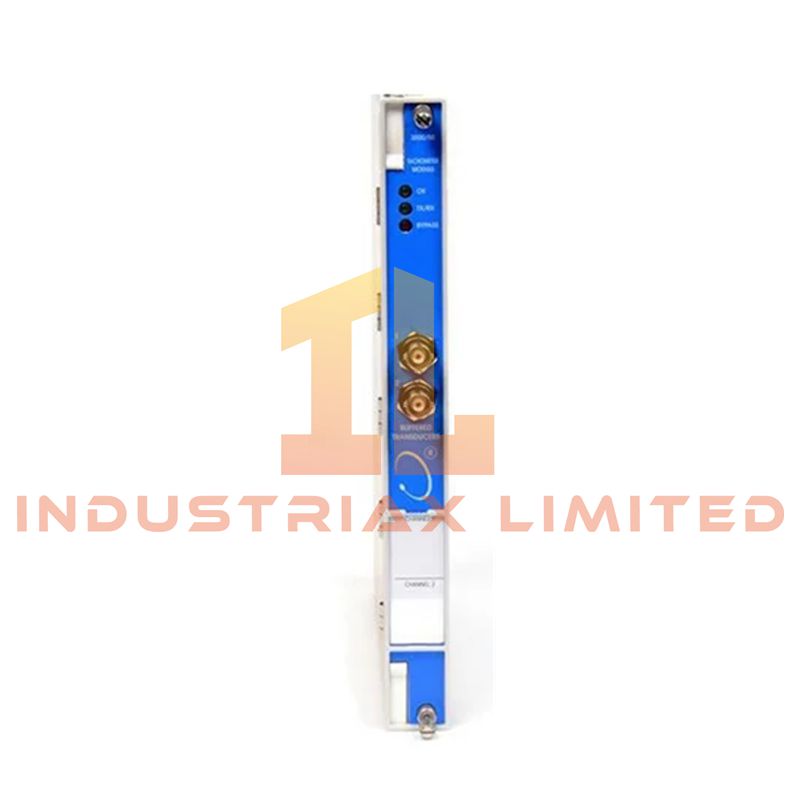

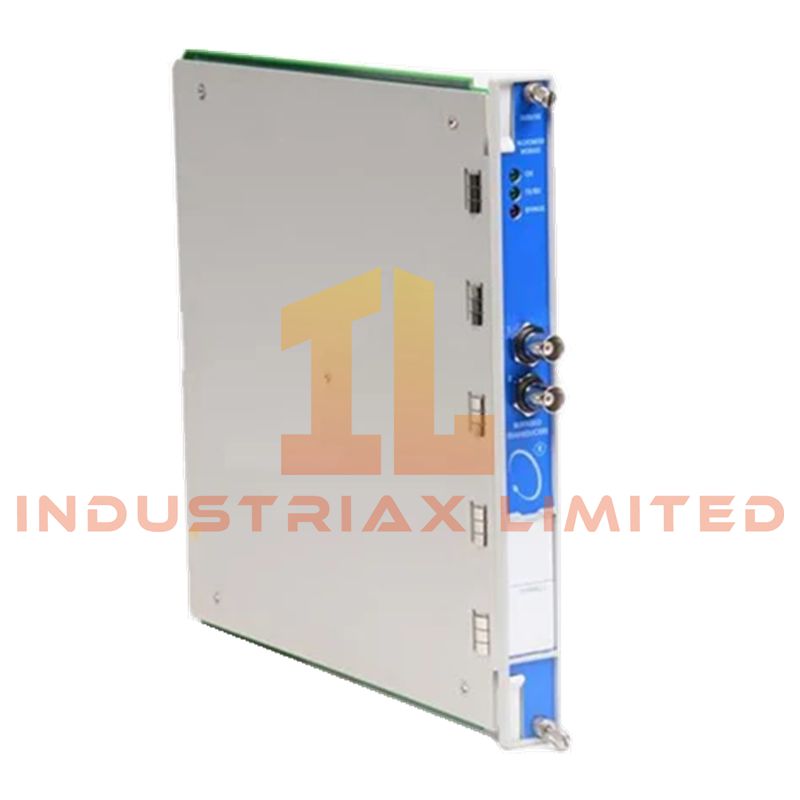

Bently Nevada 3500/53M Overspeed Detection Module
The Bently Nevada 3500/53M 288062-01, also cataloged as the 3500/53M Overspeed Detection Module, serves as the primary safety logic module utilized to execute shaft overspeed detection and trip generation across 3500 Machinery Protection System platforms.
Hardware Specifications
| Parameter |
Specification |
| Model |
3500/53M |
| Brand |
Bently Nevada |
| Origin |
United States |
| Weight |
0.82 kg |
| Dimensions |
241.3 x 24.4 x 241.8 mm |
| Operating Temp |
-30 deg C to +65 deg C |
| Power Consumption |
~8 W |
| Channels |
2 independent channels (supports 2oo3 architecture) |
| Input Types |
Proximity probes, magnetic pickups |
| Measurement Range |
0 to 99,999 RPM |
| Outputs |
4–20 mA, alarm relay, trip relay |
Cross-Channel Overspeed Voting and Signal Integrity Processing
The module processes dual independent speed input channels and supports external 2-out-of-3 voting logic within the 3500 rack architecture. Input conditioning includes validation of eddy-current proximity probe signals and magnetic pickup waveforms up to 20 kHz. Channel correlation is used to suppress transient discrepancies between redundant inputs prior to trip decision execution.
Signal integrity is maintained through isolated input stages and synchronized sampling across channels to minimize timing skew in high-speed rotor applications.
Frequently Asked Questions (FAQ)
Q: Can the 3500/53M operate in a 2oo3 voting configuration?
A: Yes. The module supports dual-channel internal processing and is designed for integration into external or rack-level 2oo3 voting architectures.
Q: Does module replacement require system shutdown?
A: The module supports hot-swap insertion and removal under rack-defined maintenance conditions. Trip logic remains governed by system configuration during replacement.
Q: What input types are supported for speed measurement?
A: The module accepts eddy-current proximity probe signals and magnetic pickup inputs within defined voltage and frequency ranges.
Field Installation Guidelines
-
Install module into designated slot of 3500/05 rack with correct alignment to backplane connectors.
-
Ensure probe wiring is shielded and routed separately from power conductors to reduce electromagnetic coupling.
-
Maintain correct gap voltage setup for proximity probes prior to commissioning.
-
Verify voting logic configuration in 3500 Rack Configuration Software before enabling trip functions.
-
Ensure chassis grounding continuity across rack and cabinet earth points.
