Description

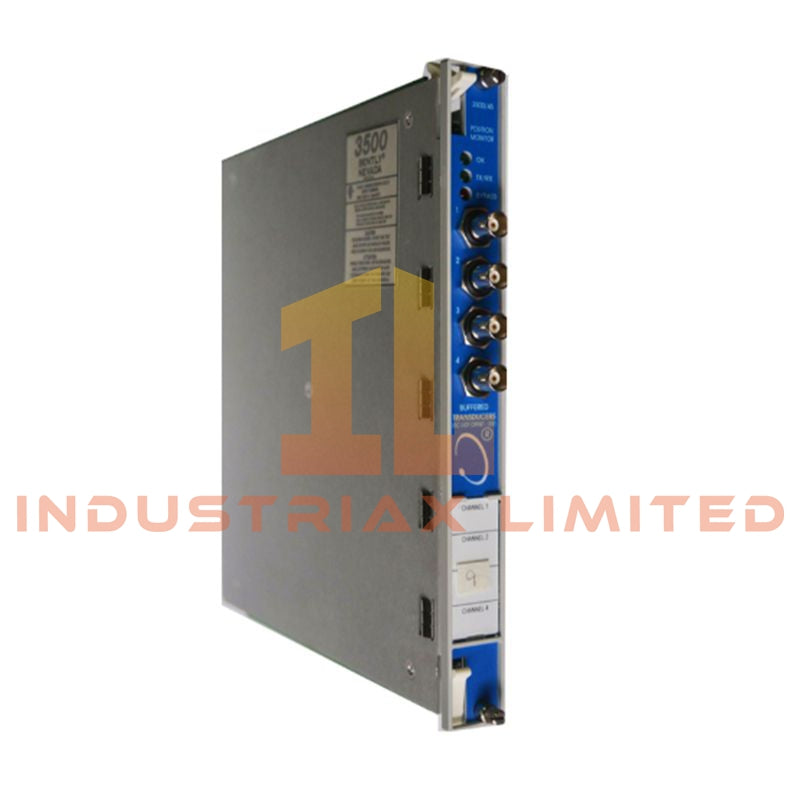

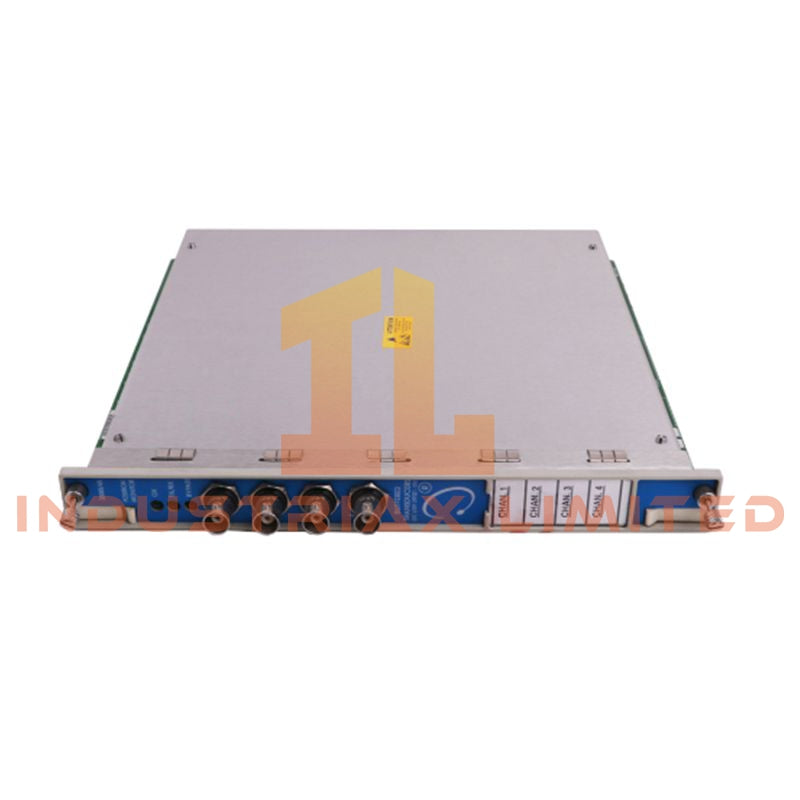

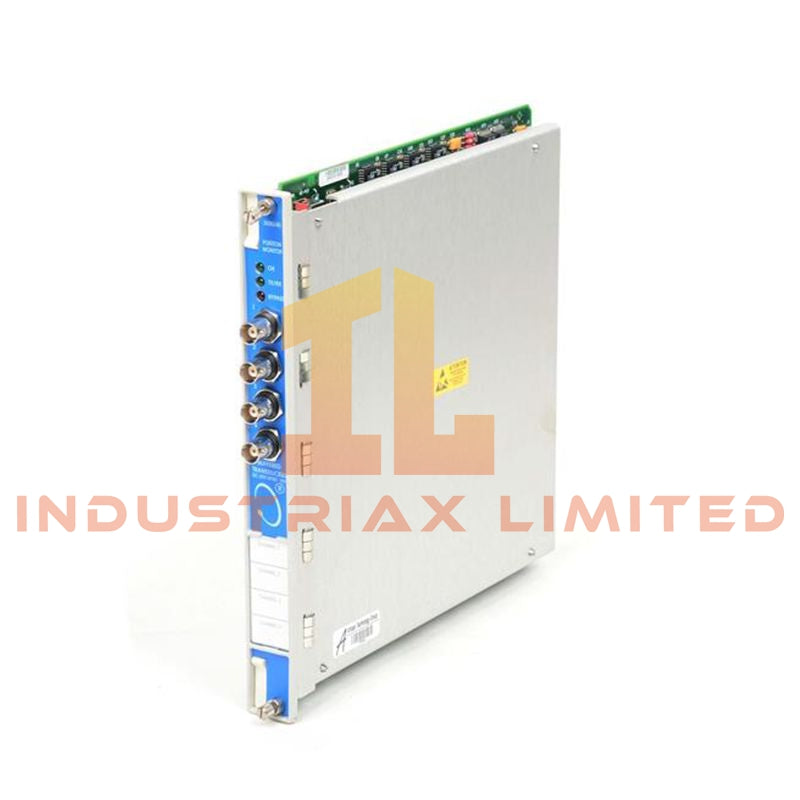

Bently Nevada 3500/45 Position Monitor
The Bently Nevada 3500/45 Position Monitor, also cataloged as the 3500/45 Position Monitor, serves as the primary position monitoring module utilized to execute axial displacement, differential expansion, case expansion, and valve position measurement across 3500 Machinery Protection System platforms. The module conditions multi-type transducer inputs and routes processed signals into alarm comparison logic within the rack backplane.
The device supports parallel acquisition from proximity probes, LVDTs, RPTs, and rotary potentiometers. Each of the 4 channels can be configured in paired operating modes for independent measurement functions with programmable alarm thresholds.
Hardware Specifications
| Parameter |
Specification |
| Model |
3500/45 Position Monitor |
| Brand |
Bently Nevada |
| Origin |
USA |
| Power Consumption |
5.6 W to 8.5 W depending on I/O configuration |
| Channels |
4 channels (pair-programmable) |
| Input Types |
Proximitors, RPT, DC LVDT, AC LVDT, rotary potentiometers |
| Input Impedance |
10 kΩ to MΩ range depending on transducer type |
Channel-to-channel isolation and deterministic backplane signaling
The 3500/45 implements channel-segregated signal conditioning paths within the 3500 rack architecture. Each input channel pair operates with independent scaling tables and alarm evaluation logic, reducing inter-channel coupling under high-dynamic vibration and thermal drift conditions. Backplane communication ensures synchronized sampling across position-related variables while maintaining deterministic update cycles within the 3500 system bus.
Frequently Asked Questions (FAQ)
Q: Can the 3500/45 operate with mixed transducer types on different channels?
A: Yes. Each channel pair supports independent configuration for proximity probes, LVDTs, RPTs, or potentiometers.
Q: Does the module support hot-swap in the 3500 rack?
A: Yes. The module is designed for hot insertion and removal with backplane isolation maintaining rack continuity.
Q: How is signal scaling handled for different input types?
A: Scaling is performed internally per channel using configured transducer type conversion tables in the module firmware.
Field Installation Guidelines
The module must be inserted into a compatible Bently Nevada 3500 rack slot with full seating on the backplane connector. Ensure adjacent slots are either populated or covered with filler panels to maintain airflow consistency.
All signal wiring must use shielded twisted pairs. Cable shields should be grounded at the rack end only to prevent ground loop formation. Maintain separation between low-level transducer wiring and power conductors to reduce induced noise coupling.
During commissioning, verify correct channel configuration before enabling alarm setpoints. Improper transducer type selection may result in scaling errors or invalid position readings.
