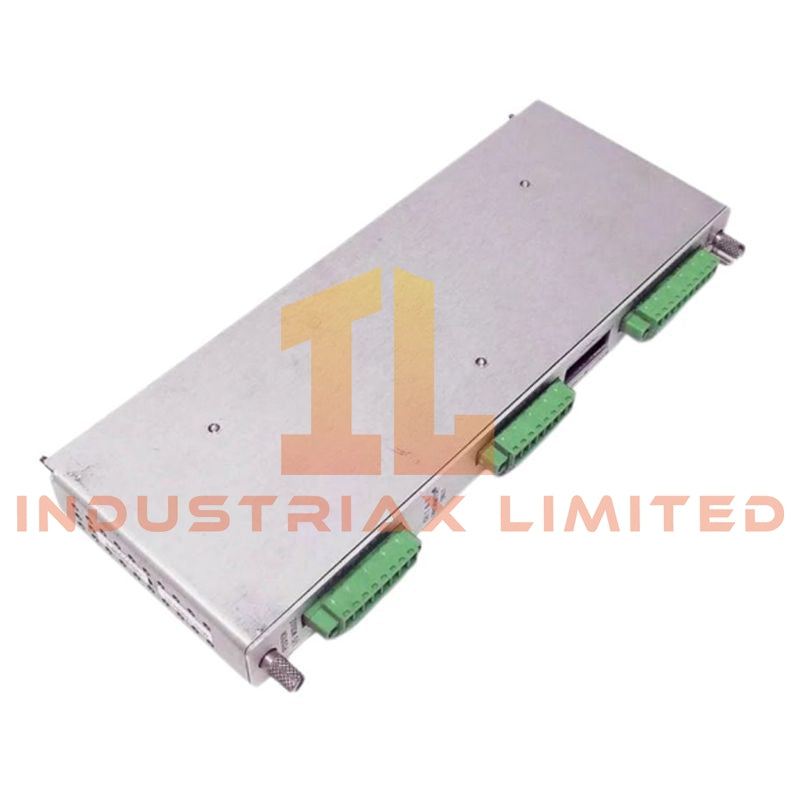

Product Description

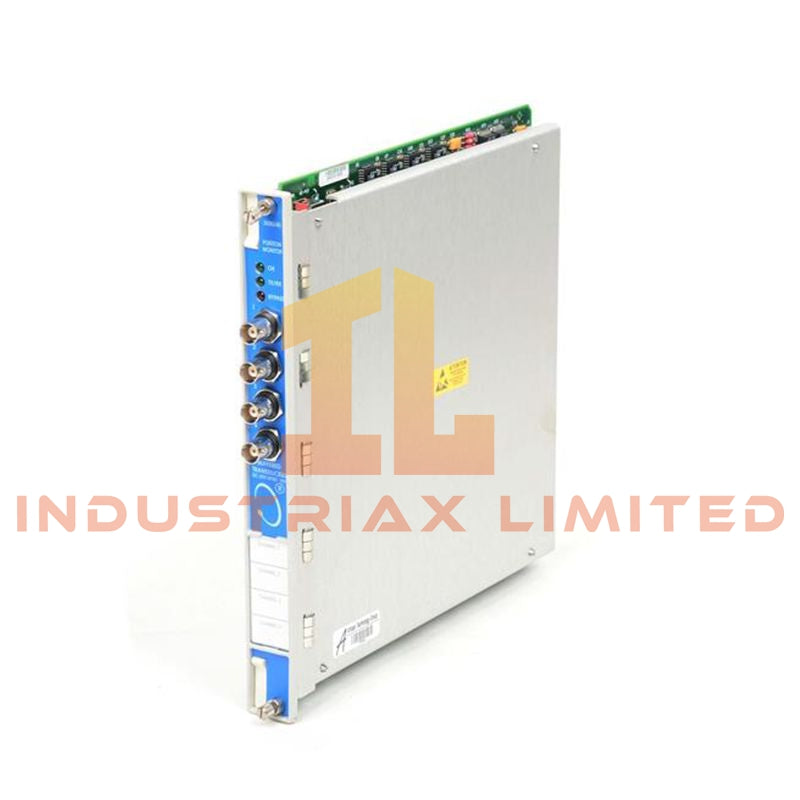

The Bently Nevada 3500/45-140072-02 serves as the front-end processing module within the 3500 Position Monitor system, designed for high-precision measurement of mechanical shaft and structural displacement parameters. It is engineered for continuous monitoring of axial movement, thermal expansion behavior, and valve positioning in rotating machinery systems.

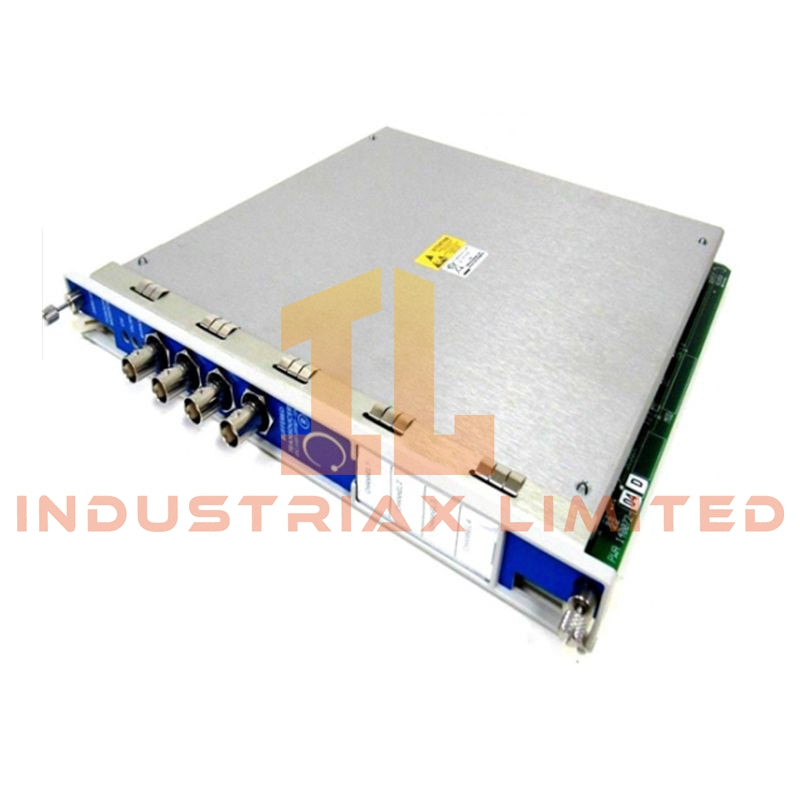

This module operates in conjunction with a rear I/O assembly (140072-04) and integrates directly into the Bently Nevada 3500 rack architecture for industrial machinery protection and condition monitoring.

Measurement Functions

The system is built to process a wide range of displacement-based measurements, including:

• Axial (thrust) shaft position

• Differential expansion (standard and advanced ramp configurations)

• Complementary and dual-ramp differential expansion

• Casing thermal expansion

• Valve position monitoring

• Rotary and linear displacement behavior tracking

Channel pairing architecture enables simultaneous execution of multiple measurement functions for enhanced diagnostic coverage.

Input Compatibility

• Total channels: 4 independent inputs

• Supported sensor types:

• Eddy current proximity probes (e.g., 3300 XL series)

• Rotary Position Transducers (RPT)

• DC LVDTs (linear variable differential transformers)

• AC LVDTs

• Rotary potentiometers

• Input impedance characteristics:

• Proximity / RPT: ~10 kΩ

• AC LVDT: ~137 kΩ

• Rotary potentiometer: ~200 kΩ

• DC LVDT: high impedance (MΩ range)

• Rack-powered operation with configurable I/O dependencies

Signal Processing Capabilities

• Simultaneous DC and AC signal processing for static and dynamic displacement tracking

• Programmable alarm thresholds for Alert and Danger conditions per channel

• Advanced digital filtering for noise reduction and signal stabilization

• High-resolution conversion for precise displacement measurement

• Fully integrated diagnostics within 3500 system architecture

Measurement Scaling Characteristics

• Thrust position:

• 3.94 or 7.87 mV/µm

• Differential expansion:

• 0.394 or 0.787 mV/µm

• Ramp differential expansion:

• 0.394 to 7.874 V/mm depending on configuration

• Complementary DE:

• 0.394 to 3.937 V/mm range

• DC LVDT case expansion:

• Approximately 0.05–0.22 V/mm

• AC LVDT / valve position:

• 9.45–28.74 mV/V/mm

Outputs & System Integration

• Digital alarm outputs for system-level protection logic

• Buffered analog outputs via rear I/O module (140072-04)

• Communication compatibility:

• Modbus RTU

• Ethernet-based system integration

• Fully compatible with 3500 rack monitoring and control infrastructure

Mechanical Design

• Module format: front-position 3500 series rack card

• Dimensions: 241.3 × 24.4 × 241.8 mm

• Weight: 0.91 kg

• Designed for hot-swappable installation within compatible racks

Environmental Ratings

• Operating temperature range: −40°C to +85°C

• Designed for continuous-duty industrial monitoring environments

• Suitable for long-term deployment in high-reliability machinery systems

Typical Applications

• Steam and gas turbine axial position monitoring

• Compressor thrust and differential expansion tracking

• Valve actuation and position feedback systems

• Power generation rotating equipment

• Industrial machinery thermal expansion monitoring

FAQ

Q: Does this module support both AC and DC displacement sensors?
A: Yes. It supports DC LVDTs, AC LVDTs, proximity probes, and rotary potentiometers in a single platform.

Q: Is the rear I/O module required for operation?
A: Yes. The 140072-04 rear I/O module is required for full system functionality and signal routing.

Specifications

• Brand: Bently Nevada

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
