Description

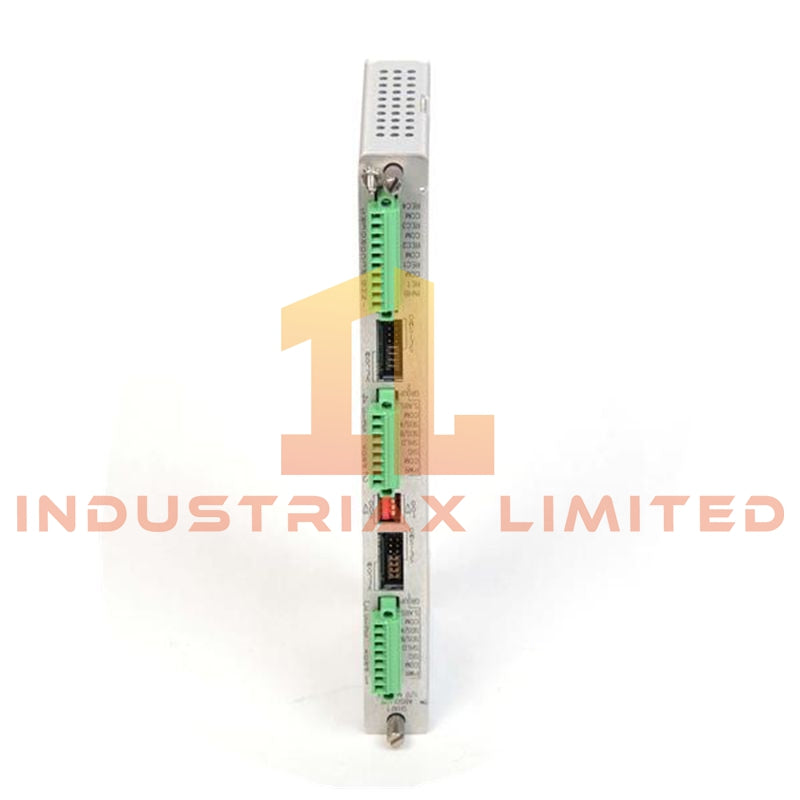

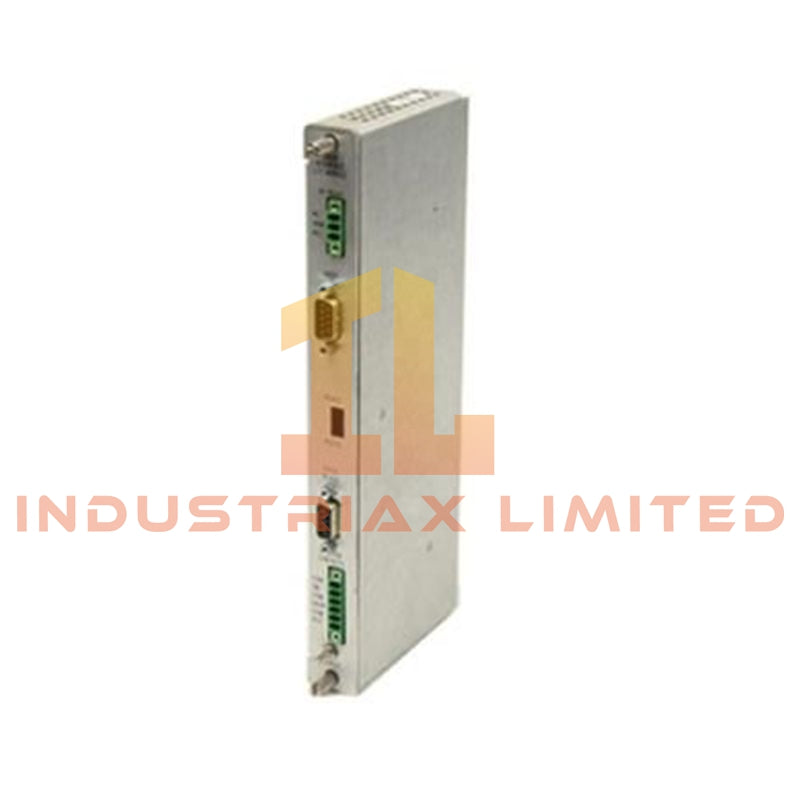

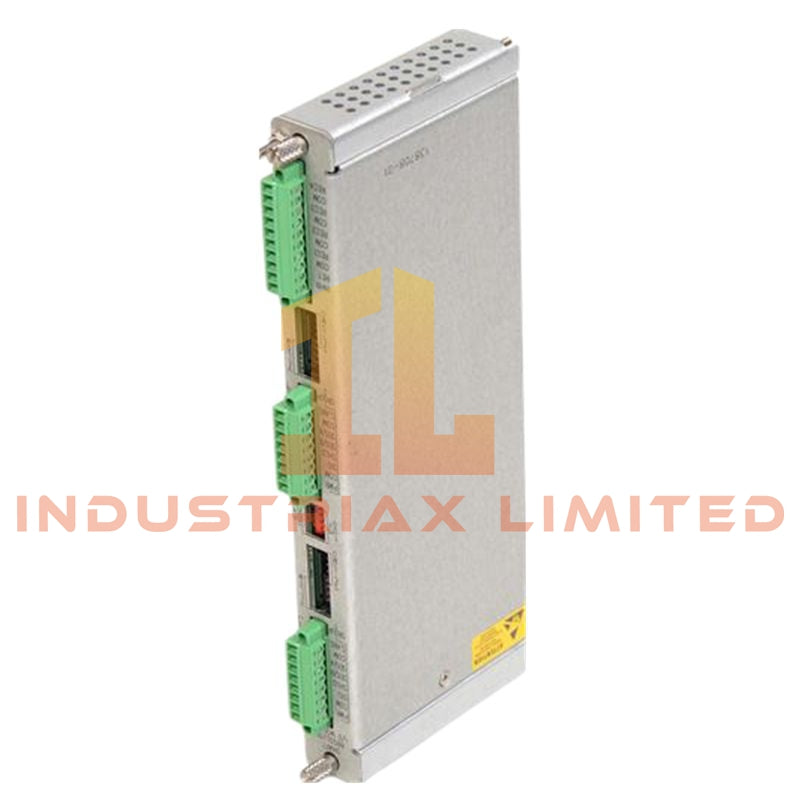

Bently Nevada 3500/42M-SIL2-09-R0 Vibration Monitor Module
The Bently Nevada 3500/42M-SIL2-09-R0, also cataloged as the 3500/42M Vibration Monitor Module, serves as the primary 3500/42M vibration monitor module utilized to execute multi-channel dynamic signal acquisition and SIL2-compliant vibration protection processing across 3500 machinery protection system platforms.
Configured for continuous vibration, thrust position, and seismic signal conditioning in 3500 rack architectures, the module converts proximity probe and accelerometer inputs into calibrated digital vibration parameters. These parameters are evaluated against programmable alarm thresholds and transmitted through rack bus logic for protection and monitoring functions. SIL2 certification defines functional safety constraints under IEC 61508 for controlled failure behavior in vibration monitoring loops.
Suffix Breakdown & Model Matrix
The suffix “-09-R0” defines configuration and revision parameters:
No additional user-configurable functional segmentation is defined for this model.
Hardware Specifications
| Parameter |
Specification |
| Model |
3500/42M-SIL2-09-R0 |
| Brand |
Bently Nevada |
| Weight |
0.45 kg |
| Operating Temp |
-20 deg C to +65 deg C |
| Power Consumption |
~7 W typical |
| Form Factor |
Half-height module |
| Rack Compatibility |
3500 full-size and mini-rack |
| Channels |
4 dynamic vibration inputs |
| Input Types |
Eddy current proximity probes, seismic accelerometers |
| Frequency Response |
0.5 Hz to 10 kHz (sensor dependent) |
| Resolution |
16-bit |
| Accuracy |
±1% full scale |
Vibration Signal Conditioning and Rotor Dynamic Processing Behavior
The 3500/42M SIL2 module processes dynamic vibration signals through multi-stage analog and digital conditioning paths, including direct, gap, and vector filtering structures. Within Bently Nevada TSI architectures, these conditioning paths determine the fidelity of rotor dynamic measurements such as radial vibration, thrust position, and differential expansion.
Eddy-current probe scaling is applied at the front-end conditioning stage, where gap voltage validation is referenced against calibrated displacement curves. This ensures consistent conversion between mechanical shaft movement and electrical signal representation. Cross-talk suppression between adjacent channels is managed through isolated acquisition paths and digital filtering, maintaining measurement integrity under multi-sensor installations.
Frequency-dependent filtering, including 1X and 2X vector processing, supports separation of rotational harmonics from broadband vibration components. This enables stable interpretation of shaft behavior under variable speed conditions without introducing aliasing into alarm evaluation logic.
Frequently Asked Questions (FAQ)
Q: Does the 3500/42M-SIL2-09-R0 support hot-swapping during operation?
A: Yes. The module supports hot-swappable replacement while the rack remains energized, provided system configuration and redundancy conditions are maintained.
Q: How are proximity probe and accelerometer inputs processed differently?
A: Proximity probe signals undergo displacement-based conditioning with gap reference filtering, while accelerometer inputs are processed as velocity or acceleration signals depending on configuration.
Q: Does SIL2 certification affect vibration measurement resolution or accuracy?
A: No. SIL2 defines functional safety behavior under fault conditions and does not modify nominal signal conditioning or measurement accuracy during normal operation.
Field Installation Guidelines
Install the module into any available slot of the 3500 rack with correct backplane alignment. Ensure sensor input wiring matches configured channel types for proximity or seismic measurement.
Use shielded twisted-pair cabling for all vibration sensor inputs. Ground cable shields at a single rack-side point to avoid ground loop currents and maintain signal integrity.
Maintain physical separation between vibration signal wiring and power conductors or high-noise switching lines. Verify correct sensor scaling configuration during commissioning to prevent misinterpretation of displacement and acceleration data.
Do not insert or remove the module unless hot-swap conditions are confirmed and system operational continuity is maintained.
