Description

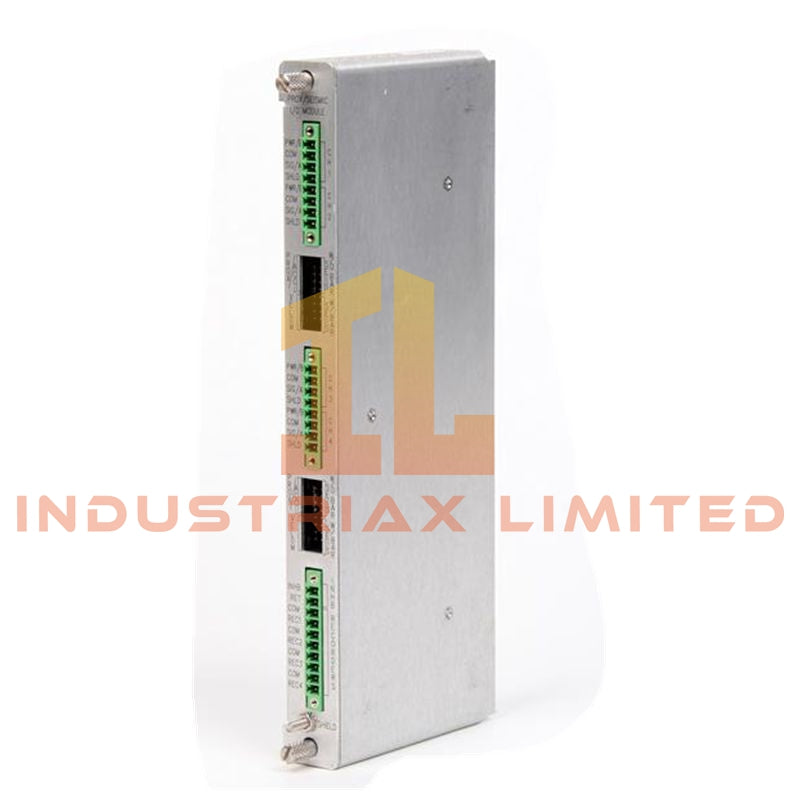

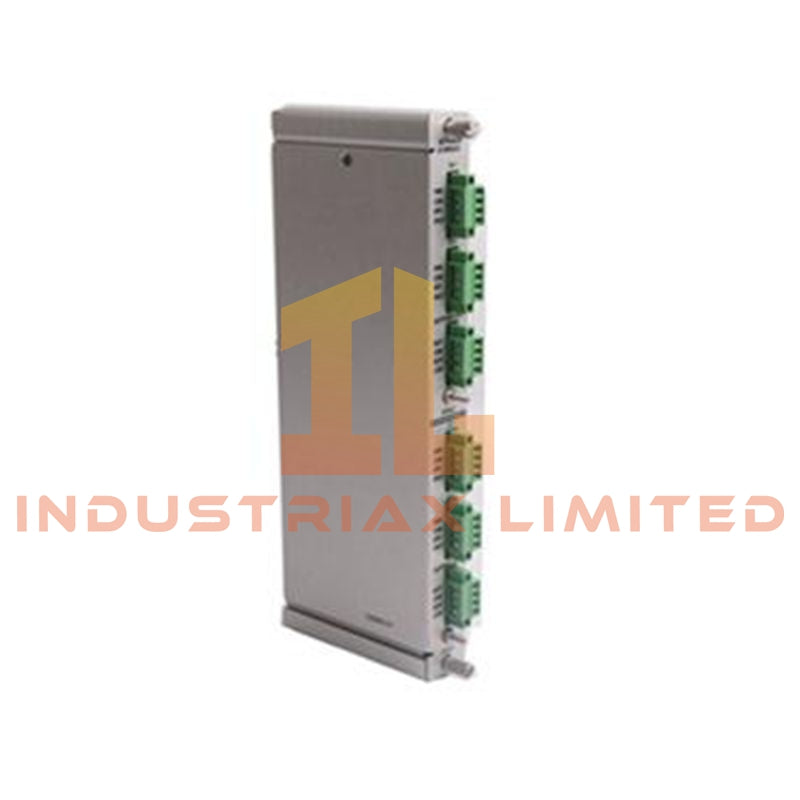

Product Description

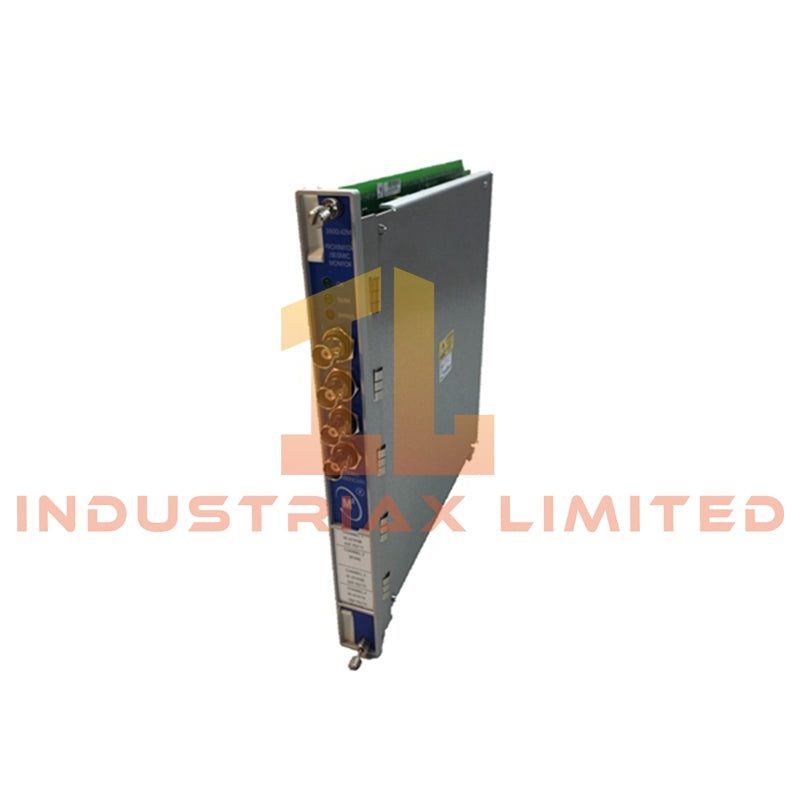

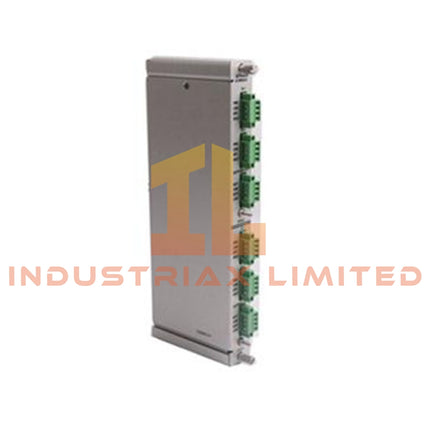

The Bently Nevada 3500/42M-01-05 is a four-channel machinery condition monitoring unit designed as an upgraded variant of the 3500/42 platform. It is engineered to process and evaluate vibration and position-related signals from multiple sensor types, delivering continuous protection and diagnostic data for critical rotating machinery.

This model incorporates standard Proximitor/Seismic I/O architecture (Option 01) combined with hazardous area certification (Option 05), making it suitable for installations in ATEX, IECEx, and CSA Class I, Zone 2 environments.

The module is deployed within the Bently Nevada 3500 rack system and is typically used in turbine trains, compressors, pumps, and other high-value rotating assets requiring uninterrupted condition monitoring.

System Monitoring Capabilities

The module processes multiple mechanical parameters through configurable channel pairing. Each pair can execute dual measurement functions depending on system configuration.

Supported measurement variables include:

• Shaft radial vibration

• Axial thrust position

• Eccentricity monitoring

• Differential expansion tracking

• Casing velocity vibration

• Acceleration measurement

• REBAM vibration analysis

• Shaft absolute displacement

• Circular acceptance region evaluation

This flexible structure allows simultaneous analysis of shaft dynamics and casing behavior across multiple operating conditions.

Input Configuration & Electrical Data

• Channel capacity: 4 independent inputs

• Supported transducers:

• Proximitor eddy-current probes

• Velomitor velocity sensors

• Industrial accelerometers

• Input impedance:

• 10 kΩ (standard I/O configuration)

• Typical power consumption: ~7.7 W

• Rack-powered operation via 3500 system backplane

Signal Processing & Filtering

• Frequency response options:

• 4 Hz to 4000 Hz (standard mode)

• 1 Hz to 600 Hz (alternate configuration)

• Low-frequency gap filter: −3 dB at ~0.09 Hz for drift suppression

• Not-1X rejection band: 60 cpm to 15.8× running speed

• Vector-based filtering (1X / 2X):

• Constant-Q architecture

• High attenuation performance (~−57.7 dB typical)

• Smax tracking range: 0.125× to 15.8× running speed

Output Interfaces & Diagnostics

• Buffered analog outputs: one coaxial connector per channel

• Output protection: short-circuit resistant design

• Front panel indicators:

• System health (OK)

• Communication activity (TX/RX)

• Bypass status

• Alarm relay functions are handled via external 3500 relay modules

Hazardous Area Compliance

• Option 05 certification package includes:

• ATEX compliance

• IECEx certification

• CSA Class I, Zone 2 approval

• Designed for deployment in classified industrial environments

• Suitable for continuous-duty machinery protection applications

Performance Characteristics

• Measurement accuracy: high-stability vibration and displacement processing

• Multi-parameter correlation for early fault detection

• Real-time signal conditioning for protection and diagnostics

• Stable long-term operation under continuous monitoring loads

Typical Applications

• Gas and steam turbine systems

• Centrifugal and axial compressors

• Industrial pumping systems

• Refinery and offshore rotating equipment

• Power generation machinery trains

FAQ

Q: What does the 01-05 configuration represent?
A: 01 refers to standard Proximitor/Seismic I/O, while 05 indicates hazardous area certification for Zone 2 applications.

Q: Can this module process multiple sensor types simultaneously?
A: Yes. It supports proximity, velocity, and acceleration inputs across four independent channels.

Specifications

• Brand: Bently Nevada

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
