Product Description

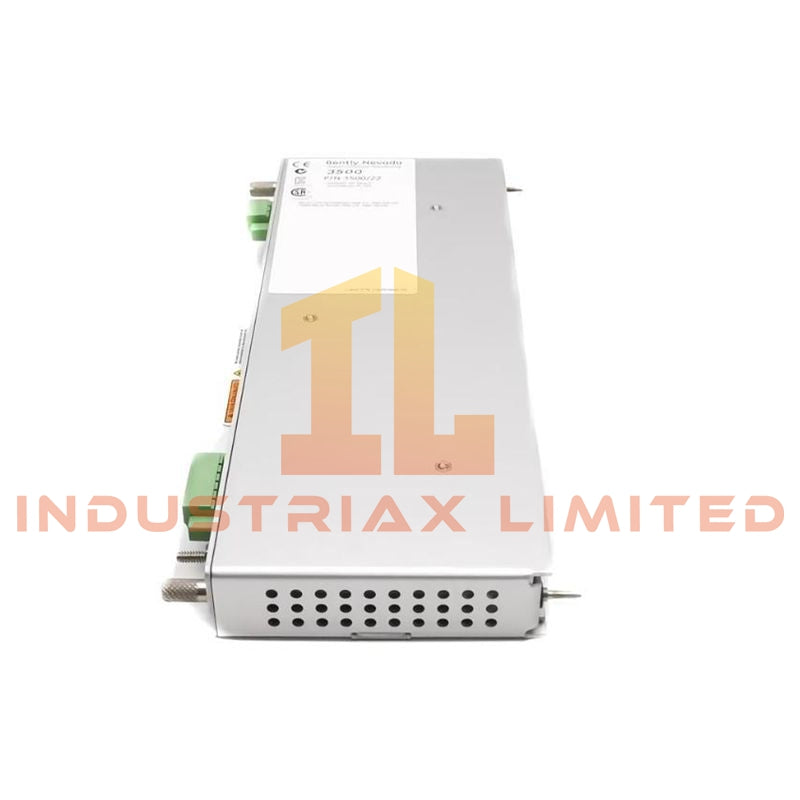

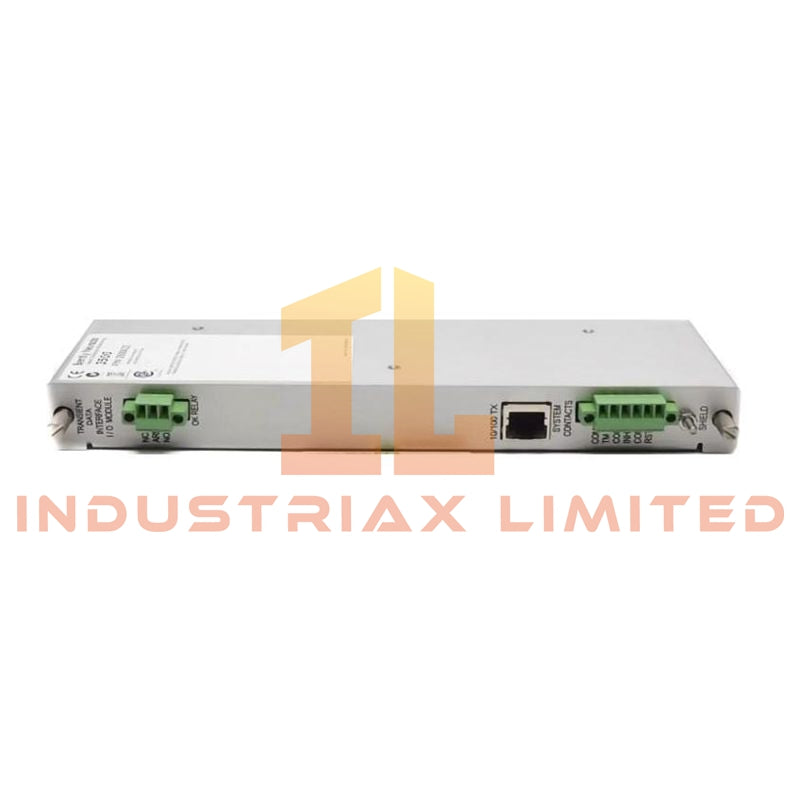

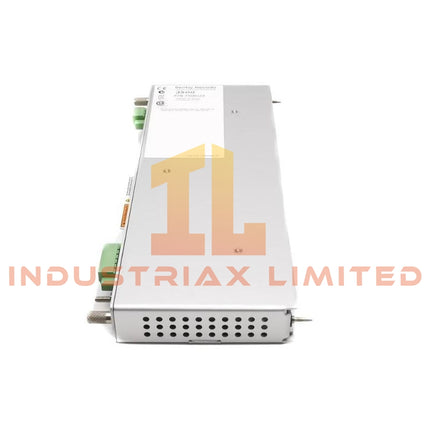

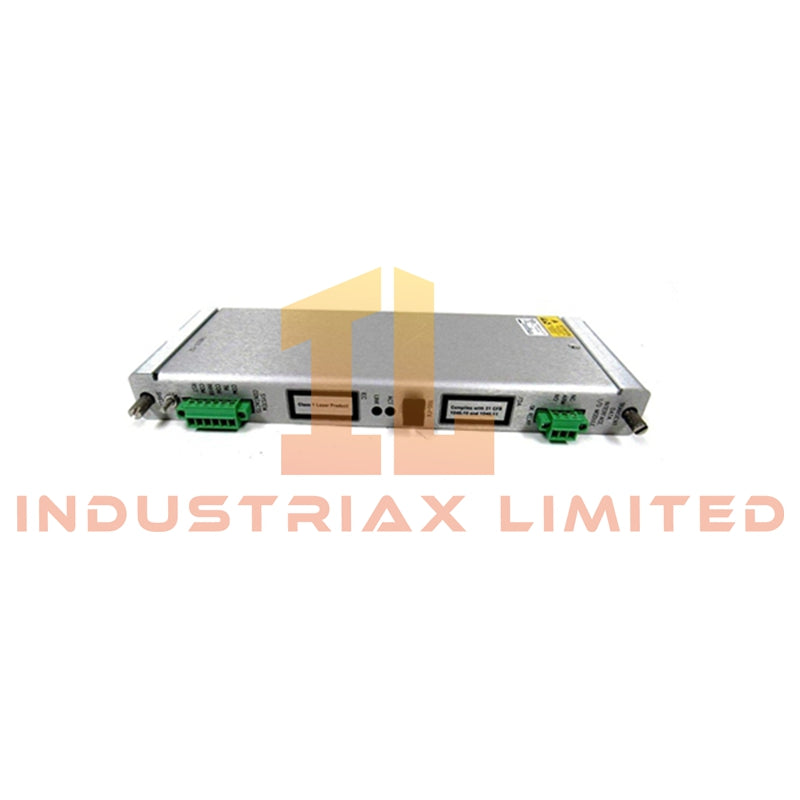

The Bently Nevada 3500/22M 146031-02 Transient Data Interface is a rack-level communication processor designed for the 3500 machinery protection architecture. This version integrates fiber-optic Ethernet capability, providing enhanced signal integrity and extended transmission distance for critical monitoring networks.
It functions as the primary data coordination node for the rack, consolidating configuration control, real-time communication, and vibration data acquisition into a unified interface connected to System 1 software.
Unlike protection modules, this unit operates outside the safety trip circuit, ensuring that machinery protection remains fully active even if communication hardware is offline.
System Function Overview
-
Central processing interface for Bently Nevada 3500 rack communication
-
Aggregates steady-state, dynamic, and transient vibration datasets
-
Synchronizes data streams across all compatible monitoring modules
-
Stores and manages rack configuration parameters locally
-
Installed in Slot 1 of the rack backplane system
Communication Architecture
This variant introduces dual Ethernet paths:
-
Primary interface: 100Base-FX fiber-optic Ethernet
-
Secondary interface: 10/100Base-TX copper Ethernet
-
USB Type-B port for local configuration and diagnostics
-
Auto-negotiation support for copper Ethernet channels
Supported communication functions:
-
High-resolution transient waveform transmission
-
Continuous vibration data streaming
-
System 1 condition monitoring integration
-
Rack configuration upload and download operations
-
Modbus TCP communication support
The fiber-optic interface improves resistance to electromagnetic interference and enables stable communication over long distances, making it suitable for electrically noisy environments.
Electrical Characteristics
-
Power consumption: 10.5 W (supplied via rack backplane)
-
Operating mode: Normally energized architecture
-
OK relay output (via I/O module):
-
Rated 5 A @ 24 VDC / 120 VAC
-
Maximum load: 120 W / 600 VA
-
Gold-plated contacts for low-current reliability
-
Minimum switching capability: 1 mA @ 1 VDC
-
Integrated arc suppression design
Front Panel Controls & Indicators
-
OK LED: Module operational status
-
TX/RX LED: Network communication activity
-
CONFIG OK LED: Configuration validation status
-
TM LED: Trip Multiply indication
-
Rack Reset: Alarm clearing function
-
Address selector: Rack ID configuration (1–127 range)
-
Key switch: RUN / PROGRAM operating modes
Mechanical Configuration
-
Form factor: Full-height 3500 system module
-
Front installation: Slot 1 (control position)
-
Rear assembly: Dedicated I/O module interface
Approximate dimensions:
Approximate weights:
Environmental Performance
-
Operating temperature: -30°C to +65°C
-
Storage temperature: -40°C to +85°C
-
Humidity tolerance: 0–95% non-condensing
-
Designed for continuous operation in harsh industrial environments
-
Suitable for offshore, refinery, petrochemical, and power generation installations
Functional Characteristics
-
Serves as the primary rack communication backbone
-
Supports acquisition of static, dynamic, and transient vibration signals
-
Fiber-optic communication improves immunity to electrical noise
-
Fully compatible with System 1 diagnostic platform
-
Works with all M-series monitor modules (e.g., 3500/40M, 3500/42M, 3500/45M)
-
Hot-swappable design for maintenance without system shutdown
FAQ
Q1: What is the advantage of fiber-optic Ethernet in this module?
It provides improved noise immunity and supports longer-distance communication compared to copper Ethernet.
Q2: Does this module affect protection functions?
No. It is strictly a communication interface and does not participate in the trip protection path.
Q3: Can copper Ethernet still be used?
Yes. The module includes a secondary 10/100Base-TX interface for compatibility.
