Description

Overview

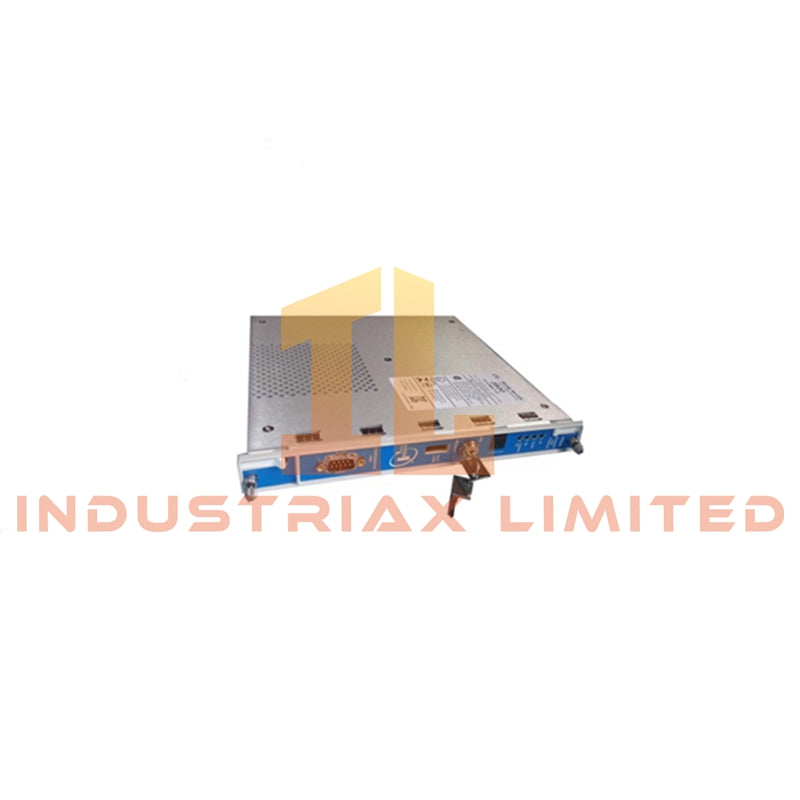

The 3500/22 (161580-01) Transient Data Interface (TDI) functions as the central communication controller within the Bently Nevada 3500 machinery protection architecture. It establishes the data exchange bridge between the monitoring rack and external condition monitoring platforms, primarily System 1 software.

This module replaces the legacy rack interface architecture and integrates both communication handling and transient data acquisition into a single front-end processor.

Installed in Slot 1 of the rack, it operates adjacent to the power supply modules and interfaces directly with all M-series monitoring modules.

Technical Summary

Parameter	Specification
Module Type	Transient Data Interface (TDI)
Part Number	161580-01
Power Consumption	10.5 W
Ethernet Interfaces	10/100Base-TX, 100Base-FX
USB Interface	USB-B
Relay Rating	5 A @ 24 VDC / 120 VAC
Rack Position	Slot 1
System Compatibility	3500 M-series modules

System Communication Role

The 161580-01 module manages continuous data acquisition from connected monitors, supporting multiple data types:

• Steady-state vibration parameters

• Dynamic waveform streams

• High-resolution transient event records (requires channel enabling configuration)

It aggregates rack-level diagnostic information and transmits it to supervisory systems without being part of the protection voting logic. Failure of this module does not interrupt machinery protection functions.

Communication Architecture

The module provides multi-path connectivity options to ensure flexible integration:

• 10/100Base-TX Ethernet (auto-negotiating copper interface)

• 100Base-FX Fiber Ethernet (long-distance, EMI-resistant transmission)

• USB-B local service port for configuration and diagnostics

Supported communication functions include:

• Real-time waveform streaming

• Configuration upload and download

• Integration with plant-wide monitoring systems

• Communication with all M-series modules including 3500/40M, 3500/42M, and 3500/45M

Electrical Characteristics

• Power supply: Backplane-fed from 3500 rack system

• Typical power consumption: 10.5 W

• OK relay output (via I/O module):

• 5 A @ 24 VDC / 120 VAC

• Maximum switching capacity: 120 W / 600 VA

• Gold-plated low-level signal compatibility (down to 1 mA @ 1 VDC)

• Arc suppression integrated

• Relay configuration: Normally energized design for fail-safe operation

Control & Indication

Front panel diagnostics provide real-time system status visibility:

• OK indicator – module operational status

• TX/RX indicator – data transmission activity

• TM indicator – trip multiply state

• CONFIG OK – configuration validation status

• Address selector – rack identification (1–127 range)

• Reset function – clears latched system alarms

• Key switch – operational mode control (RUN / PROGRAM)

Mechanical Integration

• Installation position: Slot 1 of 3500 rack

• Configuration: Full-height module architecture

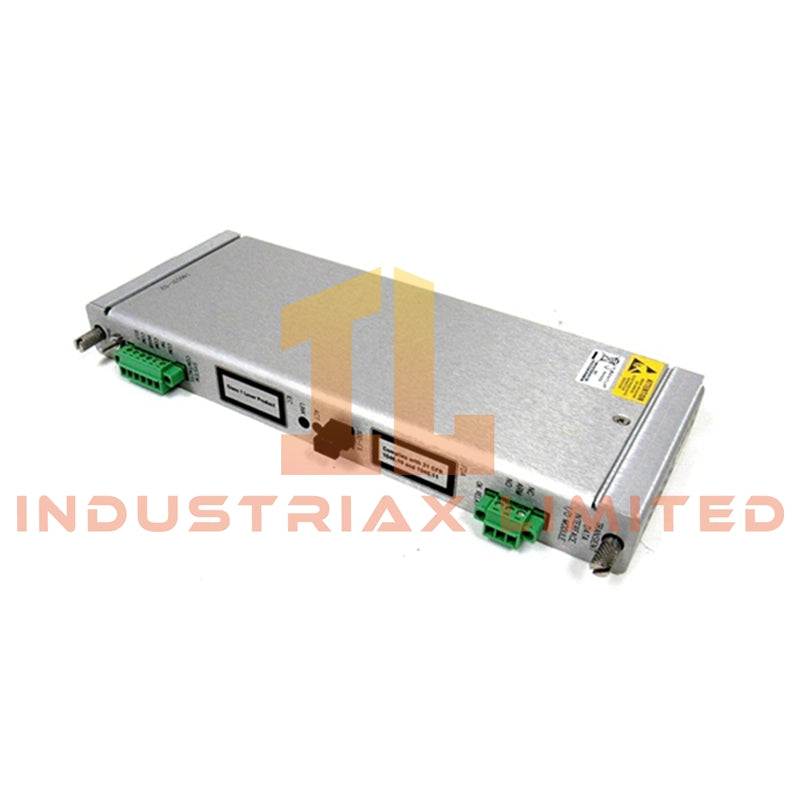

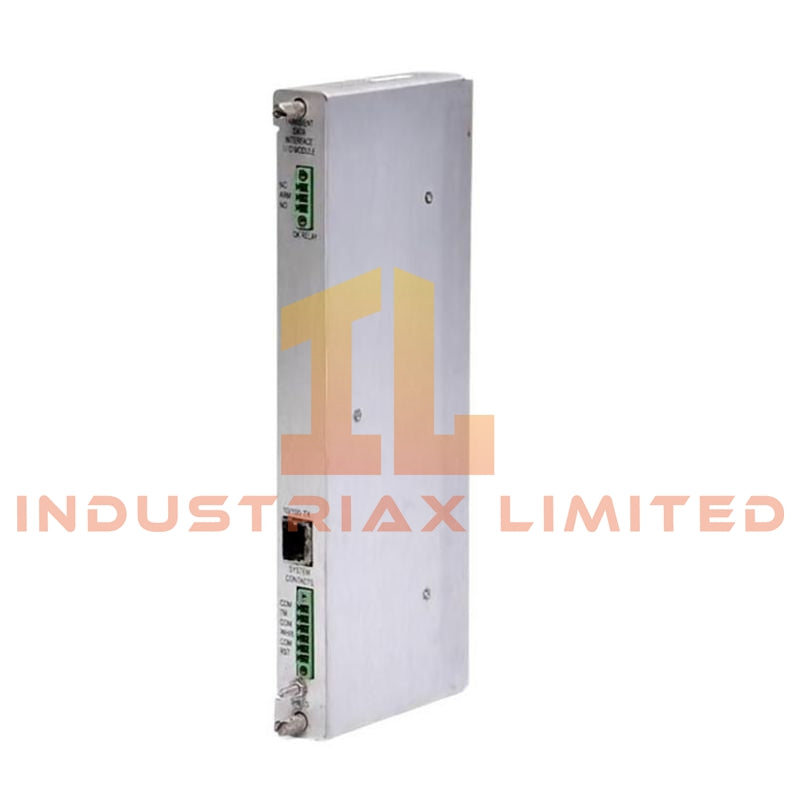

• Rear I/O section: Supports Ethernet and relay termination

• Designed for tool-free hot-swap replacement when rack configuration permits

Environmental Performance

Engineered for continuous operation in demanding industrial environments:

• Continuous operation in harsh plant conditions

• Suitable for turbine, compressor, refinery, and power generation systems

• Storage and operating tolerances aligned with 3500 platform standards

• High immunity to electrical noise when paired with fiber-optic interface

Functional Summary

• Acts as the primary data gateway for the 3500 rack

• Consolidates vibration and transient data streams

• Enables System 1 predictive monitoring integration

• Supports modular scalability across M-series monitor platforms

• Allows maintenance replacement without system shutdown

• Provides centralized rack communication synchronization

FAQ

Q1: Does this module affect protection logic?
No. The 161580-01 operates outside the protection path and does not influence trip decisions.

Q2: Can it be replaced while the system is running?
Yes, it supports hot-swapping when system configuration permits redundancy.

Q3: What systems is it compatible with?
It is fully compatible with Bently Nevada 3500 M-series monitoring modules and System 1 software platforms.

Specifications

• Brand: Bently Nevada

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
