Product Description

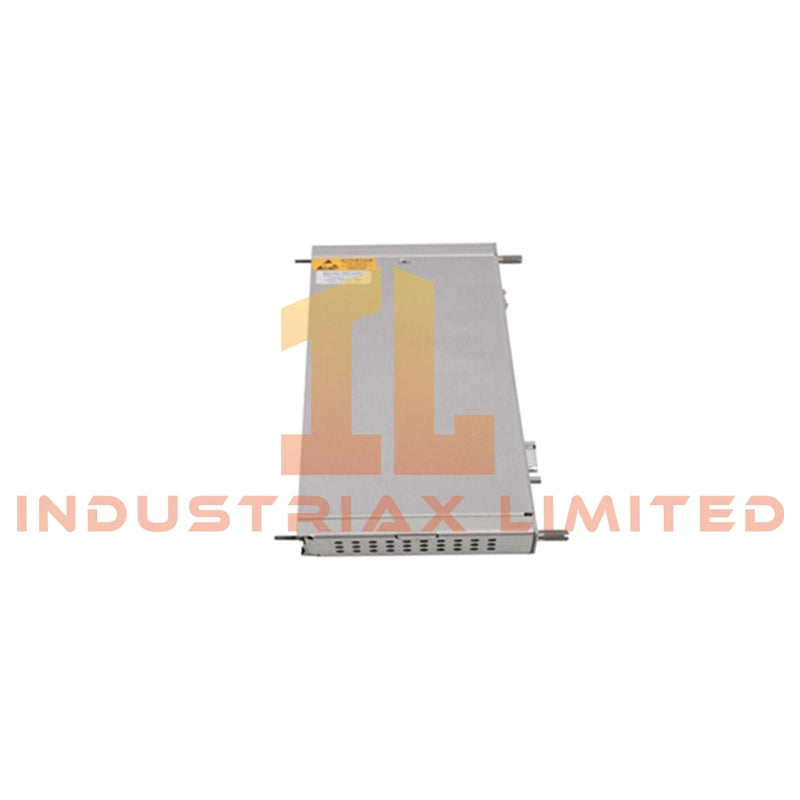

The Bently Nevada 3500/22-01-01-05 164466-01 Transient Data Interface (TDI) is a rack-level communication and data acquisition module designed for the 3500 Machinery Protection System. It consolidates communication processing, configuration control, and high-speed vibration data handling into a single interface between monitoring hardware and System 1 software.
This configuration is equipped with hazardous-area certification (ATEX / IECEx), making it suitable for installations in classified environments such as offshore platforms, refineries, and petrochemical processing units.
The module is not part of the protection trip logic. System protection functions remain active even if the TDI is removed or fails.
System Role and Architecture
-
Central communication processor for the entire 3500 rack
-
Unified interface for steady-state, dynamic, and transient vibration data
-
Synchronizes data from all M-series monitor modules
-
Stores rack configuration data for system continuity
-
Installed in Slot 1 adjacent to power supply modules
Communication and I/O Configuration
Rear I/O assembly: 138607-01 + 146031-01
-
Ethernet interface: 10/100 Base-T (RJ-45 copper connection)
-
Auto-negotiation and auto-MDIX support
-
IEEE 802.3 compliant network communication
-
USB Type-B port for local service access
Supported communication functions:
-
System 1 condition monitoring integration
-
High-speed waveform and transient data transfer
-
Rack configuration upload and download
-
Modbus TCP communication via TDI interface
Electrical Characteristics
-
Power consumption: 10.5 W (supplied via rack backplane)
-
Operating mode: Normally energized
-
OK relay output (via I/O module):
-
5 A @ 24 VDC / 120 VAC
-
Maximum load: 120 W / 600 VA
-
Gold-plated low-current contacts (down to 1 mA @ 1 VDC)
-
Integrated arc suppression
Front Panel Interface
-
OK LED: Module health status
-
TX/RX LED: Ethernet communication activity
-
CONFIG OK LED: Valid configuration confirmation
-
TM LED: Trip Multiply indication
-
Rack Reset: Clears latched alarms
-
Address switch: Rack ID assignment (1–127)
-
Keylock switch: RUN / PROGRAM mode control
Environmental Ratings
-
Operating temperature: -30°C to +65°C
-
Storage temperature: -40°C to +85°C
-
Relative humidity: 0–95% non-condensing
-
Hazardous area certification: ATEX / IECEx Zone 2 (option code “05”)
-
Designed for harsh industrial and offshore environments
Functional Capabilities
-
Combines rack interface and communication processing functions
-
Captures static, dynamic, and transient vibration signatures
-
Supports high-resolution transient acquisition via channel enabling features
-
Fully compatible with M-series monitors (e.g., 3500/40M, 3500/42M, 3500/45M)
-
Enables Modbus TCP and System 1 connectivity
-
Hot-swappable design for maintenance without system shutdown
Applications
-
Oil & gas rotating equipment monitoring systems
-
Offshore turbine and compressor protection systems
-
Petrochemical plant vibration diagnostics
-
Power generation machinery condition monitoring
-
Critical asset health management systems
FAQ
Q1: Does this module affect machine protection if it fails?
No. The TDI operates outside the protection path and does not influence trip functions.
Q2: What is the purpose of the “05” option code?
It designates ATEX/IECEx certification for hazardous-area installation.
Q3: Can it capture transient events during machine startup?
Yes. It is designed specifically for high-speed waveform capture during operational transitions.
