Description
Product Description

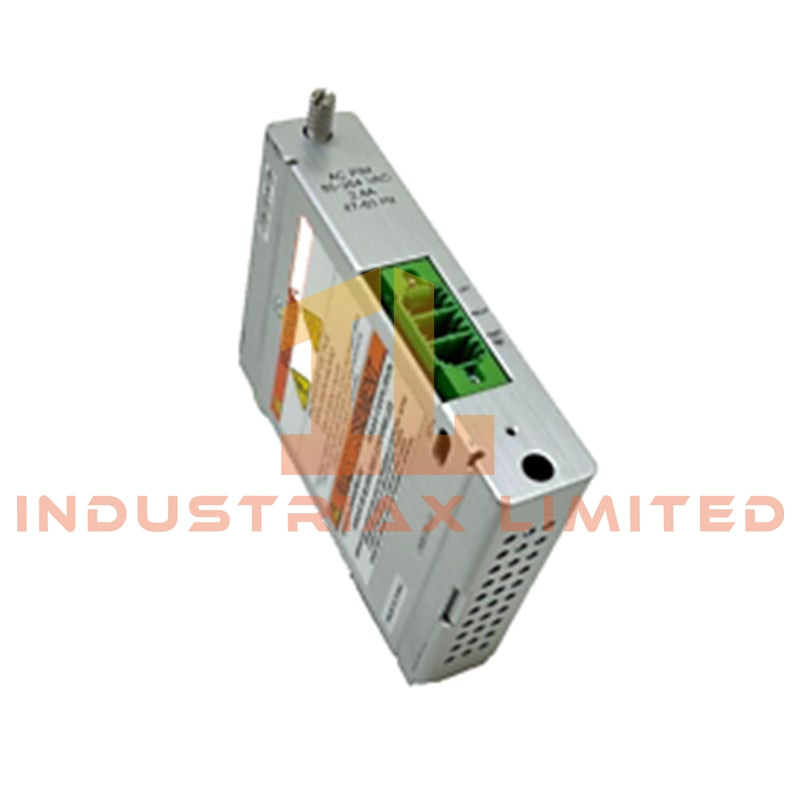

The 106M1081-01 Universal AC Power Input Module is designed for integration with the Bently Nevada 3500/15 power supply assembly within the 3500 Machinery Protection System. This module conditions incoming AC mains power and delivers stabilized input power to the associated 3500/15 power supply module for rack-wide distribution.
Engineered for continuous industrial operation, the Bently Nevada 106M1081-01 supports a broad universal AC voltage range without requiring manual jumper configuration or input selection adjustments. The module installs directly behind the corresponding 3500/15 power supply in the left section of the rack chassis.
For high-availability applications, the module supports redundant power configurations. When dual Power Input Modules and dual power supplies are installed, the system automatically balances the electrical load while enabling uninterrupted failover during maintenance or power supply replacement procedures.
The module incorporates surge suppression, isolation protection, and low leakage current characteristics to support reliable operation in critical machinery monitoring environments including turbine control systems, compressor trains, process plants, and power generation facilities.
Technical Specifications
| Parameter |
Specification |
| Model Number |
106M1081-01 |
| Manufacturer |
Bently Nevada |
| Product Type |
Universal AC Power Input Module |
| Compatible Power Supply |
3500/15 |
| Product Series |
3500 Machinery Protection System |
| Installation Position |
Rear of 3500/15 Power Supply |
| Rack Compatibility |
3500 Rack Systems |
| Redundancy Support |
Yes |
| Hot Swap Capability |
Supported |
| Protection Rating |
IP20 |
| Cooling Method |
Passive Cooling |
Electrical Input Specifications
| Parameter |
Value |
| Input Voltage Range |
85–264 Vac RMS |
| Frequency Range |
47–63 Hz |
| Peak Voltage Tolerance |
120–373 Vac Peak |
| Inrush Current |
Less than 25 A Peak |
| Inrush Duration |
Less than 5 ms |
| Surge Protection |
MOV and Gas Tube Protection |
| Filtering Method |
Differential-Mode Choke |
Isolation Ratings
| Isolation Type |
Rating |
| Input to Earth |
1.5 kVac |
| Input to Output |
500 Vdc |
Power Handling Performance
The 106M1081-01 module supports the associated 3500/15 power supply with rack current capability up to 2.8 A RMS at 240 Vac input conditions.
Integrated protection functions include:
-
Undervoltage protection without module damage
-
Fuse-based overvoltage isolation
-
Automatic load sharing in redundant systems
-
Seamless failover operation during maintenance
Environmental Specifications
| Parameter |
Specification |
| Operating Temperature |
-30°C to +65°C |
| Storage Temperature |
-40°C to +85°C |
| Relative Humidity |
95% Non-Condensing |
Mechanical Specifications
| Parameter |
Value |
| Dimensions |
120.7 × 25.4 × 114.3 mm |
| Weight |
0.34 kg |
| Connector Type |
IEC C14 Inlet |
| Rack Connection |
Crimp Fork Terminal Interface |
Functional Features
-
Universal AC input without voltage selection jumpers
-
Hot-swappable during redundant operation
-
Compatible with dual power supply redundancy architectures
-
Front-panel status indication LEDs
-
Integrated monitoring support through 3500/20 Rack Interface Module
-
High surge immunity compliant with IEC 61000-4-5
-
Low leakage current for sensitive protection systems
Typical Applications
The Bently Nevada 106M1081-01 module is commonly deployed in:
-
Steam turbine monitoring systems
-
Gas compressor protection platforms
-
Boiler feedwater pump monitoring
-
Heavy-duty industrial motor protection
-
Offshore production facilities
-
Rotating machinery condition monitoring
-
Nuclear plant auxiliary pump systems
FAQ
What is the function of the 106M1081-01 module?
The module conditions and distributes universal AC input power to the compatible 3500/15 power supply within the 3500 rack system.
Can the module be replaced while the rack is operating?
Yes. In redundant configurations, the module supports hot-swapping without interrupting rack operation.
Does the module support automatic failover?
Yes. Dual-module installations provide automatic load sharing and seamless backup operation if one supply path becomes unavailable.
