Description
Overview

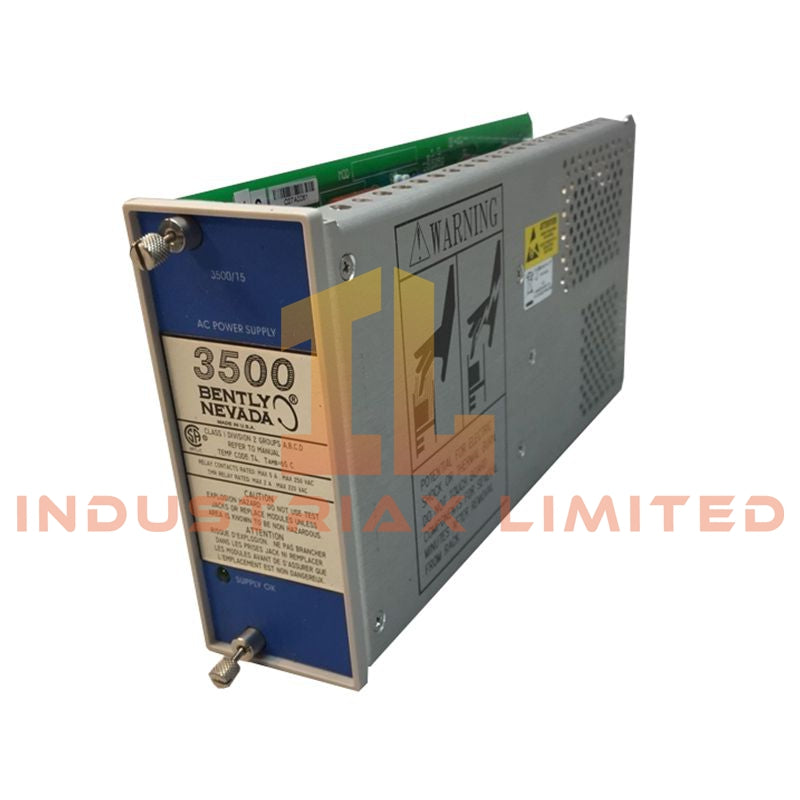

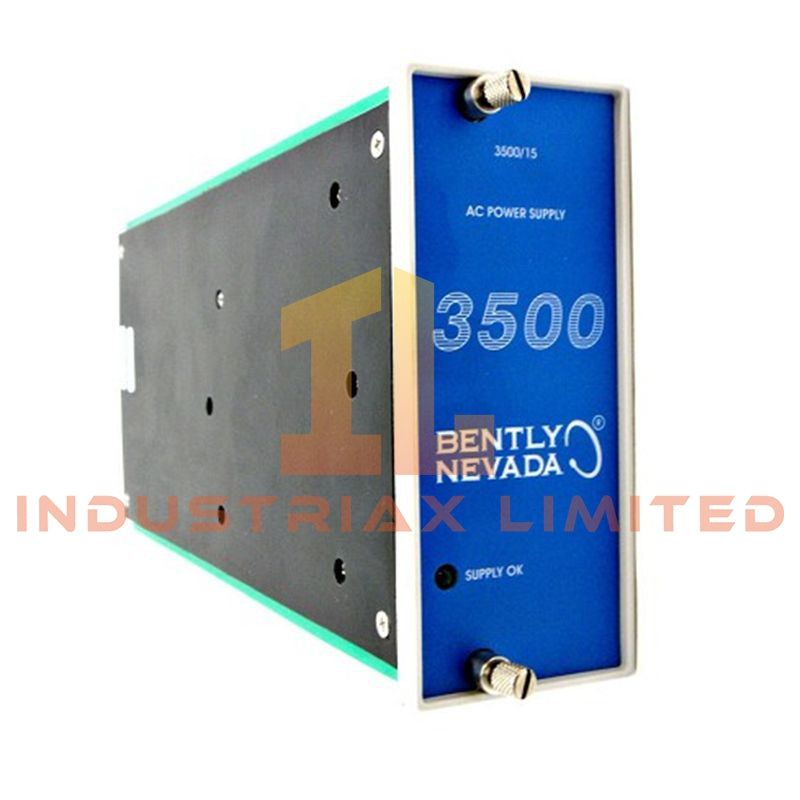

The 3500/15-05-05-05 is a high-voltage DC power supply assembly developed for Bently Nevada 3500 Series machinery protection racks. The module receives 88 to 140 Vdc input through the associated 106M1079-01 and 106M1081-01 Power Input Modules (PIMs), then converts the incoming supply into regulated internal DC outputs for all installed rack modules.
This power supply occupies the dedicated left-side power compartment of the 3500 rack. Systems may operate with either a single supply or a dual redundant configuration. In redundant operation, one unit functions as the active source while the second remains in standby for automatic failover.

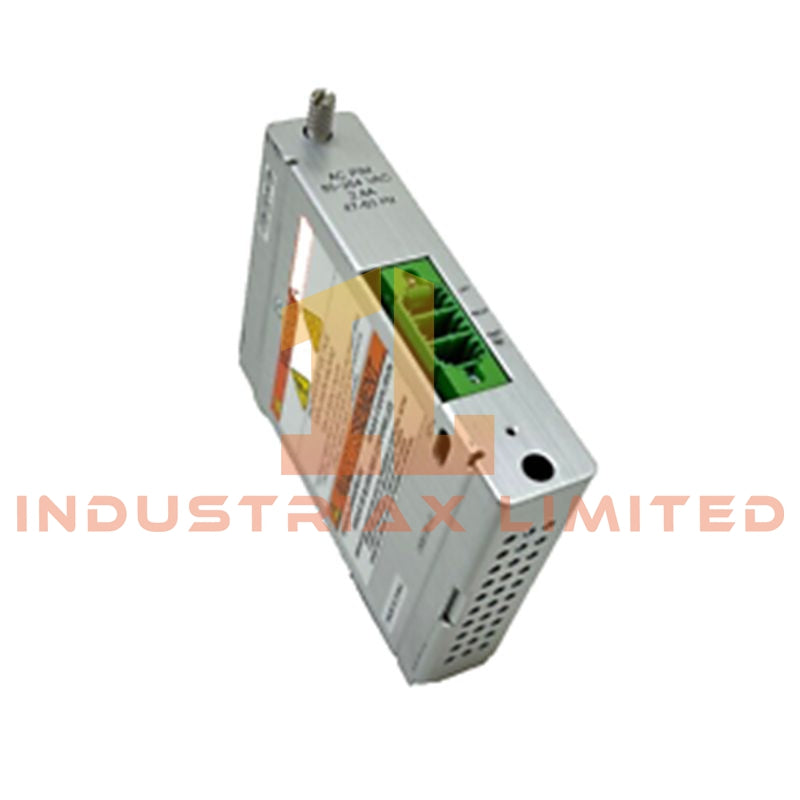

The corresponding PIMs mount directly behind the supply on the rack backplane and provide high-voltage input termination, electrical isolation, surge suppression, and fuse protection for critical monitoring environments.
Key Features
-
Designed for Bently Nevada 3500 Machinery Protection Systems
-
Compatible with 106M1079-01 and 106M1081-01 PIMs
-
Supports redundant dual-supply architecture
-
Automatic backup switchover during power failure
-
Hot-swappable in redundant installations
-
Front-panel “Supply OK” LED indication
-
Integrated isolation and transient suppression
-
Optimized for high-reliability industrial monitoring systems
-
Suitable for substation and power generation applications
Electrical Specifications
| Parameter |
Specification |
| Model |
3500/15-05-05-05 |
| Associated PIMs |
106M1079-01, 106M1081-01
|
| Input Type |
High-Voltage DC |
| Input Voltage Range |
88–140 Vdc |
| Nominal Input Voltage |
125 Vdc |
| Frequency Requirement |
DC Input (No Frequency Dependency) |
| Maximum Rack Output Capacity |
2.5 A |
| Output Type |
Regulated Internal DC |
| Conversion Efficiency |
Up to 90% |
| Redundancy Support |
Yes |
| Hot Swap Capability |
Supported in redundant systems |
Protection and Isolation
| Protection Feature |
Description |
| Surge Suppression |
MOV transient protection |
| Overvoltage Protection |
Internal fuse isolation |
| Undervoltage Protection |
Non-destructive operation |
| Input-to-Earth Isolation |
1500 V |
| Input-to-Output Isolation |
500 V |
| EMC Compliance |
IEC/EN 61000 Series |
Environmental Ratings
| Specification |
Value |
| Operating Temperature |
-30°C to +65°C |
| Storage Temperature |
-40°C to +85°C |
| Humidity |
Up to 95% RH, non-condensing |
Mechanical Specifications
Power Supply Module
| Parameter |
Specification |
| Form Factor |
Half-height module |
| Dimensions |
120.7 × 50.8 × 251.5 mm |
| Weight |
1.39 kg |
Typical Applications
The 3500/15-05-05-05 high-voltage DC power supply system is commonly installed in:
-
Electrical substations
-
Turbine monitoring systems
-
HVDC control environments
-
Power generation facilities
-
Compressor and pump monitoring systems
-
Petrochemical process plants
-
Continuous machinery protection installations
FAQ
What is the purpose of the 106M1079-01 and 106M1081-01 PIMs?
These PIMs provide DC input connection, surge suppression, fuse protection, and electrical isolation between the external supply and the rack power system.
Can the module support redundant power operation?
Yes. Two power supplies can be installed in the same rack for automatic failover redundancy.
Is the module hot-swappable?
The power supply can be replaced while the rack remains operational if a second redundant supply is installed.
What type of input power does the module require?
The unit operates from an 88–140 Vdc high-voltage DC input with a nominal operating level of 125 Vdc.
