Description

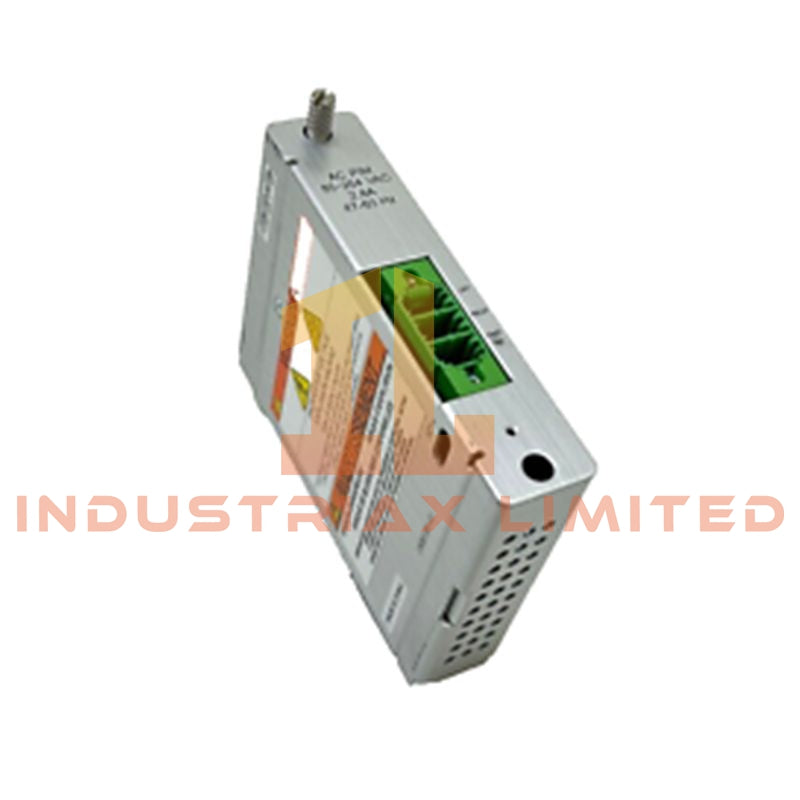

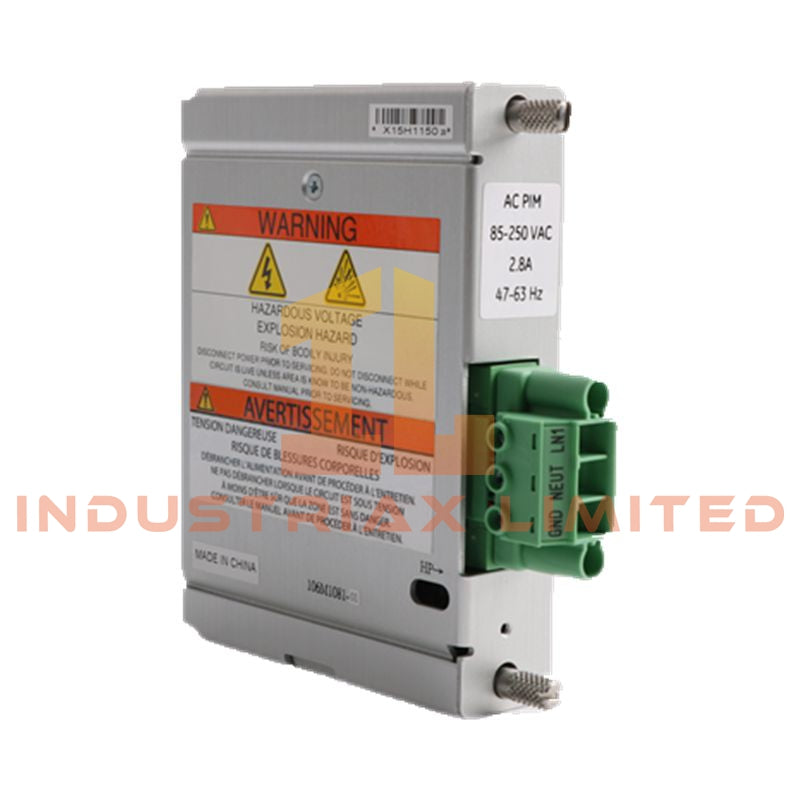

Bently Nevada 3500/15-05-05-01 Power Supply Module
Configured for regulated rack power distribution, redundant supply conversion, and backplane power conditioning in Bently Nevada 3500 machinery protection rack system, the Bently Nevada 3500/15-05-05-01 (3500/15 Power Supply Module) provides direct physical/electrical execution.
Suffix Breakdown & Model Matrix
The “-05-05-01” suffix defines factory-configured input and installation variants for the 3500/15 power supply architecture. According to system configuration rules, the suffix set corresponds to selectable AC/DC input compatibility and rack-side mounting optioning. No further functional segmentation is defined beyond input configuration class and hardware revision level.
Hardware Specifications
| Parameter |
Specification |
| Model |
3500/15-05-05-01 |
| Brand |
Bently Nevada |
| Weight |
0.45 kg |
| Operating Temp |
-20 deg C to +65 deg C |
| Power Consumption |
Not specified |
| Form Factor |
Half-height module |
| Rack Compatibility |
3500 full-size and mini-rack |
| Input Types |
Universal AC / High Voltage DC / Low Voltage DC |
| Redundancy |
Dual module automatic switchover |
| Hot-Swap Support |
Supported |
Rack Power Integrity and TSI Supply Stability Characteristics
The 3500/15 power supply module maintains regulated backplane voltage delivery for the 3500 monitoring rack, ensuring stable excitation conditions for vibration and proximity measurement chains. In Bently Nevada architectures, stable supply integrity directly supports eddy-current probe signal scaling accuracy, where gap voltage validation (typically referenced around negative DC offset targets in probe conditioning stages) depends on low-noise power rails.
Within rotor dynamics monitoring chains, power rail stability influences cross-channel consistency in signal conditioning modules, reducing measurement drift and minimizing cross-talk suppression degradation across adjacent monitoring slots. The redundant configuration ensures continuous energization of TSI modules under supply transition conditions without interrupting probe signal acquisition.
Frequently Asked Questions (FAQ)
Q: Does the 3500/15-05-05-01 support hot-swapping under live rack operation?
A: Yes. The module supports hot-swap insertion and removal while the rack remains powered, with automatic load transfer handled by the redundancy logic when dual supplies are installed.
Q: What happens during over-voltage or under-voltage conditions?
A: Under-voltage conditions trigger safe operation mode, while over-voltage conditions open the protective fuse on the Power Input Module (PIM), isolating the supply path.
Q: Can AC and DC supplies be mixed in redundant configuration?
A: Yes. The 3500 rack design allows mixed AC and DC power supply modules within the same redundant pair, with automatic switchover handling load continuity.
Field Installation Guidelines
Install the 3500/15 module on the left-side power supply slot of the 3500 rack. When configuring redundancy, place the primary supply in the lower slot and the backup supply in the upper slot. Ensure all wiring follows segregated routing between AC and DC input paths to avoid coupling interference.
Maintain proper grounding of the rack chassis to minimize electrical noise coupling into adjacent monitoring modules. Verify that the power input connectors are fully seated before energization. For hazardous area installations, confirm ATEX/IECEx Zone 2 compliance and ensure all field wiring complies with local intrinsic safety segregation rules.
Avoid installing or removing the module under load unless the system is configured for hot-swap operation with validated redundancy.
