Description
Overview

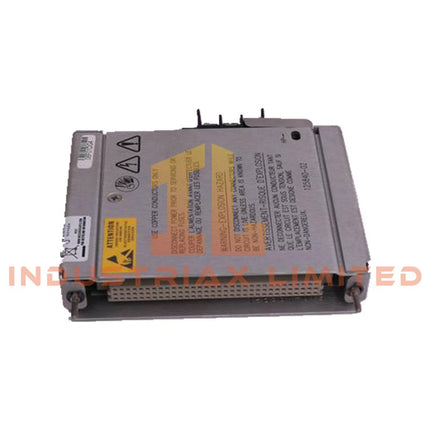

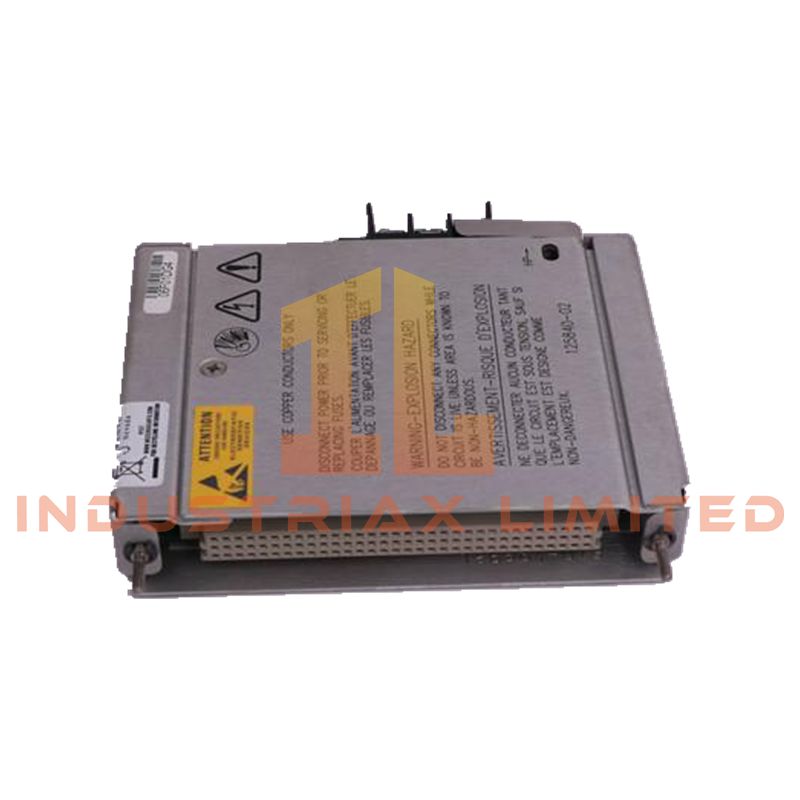

The 3500/15-01-01-00 is a low-voltage AC power supply module engineered for the Bently Nevada 3500 Machinery Protection platform. Working together with the 125840-02 Power Input Module (PIM), the unit converts incoming AC power into regulated internal DC outputs required for rack operation and module stability.
This power supply is mounted in the dedicated left-side section of the 3500 rack and supports both standalone and redundant operating configurations. In dual-supply systems, the modules function in automatic primary and backup mode to maintain uninterrupted rack power during maintenance or power module failure.

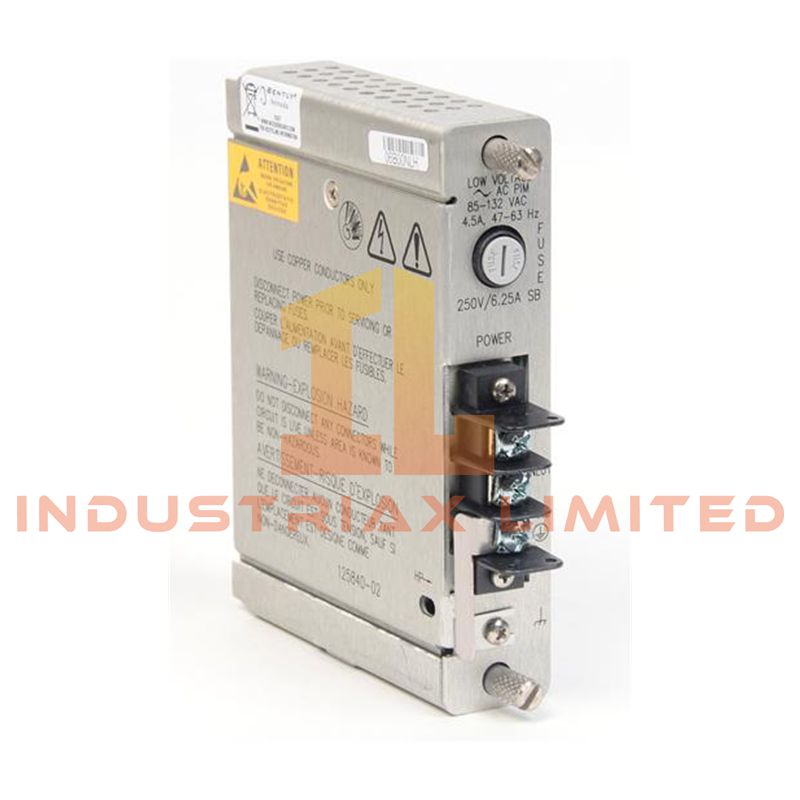

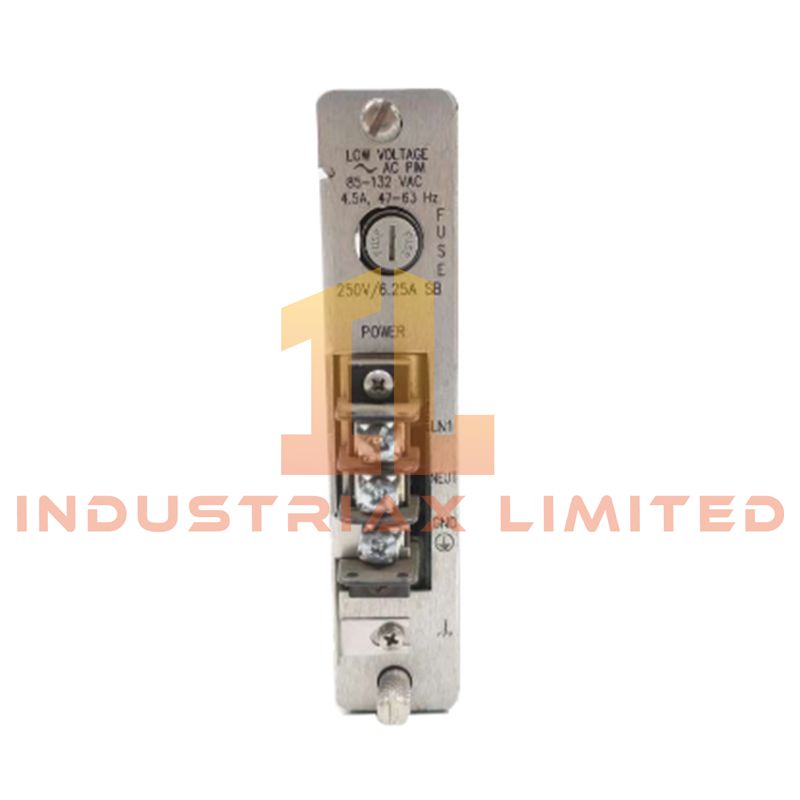

The matching 125840-02 PIM is mounted directly behind the supply on the rack backplane and manages AC input connection, transient suppression, and input fuse protection.
Key Features
-
Designed for Bently Nevada 3500 Series protection racks
-
Compatible with 125840-02 low-voltage AC PIM
-
Supports redundant dual-power operation
-
Automatic switchover between primary and backup supplies
-
Hot replacement capability in redundant systems
-
Front-panel “Supply OK” LED indication
-
Integrated surge suppression and overvoltage protection
-
Stable regulated DC output for rack modules
Technical Specifications
| Parameter |
Specification |
| Model |
3500/15-01-01-00 |
| Associated PIM |
125840-02 |
| Product Type |
Low-Voltage AC Power Supply |
| Input Type |
Low-Voltage AC |
| Input Voltage Range |
85–132 Vac RMS |
| Nominal Input Voltage |
110 Vac |
| Peak Voltage Range |
120–187 Vac Peak |
| Input Frequency |
47–63 Hz |
| Maximum Rack Capacity |
4.5 A RMS |
| Output Type |
Regulated DC Rack Power |
| Redundant Operation |
Supported |
| Hot Swap Capability |
Yes, with redundant supply installed |
| Status Indicator |
Supply OK LED |
Protection and Reliability
| Protection Function |
Description |
| Surge Protection |
MOV transient suppression |
| Overvoltage Protection |
Input fuse isolation |
| Undervoltage Condition |
No damage to supply or PIM |
| EMC Compliance |
IEC/EN 61000 Series |
Environmental Specifications
| Specification |
Value |
| Operating Temperature |
-30°C to +65°C |
| Storage Temperature |
-40°C to +85°C |
| Humidity |
Up to 95% non-condensing |
Mechanical Specifications
Power Supply Module
| Parameter |
Specification |
| Form Factor |
Half-height module |
| Dimensions |
120.7 × 50.8 × 251.5 mm |
| Weight |
1.39 kg |
Application Areas
The 3500/15-01-01-00 power supply assembly is commonly used in continuous monitoring systems for:
-
Gas and steam turbines
-
Industrial compressors
-
Rotating machinery monitoring
-
Petrochemical production systems
-
Power generation facilities
-
Pipeline and oil processing equipment
-
Critical plant protection installations
FAQ
What is the function of the 125840-02 PIM?
The 125840-02 Power Input Module provides AC input termination, surge suppression, and fuse protection for the connected power supply module.
Can the power supply be replaced while the rack is operating?
Yes. In redundant configurations, the module supports hot-swapping without interrupting rack operation.
How many power supplies can be installed in one rack?
The 3500 rack supports either a single power supply or a dual redundant configuration using two modules.
What output does the module provide to the rack?
The module converts incoming AC power into regulated DC voltages distributed across all installed rack modules.
