Description

Product Overview

The 3500/05-02-05-00-00-01 is a compact configuration within the Bently Nevada 3500 machinery protection platform, engineered for installations where space efficiency and front-access wiring are required. It combines a reduced 7-slot chassis with a bulkhead mounting structure, enabling direct cabinet or wall integration while maintaining full system compatibility.

This rack provides the structural foundation, power routing, and backplane communication required for continuous machinery monitoring and protection in API 670–compliant environments.

Configuration Definition

This model is defined by the following system layout:

• Mini rack frame with 7 module positions

• Bulkhead mounting design with front-side wiring access

• Standard non-barrier backplane architecture

• No internal isolation barriers included

• Standard EIA mechanical finish specification

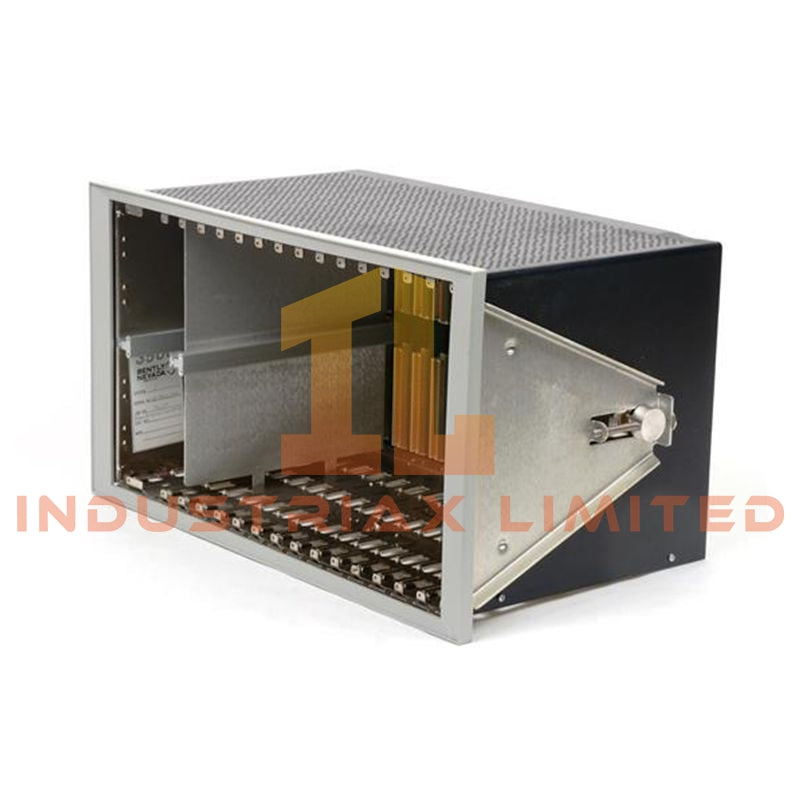

Mechanical Construction

• Rack type: Mini-size 3500 chassis

• Mounting method: Bulkhead installation (front-access wiring layout)

• Frame material: Industrial-grade aluminum alloy

• Approximate dimensions:

• Height: ~178 mm (7 in)

• Width: 305 mm (12 in)

• Depth: ~305 mm (12 in)

• Service design: Wiring and termination accessible from front panel

This structure is optimized for compact enclosures and wall-mounted protection systems where rear access is restricted.

Module Capacity & Layout

The internal architecture supports essential monitoring system components:

• Dedicated slots for system-critical modules:

• Rack Interface Module (RIM)

• Power supply unit

• Remaining slots available for:

• Vibration monitoring modules

• Relay interface modules

• Communication modules

Total capacity is limited to 7 modules to maintain compact system design.

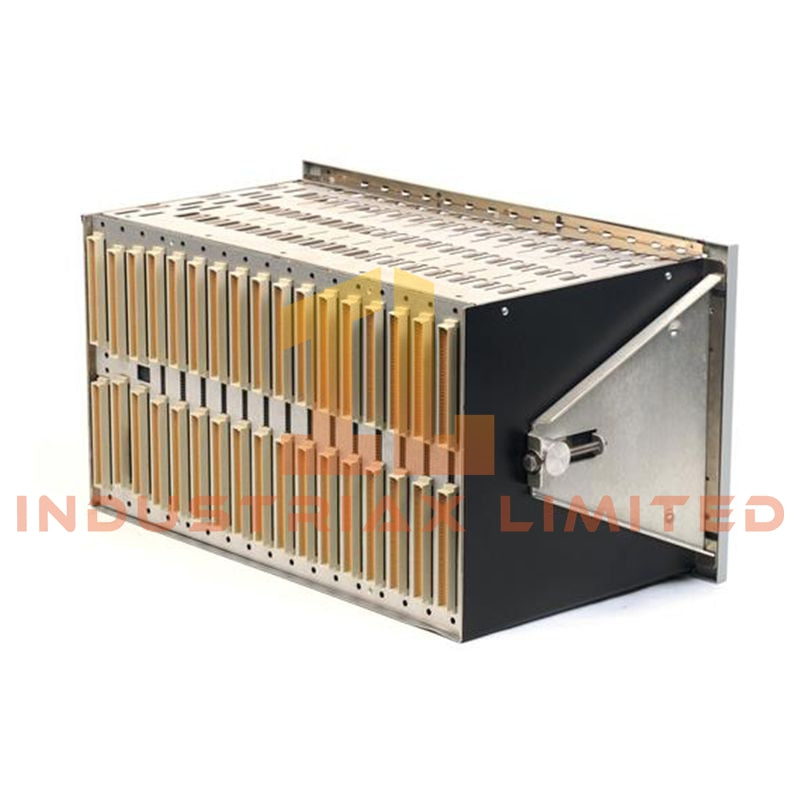

Electrical & Backplane System

• Backplane type: Standard non-barrier configuration

• Power architecture: Supports single or redundant power supply operation

• Communication paths:

• System data bus

• Relay signal bus

• Keyphasor and transducer routing channels

• Full compatibility with standard Bently Nevada 3500 modules (within slot limit)

• Designed for continuous machinery protection operation

Environmental Performance

• Operating temperature range: –20°C to +65°C

• Storage temperature range: –40°C to +85°C

• Humidity tolerance: up to 95% non-condensing

• Suitable for vibration-intensive industrial environments including rotating machinery systems

Compliance & Safety Standards

• EMC immunity: EN 61000-6-2

• EMC emissions: EN 61000-6-4

• Electrical safety: EN 61010-1

• Hazardous area certifications:

• Class I, Division 2, Groups A–D, T4

• ATEX / IECEx Zone 2 (non-barrier configuration)

Application Scenarios

• Compact turbine and compressor protection systems

• Skid-mounted rotating equipment monitoring

• OEM machinery with integrated condition monitoring

• Wall-mounted or cabinet-based installations requiring front wiring access

• Small-footprint industrial protection systems

FAQ

Q1: What is the key advantage of bulkhead mounting?
It allows all wiring connections to be accessed from the front, eliminating rear clearance requirements.

Q2: How many modules can be installed in this rack?
The rack supports up to 7 modules including RIM and power supply positions.

Q3: Is it compatible with all 3500 modules?
Yes, it supports standard 3500 series modules within its slot capacity.

Specifications

• Brand: Bently Nevada

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
