Description
Product Overview

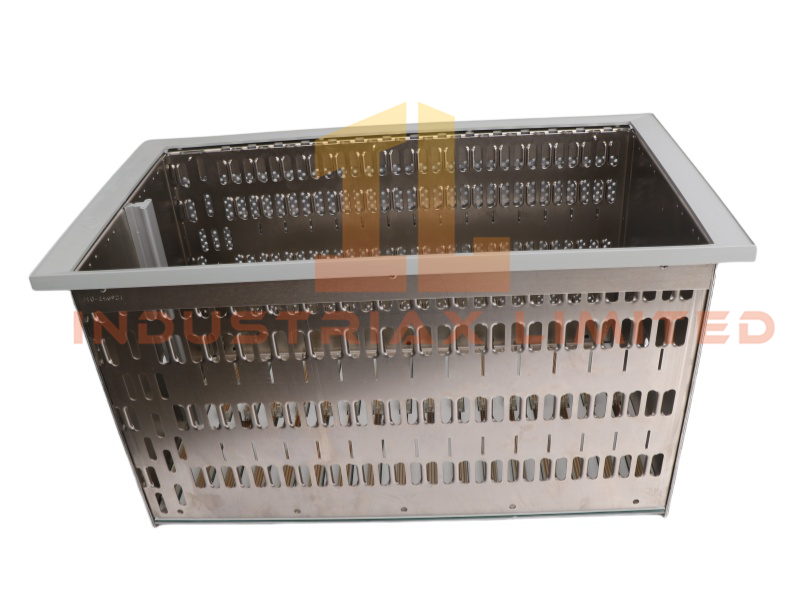

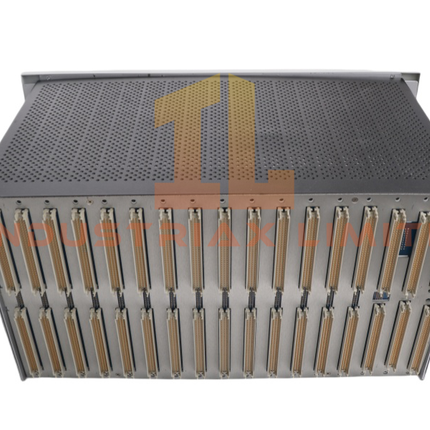

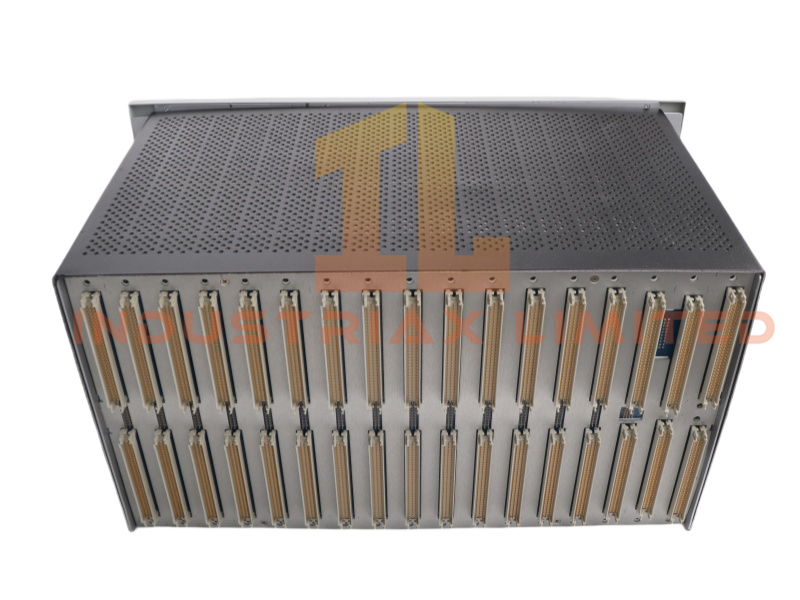

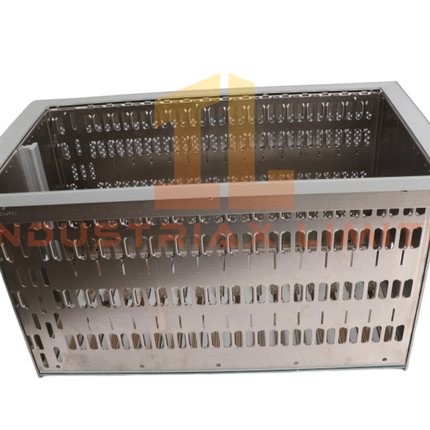

The Bently Nevada 3500/05-01-02-00-00-01 System Rack belongs to the 3500 monitoring system. It houses vibration monitors, power supplies, and interface modules, ensuring reliable communication and centralized power distribution. Its robust design supports multiple mounting formats, making it suitable for diverse industrial installations.
Technical Specifications
| Parameter |
Value |
| Model Number |
3500/05-01-02-00-00-01 |
| Module Type |
System Rack |
| Manufacturer |
Bently Nevada |
| Product Range |
3500 System |
| Condition |
Brand New |
| Dimensions |
48.2 × 27.4 × 26.6 cm |
| Weight |
6.3 kg |
| HS Code |
8537101190 |
| Minimum Order Quantity |
1 |
| Origin |
USA |
| System |
TSI |
| Communication Service |
Ethernet Router |
| Status |
Active |
| Rack Options |
19-inch 14-slot, 12-inch 7-slot |
| Mounting Formats |
Panel, rack, bulkhead |
| Slot Arrangement |
Left slots for power/interface, right for I/O |
Functional Description

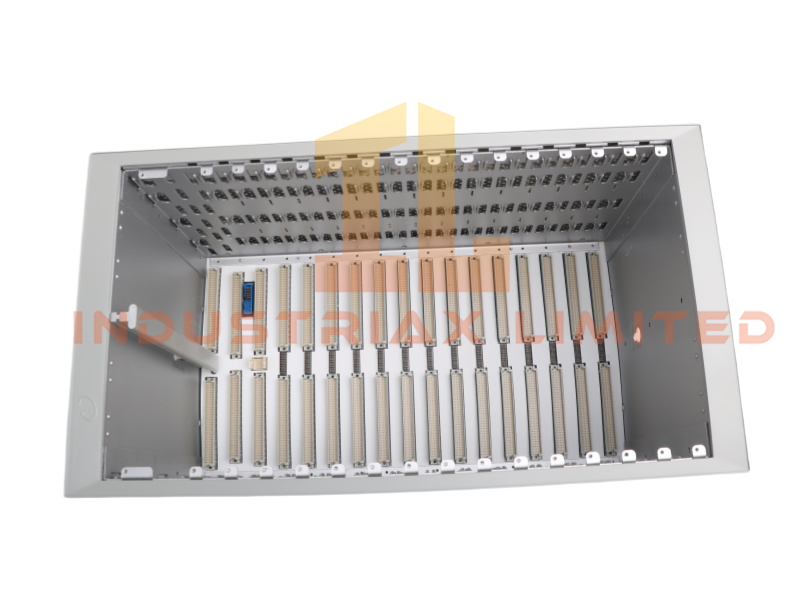

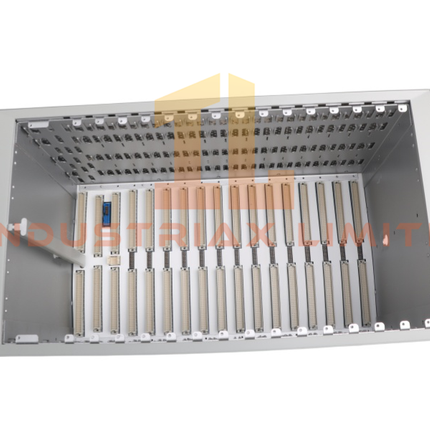

The 3500/05-01-02-00-00-01 rack supports 14 slots in full-size EIA configurations or 7 slots in mini-rack setups. Its standardized layout reserves left-side slots for power supplies and interface modules, while monitoring and I/O modules occupy the right. This arrangement reduces wiring complexity and maintains signal integrity for critical speed monitoring up to 30,000 RPM.
Applications and Compatibility
The Bently Nevada 3500/05-01-02-00-00-01 System Rack suits power plants, compressor stations, and industrial facilities requiring vibration and overspeed protection. Its compatibility with the broader 3500 series ensures seamless integration and simplified maintenance. Operators deploy it in panel-mounted control rooms or bulkhead-mounted field installations, benefiting from its intelligent power distribution.
Key Benefits
-
Compact 48.2x27.4x26.6cm dimensions fit diverse installation environments.
-
Heavy-duty 6.3kg build ensures durability and stability.
-
Multiple rack options provide flexibility for space-constrained setups.
-
Logical slot arrangement simplifies wiring and module integration.
-
Supports panel, rack, and bulkhead mounting for versatile deployment.
