Description

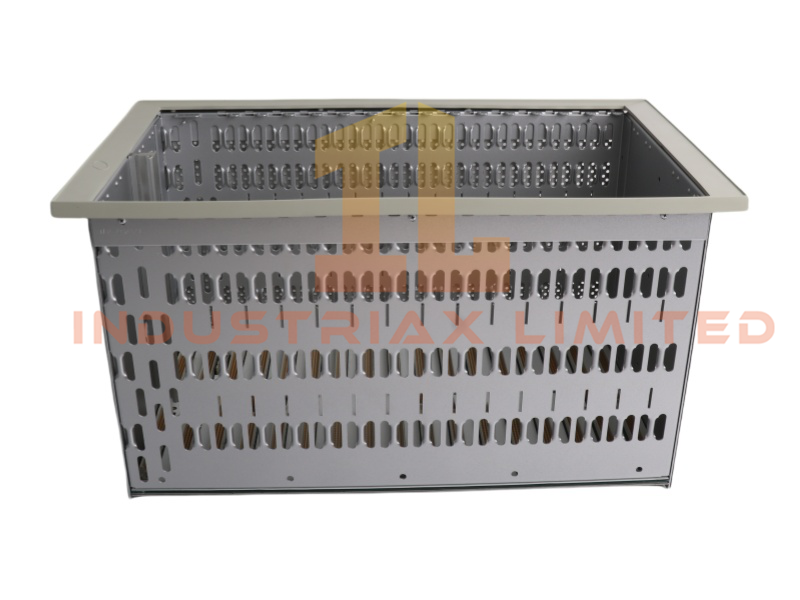

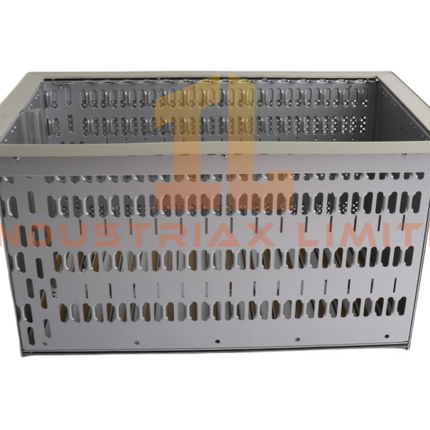

Bently Nevada 3500/05-01-01-00-00-01 System Rack
The Bently Nevada 3500/05-01-01-00-00-01, also cataloged as the 3500/05 system rack, operates as a dedicated hardware component for physical housing, backplane interconnection, and power distribution within the 3500 monitoring system. Configured for module mounting and inter-module communication in 3500 monitoring system platforms, the Bently Nevada 3500/05-01-01-00-00-01 (3500/05 system rack) provides direct electrical backplane execution.
Hardware Specifications
| Parameter |
Specification |
| Model |
3500/05-01-01-00-00-01 |
| Brand |
Bently Nevada |
| Dimensions |
Full-size 19 inch EIA (14 slots) / Mini-rack 12 inch (7 slots) |
| Operating Temp |
-20 deg C to +65 deg C |
| Rack Sizes |
Full-size rack (14 slots), Mini-rack (7 slots) |
| Mounting Formats |
Panel mount, Rack mount, Bulkhead mount (mini-rack excluded) |
| Backplane Function |
Module interconnection and rack-level power distribution |
Bently Nevada Rack-Level Interconnect & Backplane Architecture

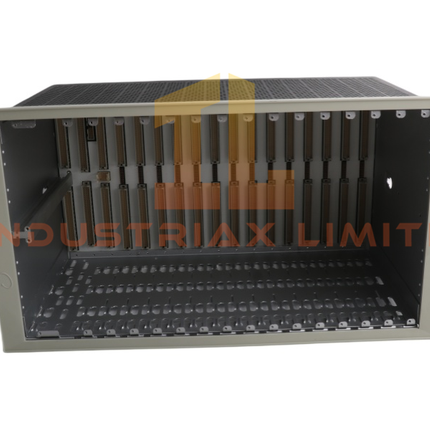

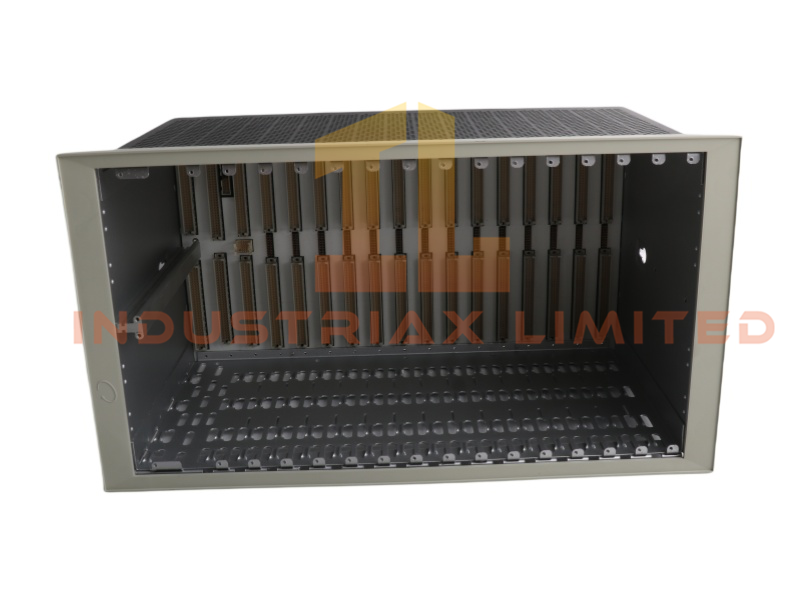

The 3500/05 rack implements a passive backplane structure for slot-to-slot electrical distribution and module synchronization. Within the rack topology, power supply modules and rack interface modules are fixed to the leftmost slots to establish deterministic power sequencing across the backplane bus.
In Bently Nevada system architecture, rack-level interconnect integrity is influenced by signal isolation and cross-channel coupling control across adjacent monitoring modules. Backplane routing is designed to minimize interference between vibration monitoring channels and support stable transducer signal aggregation, including eddy-current probe input conditioning and gap voltage reference alignment behavior in TSI monitoring chains.
Frequently Asked Questions (FAQ)
Q: Can modules be installed in any slot position within the 3500/05 rack?
A: No. Power supply and rack interface modules must occupy the far-left designated slots. Remaining positions support flexible module allocation within the backplane structure.
Q: Does the rack support mixed full-size and mini-rack mechanical configurations?
A: No. Full-size (14-slot) and mini-rack (7-slot) configurations are mechanically distinct and are not interchangeable.
Q: Is the rack backplane active or passive in signal processing?
A: The rack implements a passive backplane used for electrical distribution and inter-module communication without embedded signal processing logic.
Field Installation Guidelines
-
Install rack using approved panel, rack, or bulkhead mounting methods based on configuration type.
-
Maintain clearance for rear wiring access in panel and rack mount configurations.
-
Ensure power supply and rack interface modules are placed in the leftmost slots before inserting additional modules.
-
Verify grounding continuity across rack chassis prior to module insertion.
-
In hazardous area installations, follow certified drawings and maintain compliance with ATEX/IECEx configuration rules.
-
Avoid mechanical stress on backplane connectors during module insertion or removal to prevent pin deformation.
